- Suitable for mounting anisotropic optical components (such as polarizing optical components)
- 360° rotatable
- M4 threaded hole at the bottom for connecting to optical posts
- 360° rotation, suitable for Ø25.4 mm optical components
- Rotation dial scale accuracy 1°, differential scale accuracy 5′ (0.08°)
- Micrometer with 10 main divisions and 50 sub-divisions, allowing ±5° adjustment with precision of 1.2′ (0.02°)
- M4 threaded hole at bottom for connecting to optical posts
- Maximum mounting thickness 12 mm for optical components
The Free-Space Rotation Mount provided by LBTEK is suitable for mounting Ø25.4 mm optical components and offers 360° rotation. The side thumb screw enables switching between coarse and fine adjustments. During coarse adjustment, the rotation dial has a scale accuracy of 1°, with differential line accuracy of 5′ (0.08°). For fine adjustment, the micrometer head provides an adjustment range of ±5° with an accuracy of 1.2′ (0.02°), and the micrometer head can be locked via the thumb screw on its top. The base features an M4 threaded hole for connecting to optical posts.
The RMS-1A Mounted on a Ø12.7 mm Stainless Steel Optical Post
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Adjustment accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| RMS-1A | Ø25.4 mm | 12 mm | 1.2′（0.02°） | $206.31 | today |
- 360° rotation, minimum precision 2°
- SM1 threaded mounting hole, includes one SM1R retaining ring
- Bottom M4 threaded hole for connecting optical posts
- Accommodates optical components up to 14 mm thick
- Smooth rotation achieved using two NSK precision bearings
The LBTEK CMRM1 Free-Space Rotation Mount is designed for installing Ø25.4 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body and has an M4 threaded hole at the bottom for connecting to optical posts.
CMRM1 Mounted on Ø12.7 mm Stainless Steel Optical Post
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Scale accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| CMRM1 | Ø25.4 mm | 14 mm | 2° | $92.3 | 3 weeks |
- 360° rotation, dial can be individually zeroed
- Graduated dial accuracy of 2° per division, differential of 5′ per division
- Optional SM1 or SM2 threaded mounting holes, includes one retaining ring
- Accommodates optical components up to 13 mm thick
- Smooth rotation achieved with two NSK precision bearings
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| CMRMD2 | Ø50.8 mm | 13 mm | $141.33 | today | |||
| CMRMD1 | Ø25.4 mm | 13 mm | $98.71 | today |
- Can accommodate Ø1/2 inch (Ø12.7 mm) optical components with a maximum thickness of 0.23 inches (5.9 mm)
- 360° continuous coarse rotation with 2° coarse graduations
- Fine adjustment range of ±7° via threaded adjuster when locked
- Vernier accuracy of 10 arc minutes
- Suitable for Ø1/2 inch polarization optics

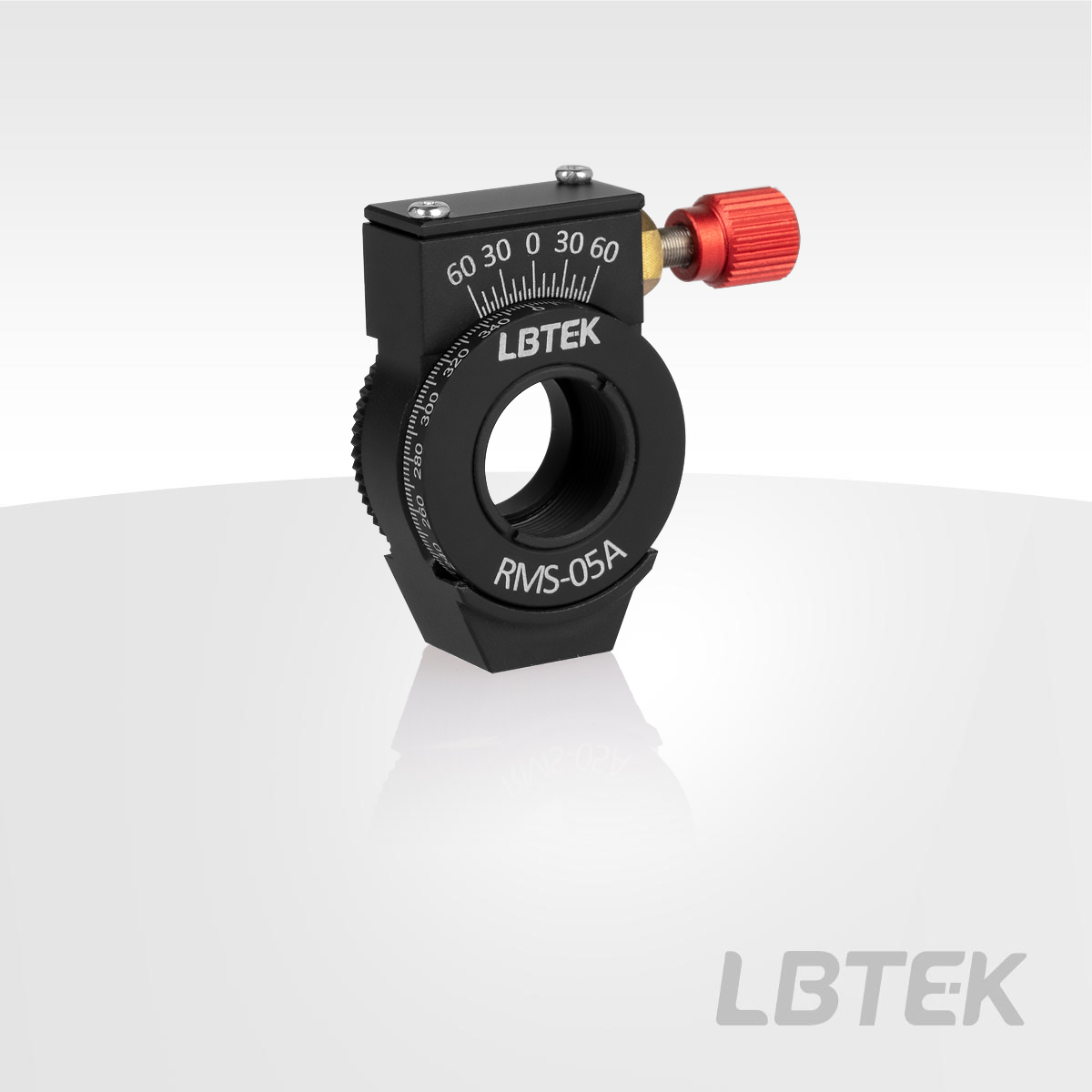

The RMS-05A Rotating Mount is specifically designed for Ø1/2 inch optical elements, enabling 360° continuous manual coarse adjustment and backlash-free fine adjustment. Its SM05 (0.535"-40) internal threaded hole is compatible with Ø1/2 inch optical elements with a maximum thickness of 5.9 mm. The optical element is secured by the rear internal lip together with the standard SM05 retaining ring.
The outer edge of the rotating disk is equipped with a laser-etched scale with a minimum division of 2°, allowing for coarse adjustment via the knurled ring at the rear of the mount. The vernier reading multiplied by 2 converts to arcminutes. A built-in M3*3 set screw is used to lock the dial, working in conjunction with the adjustment screw for fine-tuning.

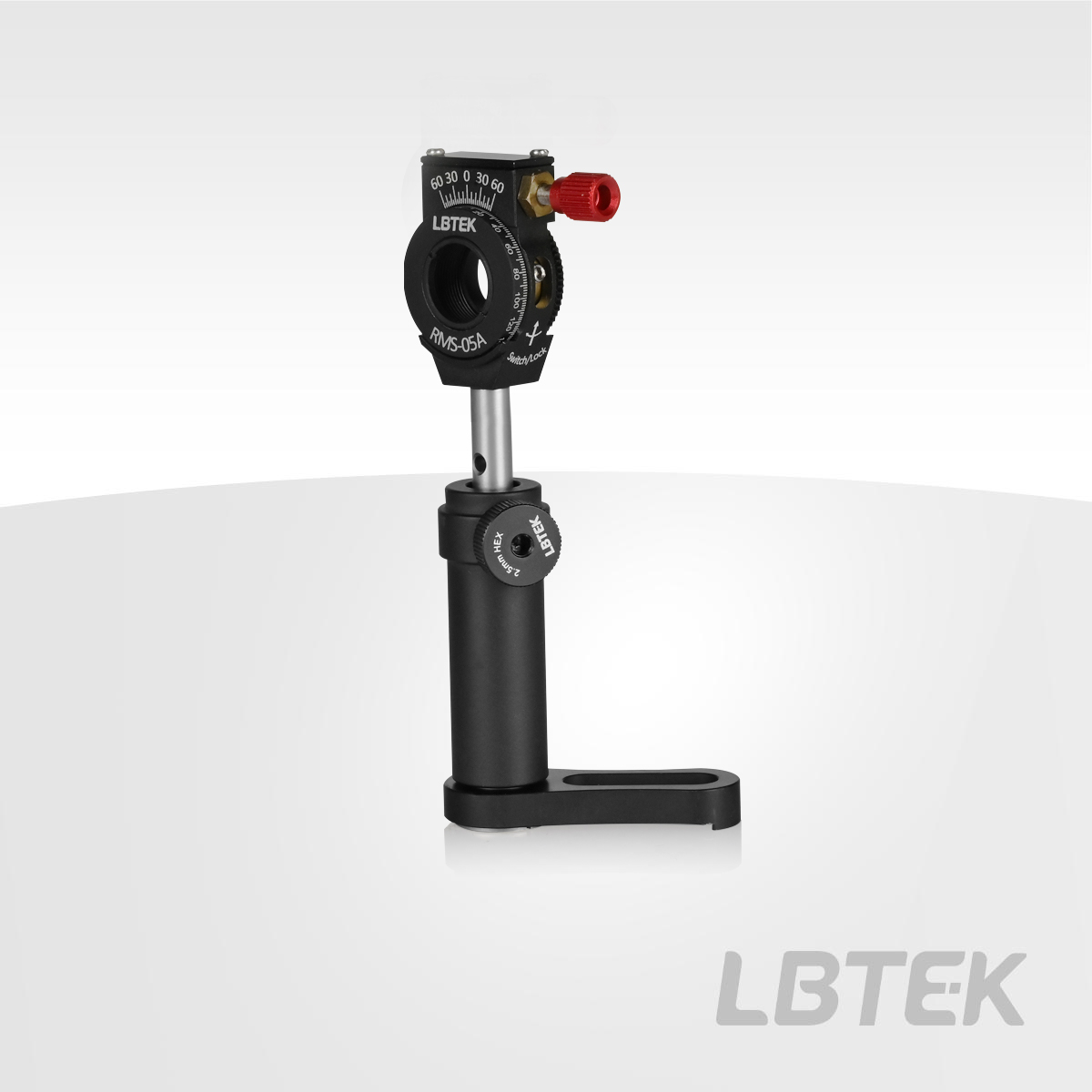

RMS-05A mounts on a Ø12.7 mm stainless steel optical post
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Adjustment accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| RMS-05A New | Ø12.7 mm | 5.9 | 10′ | $116.49 | today |
- 360° rotation with minimum 2° precision
- SM05 threaded mounting hole, includes one SM05R retaining ring
- Bottom M4 threaded hole for connecting to optical posts
- Accommodates optical components up to 7.2 mm thick
- Top features U-shaped groove
The LBTEK CMRM05 Free-Space Rotation Mount is designed for mounting Ø12.7 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body. The base is equipped with an M4 threaded hole for connecting to optical posts. The top features a U-shaped groove for installing LBTEK Ø6 mm coaxial system mounting posts, facilitating experimental alignment.
CMRM05 Mounted on Ø12.7mm Stainless Steel Optical Post
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Scale accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| CMRM05 | Ø12.7 mm | 7.2 mm | 2° | $44.71 | today |
- 360° rotation with minimum precision of 2°
- SM05 threaded mounting hole, includes one SM05R retaining ring
- Bottom M4 threaded hole for connecting to optical posts
- Accommodates optical components with maximum thickness of 7.2 mm
The LBTEK CMRM05S Free-Space Rotation Mount is designed for mounting Ø12.7 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body and an M4 threaded hole at the base for connecting to optical posts.
CMRM05S Mounted on Ø12.7mm Stainless Steel Optical Post
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Scale accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| CMRM05S | Ø12.7 mm | 7.2 mm | 2° | $44.71 | 2 weeks |
