Product Description

Suitable for mounting anisotropic optical components (such as polarizing optical components)
360° rotatable
M4 threaded hole at the bottom for connecting to optical posts

Free-Space Rotation Mount is designed for mounting anisotropic optical components (such as polarization optics). It features a central SM-series internal threaded mounting hole and comes with an SM-series retaining ring for securing optical components. The rotation mount allows 360° rotation of the internal optical component, with graduation marks at 2° intervals and numerical indicators every 20°. A locking screw on the side can secure the rotating body. The base includes an M4 threaded hole for connection to optical posts.

Attribute

Material6061-T6 Aluminum Alloy

Surface treatmentBlack anodized

Rod mounting threaded holeM4

Rotation angle360°

Free-Space Rotation Mounts, Half-Inch, with U-Groove

360° rotation with minimum 2° precision
SM05 threaded mounting hole, includes one SM05R retaining ring
Bottom M4 threaded hole for connecting to optical posts
Accommodates optical components up to 7.2 mm thick
Top features U-shaped groove

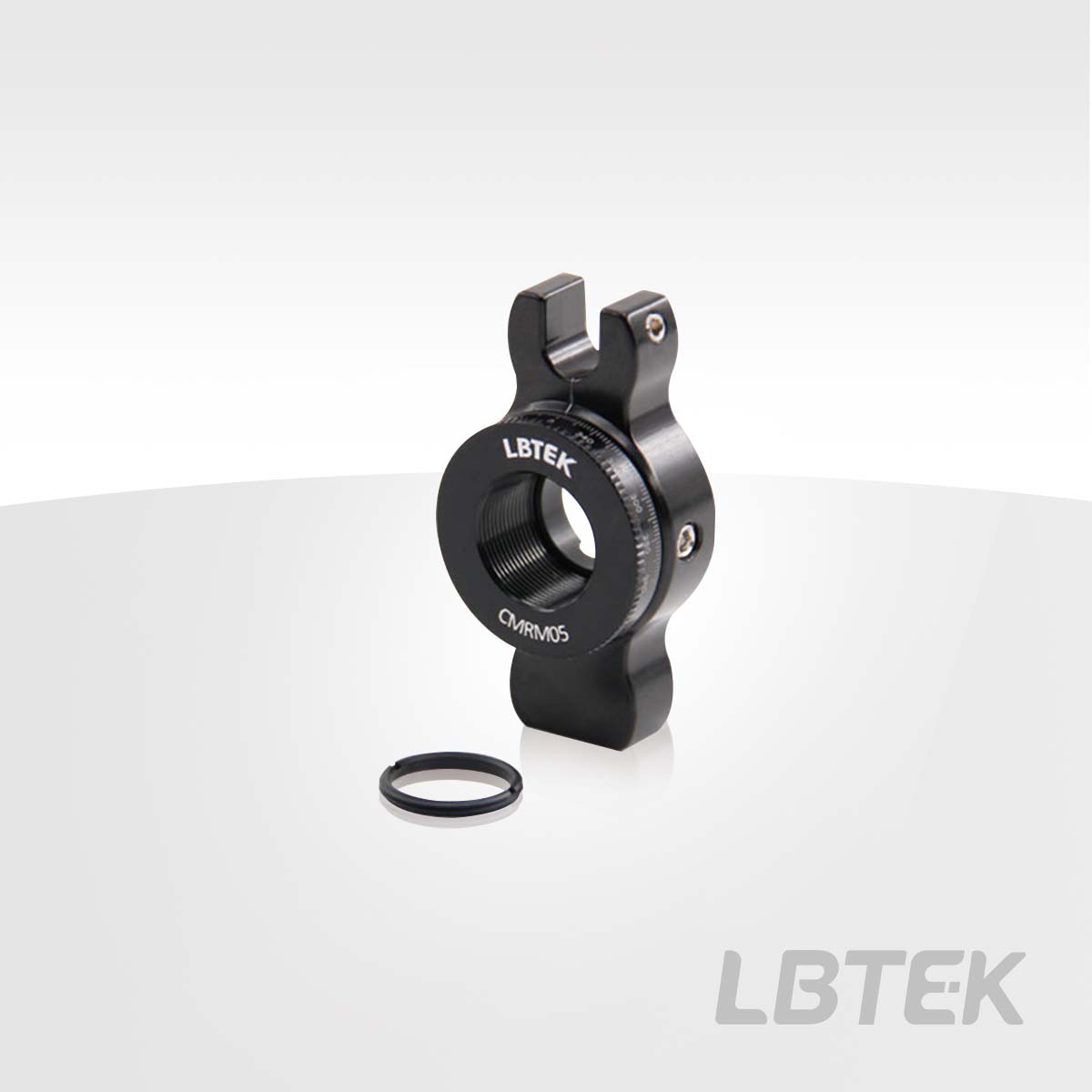

The LBTEK CMRM05 Free-Space Rotation Mount is designed for mounting Ø12.7 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body. The base is equipped with an M4 threaded hole for connecting to optical posts. The top features a U-shaped groove for installing LBTEK Ø6 mm coaxial system mounting posts, facilitating experimental alignment.

CMRM05 Mounted on Ø12.7mm Stainless Steel Optical Post

	Product Model	Applicable optical element diameter	Maximum applicable thickness of optical components	Scale accuracy	Unit Price	Compare	Lead Time
	CMRM05	Ø12.7 mm	7.2 mm	2°	$44.71		4 weeks

Free-Space Rotation Mounts, Half-Inch, without U-Groove

360° rotation with minimum precision of 2°
SM05 threaded mounting hole, includes one SM05R retaining ring
Bottom M4 threaded hole for connecting to optical posts
Accommodates optical components with maximum thickness of 7.2 mm

The LBTEK CMRM05S Free-Space Rotation Mount is designed for mounting Ø12.7 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body and an M4 threaded hole at the base for connecting to optical posts.

CMRM05S Mounted on Ø12.7mm Stainless Steel Optical Post

	Product Model	Applicable optical element diameter	Maximum applicable thickness of optical components	Scale accuracy	Unit Price	Compare	Lead Time
	CMRM05S	Ø12.7 mm	7.2 mm	2°	$44.71		5 weeks

Free-Space Rotation Mounts, One-Inch

360° rotation, minimum precision 2°
SM1 threaded mounting hole, includes one SM1R retaining ring
Bottom M4 threaded hole for connecting optical posts
Accommodates optical components up to 14 mm thick
Smooth rotation achieved using two NSK precision bearings

The LBTEK CMRM1 Free-Space Rotation Mount is designed for installing Ø25.4 mm anisotropic optical components, featuring 360° rotation with 2° scale accuracy and numerical markings every 20°. It includes a side locking screw to secure the rotating body and has an M4 threaded hole at the bottom for connecting to optical posts.

CMRM1 Mounted on Ø12.7 mm Stainless Steel Optical Post

	Product Model	Applicable optical element diameter	Maximum applicable thickness of optical components	Scale accuracy	Unit Price	Compare	Lead Time
	CMRM1	Ø25.4 mm	14 mm	2°	$92.3		5 weeks

Free-Space Rotation Mounts, One-Inch, with Micrometer Heads

360° rotation, suitable for Ø25.4 mm optical components
Rotation dial scale accuracy 1°, differential scale accuracy 5′ (0.08°)
Micrometer with 10 main divisions and 50 sub-divisions, allowing ±5° adjustment with precision of 1.2′ (0.02°)
M4 threaded hole at bottom for connecting to optical posts
Maximum mounting thickness 12 mm for optical components

The Free-Space Rotation Mount provided by LBTEK is suitable for mounting Ø25.4 mm optical components and offers 360° rotation. The side thumb screw enables switching between coarse and fine adjustments. During coarse adjustment, the rotation dial has a scale accuracy of 1°, with differential line accuracy of 5′ (0.08°). For fine adjustment, the micrometer head provides an adjustment range of ±5° with an accuracy of 1.2′ (0.02°), and the micrometer head can be locked via the thumb screw on its top. The base features an M4 threaded hole for connecting to optical posts.

The RMS-1A Mounted on a Ø12.7 mm Stainless Steel Optical Post

	Product Model	Applicable optical element diameter	Maximum applicable thickness of optical components	Adjustment accuracy	Unit Price	Compare	Lead Time
	RMS-1A	Ø25.4 mm	12 mm	1.2′（0.02°）	$206.31		6 weeks

Free-Space Rotation Mounts, with Individually Adjustable Dials

360° rotation, dial can be individually zeroed
Graduated dial accuracy of 2° per division, differential of 5′ per division
Optional SM1 or SM2 threaded mounting holes, includes one retaining ring
Accommodates optical components up to 13 mm thick
Smooth rotation achieved with two NSK precision bearings

The free-space rotation adjustment mount provided by LBTEK is suitable for mounting anisotropic optical components with diameters of Ø25.4 mm and Ø50.8 mm. It features 360° rotation with a scale accuracy of 2° per division, and a differential scale of 5′ per division. The side is equipped with a locking screw to secure the rotating body. The end face has two countersunk locking screws—when loosened, the dial can be adjusted independently for zeroing without affecting the optical component's position. This allows for aligning the optical axis of the waveplate with the dial after installation. Once the position is adjusted, tightening the countersunk screws fixes the dial in place. The base includes an M4 threaded hole for connecting to optical posts.

The dial can be zeroed individually and can be used for components such as wave plates.

	Product Model	Applicable optical element diameter	Maximum applicable thickness of optical components	Unit Price	Compare	Lead Time
	CMRMD2	Ø50.8 mm	13 mm	$141.33		5 weeks
	CMRMD1	Ø25.4 mm	13 mm	$98.71		5 weeks
