Product Description

Single-axis/dual-axis/triple-axis manual linear translation stages available;
Three drive types: end direct drive, left-side drive, and right-side drive;
Linear crossed roller guide for high load capacity and high positioning accuracy;
Multiple single-axis stages can be assembled into XY-axis and XYZ-axis translation stages;

The manual linear translation stages from LBTEK utilize linear crossed roller rails and imported micrometer heads, capable of handling high loads. The 25 mm travel manual stages feature a 90 mm × 90 mm stage surface with M6 tapped holes. Available in single-axis, XY, and XYZ configurations, these stages also offer three drive types: end direct drive, left-side drive, and right-side drive, with a minimum micrometer graduation of 10 μm and linear positioning accuracy within 3 μm. Multiple single-axis manual stages from LBTEK can be freely combined into XY and XYZ stages. Two single-axis stages can be assembled into an XY stage using the included socket head screws. Additionally, an XY stage can be combined with a single-axis Z-stage via the 90 mm right-angle adapter plate (LS90VA) to form an XYZ stage. Beyond the 25 mm travel manual linear stages, LBTEK also offers 13 mm travel manual stages with a 65 mm × 65 mm stage surface and 13 mm travel.

Attribute

Number of axesSingle-axis/Dual-axis/Triple-axis

Tabletop size90 mm×90 mm

stroke25 mm

Micrometer head minimum scale10 um

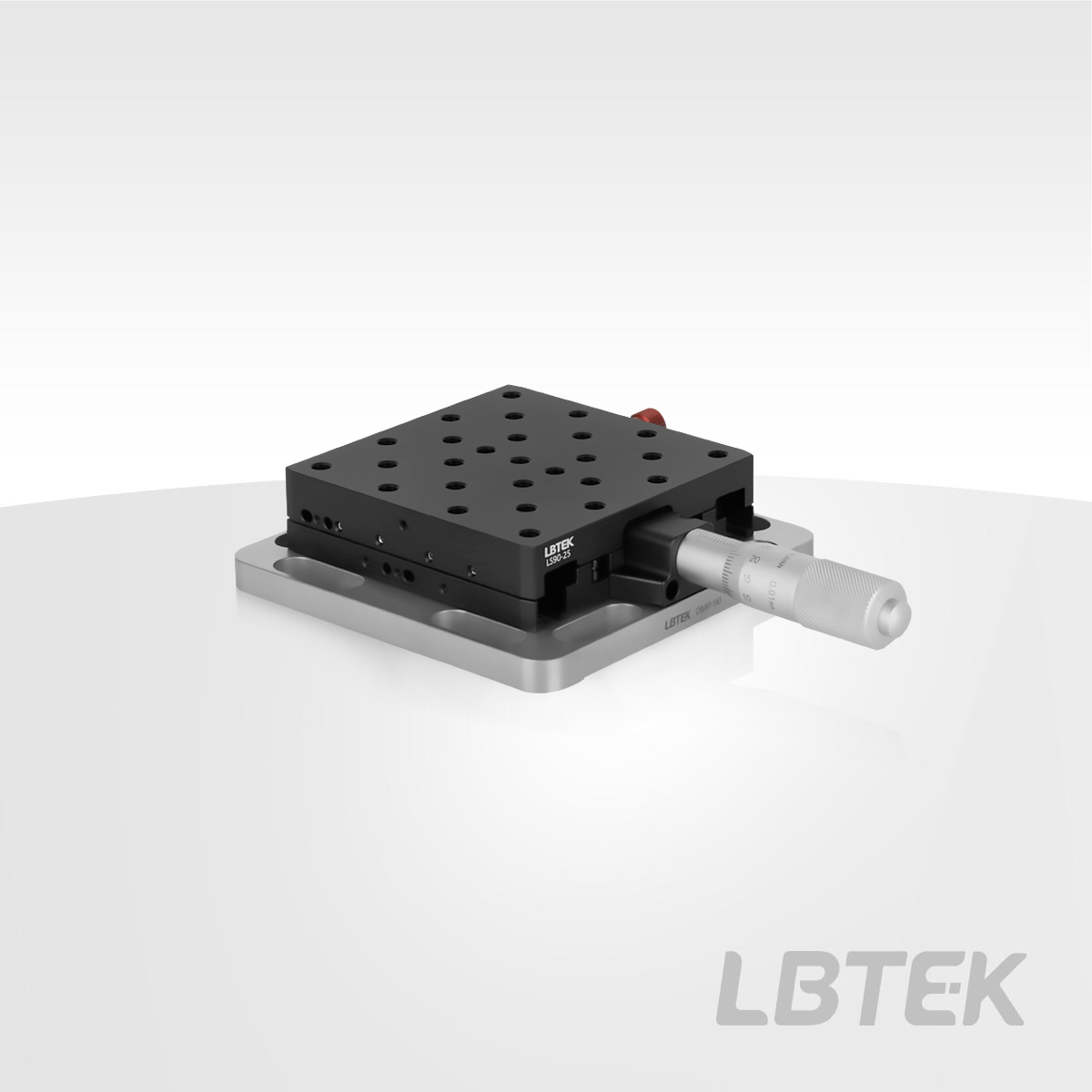

25 mm Single-axis Linear Translation Stage with Standard Micrometer Head

Single-axis drive with standard micrometer head;
Stage size: 90 mm × 90 mm;
Travel: 25 mm;
Minimum graduation: 10 μm;
Available in three drive types: end direct drive, left-side drive, and right-side drive;

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with a micrometer driver, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 90 mm × 90 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.

The optical component is mounted on a single-axis linear translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LS90-25C1	90 mm×90 mm	25 mm	End direct drive	Single axis	$298.48	4 weeks
LS90-25L1	90 mm×90 mm	25 mm	Left-side drive	Single axis	$307.37	4 weeks
LS90-25R1	90 mm×90 mm	25 mm	Right-side drive	Single axis	$307.37	4 weeks

25 mm XY-axis Linear Translation Stage with Standard Micrometer Head

XY-axis linear translation stage with standard micrometer head;
Stage size: 90 mm×90 mm;
Travel: 25 mm;
Micrometer graduation: 10 um;
Available in three drive types: end direct drive, left-side drive, and right-side drive;

The XY-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature XY-axis direction drive with a micrometer driver, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 90 mm × 90 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.

The optical component is mounted on an XY-axis linear translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LS90-25C2	90 mm×90 mm	25 mm	End direct drive	dual-axis	$614.22	4 weeks
LS90-25L2	90 mm×90 mm	25 mm	Left-side drive	dual-axis	$614.22	4 weeks
LS90-25R2	90 mm×90 mm	25 mm	Right-side drive	dual-axis	$614.22	4 weeks

25 mm XYZ-axis Linear Translation Stage with Standard Micrometer Heads

XYZ-axis drive with standard micrometer heads;
Stage size: 90 mm × 90 mm;
Travel: 25 mm
Minimum graduation: 10 um;
Available in three drive types: end direct drive, left-side drive, and right-side drive

The XYZ-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature XYZ-axis direction drive with a micrometer driver, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 90 mm × 90 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.

The optical component is mounted on an XYZ-axis linear translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LS90-25C3	90 mm×90 mm	25 mm	End direct drive	Three-axis	$909.04	4 weeks
LS90-25L3	90 mm×90 mm	25 mm	Left-side drive	Three-axis	$909.04	4 weeks
LS90-25R3	90 mm×90 mm	25 mm	Right-side drive	Three-axis	$909.04	4 weeks

90 mm Right-Angle Adapter Plate

Adaptable for XZ and XYZ linear stage assemblies
Vertical mounting application
Form factors: 90 mm × 90 mm
Orthogonality: ≤10 μm
Integrated with M6 tapped holes

The 90 mm right-angle adapter plate from LBTEK is compatible with 25 mm-travel manual linear translation stages, enabling vertical integration of two translation stages. By using this adapter plate, an XY-axis linear translation stage combined with a single-axis linear translation stage forms an XYZ-axis linear translation stage, while two single-axis stages assemble into an XZ-axis linear translation stage.

LS90VA is typically employed in assembling XYZ-axis translation stages.

	Product Model	Size	Thread hole specifications	Unit Price	Compare	Lead Time
	LS90VA	90 mm×90 mm	M6	$76.75		6 weeks

L-shaped Right Angle Adapter

Horizontal stage size: 90 mm × 90 mm;
Conversion of stage vertical Z-axis mounting to horizontal lifting installation;
M6 tapped holes;

The 90 mm horizontal-lifting right-angle adapter plate from LBTEK is designed for 25 mm travel manual linear translation stages, converting vertical Z-axis mounting into horizontal lifting configurations. The vertical face of the right-angle plate features four M6 tapped holes and two Ø5 mm dowel pin holes, allowing installation of L-shaped right angle plate onto Z-axis configured stages using four M6 socket head cap screws and two Ø5 mm dowel pins (Note: The flat adapter plate pre-installed on the stage must be removed prior to mounting). The plate can be installed with its horizontal surface facing upward or downward as required. The horizontal mounting surface measures 90 mm × 90 mm with an array of twenty-nine M6 tapped holes (hole spacing: 12.5 mm/25 mm).

The L-shaped right angle adapter is compatible with multi-axis linear translation stages.

	Product Model	Tabletop size	Tabletop threaded hole specifications	Unit Price	Compare	Lead Time
	EM-LSS90VG	90 mm×100 mm	M6	$99.49		7 weeks
