Product Description

Single-axis/dual-axis/triple-axis manual linear translation stages available;
Three drive types: end direct drive, left-side drive, and right-side drive;
Linear crossed roller guide for high load capacity and high positioning accuracy;
Multiple single-axis translation stages can be freely assembled into XY-axis stages;

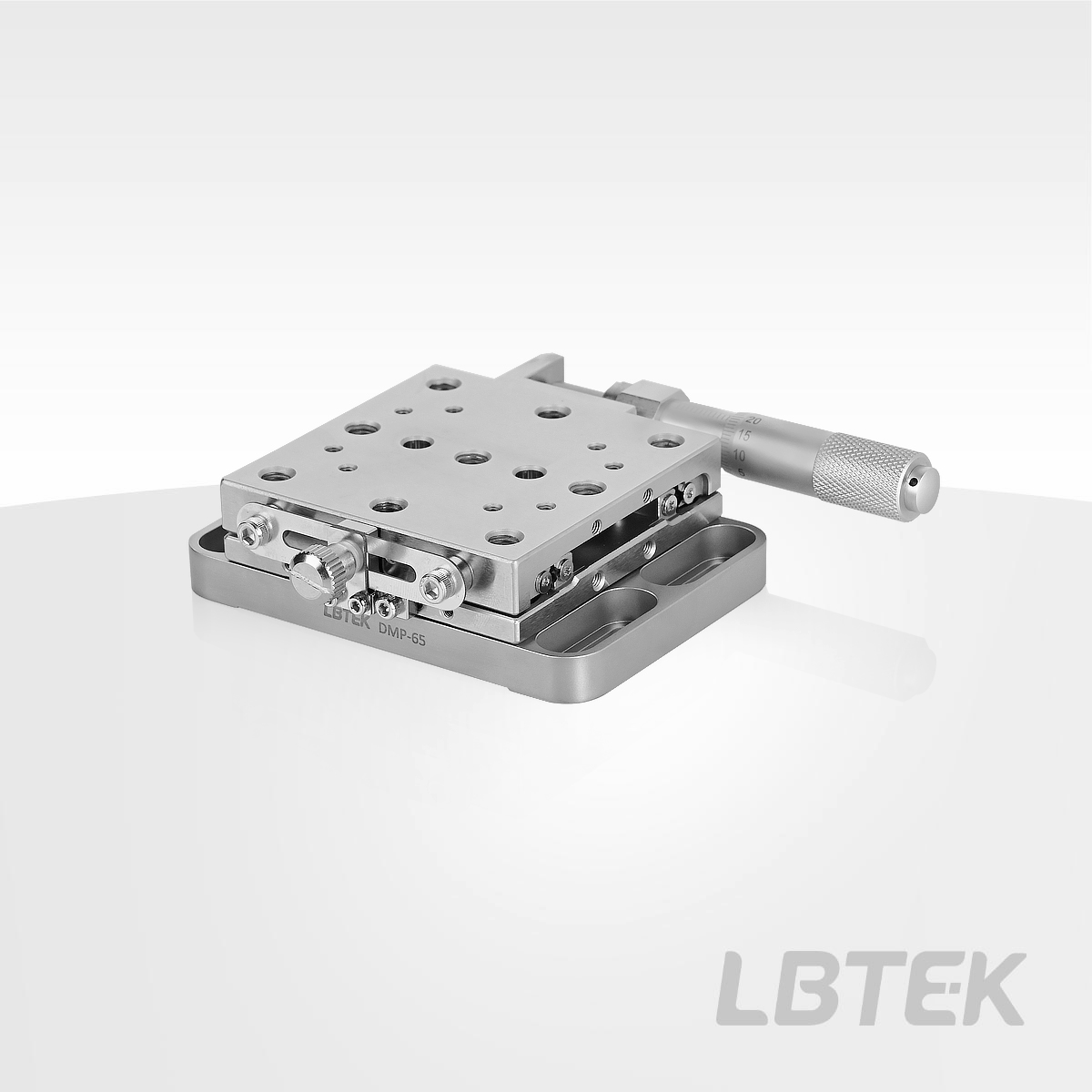

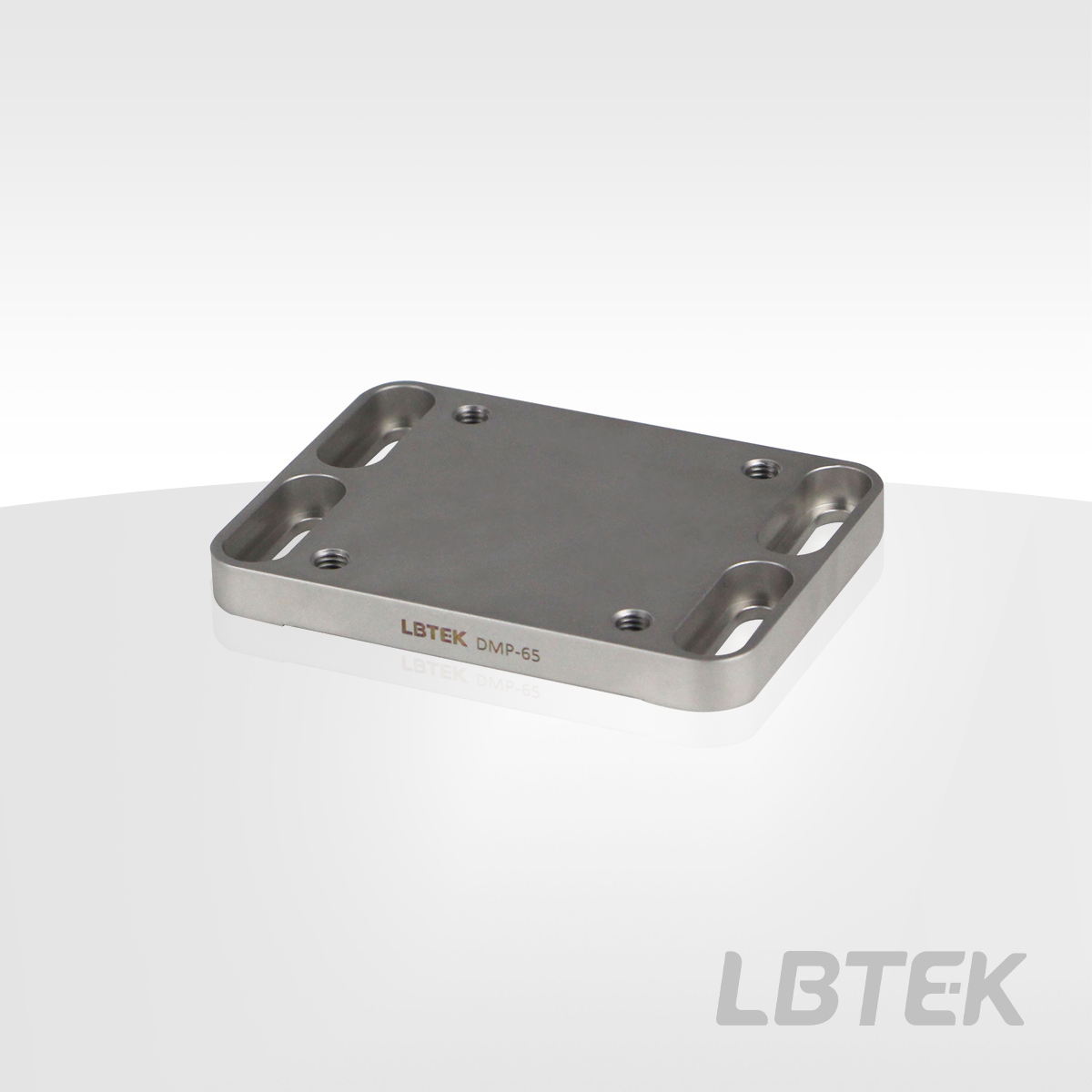

The manual linear translation stages from LBTEK utilize linear crossed roller rails with micrometer driver. The 13 mm travel manual linear translation stage features a 65 mm × 65 mm surface with M6 tapped holes at 25 mm pitch. Available in single-axis, XY, and XYZ types: single-axis and XY stages employ standard micrometer drives, while XYZ stages offer a choice of standard or differential micrometer heads. All models provide three drive types (end direct drive, left-side drive, and right-side drive) with ≤3 μm positioning accuracy. Additionally, LBTEK manual linear translation stages can be freely assembled into multi-axis translation stages. Side-mounted thumb locking screws allow securing the stage at desired positions after reaching the target location. The stage’s mounting base plate (75 mm × 50 mm) contains M6 countersunk tapped holes, allowing direct fixation to M6 optical tables (25 mm hole pitch) using included socket head cap screws. Beyond 13 mm travel stages, LBTEK also offers 25 mm travel manual linear stages with 90 mm × 90 mm stage surfaces and 25 mm travel.

Attribute

Material6061-T6 aluminum alloy

Surface treatmentBlack anodized

Number of axesSingle-axis/Dual-axis/Triple-axis

Tabletop size65 mm×65 mm

stroke13 mm

Micrometer Head

148-801, 150-801 standard micrometer heads;
Travel: 13 mm, 25 mm;
Graduation: 10 μm/division;
Positioning Accuracy: ±2 μm;

Micrometer heads are primarily used in mechanical motion control products, such as manual linear stages from LBTEK. LBTEK offers Mitutoyo 148-801 and 150-801 micrometer heads for 13 mm and 25 mm travel respectively. The micrometer head sleeves are graduated at 10 μm/division with ±2 μm positioning accuracy. The spherical tip of the driver ensures single-point contact, minimizing alignment errors.

The micrometer head is applied to LBTEK linear translation stages.

	Product Model	stroke	Bushing outer diameter	Unit Price	Compare	Lead Time
	150-801	25 mm	10 mm	$66.42		2 weeks
	148-801	13 mm	9.5 mm	$64.59		2 weeks

XYZ-axis Linear Translation Stage with Differential Micrometer Head

Direct-drive linear stage with differential micrometer head;
Stage size: 65×65 mm;
Coarse adjustment: 13 mm travel, minimum graduation 10 μm;
Fine adjustment: 200 μm travel, minimum graduation 0.5 μm;

The XYZ-axis linear translation stage from LBTEK incorporates a differential micrometer head structure with end direct drive. It provides coarse adjustment of 13 mm travel (10 μm minimum graduation) and fine adjustment of 200 μm travel (0.5 μm minimum graduation). The 65 mm × 65 mm stage surface features M6 tapped holes. Four U-shaped slot positioning holes on the base enable stage securing with M6 screws.

The optical component is mounted on an XYZ-axis linear translation stage.

	Product Model	Number of axes	Drive position	Micrometer Head Specifications	Unit Price	Compare	Lead Time
	LS65-13C3P	Three-axis	End direct drive	Differential	$1358.4		5 weeks

65mm Right-Angle Adapter Plate

Main material: 6061-T6 aluminum alloy
Black anodized
M6 tapped hole ×9, M4 tapped hole ×4

The right-angle adapter plate from LBTEK is made of aluminum alloy with high precision and rigidity, featuring M6 countersunk slots, M4 tapped holes, and M6 tapped holes for fixing and connecting mechanical components. It is compatible with the LBTEK LS65-13×× series linear stages. The purchase comes with two M6 socket head cap screws.

LS65RAP is compatible with the LS65-13×× series linear stage.

	Product Model	Overall dimensions	Unit Price	Compare	Lead Time
	LS65RAP	65 mm×86 mm×30 mm	$51.12		6 weeks

13 mm XYZ-Axis Linear Translation Stage with Standard Micrometer Head

XYZ-axis drive with standard micrometer head;
Stage size: 65 mm×65 mm;
Travel: 13 mm;
Micrometer graduation: 10 um;
Three drive types: end direct drive, left-side drive, and right-side drive;

The XYZ-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature XYZ-axis drive with a micrometer driver, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 65 mm × 65 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.

The optical component is mounted on an XYZ-axis linear translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LS65-13C3	65 mm × 65 mm	13 mm	End direct drive	Three-axis	$944.6	4 weeks
LS65-13L3	65 mm × 65 mm	13 mm	Left-side drive	Three-axis	$869.95	4 weeks
LS65-13R3	65 mm × 65 mm	13 mm	Right-side drive	Three-axis	$869.95	4 weeks

13 mm XY-Axis Linear Translation Stage with Standard Micrometer Head

XY-axis drive with standard micrometer head;
Stage size: 65 mm × 65 mm;
Travel: 13 mm;
Minimum graduation: 10 μm;
Three drive types: end direct drive, left-side drive, and right-side drive;

The XY-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature XY-axis drive with a micrometer driver, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 65 mm × 65 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.

The optical component is mounted on an XY-axis linear translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LS65-13C2	65 mm × 65 mm	13 mm	End direct drive	dual-axis	$540.09	4 weeks
LS65-13L2	65 mm × 65 mm	13 mm	Left-side drive	dual-axis	$540.09	4 weeks
LS65-13R2	65 mm × 65 mm	13 mm	Right-side drive	dual-axis	$540.09	4 weeks

13 mm Single-Axis Linear Translation Stage with Standard Micrometer Head

Single-axis drive with standard micrometer head;
Stage size: 65 mm × 65 mm;
Travel: 13 mm;
Minimum graduation: 10 μm;
Three drive types: end direct drive, left-side drive, and right-side drive;

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with a micrometer driver, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 65 mm × 65 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.

The optical component is mounted on a single-axis linear translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LS65-13C1	65 mm × 65 mm	13 mm	End direct drive	Single axis	$278.09	4 weeks
LS65-13L1	65 mm × 65 mm	13 mm	Left-side drive	Single axis	$286.32	4 weeks
LS65-13R1	65 mm × 65 mm	13 mm	Right-side drive	Single axis	$286.32	4 weeks

13 mm Travel Manual Linear Translation Stage
