Product Description

The best choice for high-power applications
Optimal performance design for spherical single lenses
Achieves diffraction-limited performance with small input beam diameters
Operating wavelength: 350 nm-2 μm (uncoated)

The LBTEK Best-Form Lenses are designed to achieve minimal spherical aberration when using spherical lenses. For spherical lenses, a given focal length can be obtained through different combinations of curvature radii on the front and rear surfaces. However, each surface combination results in varying degrees of spherical aberration. The best-form lenses optimize the curvature radius of each surface to minimize spherical aberration, making them suitable for infinite conjugate applications. LBTEK Best-Form Lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components. LBTEK offers uncoated best-form lenses as well as lenses with three types of AR coatings: 400 nm–700 nm, 700 nm–1100 nm, and 1100 nm–1650 nm. All our lenses undergo precision machining and strict quality control to ensure that LBTEK provides users with high-quality lens products at reasonable prices.

Attribute

Optical component materialN-BK7

Operating Wavelength350 nm-2 μm

Surface finish (scratches/pits)20/10

Curved Aperture3

Focal length tolerance±1%

Local surface irregularity0.5

Design wavelength587.6 nm

Eccentricity≤3 arcmin

Best Form Lens, N-BK7, Uncoated: 350 nm-2.0 μm

Substrate Material: N-BK7
Operating Wavelength: 350 nm-2 μm (uncoated)
Application: Imaging, Beam Collimation, Focusing

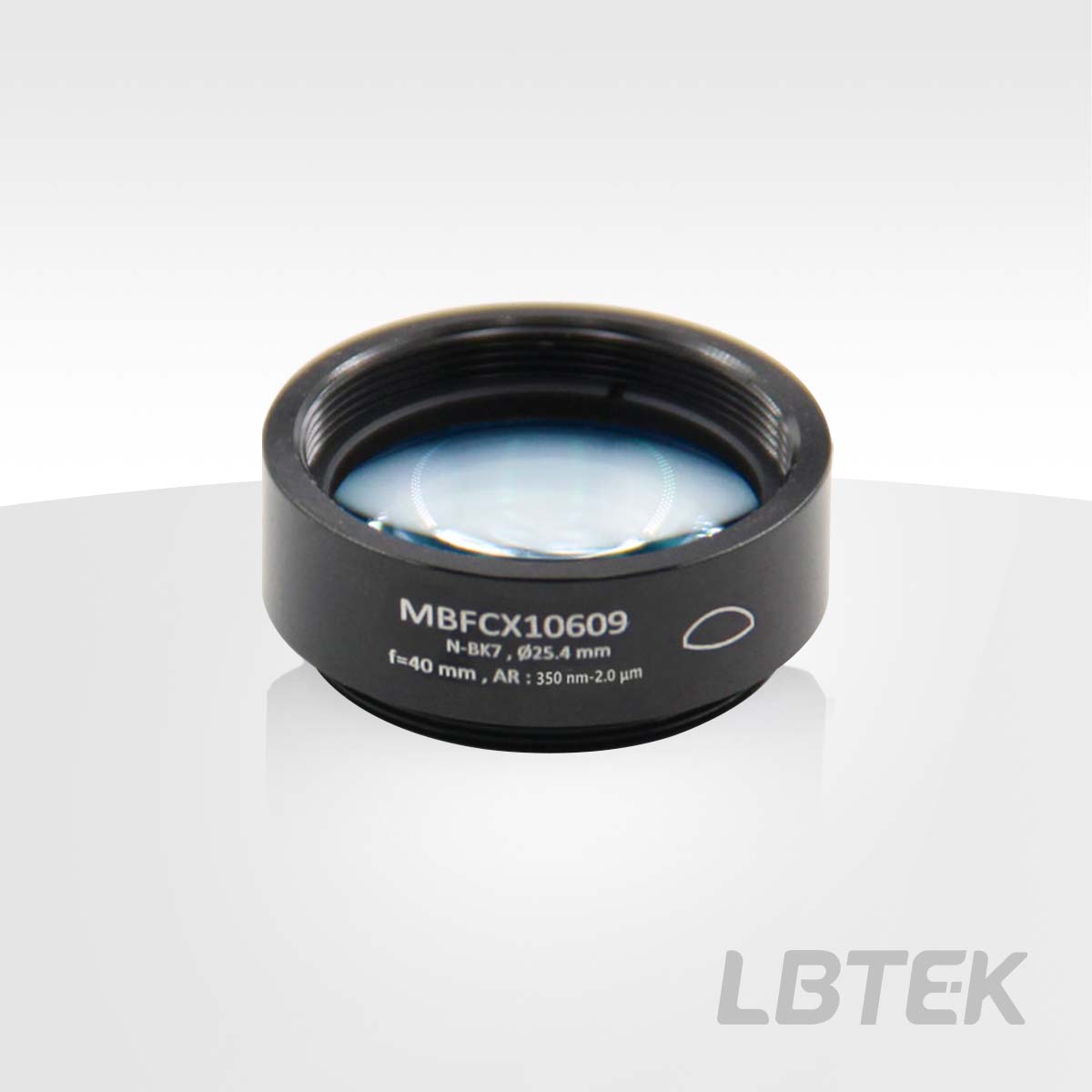

LBTEK's Best Form Lenses are an ideal replacement for cemented lenses in high-power applications at infinite conjugates. Since best-form lenses can optimize the spot size to the minimum, they theoretically achieve diffraction-limited performance. To obtain the best focusing effect, the surface with a smaller radius of curvature should face the collimated light source. All circular lenses from LBTEK come pre-installed with standard lens sleeves or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters by users.

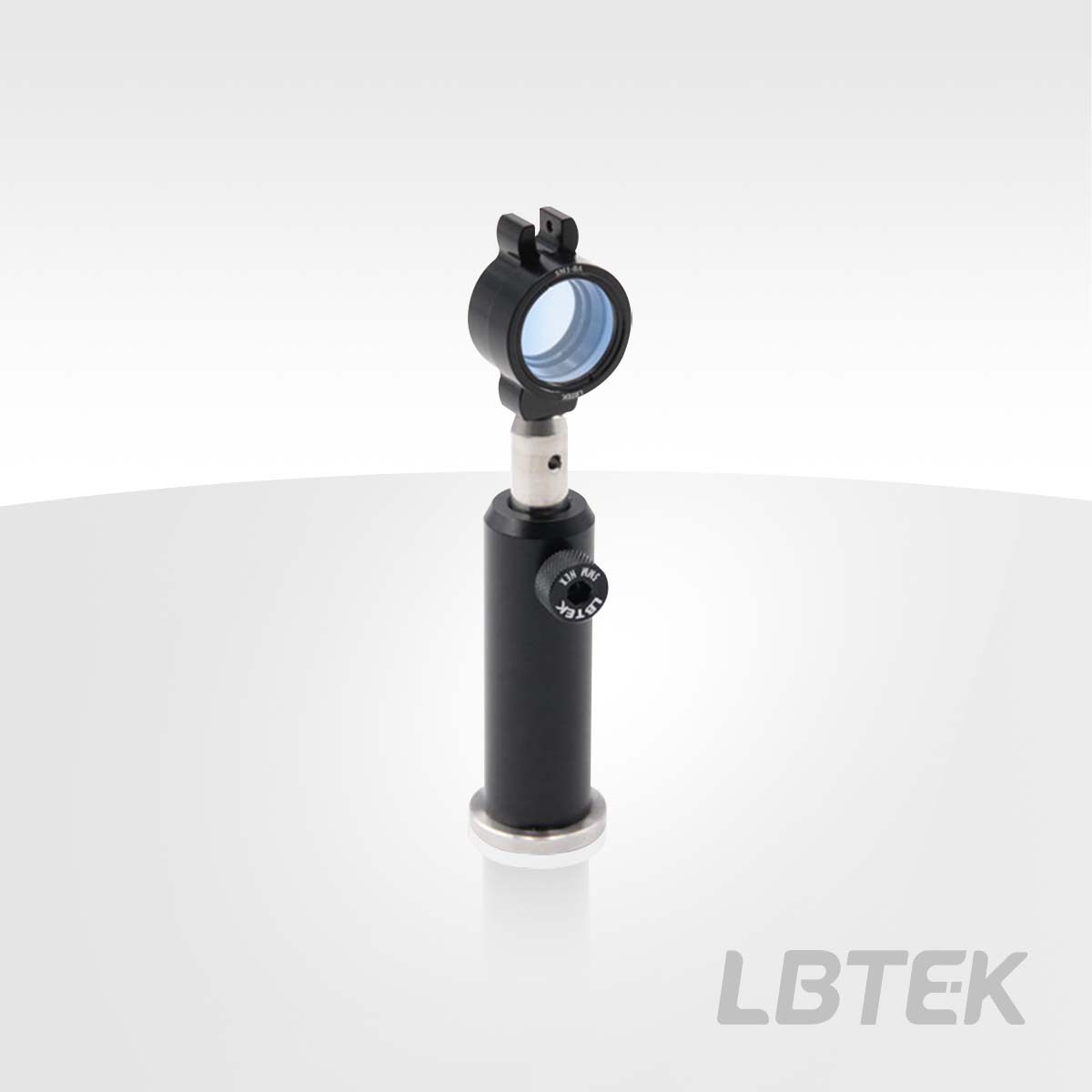

The LBTEK Lens Housing Surface is engraved with product model and other information.

	Product Model	Diameter	Focal length	Unit Price	Compare	Lead Time
	MBFCX10609	25.4 mm	40.0 mm	$53.21		6 weeks
	MBFCX10613	25.4 mm	100.0 mm	$53.21		6 weeks

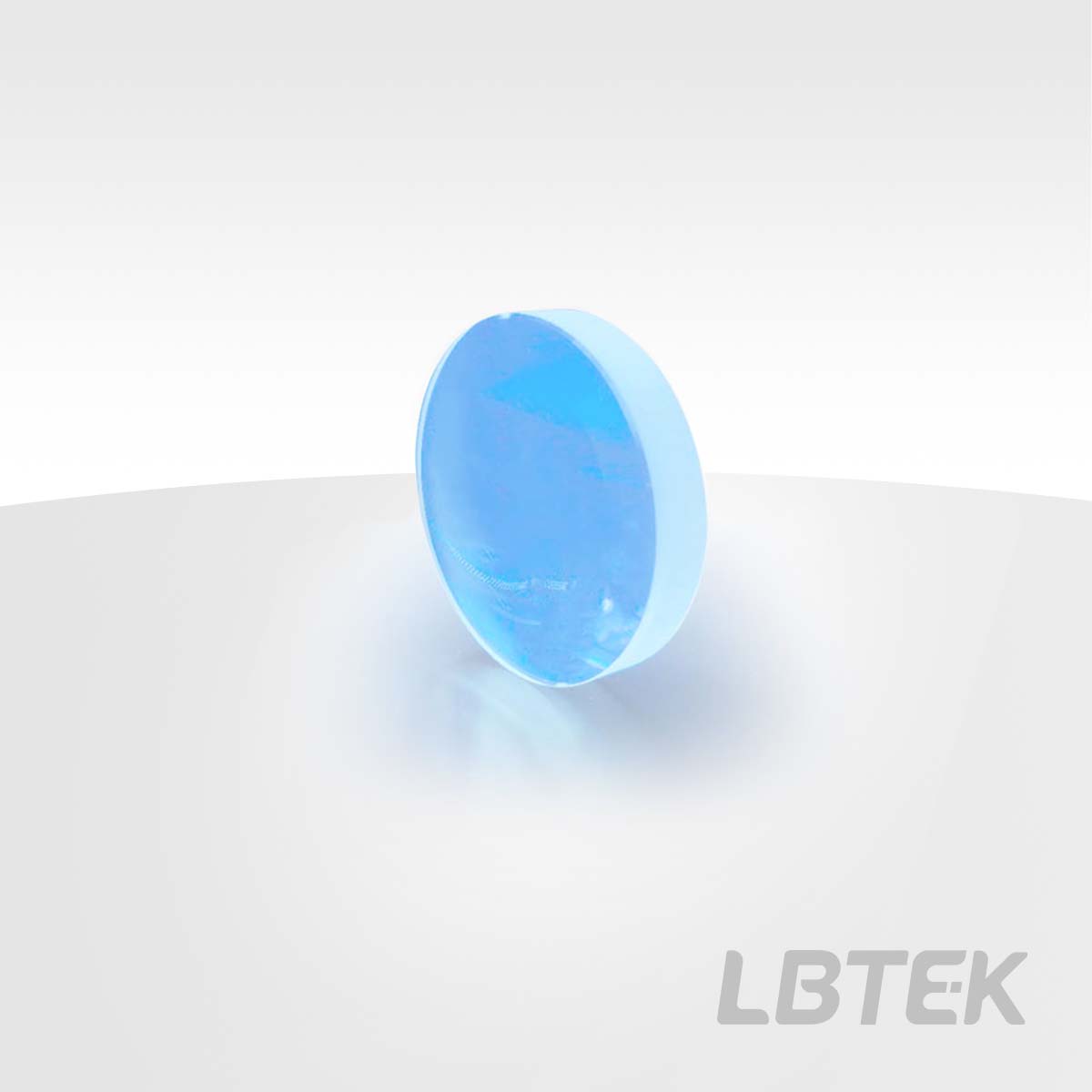

Best Form Lens, N-BK7, Uncoated: 350 nm-2.0 μm, Unmounted

Substrate Material: N-BK7
Operating Wavelength: 350 nm-2 μm (uncoated)
Application: Imaging, Beam Collimation, Focusing

LBTEK's Best Form Lenses are an ideal replacement for cemented lenses in high-power applications at infinite conjugates. Since best-form lenses can optimize the spot size to the minimum, they theoretically achieve diffraction-limited performance. To obtain the best focusing effect, the surface with a smaller radius of curvature should face the collimated light source. All circular lenses from LBTEK can be mounted in LBTEK standard lens sleeves, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

LBTEK Lens not installed, suitable for building compact systems

Product Model	Diameter	Focal length	Unit Price	Lead Time
BFCX10615	25.4 mm	150.0 mm	$41.44	6 weeks
BFCX10617	25.4 mm	200.0 mm	$41.44	6 weeks
BFCX10612	25.4 mm	75.0 mm	$41.05	6 weeks
BFCX10610	25.4 mm	50.0 mm	$41.05	6 weeks
BFCX10613	25.4 mm	100.0 mm	$42.62	6 weeks
BFCX10609	25.4 mm	40.0 mm	$42.23	6 weeks
