Single-mode fiber optic patch cord, Ø3 mm protective jacket

Specifications
Assembly
Feedback
Product Description
  • High return loss, low insertion loss, and low polarization dependence
  • Common applications in fiber lasers and test instruments
  • Multiple wavelength ranges available
The LBTEK single-mode patch cord series features excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making it an ideal choice for fiber laser and test instrument applications. LBTEK single-mode fiber patch cords are non-polarization-maintaining, with optional wavelength ranges from 400 nm to 1600 nm. Currently available connector types include FC/PC, FC/APC, and SMA, with a standard loose tube diameter of 3 mm. For other custom requirements, please contact LBTEK Technical Support.
Attribute
Wavelength range400 nm-1600 nm optional
Fiber TypeNon-polarization maintaining fiber optic patch cord

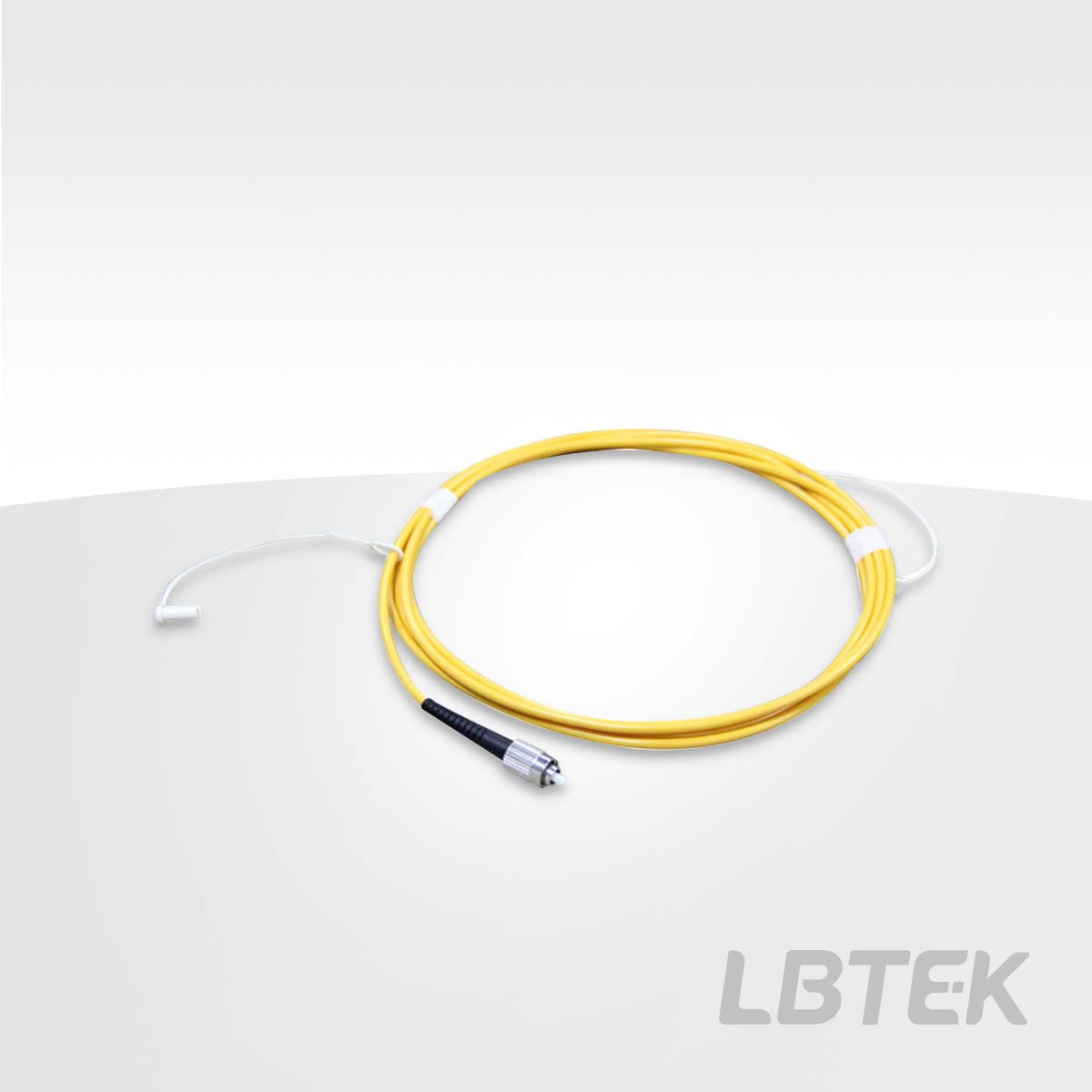

Single-mode fiber optic patch cord, FC/PC connector, Ø3 mm protective jacket
  • Single-mode fiber optic patch cord, FC/PC connector
  • Minimum return loss: 50 dB
  • Loose tube diameter: 3 mm

LBTEK single-mode fiber optic patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. Among them, the single-mode fiber optic patch cords with FC/PC connectors offer the selectable wavelength range from 400 nm to 1600 nm, with the loose tube diameter of 3 mm and the minimum return loss of 50 dB. Note: FC/PC and FC/UPC are interchangeable.

LBTEK Single-Mode Fiber Optic Patch Cord with FC/PC Connector

Product Model
Wavelength range
Fiber length
Connector Type
Unit Price
Compare
Lead Time
C460-PC-10 450 nm-600 nm10.0 mFC/PC$232.46today
C460-PC-5 450 nm-600 nm5.0 mFC/PC$106.29today
C460-PC-1 450 nm-600 nm1.0 mFC/PC$64.85today
C405-PC-10 400 nm-550 nm10.0 mFC/PC$223.31today
C405-PC-5 400 nm-550 nm5.0 mFC/PC$138.32today
C405-PC-1 400 nm-550 nm1.0 mFC/PC$65.89today
C405-PC-2 400 nm-550 nm2.0 mFC/PC$81.974 weeks
CSM28E-PC-1 1300 nm-1600 nm1.0 mFC/PC$20.26today
C630-PC-2 600 nm-770 nm2.0 mFC/PC$78.58today
C460-PC-2 450 nm-600 nm2.0 mFC/PC$78.58today
C780-PC-10 780 nm-970 nm10.0 mFC/PC$129.3today
C780-PC-5 780 nm-970 nm5.0 mFC/PC$77.27today
C780-PC-1 780 nm-970 nm1.0 mFC/PC$42.75today
C780-PC-2 780 nm-970 nm2.0 mFC/PC$50.34today
C980-PC-10 980 nm-1200 nm10.0 mFC/PC$152.31today
C980-PC-5 980 nm-1200 nm5.0 mFC/PC$86.29today
C980-PC-1 980 nm-1200 nm1.0 mFC/PC$56.22today
C980-PC-2 980 nm-1200 nm2.0 mFC/PC$62.63today
CSM28E-PC-2 1300 nm-1600 nm2.0 mFC/PC$22.62today

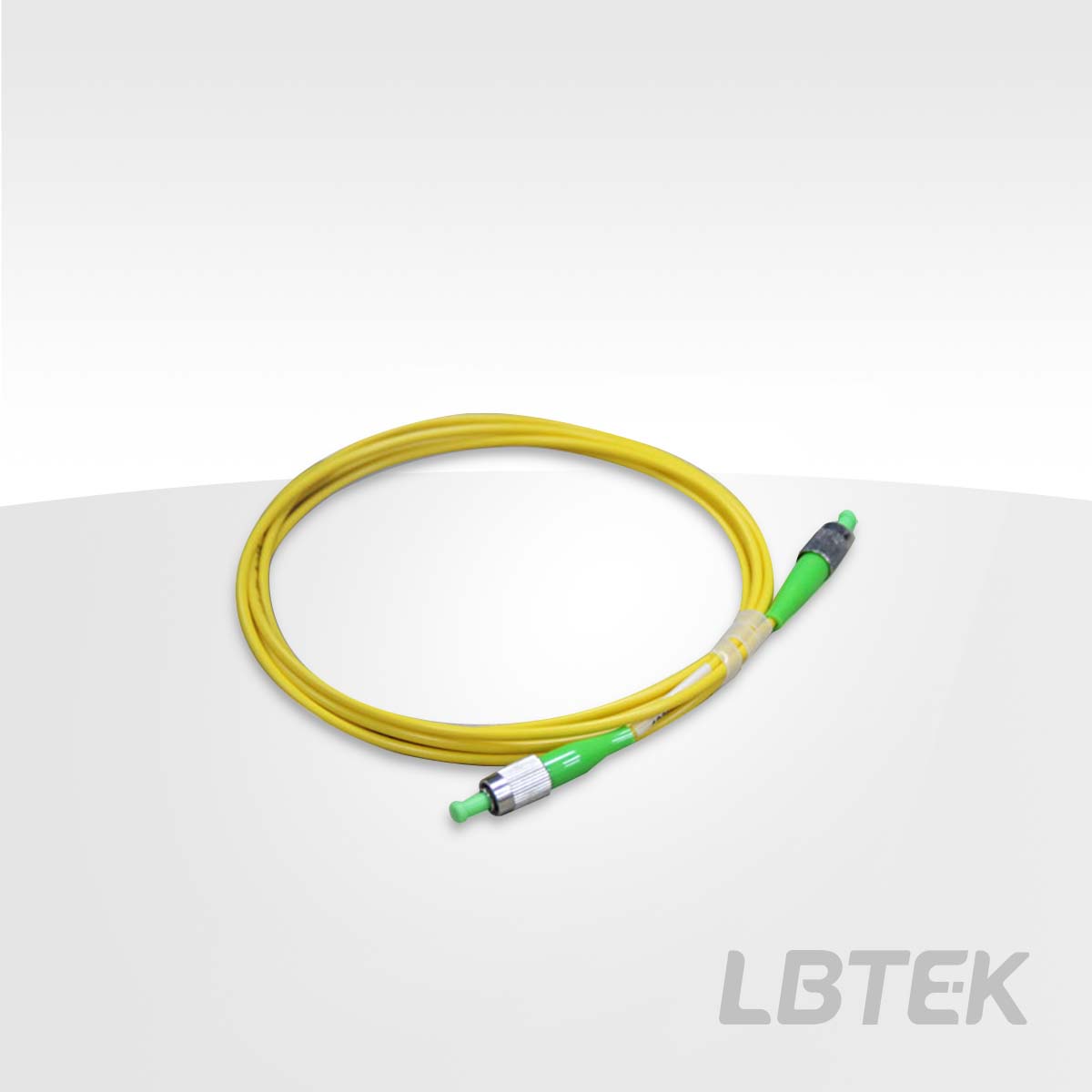

Single-mode fiber optic patch cord, FC/APC connector, Ø3 mm protective jacket
  • Connector Type: FC/APC
  • Minimum Return Loss: 50 dB
  • Loose Tube Diameter: 3 mm

LBTEK single-mode fiber patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. Among them, single-mode fiber patch cords with FC/APC connectors offer the selectable wavelength range from 400 nm to 1600 nm, with the loose tube diameter of 3 mm and the minimum return loss of 50 dB.

LBTEK Single-Mode Fiber Optic Patch Cord with FC/APC Connector

Product Model
Wavelength range
Fiber length
Connector Type
Unit Price
Compare
Lead Time
C405-APC-10 400 nm-550 nm10.0 mFC/APC$223.31today
C405-APC-5 400 nm-550 nm5.0 mFC/APC$131.79today
C405-APC-1 400 nm-550 nm1.0 mFC/APC$62.89today
C460-APC-10 450 nm-600 nm10.0 mFC/APC$232.46today
C460-APC-5 450 nm-600 nm5.0 mFC/APC$129.7today
C460-APC-1 450 nm-600 nm1.0 mFC/APC$66.02today
C460-APC-2 450 nm-600 nm2.0 mFC/APC$82.5today
C780-APC-10 780 nm-970 nm10.0 mFC/APC$129.3today
C780-APC-5 780 nm-970 nm5.0 mFC/APC$81.58today
C780-APC-1 780 nm-970 nm1.0 mFC/APC$44.19today
C630-APC-2 600 nm-770 nm2.0 mFC/APC$78.58today
C780-APC-2 780 nm-970 nm2.0 mFC/APC$50.34today
C980-APC-10 980 nm-1200 nm10.0 mFC/APC$152.31today
C980-APC-5 980 nm-1200 nm5.0 mFC/APC$98.19today
C980-APC-1 980 nm-1200 nm1.0 mFC/APC$57.26today
CSM28E-APC-1 1300 nm-1600 nm1.0 mFC/APC$21.05today
CSM28E-APC-2 1300 nm-1600 nm2.0 mFC/APC$22.62today
C980-APC-2 980 nm-1200 nm2.0 mFC/APC$62.63today

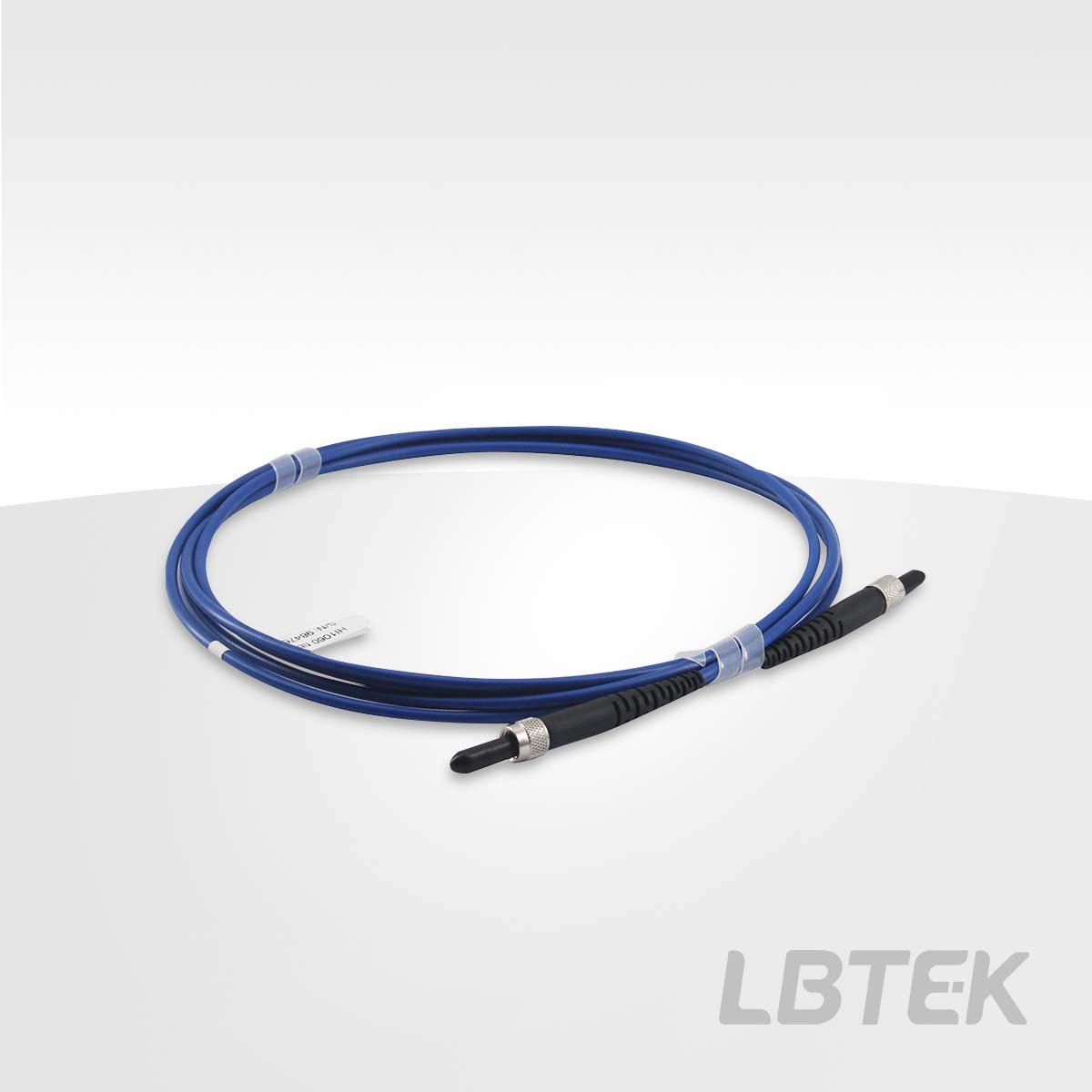

Single-mode fiber optic patch cord, SMA connector, Ø3 mm protective jacket
  • Connector Type: SMA
  • Minimum Return Loss: 50 dB
  • Loose Tube Diameter: 3 mm

LBTEK single-mode fiber patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. Among them, single-mode fiber patch cords with SMA connectors offer the selectable wavelength range from 400 nm to 1600 nm, with the loose tube diameter of 3 mm and the minimum return loss of 50 dB.

LBTEK Single-Mode Fiber Patch Cord with SMA Connector

Product Model
Wavelength range
Fiber length
Connector Type
Unit Price
Compare
Lead Time
CSM28E-SMA-1 1300 nm-1600 nm1.0 mSMA$18.7today
CSM28E-SMA-2 1300 nm-1600 nm2.0 mSMA$22.62today
C980-SMA-2 980 nm-1200 nm2.0 mSMA$62.63today
C780-SMA-2 780 nm-970 nm2.0 mSMA$50.34today
C630-SMA-2 600 nm-770 nm2.0 mSMA$78.58today
C460-SMA-2 450 nm-600 nm2.0 mSMA$78.58today

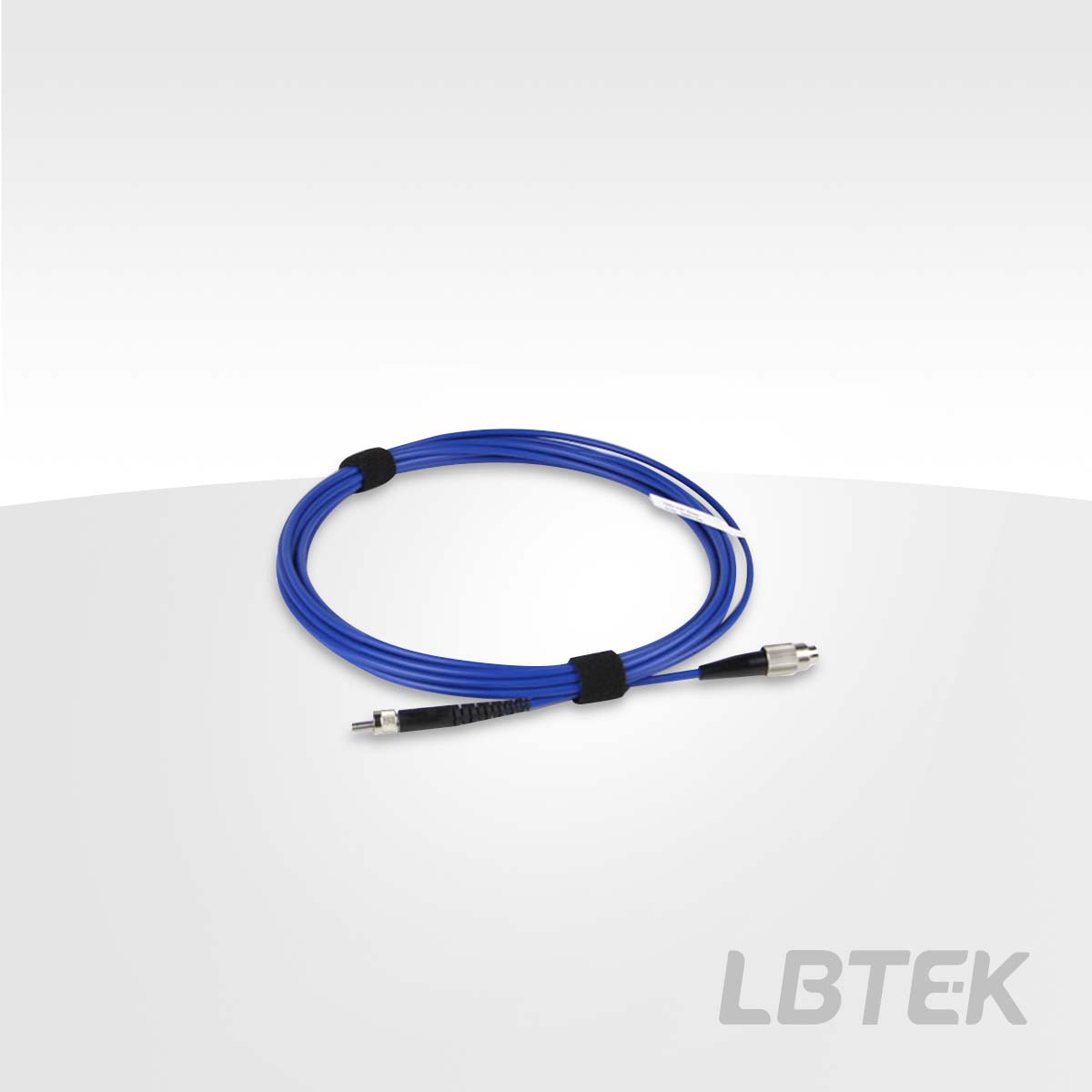

Single-mode fiber optic patch cord, FC/PC to SMA hybrid connector, Ø3 mm protective jacket
  • Connector Type: FC/PC to SMA
  • Minimum Return Loss: 50 dB
  • Loose Tube Diameter: 3 mm

LBTEK single-mode fiber optic patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. The hybrid connector single-mode fiber optic patch cords are available in two types: FC/PC to FC/APC and FC/PC to SMA, with the wavelength range from 400 nm to 1600 nm, the loose tube diameter of 3 mm, and the minimum return loss of 50 dB. Note: FC/PC and FC/UPC differ only in polishing methods, hence they are collectively referred to as FC/PC connectors.

LBTEK Single-Mode Fiber Optic Patch Cord with Hybrid Connector

Product Model
Wavelength range
Fiber length
Connector Type
Unit Price
Compare
Lead Time
CSM28E-PCSMA-2 1300 nm-1600 nm2.0 mFC/PC to SMA$21.57today
CSM28E-PCSMA-1 1300 nm-1600 nm1.0 mFC/PC to SMA$18.43today
C460-PCSMA-2 450 nm-600 nm2.0 mFC/PC to SMA$92.43today
C460-PCSMA-1 450 nm-600 nm1.0 mFC/PC to SMA$59.75today
C405-PCSMA-2 400 nm-550 nm2.0 mFC/PC to SMA$74.13today
C405-PCSMA-1 400 nm-550 nm1.0 mFC/PC to SMA$59.62today
C460-PCSMA-5 450 nm-600 nm5.0 mFC/PC to SMA$133.49today
C405-PCSMA-5 400 nm-550 nm5.0 mFC/PC to SMA$131.79today
C780-PCSMA-2 780 nm-970 nm2.0 mFC/PC to SMA$49.81today
C780-PCSMA-1 780 nm-970 nm1.0 mFC/PC to SMA$39.88today
C630-PCSMA-2 600 nm-770 nm2.0 mFC/PC to SMA$77.796 weeks
C630-PCSMA-1 600 nm-770 nm1.0 mFC/PC to SMA$60.53today
C780-PCSMA-5 780 nm-970 nm5.0 mFC/PC to SMA$77.27today
C980-PCSMA-2 980 nm-1200 nm2.0 mFC/PC to SMA$73.74today
C980-PCSMA-1 980 nm-1200 nm1.0 mFC/PC to SMA$53.34today
C980-PCSMA-5 980 nm-1200 nm5.0 mFC/PC to SMA$93.354 weeks

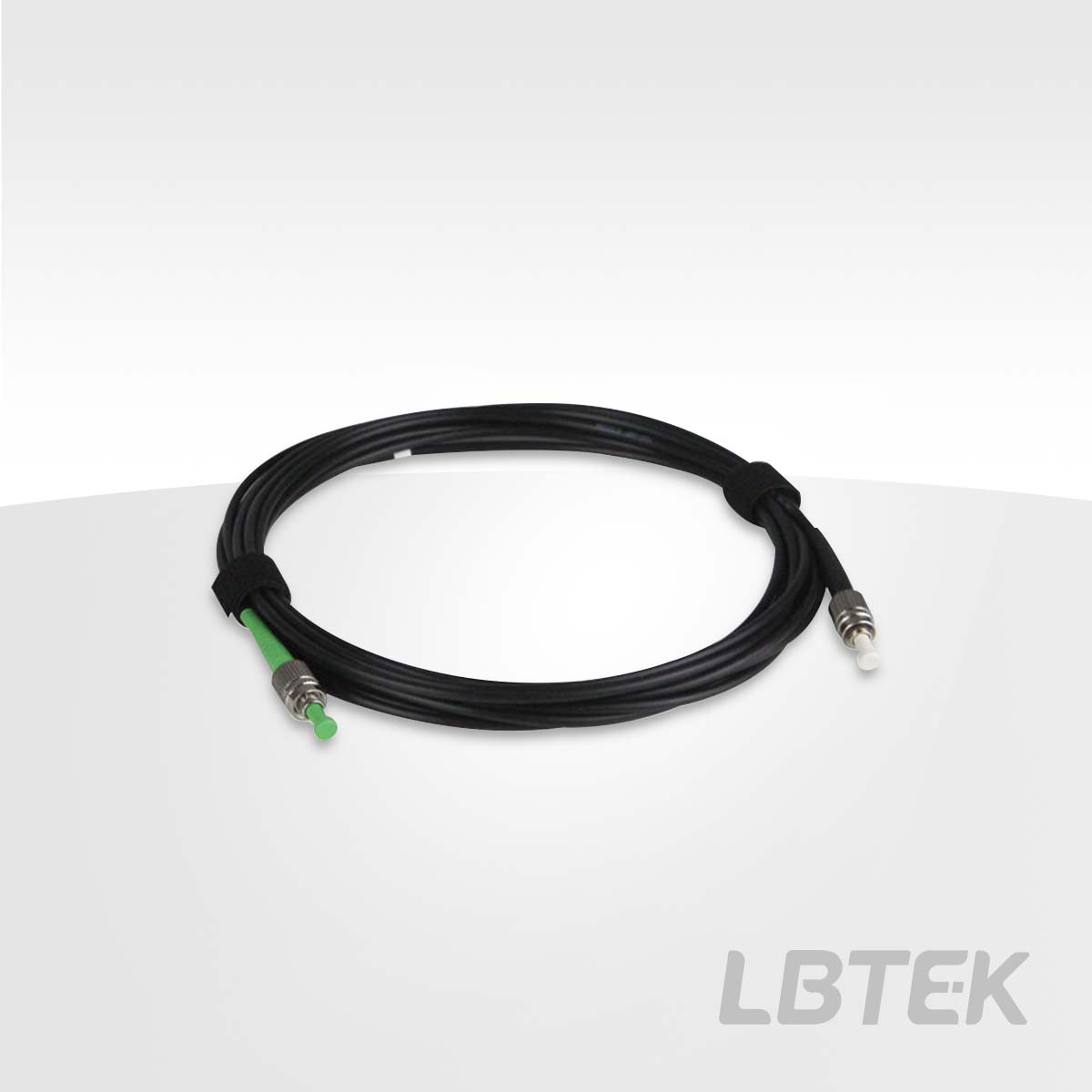

Single-mode fiber optic patch cord, FC/PC to FC/APC hybrid connector, Ø3 mm protective jacket
  • Connector Type: FC/PC to FC/APC
  • Minimum Return Loss: 50dB
  • Loose Tube Diameter: 3 mm

LBTEK single-mode fiber optic patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. The hybrid connector single-mode fiber optic patch cords are available in two types: FC/PC to FC/APC and FC/PC to SMA, with the wavelength range from 400 nm to 1600 nm, the loose tube diameter of 3 mm, and the minimum return loss of 50 dB. Note: FC/PC and FC/UPC differ only in polishing methods, hence they are collectively referred to as FC/PC connectors.

LBTEK Single-Mode Fiber Optic Patch Cord with Hybrid Connector

Product Model
Wavelength range
Fiber length
Connector Type
Unit Price
Compare
Lead Time
CSM28E-PCAPC-2 1300 nm-1600 nm2.0 mFC/PC to FC/APC$21.57today
CSM28E-PCAPC-1 1300 nm-1600 nm1.0 mFC/PC to FC/APC$18.43today
C460-PCAPC-2 450 nm-600 nm2.0 mFC/PC to FC/APC$77.79today
C460-PCAPC-1 450 nm-600 nm1.0 mFC/PC to FC/APC$61.45today
C405-PCAPC-2 400 nm-550 nm2.0 mFC/PC to FC/APC$74.13today
C405-PCAPC-1 400 nm-550 nm1.0 mFC/PC to FC/APC$59.62today
C460-PCAPC-5 450 nm-600 nm5.0 mFC/PC to FC/APC$133.49today
C405-PCAPC-5 400 nm-550 nm5.0 mFC/PC to FC/APC$131.79today
C780-PCAPC-2 780 nm-970 nm2.0 mFC/PC to FC/APC$49.81today
C780-PCAPC-1 780 nm-970 nm1.0 mFC/PC to FC/APC$41.05today
C630-PCAPC-1 600 nm-770 nm1.0 mFC/PC to FC/APC$60.53today
C630-PCAPC-2 600 nm-770 nm2.0 mFC/PC to FC/APC$77.79today
C780-PCAPC-5 780 nm-970 nm5.0 mFC/PC to FC/APC$81.19today
C980-PCAPC-2 980 nm-1200 nm2.0 mFC/PC to FC/APC$62.11week
C980-PCAPC-1 980 nm-1200 nm1.0 mFC/PC to FC/APC$53.34today
C980-PCAPC-5 980 nm-1200 nm5.0 mFC/PC to FC/APC$93.35today
