Product Description
- Material: N-BK7/S-LAH64
- High Transmittance in the 700-1100 nm Near-infrared Band
- Large Numerical Aperture, Large Aperture, Lower F/#, Smaller Spherical Aberration
- Suitable for Small Field of View Applications such as Fiber Optic Light Sources
LBTEK precision polished aspheric lenses are commonly available in two materials: N-BK7 and S-LAH64. Both materials exhibit high transmittance in the visible and near-infrared wavelength ranges. S-LAH64 has a higher refractive index than N-BK7, making it typically suitable for manufacturing high numerical aperture (NA) short focal length lenses.
Compared to conventional spherical lenses, aspheric lenses feature larger numerical apertures (NA), lower f-numbers (f/#), and reduced spherical aberration, enabling diffraction-limited performance with superior optical characteristics. This allows for fewer system components, thereby simplifying optical system design.
When compared to molded aspheric condenser lenses, precision polished aspheric lenses offer larger sizes, better surface quality, and improved beam quality. Due to the off-axis performance limitations of aspheric lenses, these precision polished aspheric lenses are more suitable for small field-of-view applications such as fiber optic light sources, including fiber collimation, coupling, and imaging.
For optimal performance:
- When collimating a point source, the beam should be incident on the flatter surface of the lens.
- When focusing a collimated beam, the beam should be incident on the more curved surface.
Attribute
Operating Wavelength700 nm-1100 nm
MaterialN-BK7/S-LAH64
DiameterØ12.7 mm，Ø18.0 mm，Ø25.4 mm，Ø50.8 mm
Clear Aperture>90% CA
Design wavelength780 nm
Focal length tolerance±1 %
Diameter tolerance+0.0/-0.1 mm
Thickness tolerance±0.1 mm
Chamfer0.2 mm，45 °
<0.5 μm
Surface Power±7.5 μm
Surface irregularity3 Fringes (RMS)
λ/4
Surface finish (scratches/pits)60/40
Eccentricity<3 arcmin
Anti-reflective coatingRavg<0.5 %@700 nm-1100 nm (6° AOI，single surface)

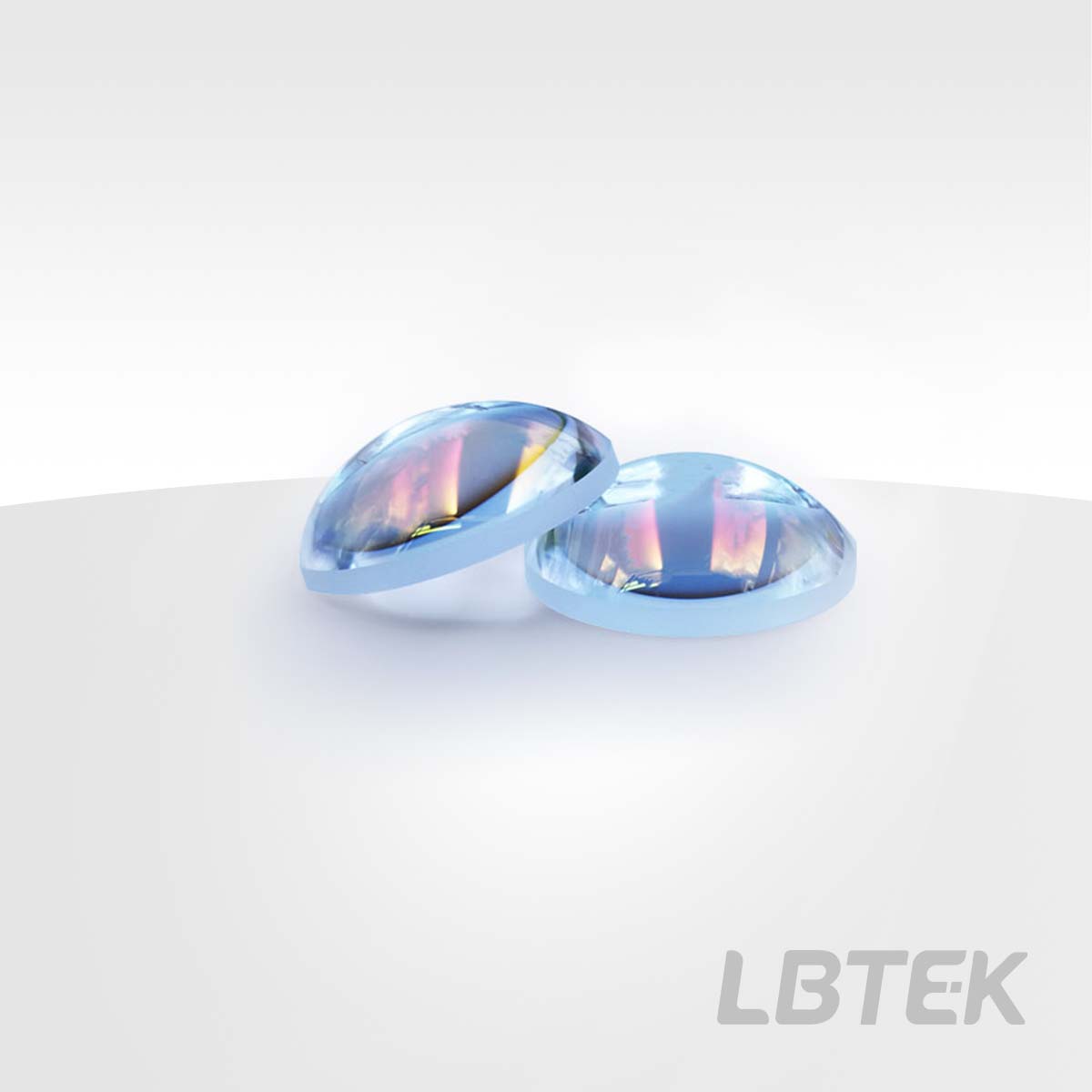

Precision Polished Aspheric Lens, N-BK7, AR Coating: 700 nm-1100 nm, Unmounted
- Material: N-BK7
- Operating Wavelength: 700 nm-1100 nm
- Diameter: Ø12.7 mm, Ø25.4 mm
LBTEK Precision Polished Aspheric Lenses, made of N-BK7 material, with anti-reflection coating: 700 nm-1100 nm. Currently available in standard diameters of Ø12.7 mm and Ø25.4 mm.
The spherical refraction of ordinary lenses cannot focus parallel light to a single point, resulting in spherical aberration. In contrast, the curvature of aspheric lenses changes continuously from the center to the edge. By adjusting the conic constant and aspheric coefficients, spherical aberration can be minimized, allowing light rays to converge to a single point and thereby improving optical performance.

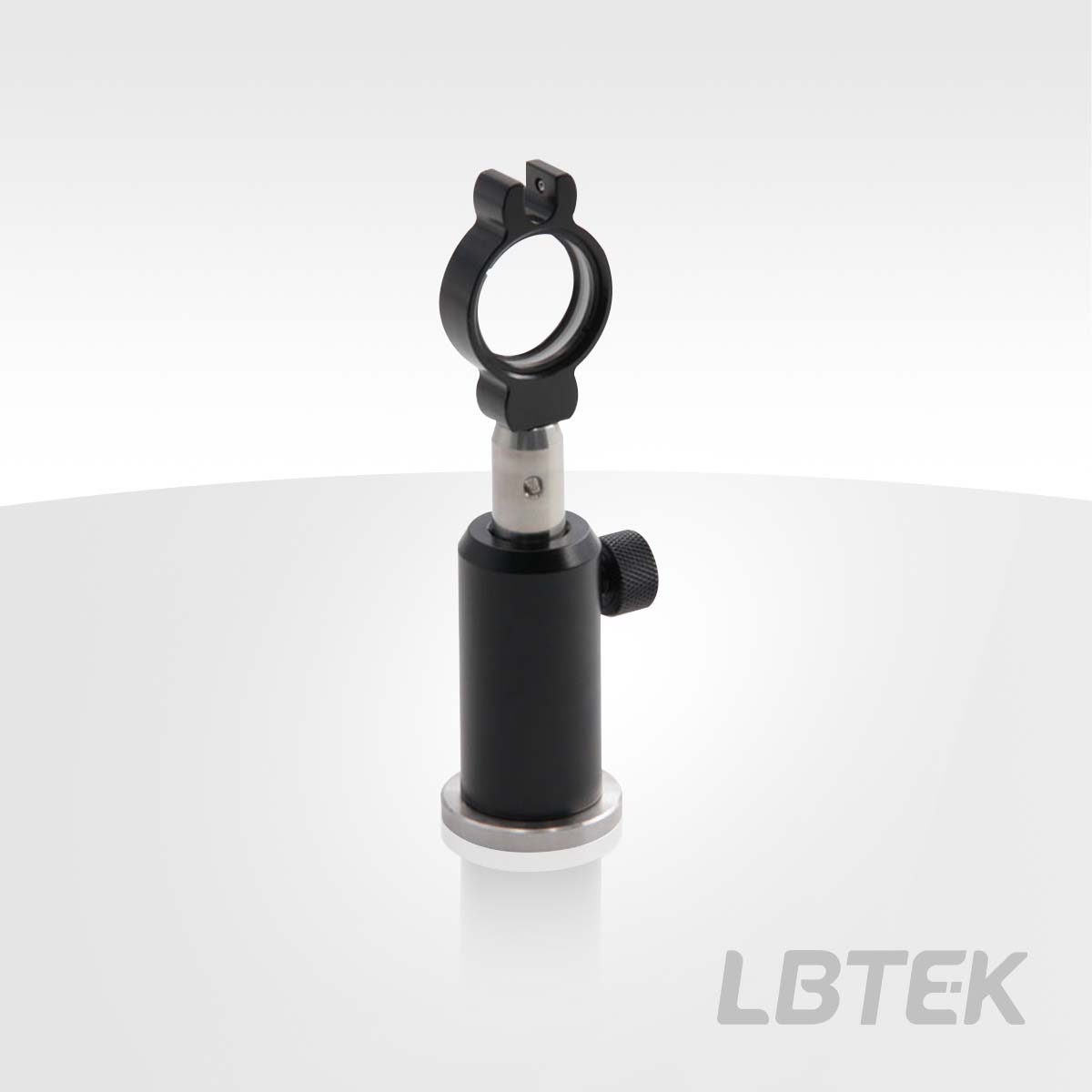

LBTEK Uninstalled precision polished aspheric lens can be mounted on fixed lens mounts
Product Model | Diameter | Focal length | Numerical Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| AC10615-B | 25.4 mm | 150.0 mm | 0.076 | $272.07 | Contact | |||
| AC1909-B | 12.7 mm | 25.0 mm | 0.22 | $196.37 | Contact | |||
| AC1610-B | 25.4 mm | 50.0 mm | 0.22 | $251.15 | Contact |

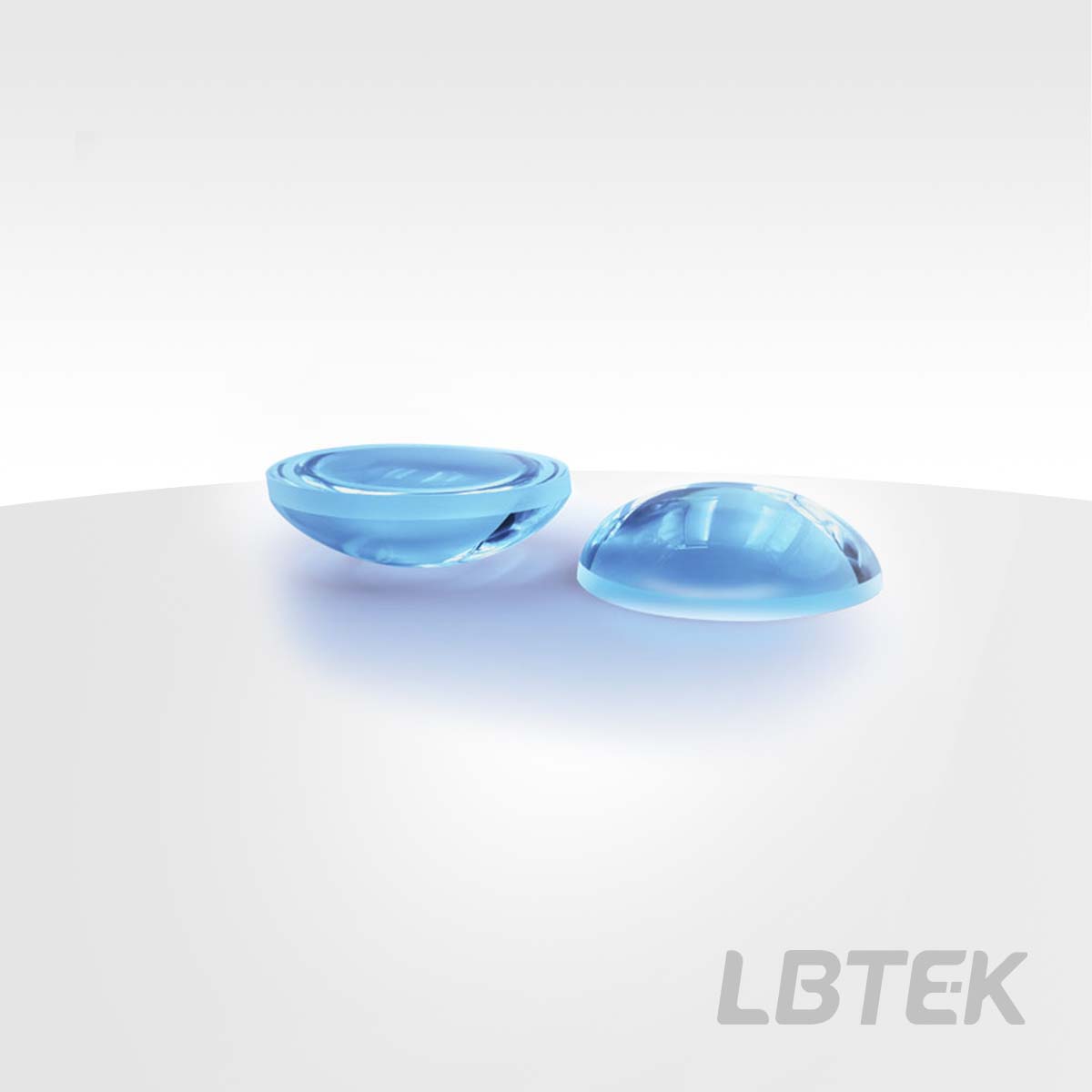

Precision Polished Aspheric Lens, S-LAH64, AR Coating: 700 nm-1100 nm, Unmounted
- Material: S-LAH64
- Operating Wavelength: 700 nm-1100 nm
- Diameter: Ø12.7 mm, Ø18.0 mm, Ø25.4 mm, Ø50.8 mm
LBTEK precision polished aspheric lenses, made of S-LAH64 material, with anti-reflection coating: 700 nm-1100 nm, currently available in four sizes: Ø12.7 mm, Ø18.0 mm, Ø25.4 mm, Ø50.8 mm. The spherical refraction of ordinary lenses cannot converge parallel light to a single point, resulting in spherical aberration. In contrast, the curvature of aspheric lenses changes continuously from the center to the edge. By adjusting the conic constant and aspheric coefficients, spherical aberration can be minimized, allowing light to converge to a single point and thereby improving optical performance.
LBTEK Uninstalled precision polished aspheric lens can be mounted on fixed lens mounts
Product Model | Diameter | Focal length | Numerical Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| AC7612-B | 25.4 mm | 32.0 mm | 0.336 | $251.15 | Contact | |||
| AC7807-B | 50.8 mm | 40.0 mm | 0.50 | $462.82 | Contact | |||
| AC7607-B | 25.4 mm | 40.0 mm | 0.27 | $251.15 | Contact | |||
| AC7606-B | 25.4 mm | 20.0 mm | 0.5 | $251.15 | Contact | |||
| AC7908-B | 12.7 mm | 10.0 mm | 0.5 | $220.43 | Contact | |||
| AC18-F15-B | 18.0 mm | 15.0 mm | 0.53 | $229.19 | Contact |
Precision Polished Aspheric Lens, S-LAH64, AR Coating: 700 nm-1100 nm, with Mount
- Material: S-LAH64
- Operating Wavelength: 700 nm-1100 nm
- Diameter: Ø12.7 mm, Ø25.4 mm
- Mounted in Standard Lens Tubes
LBTEK Precision Polished Aspheric Lens, S-LAH64 material, AR coating: 700 nm-1100 nm, diameters Ø12.7 mm and Ø25.4 mm. The spherical refraction of ordinary lenses cannot converge parallel light to a single point, resulting in spherical aberration. In contrast, the curvature of an aspheric lens changes continuously from the center to the edge. By adjusting the conic constant and aspheric coefficients, spherical aberration can be minimized, allowing light to converge to a single point and thereby improving optical performance. LBTEK precision polished aspheric lenses come pre-installed in standard lens sleeves, with the product model, type, diameter, focal length, and numerical aperture engraved on the sleeve surface for easy identification of lens parameters.

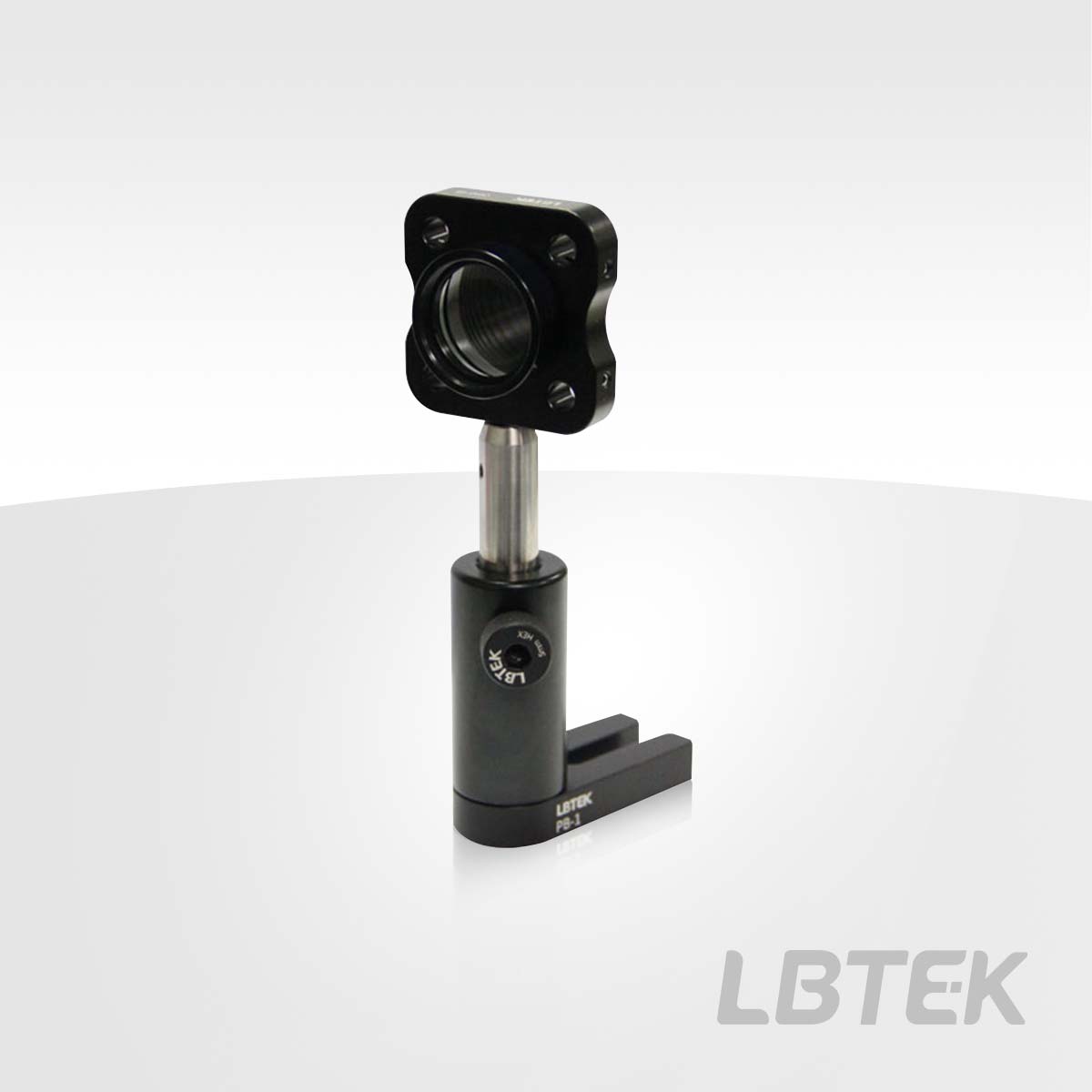

LBTEK Precision Polished Aspheric Lens with Mounting Housing, Product Model and Other Information Engraved on the Surface
Product Model | Diameter | Focal length | Numerical Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MAC7606-B | 25.4 mm | 20.0 mm | 0.5 | $273.64 | Contact | |||
| MAC7908-B | 12.7 mm | 10.0 mm | 0.5 | $227.75 | Contact |
Precision Polished Aspheric Lens, N-BK7, AR Coating: 700 nm-1100 nm, with Mounting
- Material: N-BK7
- Operating Wavelength: 700 nm-1100 nm
- Diameter: Ø12.7 mm, Ø25.4 mm
- Mounted in Standard Lens Tubes
LBTEK Precision Polished Aspheric Lenses, made of N-BK7 material, with anti-reflection coating: 700 nm-1100 nm. Currently available in standard diameters of Ø12.7 mm and Ø25.4 mm. The spherical refraction of ordinary lenses cannot focus parallel light to a single point, resulting in spherical aberration. In contrast, the curvature of aspheric lenses changes continuously from the center to the edge. By adjusting the conic constant and aspheric coefficients, spherical aberration can be minimized, allowing light to converge to a single point and thereby improving optical performance. LBTEK Precision Polished Aspheric Lenses come pre-installed in standard lens sleeves, with the product model, type, diameter, focal length, and numerical aperture engraved on the sleeve surface for easy identification of lens parameters.

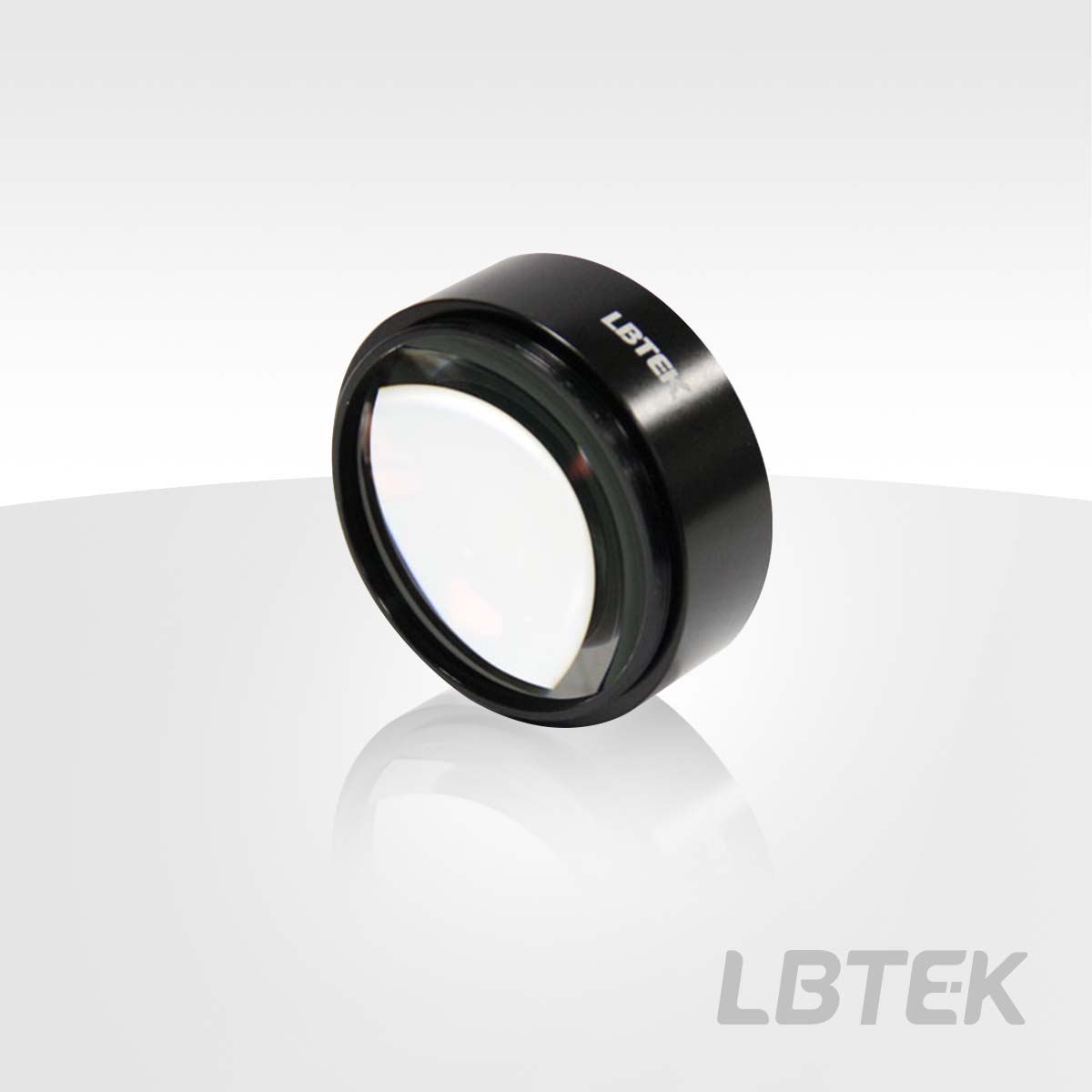

LBTEK Precision Polished Aspheric Lens with Mounting Housing, Product Model and Other Information Engraved on the Surface
Product Model | Diameter | Focal length | Numerical Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MAC1909-B | 12.7 mm | 25.0 mm | 0.22 | $218.99 | Contact | |||
| MAC10615-B | 25.4 mm | 150.0 mm | 0.076 | $281.62 | Contact | |||
| MAC1610-B | 25.4 mm | 50.0 mm | 0.22 | $273.64 | Contact |
