Product Description

SM05, SM1 Internal/External Threaded Fiber Optic Flange
FC/PC, FC/APC, SMA Three Types of Interfaces
Paired with SM05 or SM1 Series Lens Sleeves to Achieve a Light-Tight Structure
Front and Rear Feature Light-Blocking Recessed Holes or Knurled Hand-Tightening for Easy Installation

LBTEK fiber optic flanges currently include two types: SM1 and SM05, which can convert FC/PC, FC/APC, and SMA connectors to standard SM series threads. These flanges can be used for coupling single-mode and multimode fiber couplers with other free-space mechanical components, or combined with lens sleeves for light-shielded coupling in SM05 (0.535"-40) or SM1 (1.035"-40) systems. All adapters are made of 304 stainless steel and undergo electromagnetic demagnetization treatment.

Attribute

Material304 Stainless Steel

Surface treatmentElectromagnetic Demagnetization Treatment (Note: Weak Magnetic Force Remains after Demagnetization)

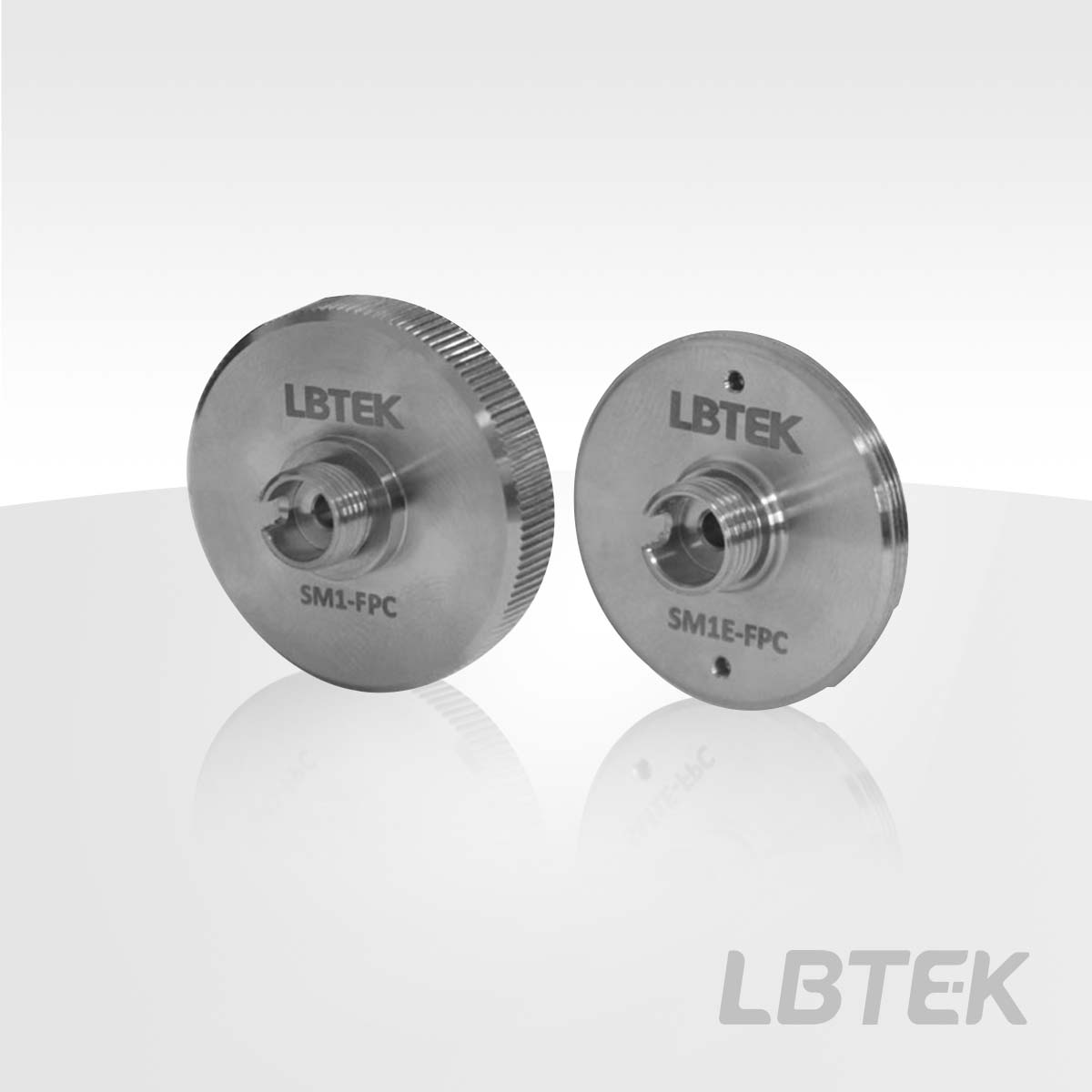

SM1 Series Fiber Optic Flange

SM1 Internal/External Threaded Adapter with FC/PC, FC/APC, SMA Ports
Compatible with SM1 Series Lens Tubes to Achieve Light-Shielding Structure
Compatible with Various 30 mm Coaxial Plates

LBTEK’s SM1 series fiber optic flanges are designed for integration into a 30 mm coaxial system using a compatible 30 mm coaxial mounting plate or lens tube. The SM1E series with external threads features dual non-transparent concave surfaces, allowing for tool-free installation from either side with the use of a specialized ring tool, such as the OWR-1B. The SM1 series with internal threads has a knurled outer edge for convenient hand-tightening during installation.

Fiber Optic Jumper Connected to SM1 Optical Flange

Product Model	Connector Type	Thread specification	Unit Price	Lead Time
SM1-FPC2	FC/PC, Narrow Key (2 mm)	SM1 Internal Thread	$34.38	5 weeks
SM1E-FPC2	FC/PC, Narrow Key (2 mm)	SM1 External Thread	$30.46	5 weeks
SM1-FAPC2	FC/APC, Narrow Key (2 mm)	SM1 Internal Thread	$34.52	5 weeks
SM1E-FAPC2	FC/APC, Narrow Key (2 mm)	SM1 External Thread	$31.64	5 weeks
SM1-SMA	SMA	SM1 Internal Thread	$35.95	6 weeks
SM1-FAPC	FC/APC, Wide Key (2.2 mm)	SM1 Internal Thread	$34.52	6 weeks
SM1-FPC	FC/PC, Wide Key (2.2 mm)	SM1 Internal Thread	$31.25	6 weeks
SM1E-SMA	SMA	SM1 External Thread	$30.46	6 weeks
SM1E-FAPC	FC/APC, Wide Key (2.2 mm)	SM1 External Thread	$32.55	6 weeks
SM1E-FPC	FC/PC, Wide Key (2.2 mm)	SM1 External Thread	$30.46	6 weeks

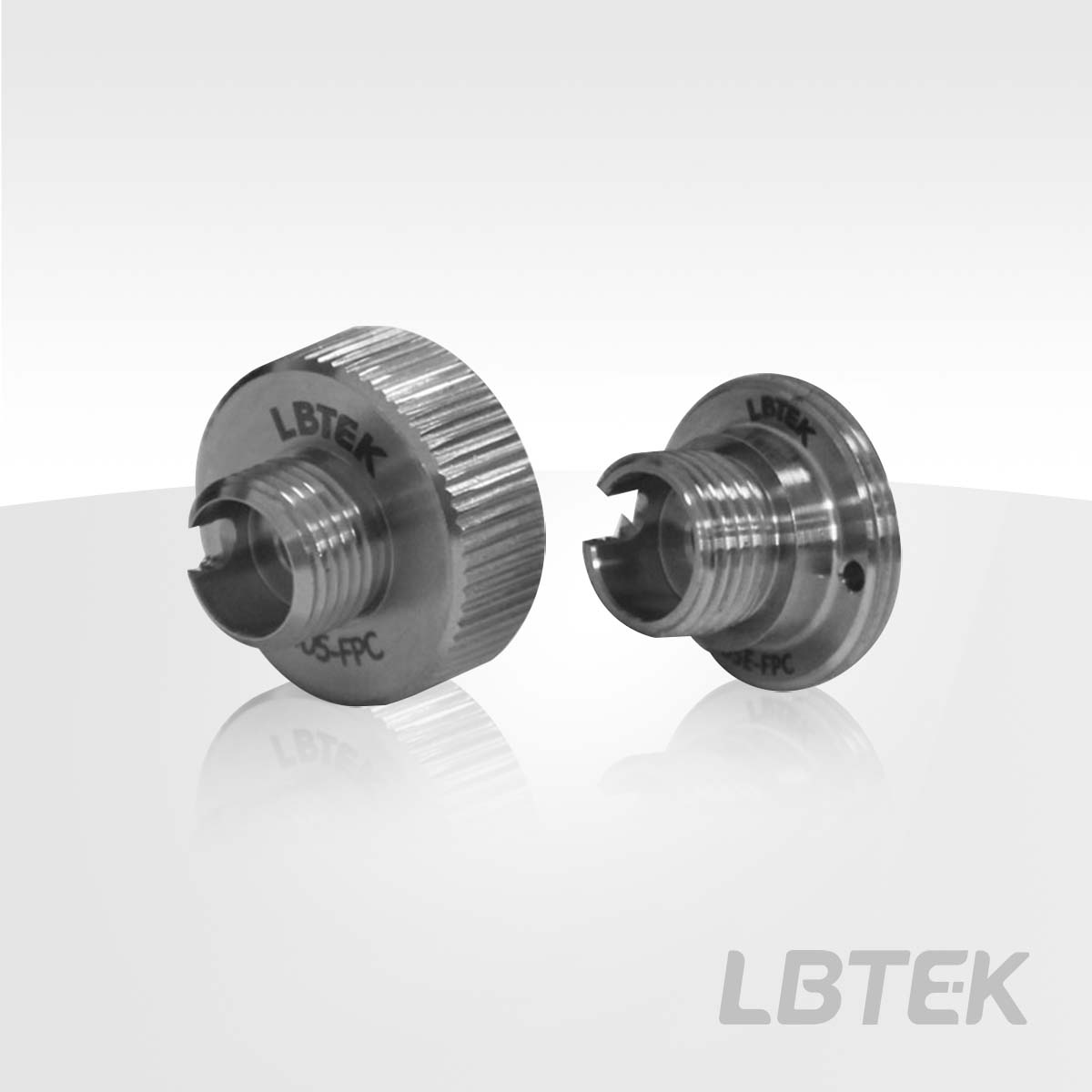

SM05 Series Fiber Optic Flange

SM05 Internal/External Threaded Adapter with FC/PC, FC/APC, SMA Ports
Compatible with SM05 Series Lens Tubes to Achieve Light-Shielding Structure

The LBTEK SM05 series fiber optic flange features an SM05E external thread series with light-blocking recessed holes on both sides, allowing installation from either direction using a snap ring wrench. The SM05 internal thread series has a hand-tightened knurled outer edge for convenient manual installation.

Fiber Optic Jumper Connected to SM05 Optical Flange

Product Model	Connector Type	Thread specification	Unit Price	Lead Time
SM05-FPC2	FC/PC, Narrow Key (2 mm)	SM05 Internal Thread	$22.62	5 weeks
SM05E-FPC2	FC/PC, Narrow Key (2 mm)	SM05 External Thread	$20.26	5 weeks
SM05-FAPC2	FC/APC, Narrow Key (2 mm)	SM05 Internal Thread	$29.68	5 weeks
SM05E-FAPC2	FC/APC, Narrow Key (2 mm)	SM05 External Thread	$26.8	5 weeks
SM05-SMA	SMA	SM05 Internal Thread	$28.37	6 weeks
SM05-FAPC	FC/APC, Wide Key (2.2 mm)	SM05 Internal Thread	$31.12	6 weeks
SM05-FPC	FC/PC, Wide Key (2.2 mm)	SM05 Internal Thread	$28.37	6 weeks
SM05E-SMA	SMA	SM05 External Thread	$26.41	6 weeks
SM05E-FAPC	FC/APC, Wide Key (2.2 mm)	SM05 External Thread	$28.63	6 weeks
SM05E-FPC	FC/PC, Wide Key (2.2 mm)	SM05 External Thread	$25.23	6 weeks

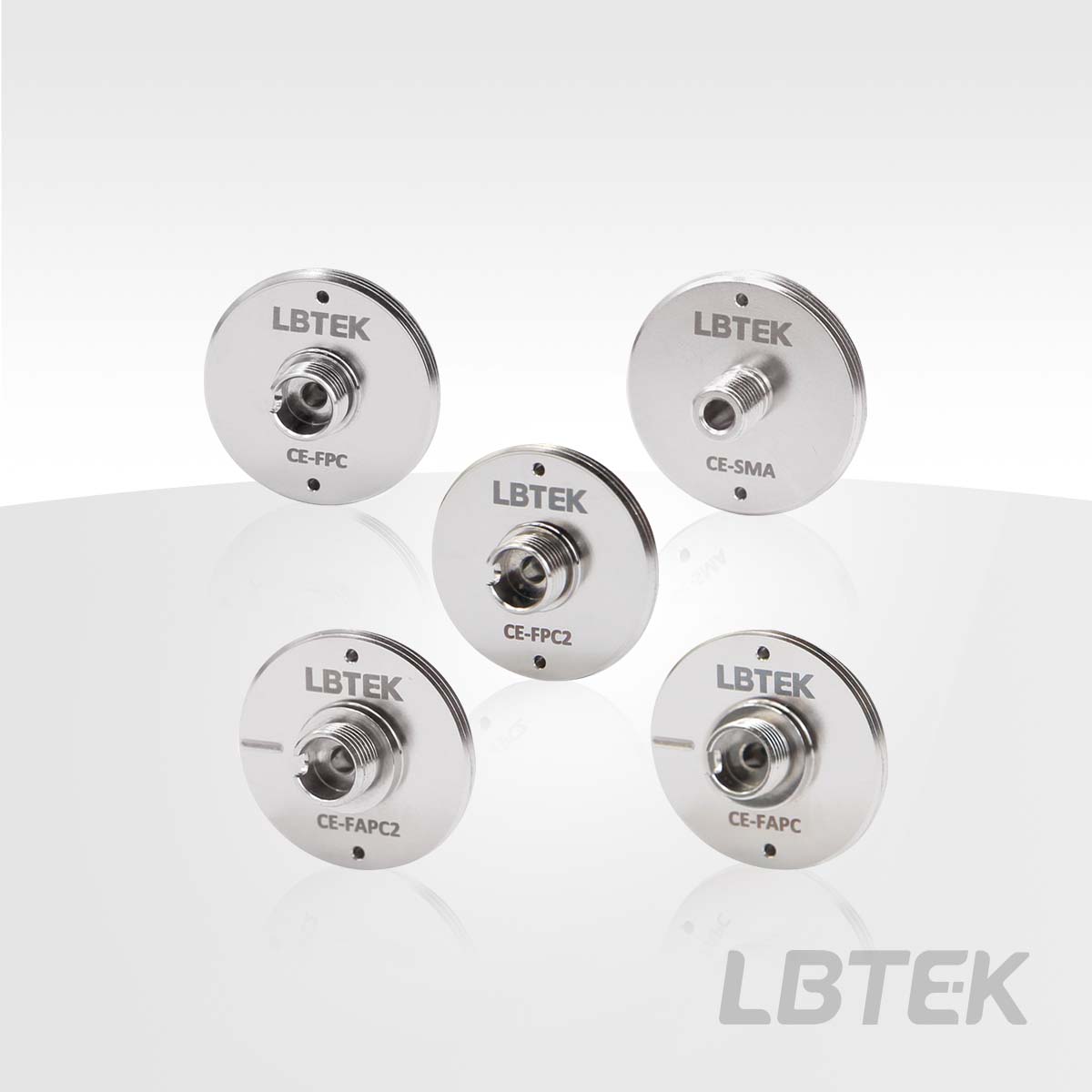

C-Mount Series External Thread

C-Mount External Thread Adapter with FC/PC (Narrow Key or Wide Key), FC/APC (Narrow Key or Wide Key) or SMA Interface
Light-Tight Structure
Compatible with CMOS Cameras

The LBTEK C-Mount series fiber optic flange allows the connection of terminated fibers to components or cameras with C-Mount internal threads. The C-Mount external thread series features light-blocking recessed holes on both sides, enabling installation from either direction using the retaining ring wrench OWR-1B. LBTEK offers custom services for special requirements including different materials, dimensions, and surface treatments. For customization needs, please contact technical support.

Fiber Optic Jumper Connected to C-Mount Optical Flange

Product Model	Connector Type	Thread specification	Unit Price	Lead Time
CE-SMA	SMA	C-Mount External Thread	$22.62	6 weeks
CE-FAPC2	FC/APC, Narrow Key (2 mm)	C-Mount External Thread	$34.78	6 weeks
CE-FAPC	FC/APC, Wide key (2.2 mm)	C-Mount External Thread	$34.78	6 weeks
CE-FPC2	FC/PC, Narrow Key (2 mm)	C-Mount External Thread	$22.62	6 weeks
CE-FPC	FC/PC, Wide Key (2.2 mm)	C-Mount External Thread	$22.62	6 weeks

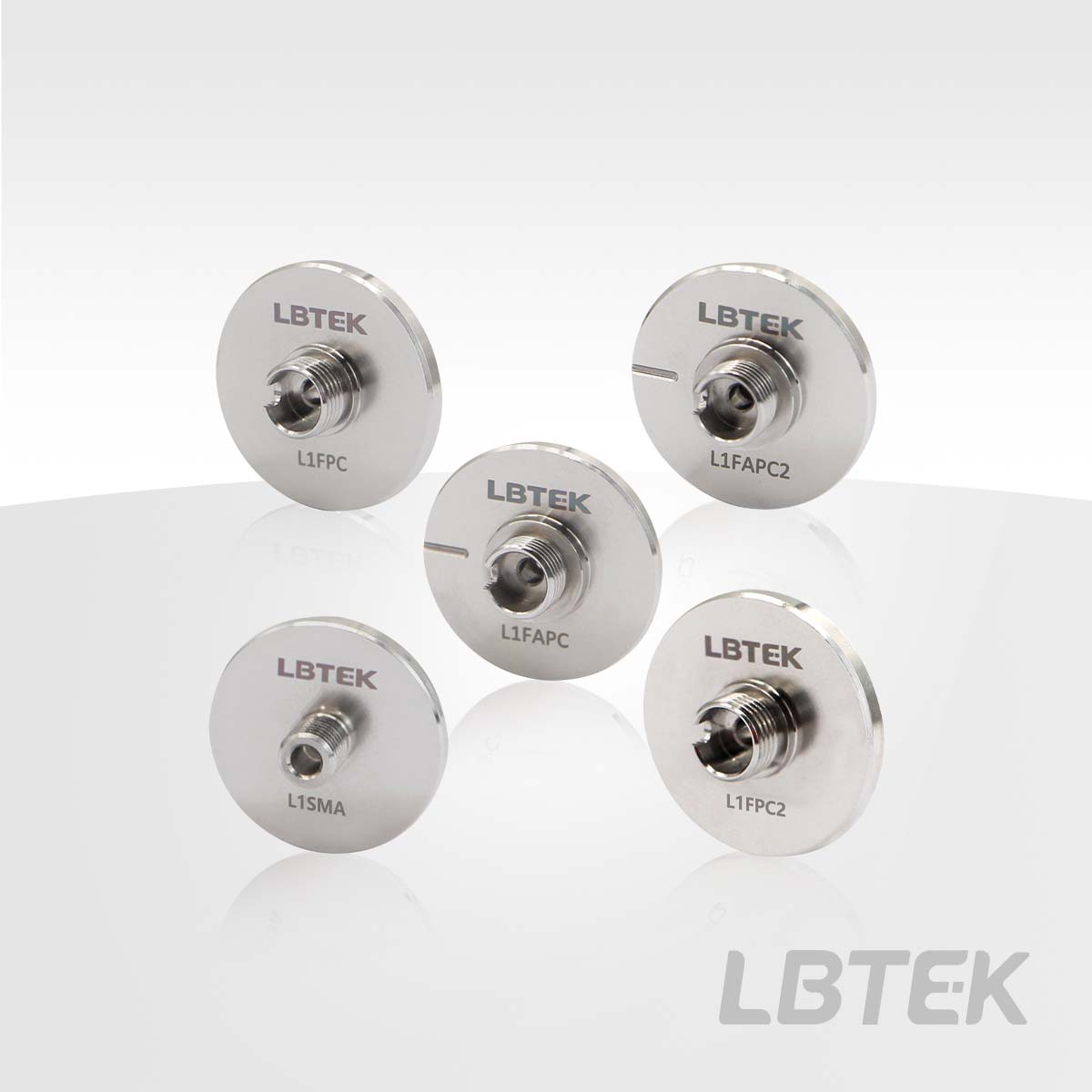

Ø25.4 mm Optical Flange Series for Fiber Optics

Adapter for Ø25.4 mm Smooth Bore with FC/PC (Narrow Key or Wide Key), FC/APC (Narrow Key or Wide Key) or SMA Connector
Opaque Structure
Compatible with Mechanical Components for Ø25.4 mm Optical Elements

LBTEK’s Ø25.4 mm Optical Flange Series for Fiber Optics enables the connection of fiber optic cables with connectors to mechanical components designed for Ø25.4 mm optical elements. These flanges are available with various interfaces, including FC/PC (with narrow or wide key), FC/APC (with narrow or wide key), and SMA, ensuring compatibility with a range of fiber optic connectors. LBTEK also provides customization services for different materials, sizes, and surface treatment processes to cater to specific customer needs. For any special customization requirements, please contact our technical support team.

Fiber Optic Jumper Connected to Ø25.4 mm Optical Flange

Product Model	Connector Type	Outer diameter	Unit Price	Lead Time
L1SMA	SMA	Ø25.4 mm	$23.4	6 weeks
L1FAPC2	FC/APC, Narrow Key (2 mm)	Ø25.4 mm	$26.41	6 weeks
L1FAPC	FC/APC, Wide Key (2.2 mm)	Ø25.4 mm	$26.41	6 weeks
L1FPC2	FC/PC, Narrow Key (2 mm)	Ø25.4 mm	$23.4	6 weeks
L1FPC	FC/PC, Wide Key (2.2 mm)	Ø25.4 mm	$23.4	6 weeks

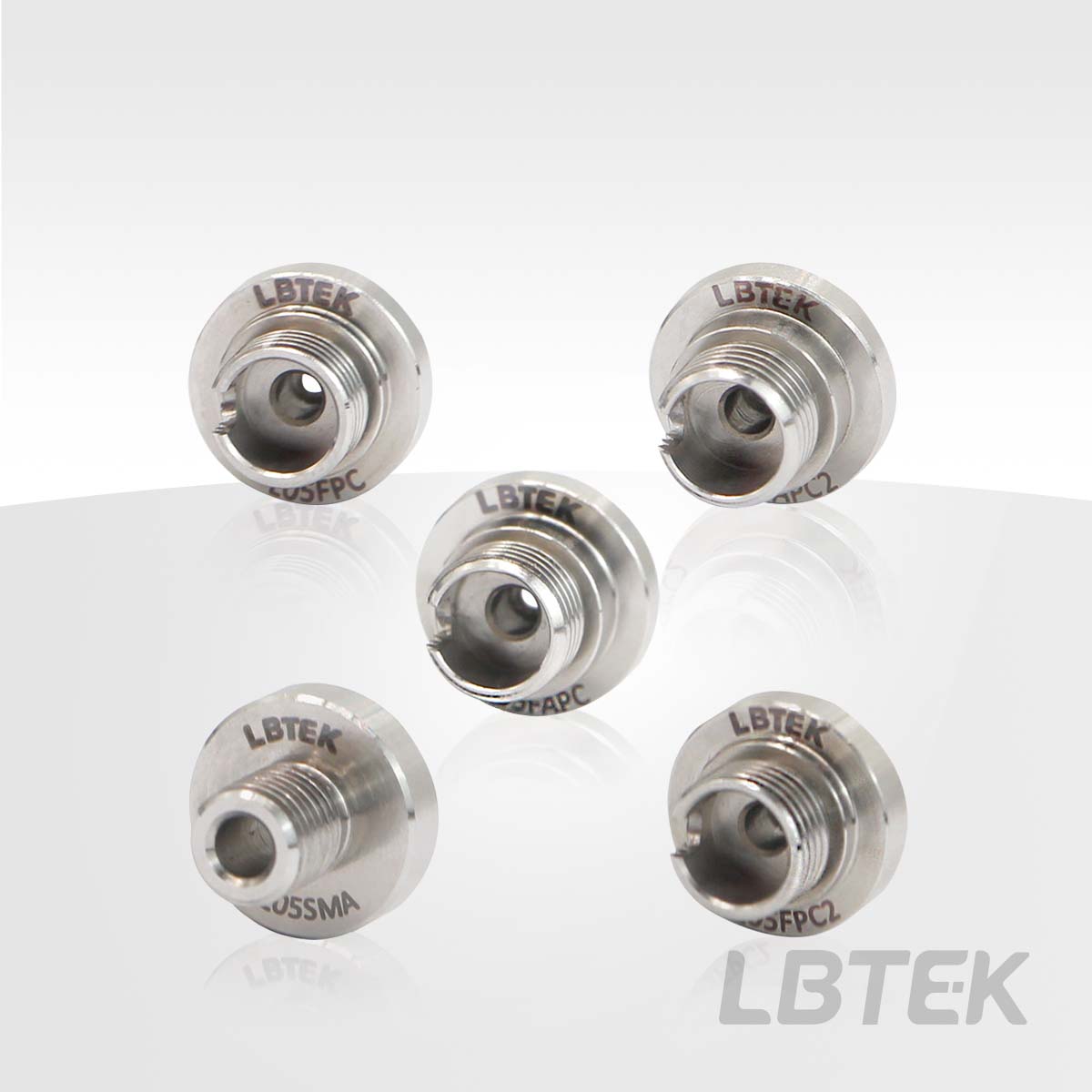

Ø12.7 mm Optical Flange Series for Fiber Optics

Adapter with Ø12.7 mm Smooth Bore, Featuring FC/PC (Narrow Key or Wide Key), FC/APC (Narrow Key or Wide Key) or SMA Interface
Light-Blocking Structure
Compatible with Mechanical Components for Ø12.7mm Optical Elements

LBTEK’s Ø12.7 mm optical flange series is designed to facilitate the connection of fiber optic cables with connectors to mechanical components intended for Ø12.7 mm optical elements. These flanges offer multiple interface options, including FC/PC with narrow or wide keys, FC/APC with narrow or wide keys, and SMA, ensuring compatibility with a variety of fiber optic connectors. LBTEK provides customization services for different materials, sizes, and surface treatment processes to meet specific requirements. For any customization needs, please reach out to our technical support team.

Fiber Optic Jumper Connected to Ø12.7 mm Optical Flange

Product Model	Connector Type	Outer diameter	Unit Price	Lead Time
L05SMA	SMA	Ø12.7 mm	$22.62	6 weeks
L05FAPC2	FC/APC, Narrow Key (2 mm)	Ø12.7 mm	$26.41	6 weeks
L05FAPC	FC/APC, Wide Key (2.2 mm)	Ø12.7 mm	$26.41	6 weeks
L05FPC2	FC/PC, Narrow Key (2 mm)	Ø12.7 mm	$22.62	6 weeks
L05FPC	FC/PC, Wide Key (2.2 mm)	Ø12.7 mm	$22.62	6 weeks

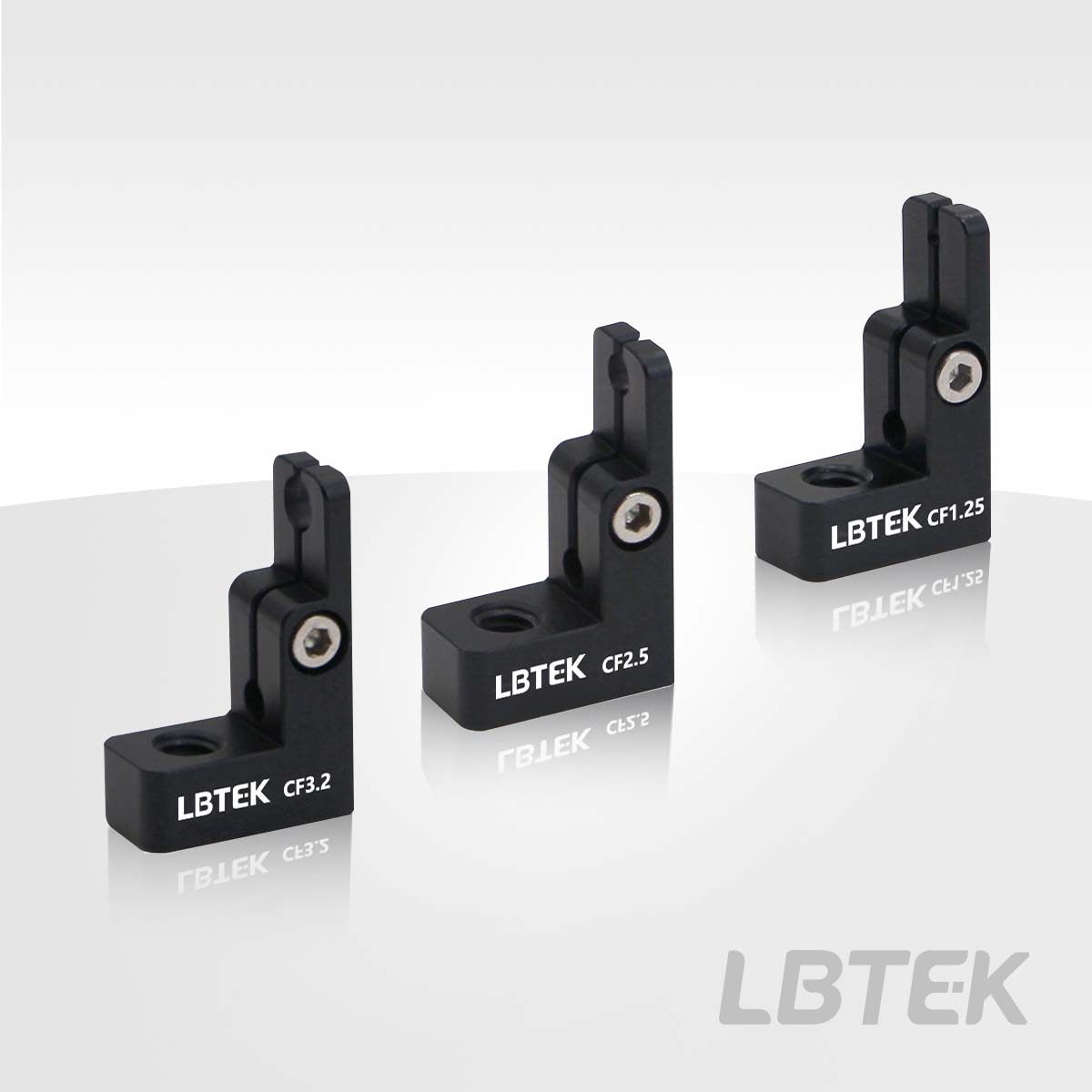

Ferrule Holder

Material: 6061-T6 Aluminum Alloy
Surface Treatment: Black Anodized
Mounting Hole Specification: M4 Threaded Hole
Flexible Fixture, Compatible with Ø1.25 mm, Ø2.5 mm, Ø3.2 mm or Ø3.4 mm Ferrules

LBTEK’s ferrule holder is designed with a flexible structure, featuring a central slot that allows for bending the metal without breaking. This design enables secure fixation of fiber optic connectors in experimental setups. The CF1.25 model is compatible with Ø1.25 mm ferrules, the CF2.5 with Ø2.5 mm ferrules, and the CF3.2 with either Ø3.2 mm or Ø3.4 mm ferrules. The base of the holder has an M4 threaded hole for mounting on a support rod. Each purchase includes a bonus M2×4 hexagonal socket head cap screw.

CF3.2 Fixed SMA Connector

Product Model	Compatible core diameter	Unit Price	Lead Time
CF3.2	Ø3.2 mm、Ø3.4 mm	$17.91	6 weeks
CF2.5	Ø2.5 mm	$17.91	6 weeks
CF1.25	Ø1.25 mm	$17.91	6 weeks
