Specifications
Assembly
Feedback
Product Description
- Commonly used for installing and securing SM1, SM30, SM1.5, SM2, SM3 series sleeves
- Fixed using side locking screws
- Three-point clamping method evenly distributes clamping force, reducing deformation and damage to the clamped part
- Hinge-type opening mode is more convenient and faster
The snap-in sleeve mounting bracket provided by LBTEK is specifically designed for installing and securing SM1, SM30, SM1.5, SM2, and SM3 series sleeves, with the SM3 having a thickness of 12 mm. It is used to fix lens sleeves onto breadboards or optical platforms via the sleeve mounting bracket. The locking screw causes elastic deformation of the mounting bracket to secure the installed component. Additionally, purchasing the snap-in sleeve mounting bracket includes a corresponding 2 mm hex key and M4×6 pan head screws.
Attribute
Material6061-T6 aluminum alloy
Surface treatmentBlack anodized
Thickness10 mm、12 mm
Bottom countersunk hole specificationsM4
Locking Screw ModelM2.5

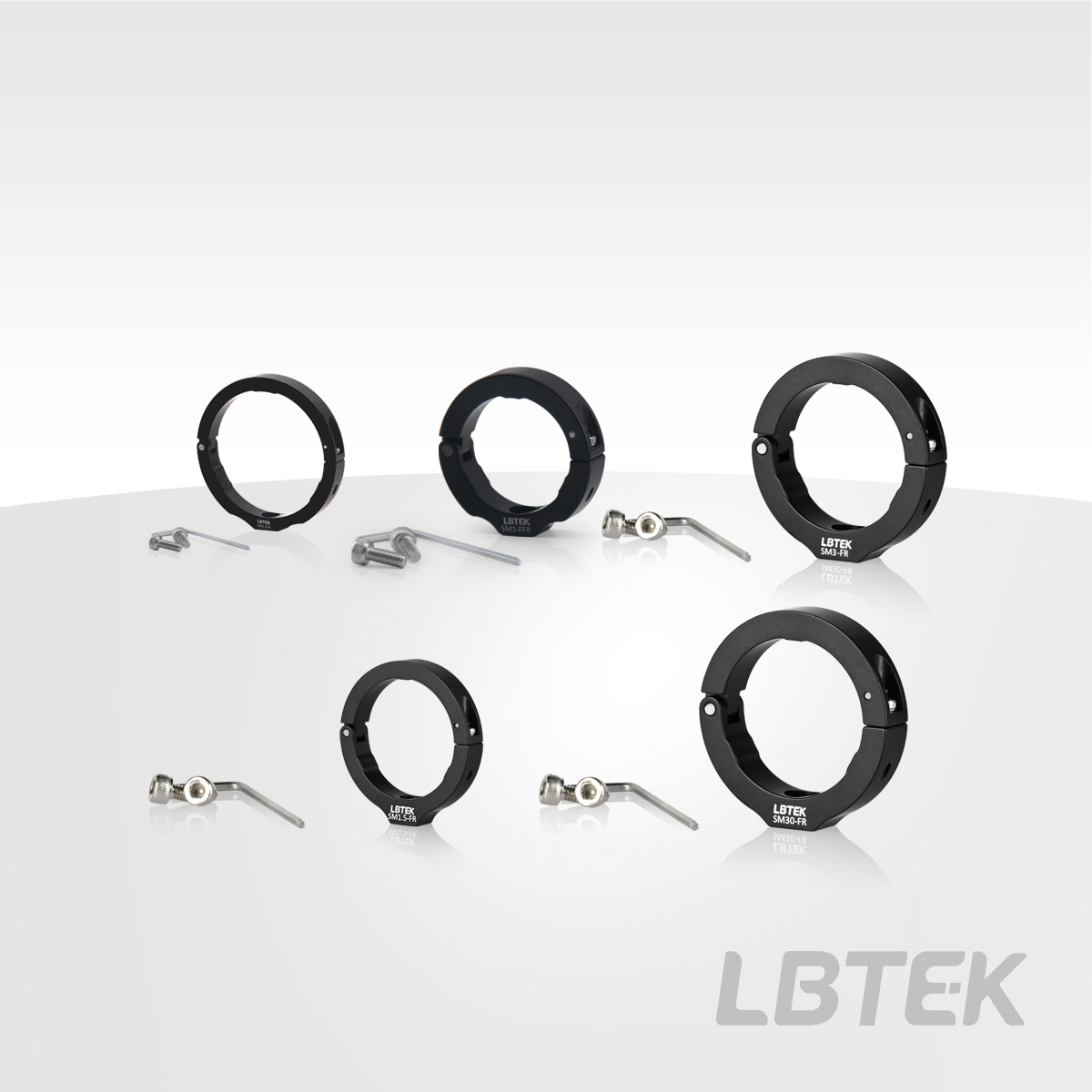

Snap-in sleeve mounting bracket
- For installing and securing SM1, SM30, SM1.5, SM2, SM3 series sleeves
- Fixed using side locking screws
- Three-point clamping method evenly distributes clamping force, reducing deformation and damage to the clamped part
- Hinge-type opening mode is more convenient and faster
The LBTEK snap-in sleeve mounting bracket is specifically designed for installing and securing SM1, SM30, SM1.5, SM2, and SM3 series sleeves, fixing lens sleeves to breadboards or optical platforms. The bottom of the mounting bracket features an M4 countersunk mounting hole, which can be supported using a Ø12.7 mm stainless steel optical post or other connecting components.
Fixed socket mounting brackets are commonly used for securing sockets.
Product Model | Inner Diameter (ID) | Thickness | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| SM2-FFR | 56.2 mm | 10 mm | $30.46 | today | |||
| SM1-FFR | 30.7 mm | 10 mm | $37.52 | today | |||
| SM30-FR New | 35.2 mm | 10 mm | $29.16 | today | |||
| SM1.5-FR New | 43.4 mm | 10 mm | $29.16 | today | |||
| SM3-FR New | 81.5 mm | 12 mm | $34.78 | today |
