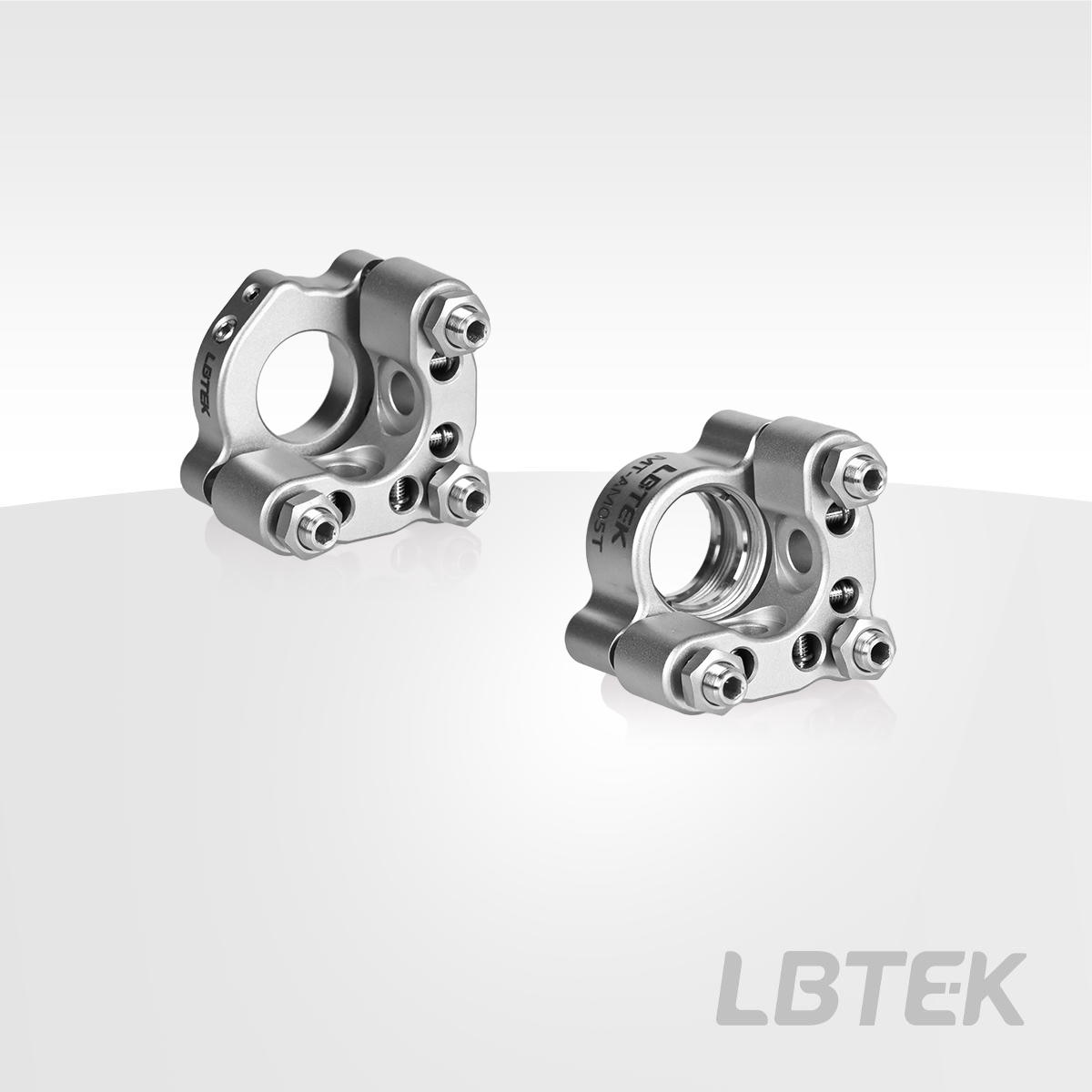

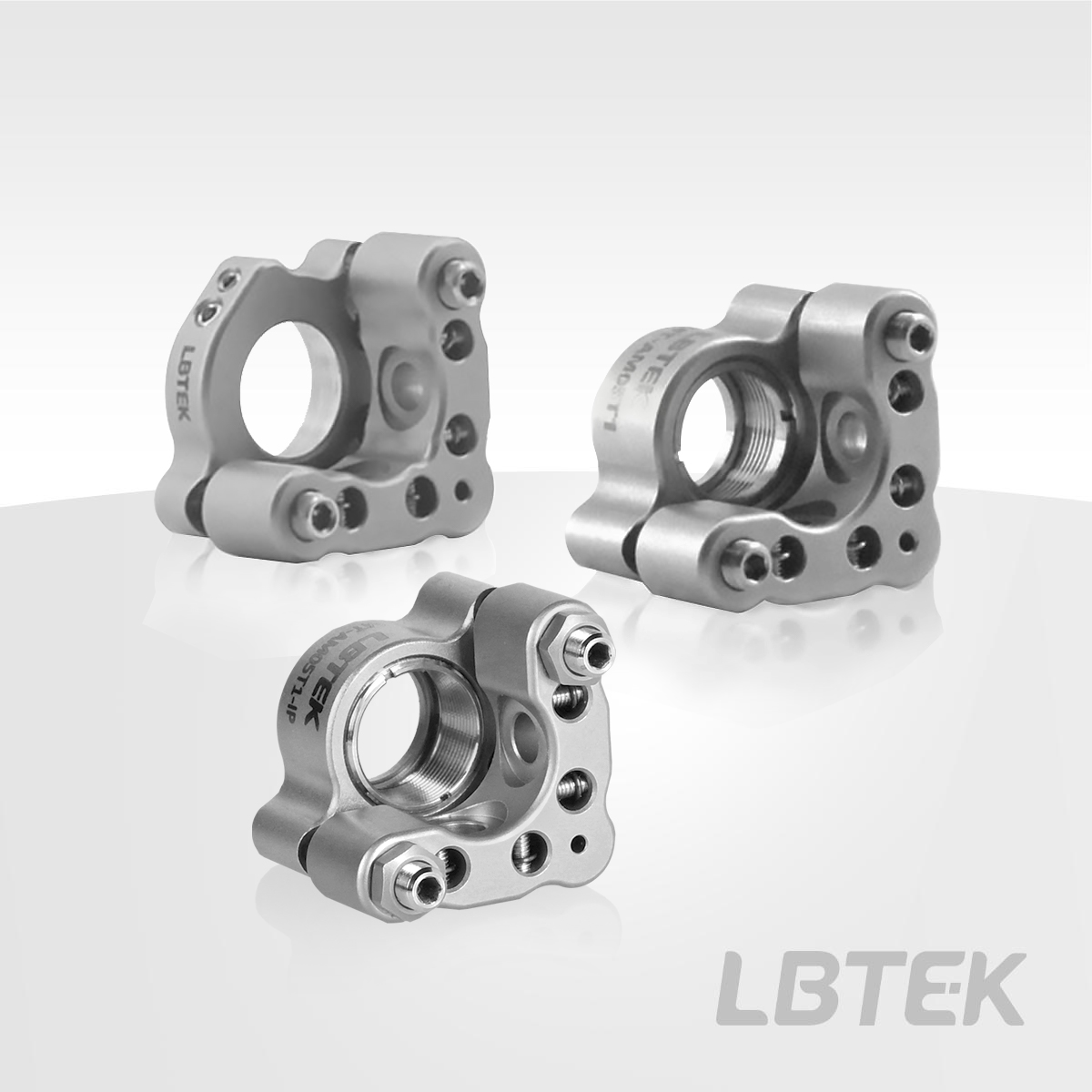

The LBTEK 0.5-inch Stainless Steel Mirror Mount is designed for mounting optical components with a diameter of 12.7 mm, featuring 2 knobless M4×0.2 precision adjusters. Two low-deformation fixation methods for optical components are available: the MT-AM05S1 uses flexible spring pieces and set screws to secure the optical component, with a minimum component thickness of 2 mm; the MT-AM05T1 employs retaining rings for direct fixation, and the purchase of the lens mount includes 2 stainless steel retaining rings, with the maximum thickness of the ring-fixed optical component not exceeding 6.6 mm. The 2 knobless M4×0.2 precision adjusters allow for adjustment of the optical component's pitch and yaw using a hex key. The side of the optical adjustment mount features M4 countersunk mounting holes, and the purchase of the LBTEK stainless steel mount includes hex socket ultra-thin head screws and a hex key.

The LBTEK 0.5-inch Stainless Steel Mirror Mount is designed for mounting optical components with a diameter of 12.7 mm, featuring three knobless M4×0.2 precision adjusters. Two low-deformation optical component fixation methods are available: the MT-AM05 uses flexible spring pieces and set screws to secure the optical component, with a minimum component thickness of 2 mm; the MT-AM05T employs retaining rings for direct fixation, and two stainless steel retaining rings are included with the purchase. The maximum thickness for ring-fixed optical components should not exceed 6.6 mm. The three knobless M4×0.2 precision adjusters allow for adjustment of the optical component's pitch and yaw using a hex key. The side of the optical adjustment mount features M4 countersunk mounting holes. Purchasing the LBTEK stainless steel mirror mount includes ultra-thin hex head screws and a hex key.

LBTEK provides Hex-Key Adjustment Thumb Screws that allow quick adjustment of hex actuators, cap screws, and set screws. Unlike balldriver, they can remain in the hex socket of the screw during adjustment, enhancing convenience. Each size is sold in a set of four thumb screws. Additionally, a kit containing one of each size is also available.

LBTEK 0.5-inch Stainless Steel Mounts, with 2 lock rings and vertical actuator adjusters, designed for optical components with a diameter of 12.7 mm in situations where there is no space behind the mount to use horizontal adjusters. The optical component is secured via flexible spring pieces and set screws. The two M4×0.20 precision adjusters with lock rings (knobless) provide an angular adjustment range of ±4° for the mount. The knobless adjusters are adjusted using a hex key. Additionally, the optical adjustment mount features M4 countersunk mounting holes on the side. The purchase includes 2 M4 thin-head hex screws and one each of 2.0 mm and 1.5 mm hex keys.

LBTEK 0.5-inch Stainless Steel Mirror Mounts are for mounting optical components with 12.7 mm diameter, featuring 2 knobless M4×0.2 precision adjusters with locknuts (6 mm hex nuts), adjustable using MT-TW6 torque wrench. Optical components are secured by flexible spring pieces and set screws, with a minimum component thickness of 2 mm. The 2 knobless M4×0.2 precision adjusters with locknuts allow pitch and yaw adjustment of optical components via hex wrench. The optical mount has M4 countersunk mounting holes on the side. LBTEK Stainless Steel Mounts come with ultra-thin hex socket head screws and hex wrench included.

LBTEK stainless steel mount is used for installing Ø12 mm collimators, featuring 2 M4×0.2 precision adjusters without knobs but with locking nuts. The locking nuts are 6 mm hex nuts, adjustable with the MT-TW6 torque wrench. The collimator is secured by flexible spring plates and set screws. The 2 M4×0.2 precision adjusters without knobs but with locking nuts allow for pitch and yaw adjustment of the collimator using a hex key. The optical mount has M4 countersunk mounting holes on the side. The purchase of the LBTEK stainless steel mount includes hex socket ultra-thin head screws and a hex key.
