Product Description

Optical material: N-BK7
Operating wavelength: 1100 nm-1650 nm (AR Coating)
Application: imaging, beam expansion or reduction, convergence

The double-convex lens has a positive focal length and can be used to focus collimated beams or collimate point light sources. Additionally, both surfaces of the lens are coated with an anti-reflection coating for 1100 nm–1650 nm, which helps reduce the lens's reflectance. Double-convex lenses are widely used in imaging applications, with N-BK7 being the most common lens material, applied in visible and near-infrared fields. LBTEK selects N-BK7 to manufacture various lenses, all of which undergo fine processing and strict quality control. This ensures that LBTEK provides the users with high-quality lens products at reasonable prices.

Attribute

Optical component materialN-BK7

Surface finish (scratches/pits)40/20

Curved Aperture3

Focal length tolerance±1%

Local surface irregularity0.5

Design wavelength587.6 nm

Eccentricity≤3 arcmin

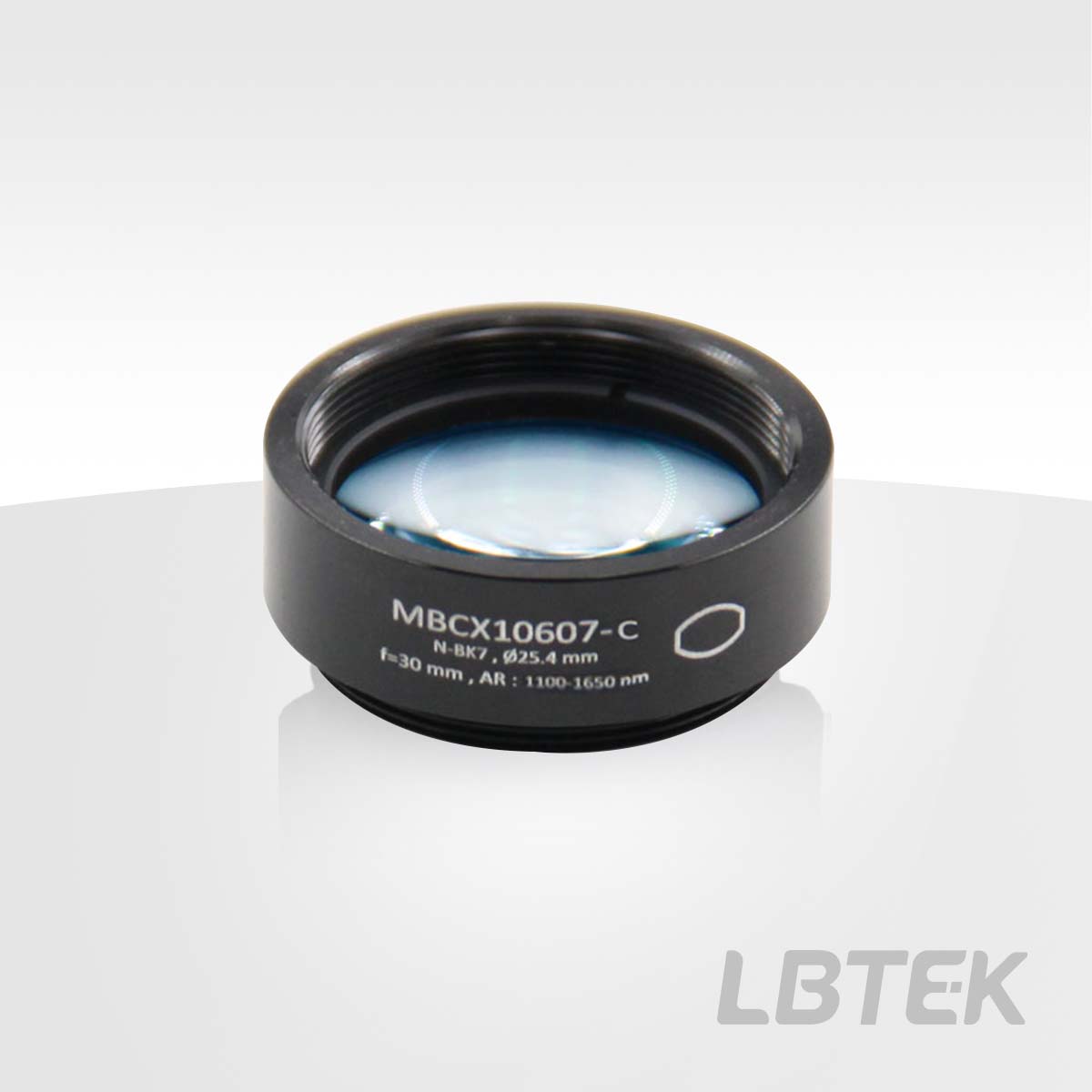

Double-Convex Lenses, N-BK7, AR Coating: 1100 nm-1650 nm

Substrate material: N-BK7
Operating wavelength: 1100 nm-1650 nm (AR Coating)
Application: imaging, beam expansion or reduction

The LBTEK Double-Convex Lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK manufactures double-convex lenses using N-BK7 glass, which is the most commonly used material for high-quality optical components, primarily for visible and near-infrared applications. All circular lenses from LBTEK are pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters.

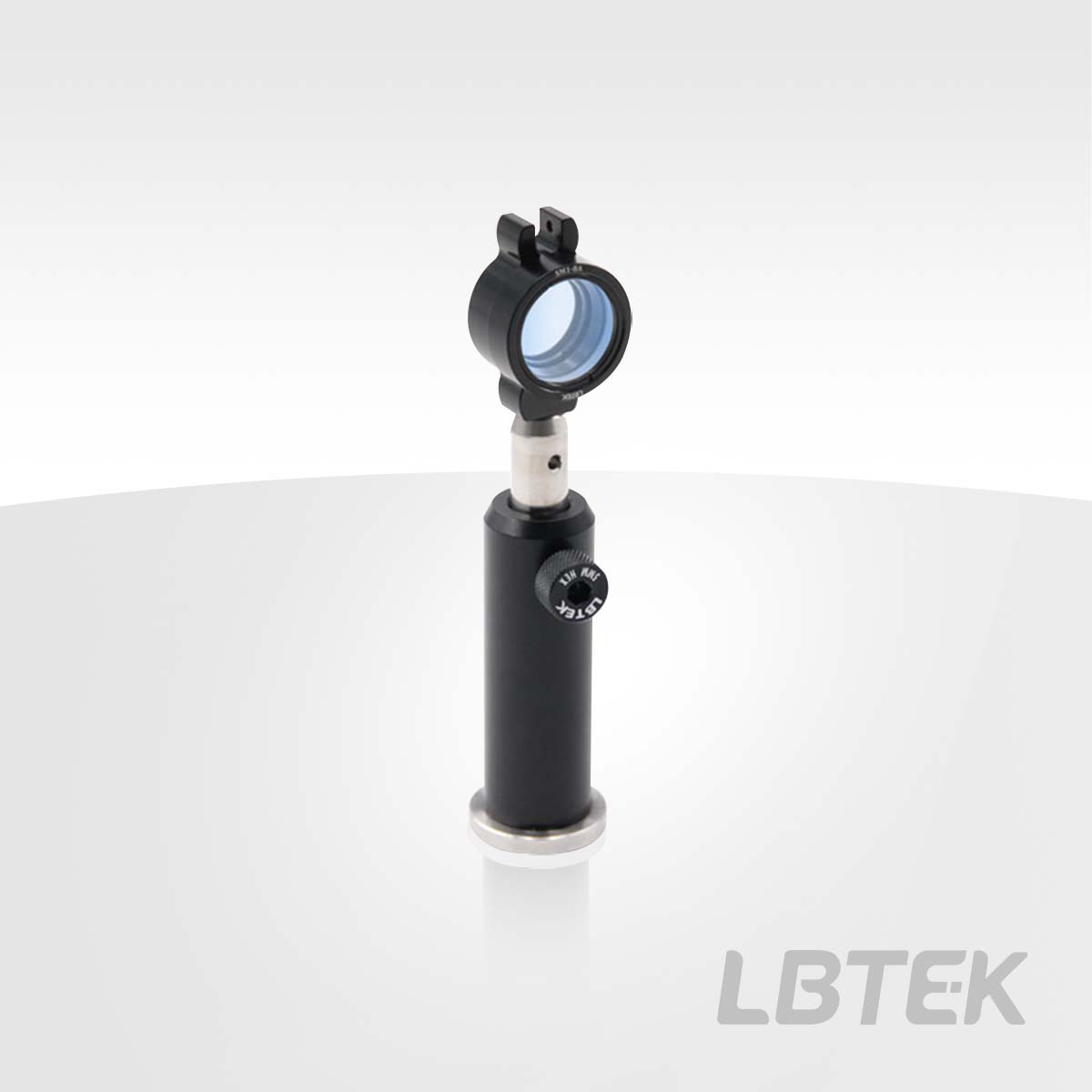

The housing surface of the LBTEK Lens is engraved with the product model and other information

	Product Model	Diameter	Focal length	Unit Price	Compare	Lead Time
	MBCX10606-C	25.4 mm	25.4 mm	$48.77		6 weeks
	MBCX10615-C	25.4 mm	150.0 mm	$47.33		6 weeks

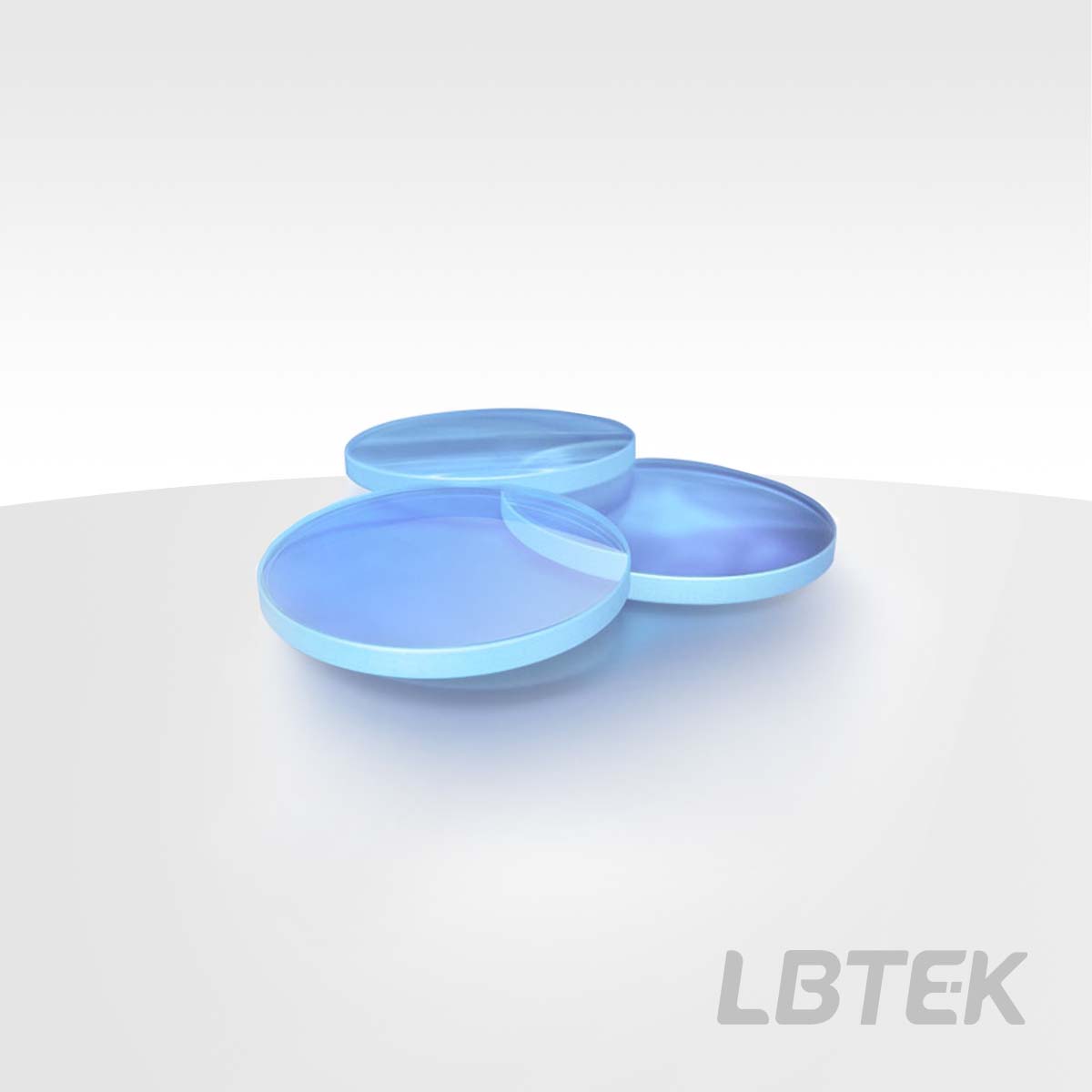

Double-Convex Lenses, N-BK7, AR Coating: 1100 nm-1650 nm, Unmounted

Substrate material: N-BK7
Operating wavelength: 1100 nm-1650 nm (anti-reflection coating)
Application: imaging, beam expansion or reduction

The LBTEK Unmounted Lenses are suitable for building compact systems

Product Model	Diameter	Focal length	Unit Price	Lead Time
BCX10001-C	6.0 mm	10 mm	$35.3	4 weeks
BCX10303-C	12.7 mm	15.0 mm	$35.3	6 weeks
BCX10202-C	9.0 mm	12.0 mm	$32.03	6 weeks
BCX10609-C	25.4 mm	40.0 mm	$37.52	6 weeks
BCX10606-C	25.4 mm	25.4 mm	$38.44	6 weeks
BCX10615-C	25.4 mm	150.0 mm	$36.74	6 weeks
