Product Description
- Purpose: Optical path extension
- Broadband dielectric coating, Leg-coated
- Operating wavelength: 400 nm-750 nm, 750 nm-1100 nm
- Optical material: N-BK7

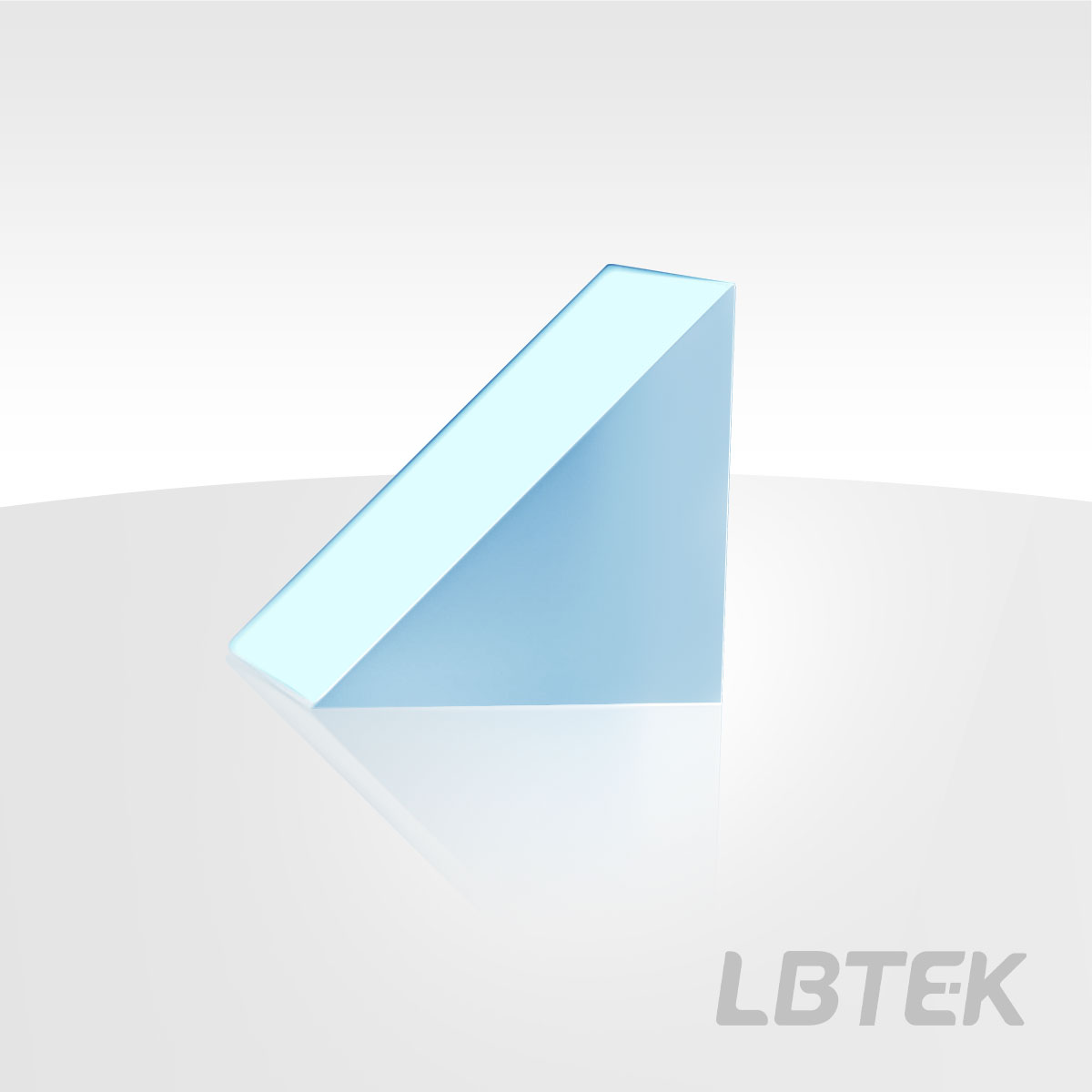

LBTEK's Leg-coated right-angle prism mirrors feature a broadband dielectric reflective coating coatings on the two legs of an N-BK7 right-angle prism. This coating boasts a reflectivity exceeding 99% across the operating wavelength range. When used with a right-angle prism of the same size, leg-coated right-angle prism mirrors can extend the optical path length of a system. LBTEK offers right-angle prism dielectric coated mirrors in a variety of sizes. LBTEK also offers custom mirrors with other materials and coatings. For custom requirements, please contact LBTEK technical support.
Diagram
Attributes
MaterialN-BK7
Angular tolerance3 arcmin
Operating Wavelength400 nm-750 nm、750 nm-1100 nm
CoatingRight-angle surface coating
ReflectivityRavg>99% (45° angle of incidence)
Surface Flatness (@633 nm)λ/10
Surface Quality (Scratch/Dig)10/5
Broadband Dielectric Mirrors, Leg-Coated, Right-Angle Prisms
- Leg-coated
- Application: Beam deflection
- Optical material: N-BK7
A mirror is used to change the direction of the light beam. LBTEK's broadband dielectric reflective coating achieves a reflectivity of over 99% within the working wavelength range. LBTEK offers various sizes of right-angle prism dielectric mirrors. Additionally, LBTEK provides customized services for mirrors with other materials and coatings. For customization needs, please contact our technical support.

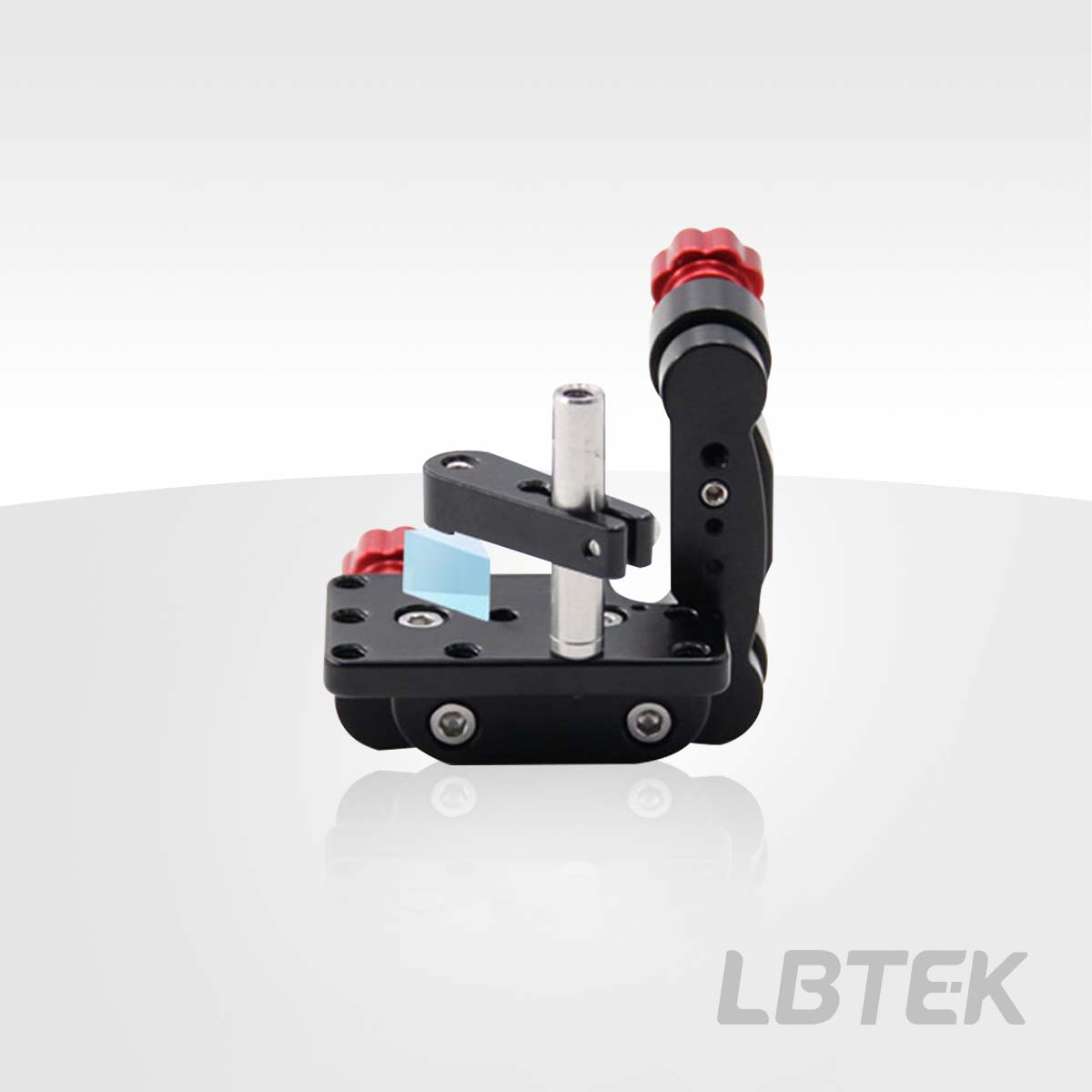

The LBTEK right-angle prism mirror is mounted in the prism mount.
Product Model | Operating Wavelength | Size | Clear Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | RAP125-RA-A | 400 nm-750 nm | 25.0 mm×25.0 mm×25.0 mm | 70% L×W | $171.66 | today | Add Cart | |
| RAP120-RA-A | 400 nm-750 nm | 20.0 mm×20.0 mm×20.0 mm | 70% L×W | $141.85 | today | Add Cart | |
| RAP112-RA-A | 400 nm-750 nm | 12.5 mm×12.5 mm×12.5 mm | 70% L×W | $125.64 | today | Add Cart | |
| RAP110-RA-A | 400 nm-750 nm | 10.0 mm×10.0 mm×10.0 mm | 70% L×W | $115.31 | today | Add Cart | |
| RAP105-RA-A | 400 nm-750 nm | 5.0 mm×5.0 mm×5.0 mm | 70% L×W | $94.53 | today | Add Cart | |
| RAP125-RA-B | 750 nm-1100 nm | 25.0 mm×25.0 mm×25.0 mm | 70% L×W | $171.66 | today | Add Cart | |
| RAP120-RA-B | 750 nm-1100 nm | 20.0 mm×20.0 mm×20.0 mm | 70% L×W | $142.51 | today | Add Cart | |
| RAP112-RA-B | 750 nm-1100 nm | 12.5 mm×12.5 mm×12.5 mm | 70% L×W | $112.57 | today | Add Cart | |
| RAP110-RA-B | 750 nm-1100 nm | 10.0 mm×10.0 mm×10.0 mm | 70% L×W | $115.97 | today | Add Cart | |
| RAP105-RA-B | 750 nm-1100 nm | 5.0 mm×5.0 mm×5.0 mm | 70% L×W | $98.06 | today | Add Cart |
