LBTEK-Helium-Neon Lasers

Product Description

TEM00 mode output
Compact structure, split-type micro power supply design
High output power stability
Low amplitude noise

The Helium-Neon Laser is a gas laser that uses neutral atomic gases helium (He) and neon (Ne) as the operating medium, outputting continuous laser through continuous excitation. It features excellent beam quality and gas discharge laser characteristics, widely used in education and as an alignment tool. The LBTEK Helium-Neon Lasers adopt a split design, with compact structure and stable power, making them ideal coherent light sources for laboratories, industrial inspection, and other fields. The output beam of helium-neon lasers can be divided into fixed polarization and random polarization types, with only the fixed polarization type suitable for polarization-related optical applications. LBTEK currently offers customization options for different power levels and fixed polarization states. For detailed requirements, please consult LBTEK Technical Support. When using lasers, even at extremely low power levels, there is still a risk of eye injury to users. Therefore, it is recommended to follow laser safety guidelines and wear protective equipment. The PG-2 laser safety goggles provided by LBTEK offer protection in the 625 nm-700 nm wavelength range, with an optical density (OD) ≥5 (625 nm-700 nm) and visible light transmittance below 30%, effectively preventing potential retinal damage.

Helium-Neon Laser, Economy Model

Laser output power stability (≤±6%)
Random polarization, suitable for simple alignment and measurement
Good beam monochromaticity, coherence, and directionality, long device lifespan

The He-Ne laser HNL-2mW provided by LBTEK outputs randomly polarized TEM00 mode light with an operating wavelength of 632.8 nm, output power ≥2.0 mW, and power stability ≤±6%. It features a tube design with strong adaptability and, when used with the corresponding V-shaped holder HM-V50, can be easily integrated into experimental optical paths. It comes with a 220 V AC power supply. LBTEK He-Ne lasers offer stable operation and long service life, and are widely used in precision metrology, alignment and guidance, fluid flow velocity and flow rate measurement, and holography.

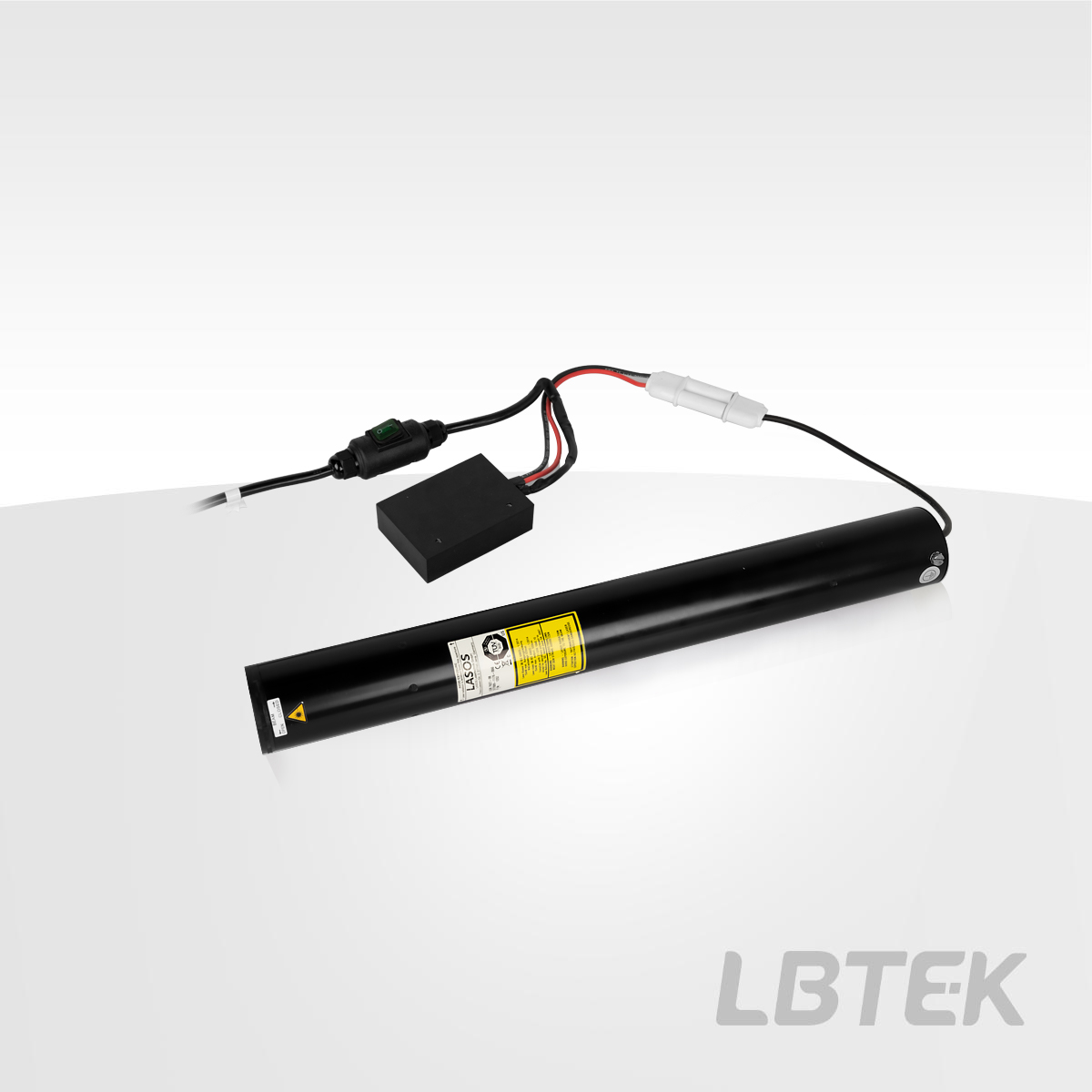

Helium-Neon Laser and Power Supply

	Product Model	Output power	Spot size	Output mode	Unit Price	Compare	Lead Time
	HNL-2mW New	≥2.0 mW	0.8 mm@10 mm light exit aperture	TEM00	$901.85		6 weeks	Add Cart

Product Model	Operating Wavelength	Output power	Polarization state	Unit Price	Lead Time
LGK7786P100	543 nm	≥1 mW	Linear polarization	$4,704.07	Contact	Add Cart
LGK7512P	594 nm	≥2 mW	Linear polarization	$3,660.75	Contact	Add Cart
LGK7665-20	632.8 nm	≥20 mW	Random polarization	$4,772.05	Contact	Add Cart
LGK7665P18	632.8 nm	≥18 mW	Linear polarization	$4,549.79	Contact	Add Cart
LGK7665-18	632.8 nm	≥18 mW	Random polarization	$4,445.20	Contact	Add Cart
LGK7665P New	632.8 nm	≥15 mW	Linear polarization	$4,183.72	Contact	Add Cart
LGK7665 New	632.8 nm	≥15 mW	Random Polarization	$4,052.98	Contact	Add Cart
LGK7654-08 New	632.8 nm	≥10 mW	Linear polarization	$3,242.38	Contact	Add Cart
LGK7653-08 New	632.8 nm	≥10 mW	Random Polarization	$3,072.42	Contact	Add Cart
LGK7628	632.8 nm	≥5 mW	Linear polarization	$2,248.75	today	Add Cart
LGK7627-08	632.8 nm	≥5 mW	Random polarization	$2,131.08	Contact	Add Cart
LGK7634	632.8 nm	≥2 mW	Linear polarization	$1,987.27	today	Add Cart
LGK7650-02	632.8 nm	≥0.5 mW	Linear polarization	$2,065.71	Contact	Add Cart

Frequency-Stabilized Helium-Neon Laser Series, Fixed Linear Polarization, Polarization Extinction Ratio >1000:1

High amplitude stability ≤±0.2% (1 Month)
Fixed polarization, suitable for polarization-related experiments
Excellent beam monochromaticity, coherence and directionality, long service life

The LBTEK Frequency-Stabilized Helium-Neon Laser is a single-longitudinal-mode, high-stability helium-neon laser with a coherence length exceeding 300 meters. Its exceptional stability and polarization extinction ratio make this helium-neon laser widely applicable in various fields such as precision measurement and spectral standards. Additionally, it features strong adaptability, stable operation, long service life, and plug-and-play functionality. It can be paired with the corresponding V-type clamp HM-V50 for easy integration into experimental optical paths.

Helium-Neon Laser and Controller Diagram

	Product Model	Output power	Spot size	Output mode	Unit Price	Compare	Lead Time
	STP-910	>0.5 mW	0.48 mm	TEM00	Contact		today	Add Cart
	STP-912	>1.0 mW	0.54 mm	TEM00	Contact		6 weeks	Add Cart
