Product Description

Semi-apochromat and apochromat options available
Dry objectives, water immersion objectives, and oil immersion objectives available
Designed for tube lenses with a focal length of 200 mm

LBTEK offers a wide variety of Nikon infinity-corrected microscope objectives covering wavelengths from the ultraviolet to the near-infrared, suitable for brightfield, darkfield, DIC, fluorescence, polarizing, multiphoton, and phase-contrast microscopy. LBTEK's Nikon objectives are categorized by their achromat performance: plan semi-apochromat objectives (also known as plan fluorite or plan fluorite objectives) and apochromat objectives. Apochromat objectives offer higher image quality than semi-apochromat objectives. They are also categorized by the immersion fluid used for imaging: dry, oil, and water immersion objectives. The NAPO25XCW-MP and NAPO25XCW-MP1300 objectives are optimized for deep tissue imaging using multiphoton confocal microscopy and are ideal for multiphoton imaging. The NPLNFL10XDLL and NPLNFL10XDLL objectives are designed for positive phase contrast imaging and are an excellent choice for phase-contrast microscopy. Objectives can be adapted to 1" optics mounts using the LBTEK adapters SM1-M25A or SM1-M32A.

Nikon Plan Semi-Apochromat Dry Objectives

Infinity-corrected plan semi-apochromatic design
Designed for use with tube lenses of 200 mm focal length
Thread type: M25 mm×0.75 mm
Working wavelength: UV to near-infrared

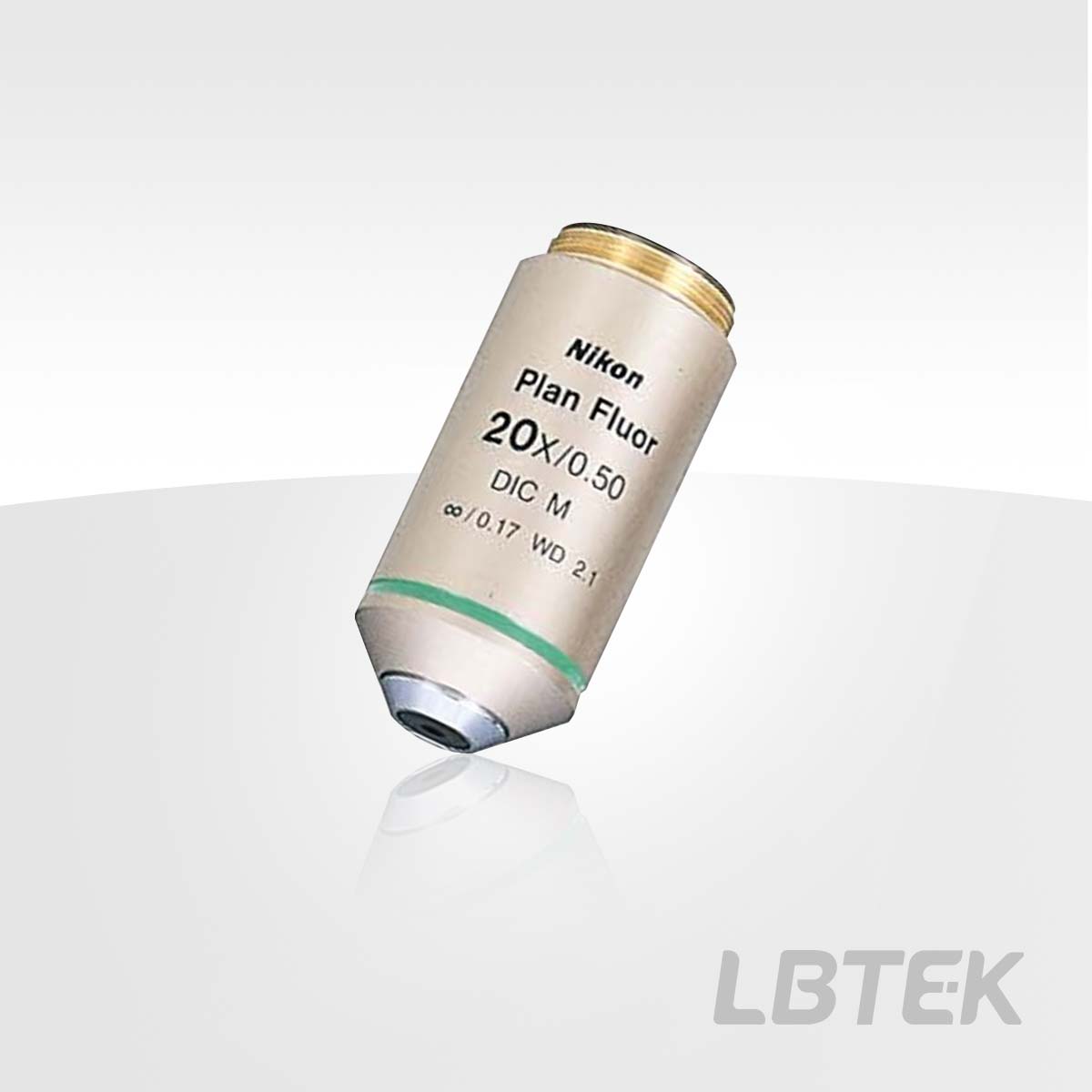

LBTEK offers Nikon Plan Semi-Apochromat Dry Objectives, which are designed for brightfield imaging and fluorescence observation. These objectives feature high transmission across the ultraviolet to visible wavelength range and can produce flat images. LBTEK offers Nikon Plan Semi-Apochromat Dry Objectives with magnifications of 4X, 10X, 20X, 40X, and 60X. Objectives with magnifications of 10X, 20X, 40X, and 60X are also suitable for darkfield, polarizing, and DIC microscopy. For specific parameters, please refer to the product specification list.

Using the LBTEK threaded adapter SM1-M25A, this type of objectives can be mounted onto a mount with SM1 internal threads.

Product Model	Numerical Aperture (NA)	Magnification	Working distance	Operating Wavelength	Unit Price	Lead Time
NPLNFL60XC	0.85	60X	0.31-0.4 mm	UV to NIR	$3282.91	Contact
NPLNFL20X	0.5	20X	2.1 mm	UV to NIR	$1436.85	Contact
NPLNFL40X	0.75	40X	0.66 mm	UV to NIR	$1538.82	Contact
NPLNFL10X	0.3	10X	16.0 mm	UV to NIR	$1251.59	Contact
NPLNFL4X	0.13	4X	17.2 mm	UV to NIR	$697.63	Contact

Nikon Plan Semi-Apochromat Objectives, Oil Immersion

Infinity-corrected plan semi-apochromatic design
Designed for use with tube lenses of 200 mm focal length
Thread type: M25 mm × 0.75 mm
Suitable for UV to visible spectral range

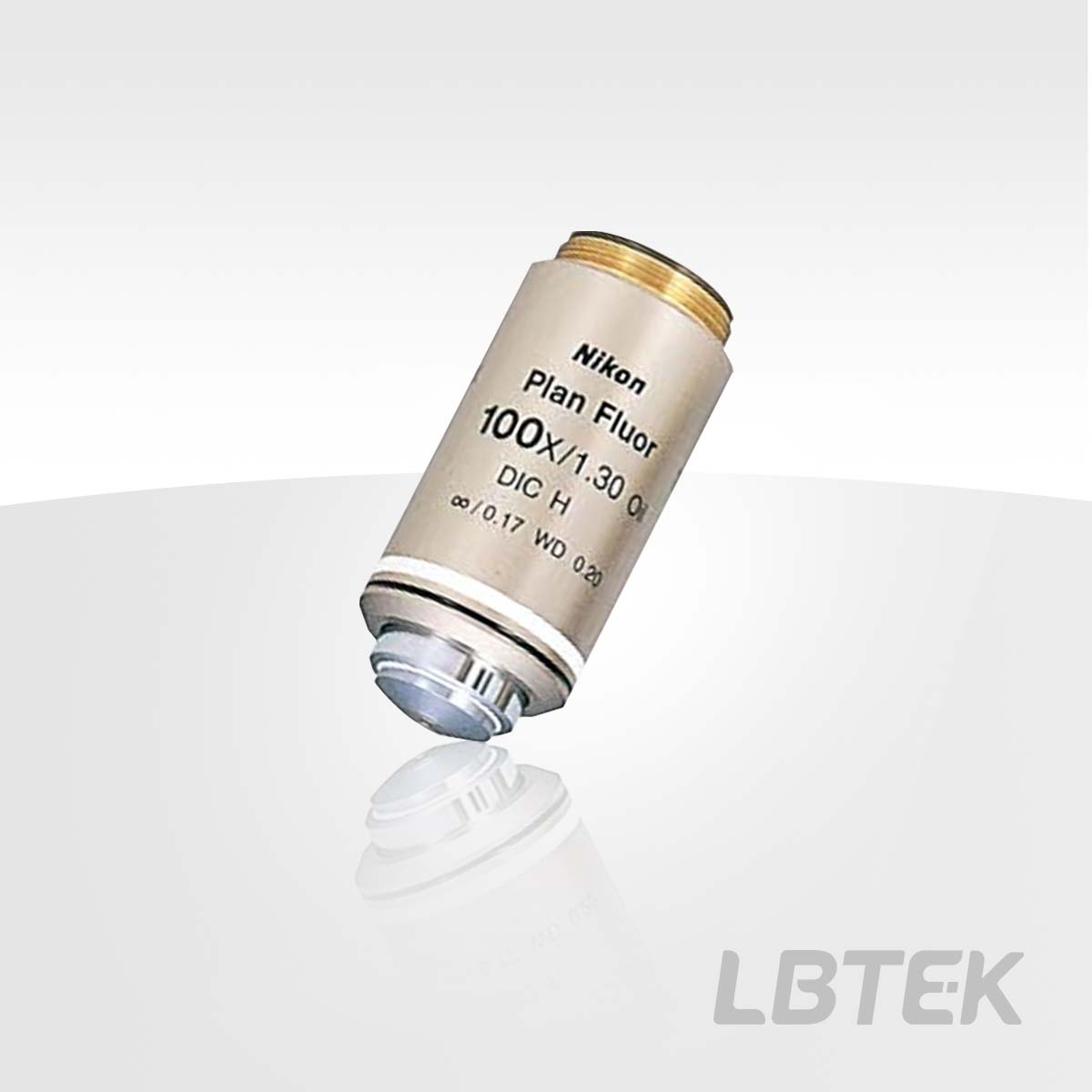

LBTEK offers Nikon 100X Plan Semi-Apochromat Oil Immersion Objectives. These objectives offer high transmittance and flat images from the ultraviolet to the visible wavelength range. Designed for brightfield imaging and fluorescence observation, they are also suitable for darkfield, polarizing, and DIC microscopy. For specific parameters, please refer to the product specification sheet.

These objectives can be mounted on mounts with internal SM1 threads using the LBTEK thread adapter SM1-M25A.

	Product Model	Numerical Aperture (NA)	Magnification	Working distance	Operating Wavelength	Unit Price	Compare	Lead Time
	NPLNFL100XOI	1.3	100X	0.16 mm	UV to VIS	$3282.91		Contact

Nikon Plan Semi-Apochromat Objectives, Water Immersion

Infinity-corrected plan semi-apochromatic design
Designed for tube lenses with 200 mm focal length
Thread type: M32 mm×0.75 mm
Suitable for multiphoton imaging and life science applications

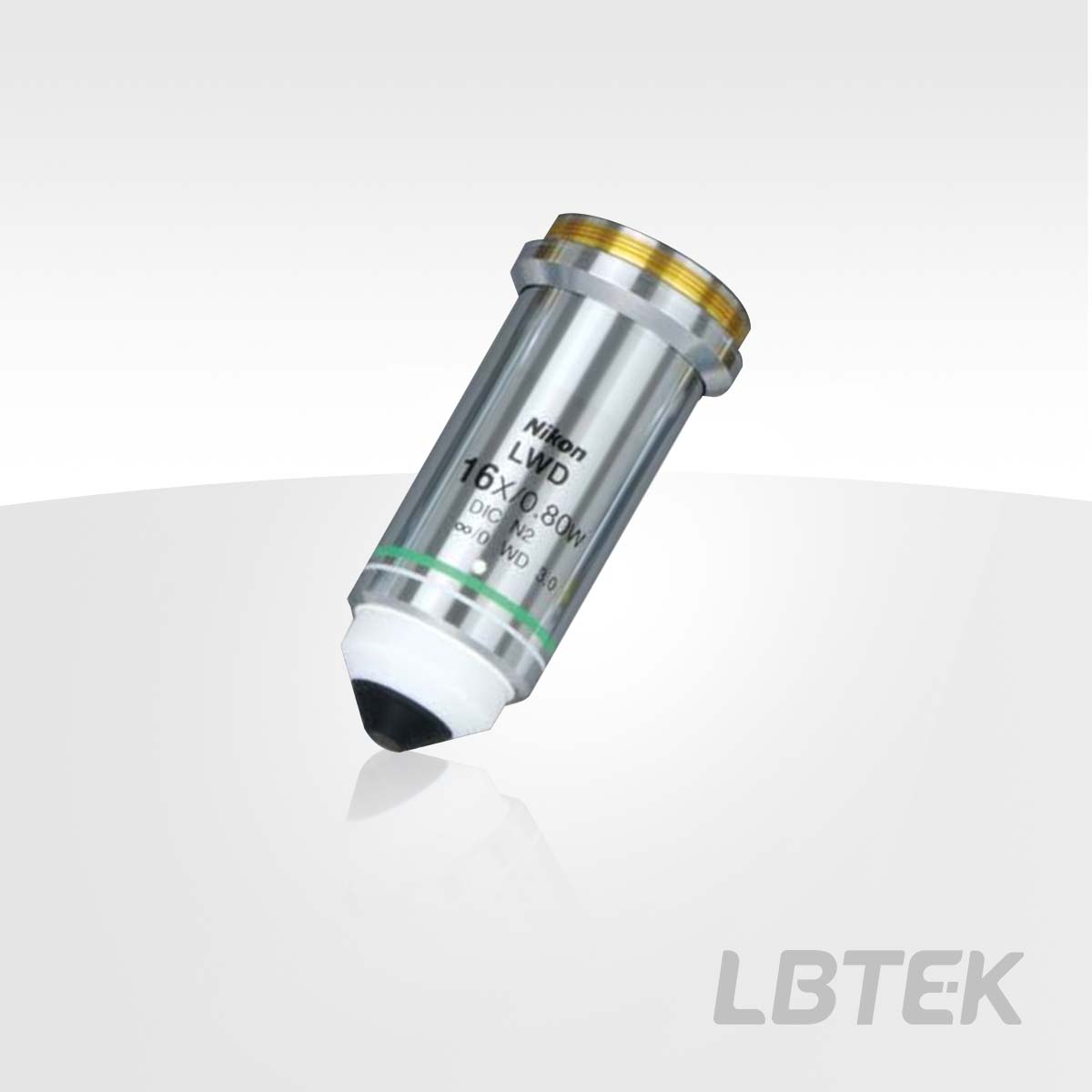

LBTEK offers Nikon 16x Plan Semi-Apochromat WI Objectives, which produce flat images. These objectives are designed for brightfield imaging and visible light fluorescence observation. They are also suitable for UV fluorescence observation, polarizing, DIC microscopy, and near-infrared DIC microscopy. For specific parameters, please refer to the product specification sheet.

These objectives can be mounted on mounts with internal SM1 threads using the LBTEK thread adapter SM1-M32A.

	Product Model	Numerical Aperture (NA)	Magnification	Working distance	Operating Wavelength	Unit Price	Compare	Lead Time
	NPLNFL10XW New	0.3	10X	3.5 mm	UV to VIS	$3105.1		Contact
	NPLNFL16XW	0.8	16X	3.0 mm	UV to VIS	$14943.71		Contact

Nikon CFI Plan Apochromat Objectives, Water Immersion

Infinity-corrected plan semi-apochromatic design
Designed for use with tube lenses of 200 mm focal length
Thread type: M25 mm×0.75 mm

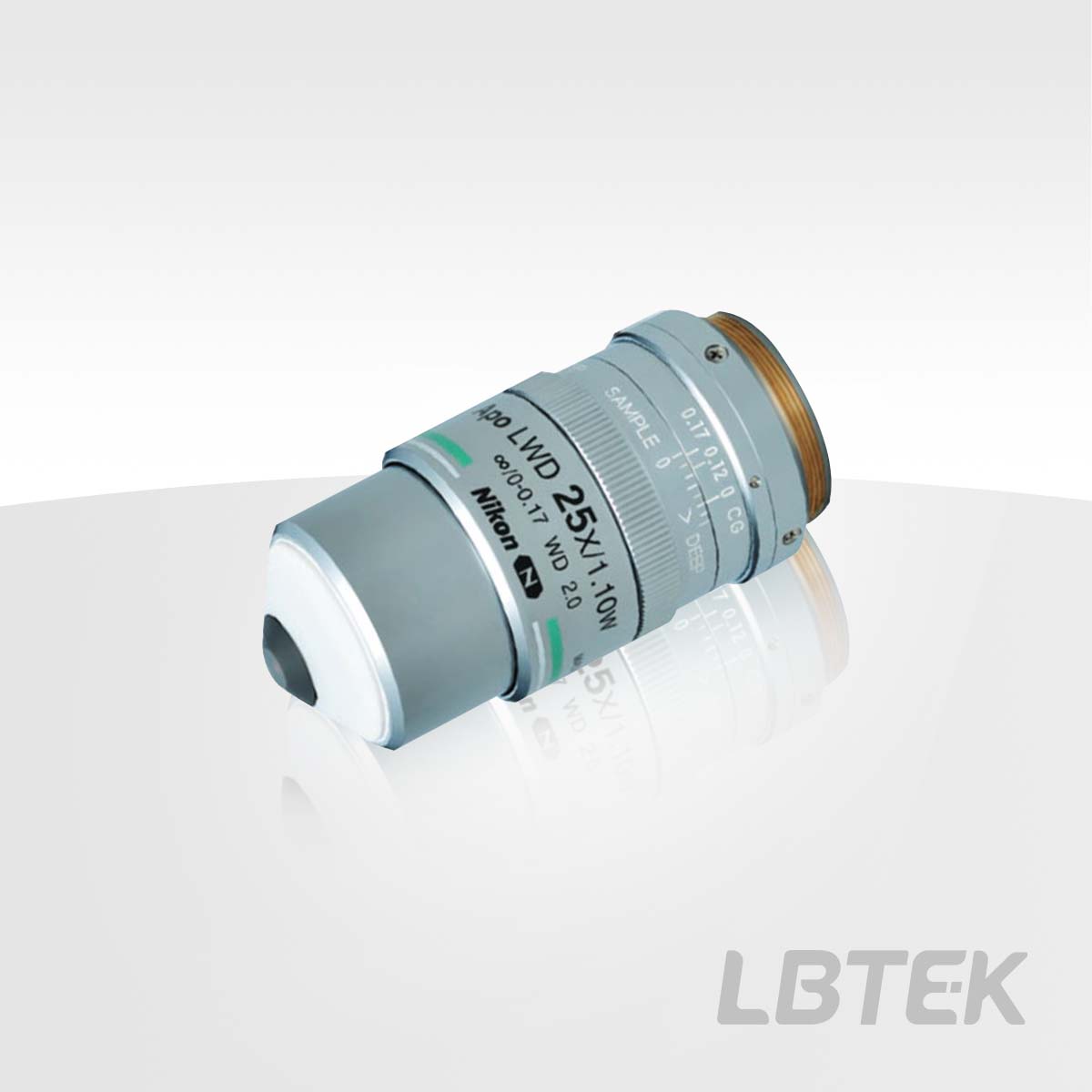

LBTEK offers Nikon CFI Plan Apochromat WI Objectives with magnifications of 25X, 40X, and 60X. These objectives offer excellent chromatic aberration correction across the visible to near-infrared wavelength range. The NAPO25XCW-MP and NAPO25XCW-MP1300 are optimized for deep tissue imaging using multiphoton confocal microscopy and are ideal for multiphoton imaging. These objectives are suitable for brightfield, fluorescence, and DIC microscopy. For specific parameters, please refer to the product specification sheet.

Using LBTEK threaded adapters, this type of objective lens can be mounted onto a holder with SM1 internal threads.

Product Model	Numerical Aperture (NA)	Magnification	Working distance	Operating Wavelength	Unit Price	Lead Time
NAPO60XW	1.0	60X	2.8 mm	UV to VIS	$6155.29	Contact
NAPO40XW	0.8	40X	3.5 mm	UV to VIS	$3898.7	Contact
NAPO40XCW	1.15	40X	0.59-0.61 mm	UV to VIS	$20516.29	Contact
NAPO25XCW-MP1300	1.1	25X	2.0 mm	UV to VIS	$36808.6	Contact
NAPO25XCW-MP	1.1	25X	2.0 mm	UV to VIS	$33992.7	Contact

Nikon Plan Semi-Apochromat Phase Contrast Objectives, DLL (Dark Low Low)

Infinity-corrected plan semi-apochromatic design
Thread type: M25 mm×0.75 mm
Phase type: DLL

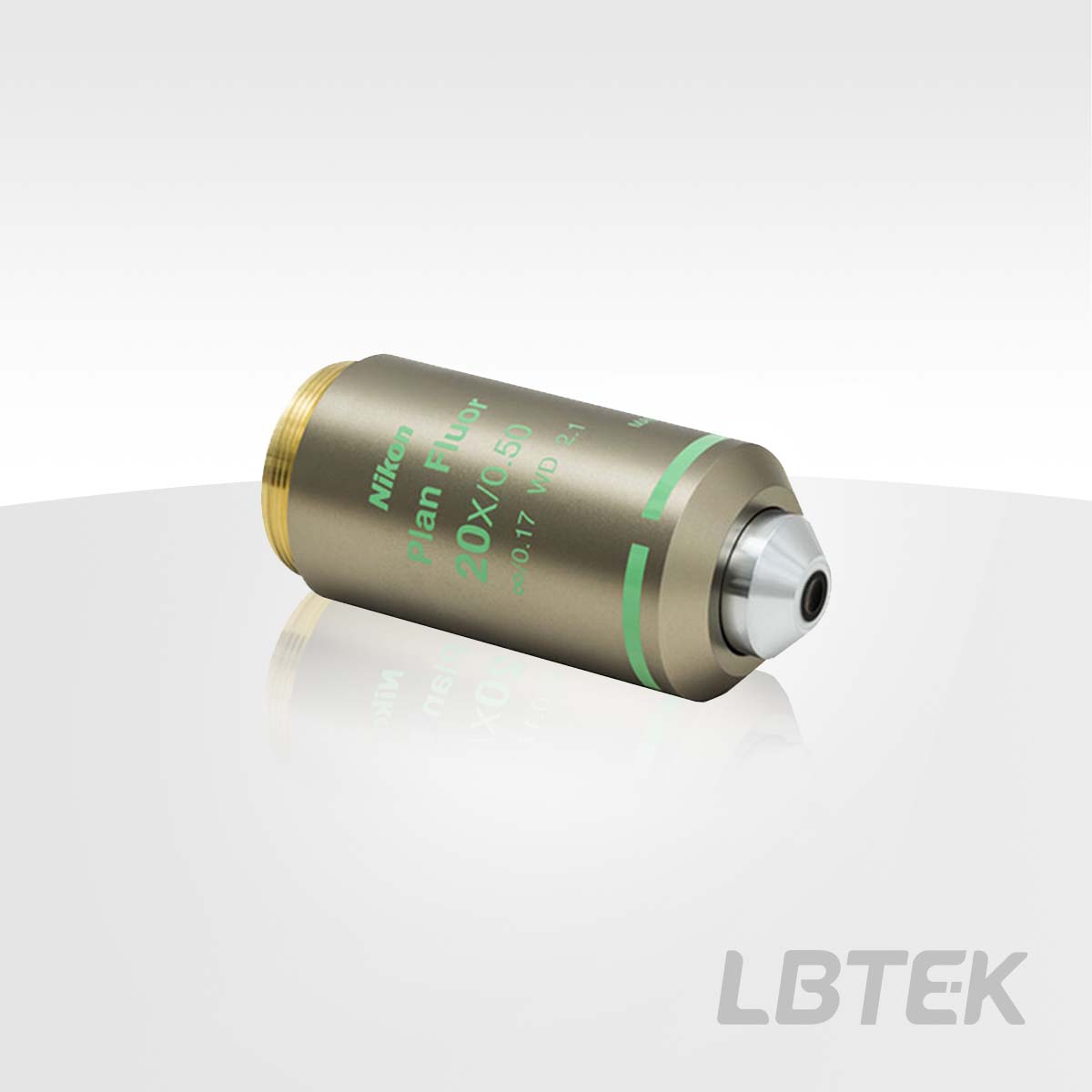

LBTEK offers Nikon 10X and 20X plan semi-apochromat phase contrast objectives with excellent transmittance from the ultraviolet to the visible wavelength range. To achieve optimal phase contrast, these objectives require a corresponding annular diaphragm. The choice of annular diaphragm depends on the microscope model. Please contact LBTEK technical support for selection.

LBTEK's phase contrast objectives are positive phase contrast objectives. Light passing through the object destructively interferes at the image plane, creating a dark image against a bright background for high contrast. The principle of positive phase contrast objectives is described in the technical description. Specific parameters are available in the product specification list.

The LBTEK thread adapter SM1-M25A allows these objectives to be mounted on mounts with internal SM1 threads.

	Product Model	Numerical Aperture (NA)	Magnification	Working distance	Operating Wavelength	Unit Price	Compare	Lead Time
	NPLNFL20XDLL	0.5	20X	2.1 mm	UV to VIS	$1823.84		Contact
	NPLNFL10XDLL	0.3	10X	16 mm	UV to VIS	$1772.85		Contact
