- High return loss, low insertion loss, and high extinction ratio
- 2.0 mm narrow key alignment for fiber slow axis
- Multiple wavelength ranges available
- Multiple patch cord lengths optional
- Typical Insertion Loss: ≤1.2 dB
- Wavelength Range: 400 nm-2200 nm
- Extinction Ratio: ≥15 dB
LBTEK polarization-maintaining single-mode fiber patch cords feature high-quality ceramic connectors at both ends, polished to ensure a typical return loss of 50 dB. Each patch cable is tested under specified wavelength conditions to guarantee low insertion loss and high extinction ratio. Protective caps are included on both ends to prevent dust or other contaminants from affecting the ferrule end face, ensuring high stability and reliability. The FC/PC protective caps are white, while the visible light wavelength patch cords have black jackets, and infrared wavelength patch cables have red jackets. Note: FC/PC and FC/UPC differ only in polishing methods, hence they are collectively referred to as FC/PC connectors.

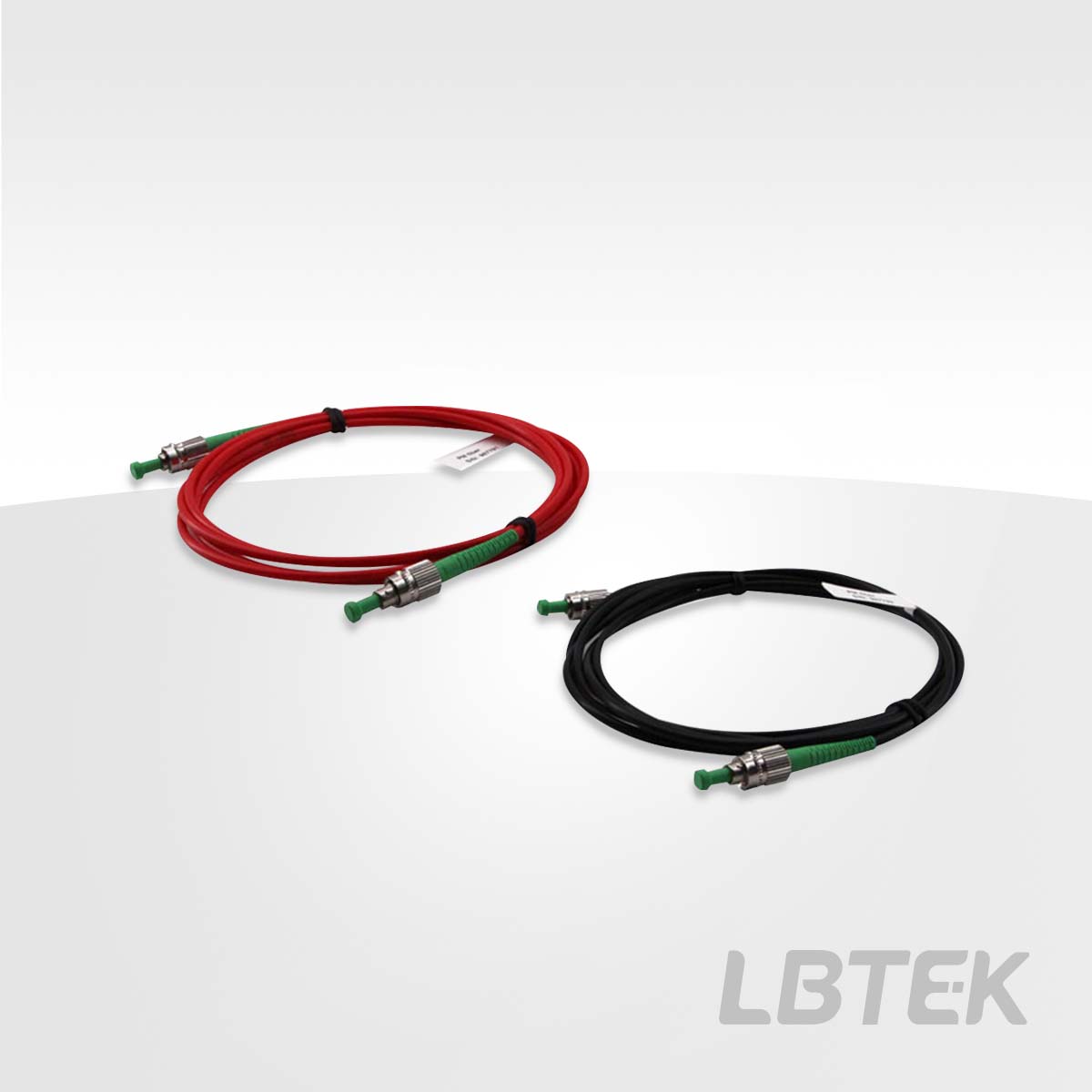

LBTEK Polarization-Maintaining Single-Mode Fiber Patch Cord with FC/PC Connector
Product Model | Fiber length | Wavelength range | Numerical Aperture | Extinction ratio | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| PMC405-PC-10 | 10.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $595.26 | today | Add Cart | ||
| PMC405-PC-5 | 5.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $360.98 | today | Add Cart | ||
| PMC405-PC-1 | 1.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $147.74 | today | Add Cart | ||
| PMC460-PC-10 | 10.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $578.14 | 7 weeks | Add Cart | ||
| PMC460-PC-5 | 5.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $320.58 | today | Add Cart | ||
| PMC460-PC-1 | 1.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $127.73 | today | Add Cart | ||
| PMC630-PC-10 | 10.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $350.12 | 5 weeks | Add Cart | ||
| PMC630-PC-5 | 5.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $239.78 | today | Add Cart | ||
| PMC630-PC-1 | 1.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $109.56 | today | Add Cart | ||
| PMC780-PC-10 | 10.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $287.63 | 6 weeks | Add Cart | ||
| PMC780-PC-5 | 5.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $179.25 | today | Add Cart | ||
| PMC780-PC-1 | 1.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $82.76 | today | Add Cart | ||
| PMC980-PC-10 | 10.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $247.49 | today | Add Cart | ||
| PMC980-PC-5 | 5.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $192.19 | today | Add Cart | ||
| PMC980-PC-1 | 1.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $112.44 | 5 weeks | Add Cart | ||
| PMC1300-PC-10 | 10.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $247.49 | 5 weeks | Add Cart | ||
| PMC1300-PC-5 | 5.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $192.19 | 5 weeks | Add Cart | ||
| PMC1300-PC-1 | 1.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $112.44 | 6 weeks | Add Cart | ||
| PMC1550-PC-10 | 10.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $203.83 | today | Add Cart | ||
| PMC1550-PC-5 | 5.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $158.33 | today | Add Cart | ||
| PMC1550-PC-1 | 1.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $99.62 | today | Add Cart | ||
| PMC1950-PC-10 | 10.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $596.44 | 5 weeks | Add Cart | ||
| PMC1950-PC-5 | 5.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $368.95 | 5 weeks | Add Cart | ||
| PMC1950-PC-1 | 1.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $137.80 | today | Add Cart | ||
| PMC1950-PC-2 | 2.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $203.30 | today | Add Cart | ||
| PMC1550-PC-2 | 2.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $111.65 | today | Add Cart | ||
| PMC1300-PC-2 | 2.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $135.58 | today | Add Cart | ||
| PMC980-PC-2 | 2.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $135.58 | 4 weeks | Add Cart | ||
| PMC780-PC-2 | 2.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $106.55 | today | Add Cart | ||
| PMC630-PC-2 | 2.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $140.81 | today | Add Cart | ||
| PMC460-PC-2 | 2.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $183.43 | today | Add Cart | ||
| PMC405-PC-2 | 2.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $207.22 | today | Add Cart |
- Typical Insertion Loss: ≤1.2 dB
- Wavelength Range: 400 nm-2200 nm
- Extinction Ratio: ≥15 dB
LBTEK polarization-maintaining single-mode fiber patch cords feature high-quality ceramic connectors at both ends, polished to ensure a typical return loss of 50 dB. Each patch cord is tested under specified wavelength conditions to guarantee low insertion loss and high extinction ratio. Protective caps are included on both connectors to prevent dust or other contaminants from damaging the ferrule end faces, ensuring high stability and reliability. The FC/APC protective caps are green in color, while the visible light wavelength patch cords have black jackets and the infrared wavelength patch cords feature red jackets.

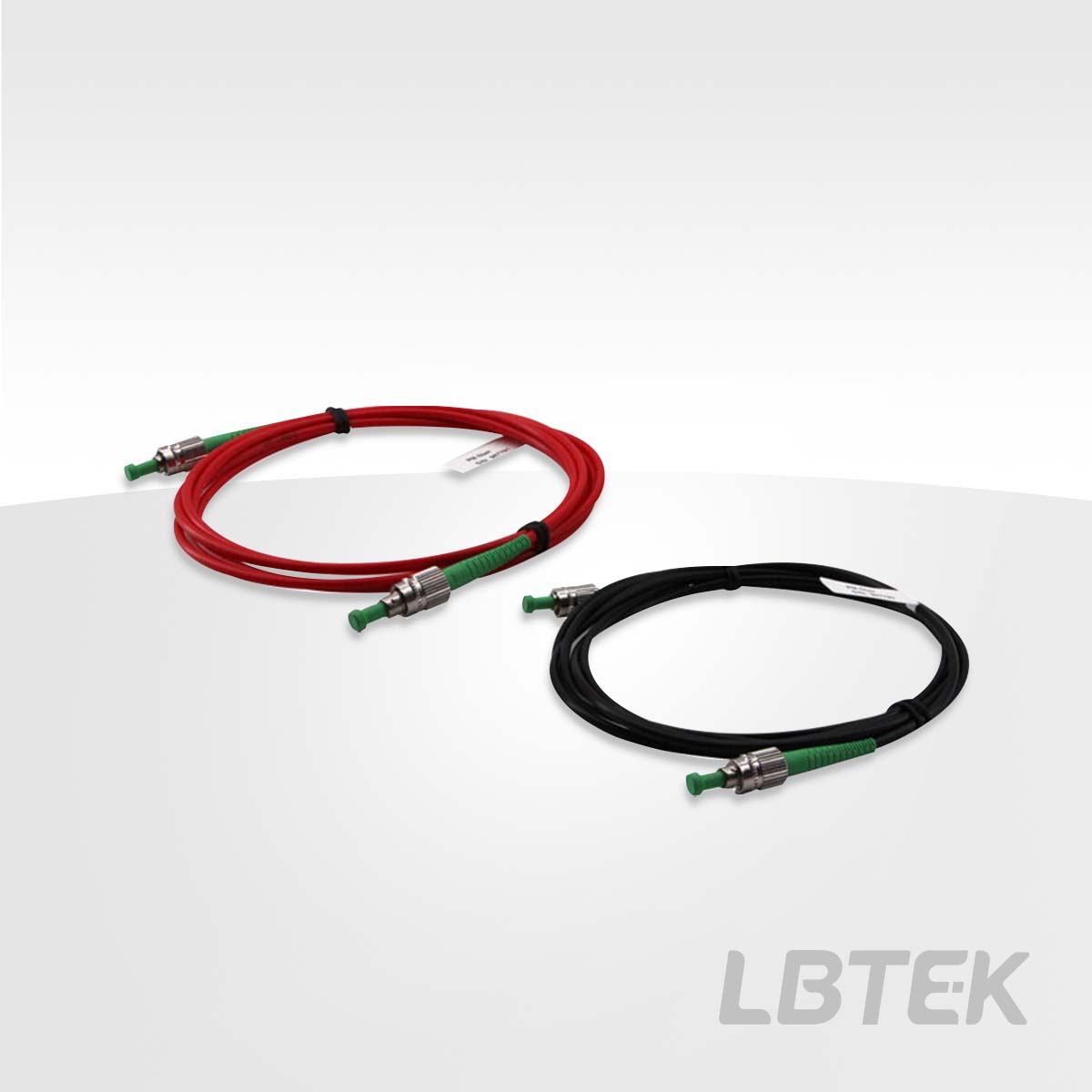

LBTEK Polarization-Maintaining Single-Mode Fiber Patch Cord with FC/APC Connector
Product Model | Fiber length | Wavelength range | Numerical Aperture | Extinction ratio | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| PMC405-APC-10 | 10.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $577.88 | today | Add Cart | ||
| PMC405-APC-5 | 5.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $368.30 | today | Add Cart | ||
| PMC405-APC-1 | 1.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $152.71 | today | Add Cart | ||
| PMC460-APC-10 | 10.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $517.47 | 7 weeks | Add Cart | ||
| PMC460-APC-5 | 5.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $336.53 | 7 weeks | Add Cart | ||
| PMC460-APC-1 | 1.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $127.73 | today | Add Cart | ||
| PMC630-APC-10 | 10.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $367.91 | today | Add Cart | ||
| PMC630-APC-5 | 5.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $248.02 | today | Add Cart | ||
| PMC630-APC-1 | 1.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $112.70 | today | Add Cart | ||
| PMC780-APC-10 | 10.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $293.38 | today | Add Cart | ||
| PMC780-APC-5 | 5.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $160.68 | today | Add Cart | ||
| PMC780-APC-1 | 1.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $85.11 | today | Add Cart | ||
| PMC980-APC-10 | 10.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $271.16 | today | Add Cart | ||
| PMC980-APC-5 | 5.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $195.07 | today | Add Cart | ||
| PMC980-APC-1 | 1.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $122.77 | today | Add Cart | ||
| PMC1300-APC-10 | 10.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $269.98 | 6 weeks | Add Cart | ||
| PMC1300-APC-5 | 5.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $192.19 | 5 weeks | Add Cart | ||
| PMC1300-APC-1 | 1.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $120.94 | today | Add Cart | ||
| PMC1550-APC-10 | 10.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $223.31 | 6 weeks | Add Cart | ||
| PMC1550-APC-5 | 5.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $160.68 | 4 weeks | Add Cart | ||
| PMC1550-APC-1 | 1.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $101.06 | today | Add Cart | ||
| PMC1950-APC-10 | 10.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $579.05 | 5 weeks | Add Cart | ||
| PMC1950-APC-5 | 5.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $368.95 | 5 weeks | Add Cart | ||
| PMC1950-APC-1 | 1.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $137.80 | today | Add Cart | ||
| PMC1950-APC-2 | 2.0 m | 1850 nm-2200 nm | 0.2 | ≥20 dB | $207.22 | today | Add Cart | ||
| PMC1550-APC-2 | 2.0 m | 1440 nm-1625 nm | 0.12 | ≥23 dB | $113.35 | today | Add Cart | ||
| PMC1300-APC-2 | 2.0 m | 1270 nm-1625 nm | 0.12 | ≥22 dB | $137.67 | today | Add Cart | ||
| PMC980-APC-2 | 2.0 m | 970 nm-1550 nm | 0.12 | ≥20 dB | $137.67 | today | Add Cart | ||
| PMC780-APC-2 | 2.0 m | 770 nm-1100 nm | 0.12 | ≥20 dB | $108.12 | today | Add Cart | ||
| PMC630-APC-2 | 2.0 m | 620 nm-850 nm | 0.12 | ≥20 dB | $143.42 | today | Add Cart | ||
| PMC460-APC-2 | 2.0 m | 460 nm-700 nm | 0.12 | ≥18 dB | $186.96 | today | Add Cart | ||
| PMC405-APC-2 | 2.0 m | 400 nm-680 nm | 0.12 | ≥15 dB | $210.23 | today | Add Cart |
