Product Description

Used as an optical switch or variable attenuator
Applicable to laser marking, lithography, material processing, medical surgery, micro-machining
RF drivers and power supplies matched with acousto-optic modulators available

LBTEK acousto-optic modulators operate under the Bragg diffraction condition, producing only the first-order diffracted beam and the transmitted beam. They can be used as optical switches (periodically turning the beam on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of the transmitted or first-order diffracted beam). Typical applications include laser marking, photolithography, materials processing, medical surgery, and micromachining. LBTEK offers both free-space and fiber-coupled acousto-optic modulators, allowing users to select the configuration best suited to their application. Matching RF drivers are available; by inputting different modulation signals, the driver can generate the required waveform. Custom acousto-optic modulators are also available. For customization requests, technical inquiries, or accessory recommendations, please contact LBTEK Technical Support.

Acousto-optic modulator, free-space type, conduction-cooled

Operating wavelength: 355 nm, 450 nm, 780 nm, 1040 nm-1080 nm
Incident light polarization state: Linearly polarized light, perpendicular to the base
Diffraction efficiency: ≥80%
High damage threshold

LBTEK Acousto-Optic Modulators can be configured for use as optical switches (periodically switching the light on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of the transmitted beam or first-order diffracted beam).
Note that these devices generate heat during operation and must be mounted on components with good thermal conductivity or used with an appropriate heatsink.
LBTEK offers acousto-optic modulators designed for operation at 355 nm, 450 nm, 532 nm, 780 nm, and 1040–1080 nm, with matched RF drivers and power supplies available as optional accessories.

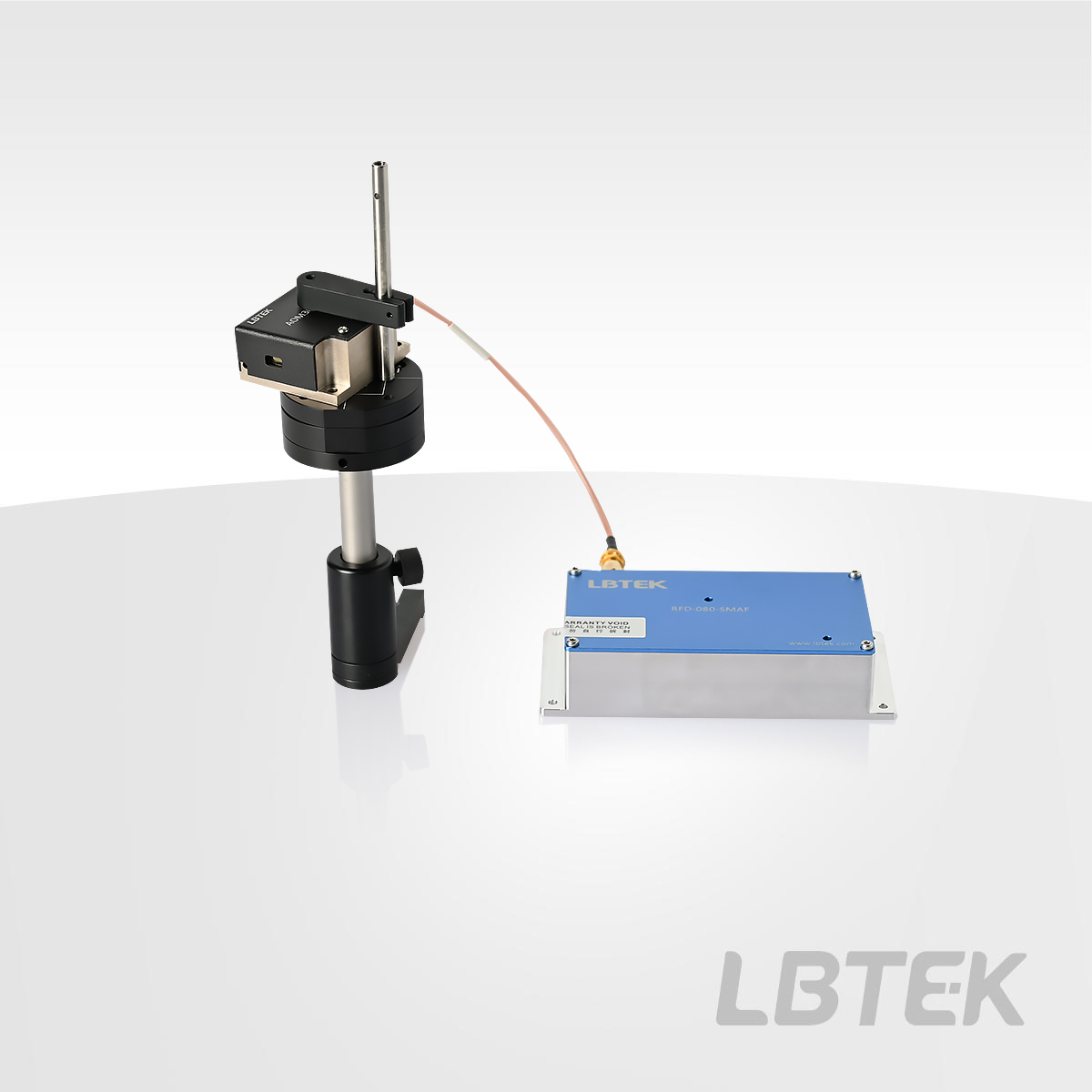

LBTEK Conduction-Cooled Acousto-Optic Modulator Connected to RF Driver

Product Model	Operating Wavelength	Clear Aperture	RF signal frequency	Unit Price	Lead Time
AOM30-355-100	355 nm±20 nm	3.0 mm	100 MHz	$2010.8	8 weeks
AOM30-450-100	450 nm±20 nm	3.0 mm	100 MHz	$2178.15	8 weeks
AOM30-532-100	510 nm-550 nm	3.0 mm	100 MHz	$2156.44	8 weeks
AOM30-780-80	780 nm±20 nm	3.0 mm	80 MHz	$1199.55	Contact
AOM30-780-100	780 nm±20 nm	3.0 mm	100 MHz	$1253.15	Contact
AOM20-1064-80	1040 nm-1080 nm	2.0 mm	80 MHz	$938.33	7 weeks

RF Driver

RF signal frequency: 80 MHz, 100 MHz
High stability, high precision
RF signal output port: SMA-F

LBTEK RF Drivers provide highly stable and precise RF signals. By applying different modulation signals, the driver can generate specific waveforms to meet the requirements of optical devices in various applications. These RF drivers are primarily designed for driving acousto-optic modulators. LBTEK offers models operating at 80 MHz and 100 MHz. The input interface is DB9, with an SMA-F output.

Each driver comes with a complimentary cable, featuring a DB9 connector on one end and bare wires on the other, allowing easy connection to the user’s power supply and signal generator. Wire mapping: red = +24 V power, black = ground, blue = digital control, green = analog control. For any technical inquiries, please contact LBTEK Technical Support.

Note: LBTEK RF drivers do not include power supplies or modulation signal generators. For accessory recommendations, please consult LBTEK Technical Support.

LBTEK RF Driver Input Interface Diagram

Product Model	Maximum Output Power	frequency	Unit Price	Lead Time
RFD-080-SMAF	20 W	80 MHz	$594.22	6 weeks
RFD-100-SMAF	20 W	100 MHz	$594.22	6 weeks
RFD-080-30W-SMAF	30 W	80 MHz	$643.38	6 weeks

Programmable DC Power Supply

Three-channel high-precision power supply with independently controllable outputs: 32V/3.2A×2, switchable 2.5V/3.3V/5V/3.2A×1, total power 220W
Up to 4-digit voltage and 3-digit current display, resolution: 10 mV, 10 mA
Three output modes: independent, series, and parallel connection
100V/120V/220V/230V compatible design to meet different grid requirements
Internal 5 sets of system parameters save/recall, supports data storage space expansion

The programmable DC power supply provided by LBTEK is compatible with voltage inputs of 100V/120V/220V/230V, featuring a resolution of 10mV and 10mA. Its excellent setting and readback accuracy ensures precise and clean output, capable of accurately simulating even very small voltage or current changes. The CH1 and CH2 channels of this power supply can be connected in series or parallel, expanding the power output range. It offers five sets of local storage system parameters, allowing users to store, recall, and delete settings in the local memory, making it easy to return to customer-preferred configurations. The product comes with a user manual included in the package. For any other questions or requirements, please contact LBTEK technical support.

Programmable DC Power Supply LED Display

Product Model	Resolution	Unit Price	Lead Time
SPD3303X-E	10 mV/10 mA	$574.35	6 weeks
SPD3303X-C	10 mV/10 mA	$425.17	6 weeks
SPD3303X	1 mV/1 mA	$723.52	6 weeks
SPD3303C	10mV/10mA	$528.19	6 weeks

Acousto-optic modulator, free-space type, water-cooled

Operating Wavelength: 1040 nm-1080 nm
Incident Light Polarization: Linear polarization, perpendicular to the base
Diffraction Efficiency: ≥80%
High Damage Threshold
Water Cooling Interface Size: Ø6 mm

LBTEK acousto-optic modulators can be used as optical switches (periodically turning the light on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of transmitted light or first-order diffracted light). To achieve optimal diffraction efficiency, the device requires relatively high drive power. Since conductive cooling is insufficient under these conditions, the modulators adopt a water-cooling design and must be operated with a chiller.

LBTEK offers acousto-optic modulators with an operating wavelength range of 1040 nm–1080 nm, and provides optional supporting accessories including RF drivers, chillers, and power supplies.

LBTEK Water-Cooled Acousto-Optic Modulator Connected to RF Driver

	Product Model	Operating Wavelength	Clear Aperture	RF signal frequency	Unit Price	Compare	Lead Time
	AOM30-1064-80	1040 nm-1080 nm	3.0 mm	80 MHz	$1239.82		7 weeks

Acousto-optic modulator, fiber-coupled, conduction-cooled

Operating wavelength: 780 nm, 1064 nm, 1550 nm
Insertion loss: ≤5 dB
Fiber interface: FC/APC

LBTEK Acousto-Optic Modulators can be configured for use as optical switches (periodically switching the light on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of the transmitted beam or first-order diffracted beam). The fiber-coupled AOMs feature a fiber length of >0.8 m and are equipped with FC/APC connectors for easy integration into customer systems. LBTEK offers fiber-coupled acousto-optic modulators designed for operation at 780 nm, 1064 nm, and 1550 nm, each supplied with a matched RF driver.

LBTEK Fiber-Coupled Acousto-Optic Modulator Interface Details

Product Model	Operating Wavelength	Fiber optic interface	RF signal frequency	Unit Price	Lead Time
AOMF-1064-200-APC	1030 nm-1080 nm	FC/APC	200 MHz	$3686.9	7 weeks
AOMF-780-200-APC	780 nm±20 nm	FC/APC	200 MHz	$3854.25	Contact
AOMF-1550-200-APC	1550 nm±20 nm	FC/APC	200 MHz	$3719.59	Contact
AOMF-1550-80-APC	1550 nm±20 nm	FC/APC	80 MHz	$3350.9	Contact
