Product Description

Passive devices that only allow light to transmit in a single specified direction
Prevents the light source or optical system from being affected by back reflection noise or interference
Multiple center wavelengths available, including different bandwidths
Various power options available

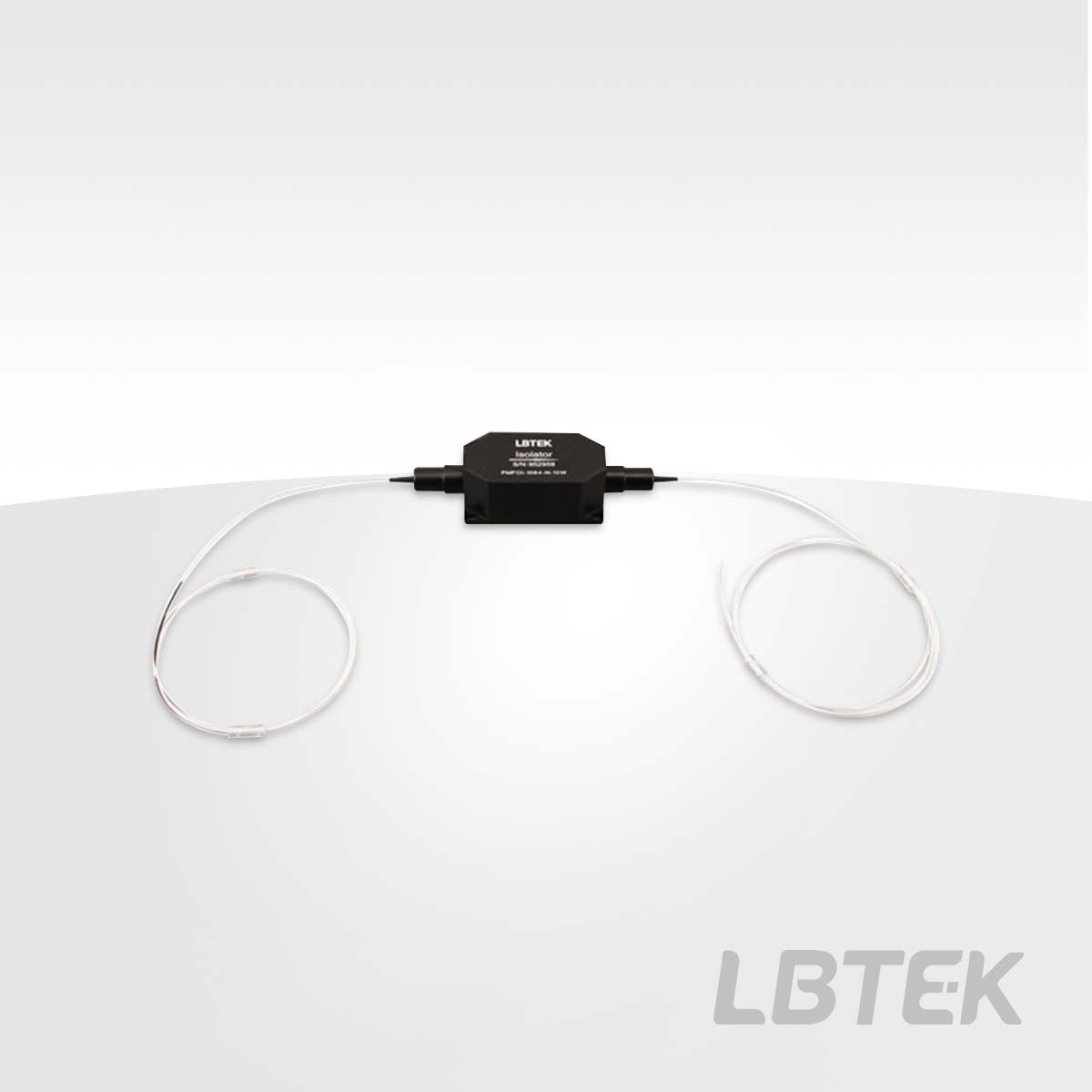

LBTEK Single-Mode Fiber Optic Isolators employ the Faraday effect of magneto-optical crystals to effectively isolate reflected light, permitting unidirectional light transmission. These passive magneto-optical components are essential for protecting light sources from the detrimental effects of back reflection, which can include laser damage, mode hopping, amplitude modulation, or frequency shift. In high-power applications, back reflection can also induce instability and power spikes. LBTEK’s inline fiber isolators are renowned for their high isolation, low insertion loss, and robust power handling capabilities. They find extensive application in fiber lasers, fiber amplifiers, laser communication, fiber sensing, scientific research, and other advanced fields. LBTEK also offers customization services, catering to specific requirements for different wavelengths, powers, and fiber types. For any customization needs, please reach out to LBTEK’s technical support team.

Attribute

Return Loss≥50 dB

Fiber length1 m

Maximum Pulling Force5 N

Product Model	Operating Wavelength	bandwidth	Unit Price	Lead Time
FOI-960-N-2W	960 nm	±50 nm	$1398.93	6 weeks
FOI-840-N-2W	840 nm	±50 nm	$1367.55	6 weeks
FOI-2000-N-10W	2000 nm	±20 nm	$2444.86	6 weeks
FOI-1550-N-10W	1550 nm	±20 nm	$1592.43	6 weeks
FOI-1064-N-10W	1064 nm	±10 nm	$1571.51	6 weeks
FOI-1050-N-10W	1050 nm	±10 nm	$1571.51	6 weeks
FOI-1030-N-10W	1030 nm	±10 nm	$1563.66	6 weeks
FOI-980-N-2W	980 nm	±10 nm	$1210.66	6 weeks
FOI-850-N-2W	850 nm	±10 nm	$1274.99	6 weeks
FOI-780-N-2W	780 nm	±10 nm	$1316.56	6 weeks

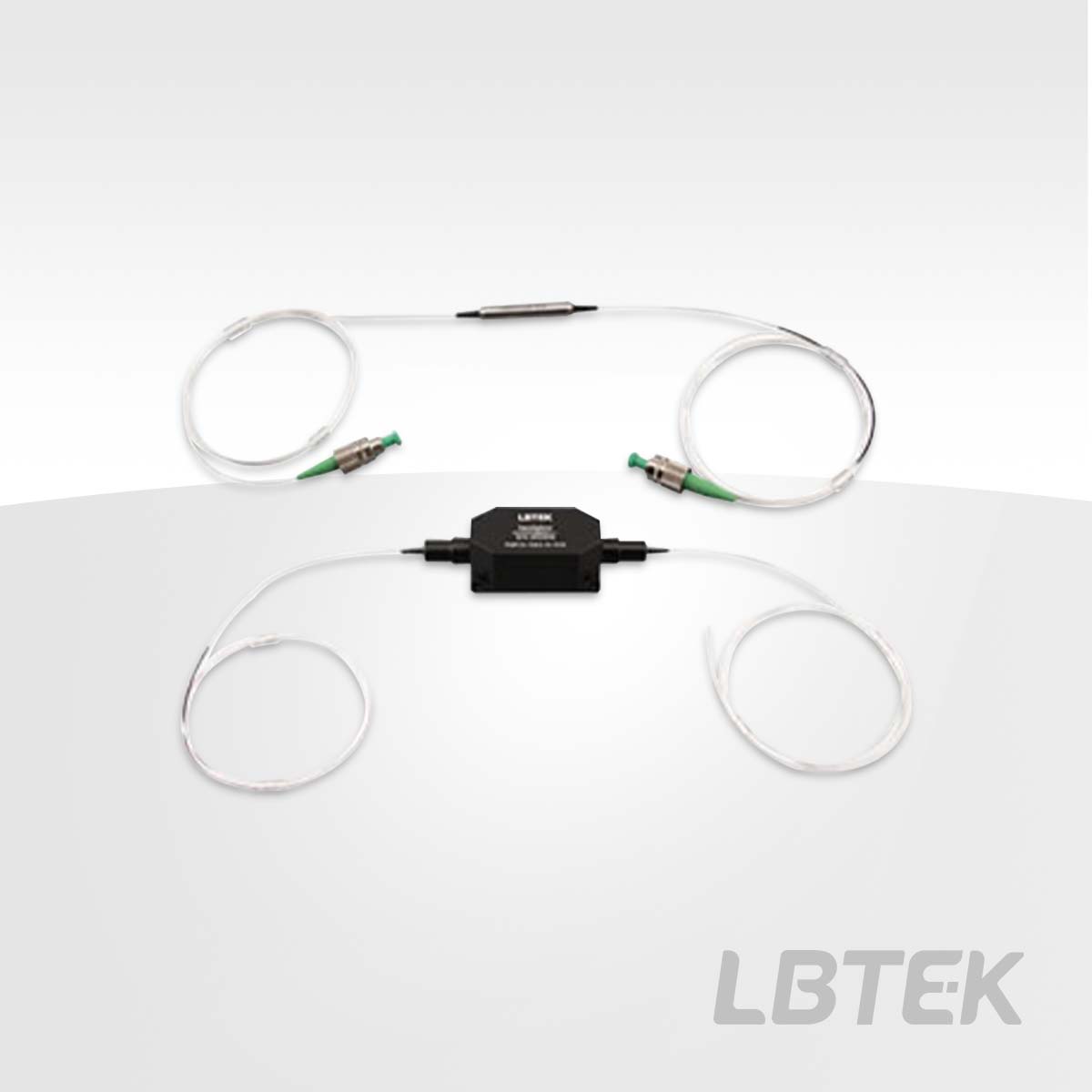

Single-Mode Fiber Optic Isolator, FC/APC Connector

Center Wavelength: 780 nm–1550 nm
Low Insertion Loss, High Isolation, High Return Loss
Polarization-Independent Structure
FC/APC Connector

LBTEK single-mode fiber optic isolators are available in various center wavelengths ranging from 780 nm to 1550 nm, with a maximum power option of 2 W and FC/APC connectors. Each isolator undergoes rigorous testing and comes with a test report to ensure product performance. The input sleeve is marked with a black marker for identification, and the housing also features an indication of the incident direction. LBTEK single-mode fiber isolators offer customization services, including parameters such as center wavelength, bandwidth, power, and fiber type.

LBTEK Single Mode Fiber Isolator

Product Model	Operating Wavelength	bandwidth	Connector Type	Unit Price	Lead Time
FOI-635-FA-0.1W	635 nm	±5 nm	FC/APC	$1451.23	6 weeks
FOI-1550-FA-0.3W	1550 nm	±20 nm	FC/APC	$166.04	6 weeks
FOI-1310-FA-0.3W	1310 nm	±20 nm	FC/APC	$166.04	6 weeks
FOI-980-FA-2W	980 nm	±10 nm	FC/APC	$1210.66	6 weeks
FOI-850-FA-2W	850 nm	±10 nm	FC/APC	$1305.32	6 weeks
FOI-780-FA-2W	780 nm	±10 nm	FC/APC	$1341.4	6 weeks
