Product Description

Passive devices that only allow light to transmit in a single specified direction
Prevents the light source or optical system from being affected by back reflection noise or interference
Multiple center wavelengths available
Various power options available

LBTEK Single-Mode Fiber Optic Isolators employ the Faraday effect of magneto-optical crystals to effectively isolate reflected light, permitting unidirectional light transmission. These passive magneto-optical components are essential for protecting light sources from the detrimental effects of back reflection, which can include laser damage, mode hopping, amplitude modulation, or frequency shift. In high-power applications, back reflection can also induce instability and power spikes. LBTEK’s inline fiber isolators are renowned for their high isolation, low insertion loss, and robust power handling capabilities. They find extensive application in fiber lasers, fiber amplifiers, laser communication, fiber sensing, scientific research, and other advanced fields. LBTEK also offers customization services, catering to specific requirements for different wavelengths, powers, and fiber types. For any customization needs, please reach out to LBTEK’s technical support team.

Attribute

Return Loss≥50 dB

Fiber length1 m

Maximum Pulling Force5 N

Polarization-Maintaining Single-Mode Fiber Optic Isolator

Center Wavelength: 780 nm–2000 nm
Polarization-Dependent Structure
Polarization-Maintaining Fiber
Bare Fiber and FC/APC Connector Options
Low Insertion Loss, High Isolation, High Return Loss

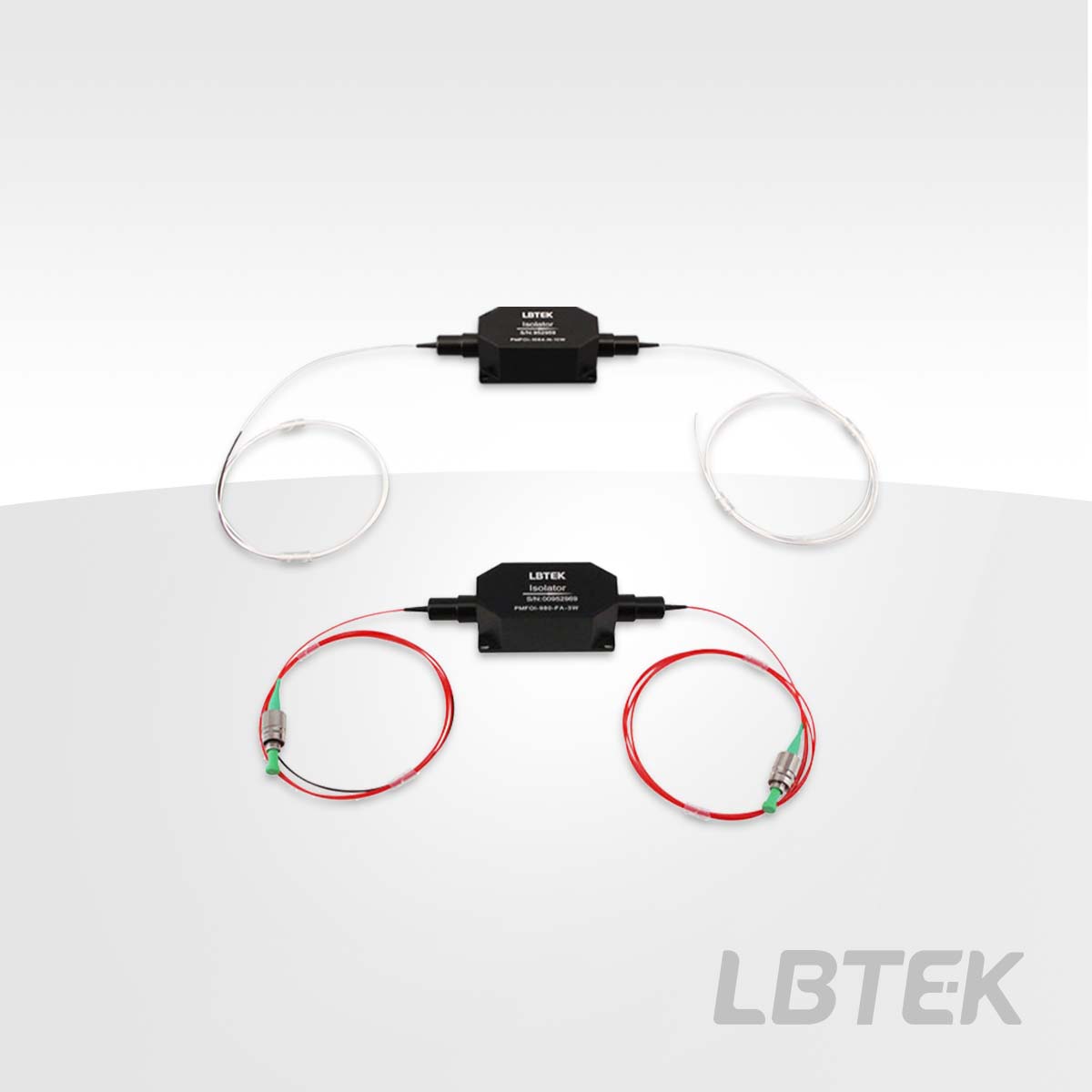

LBTEK Polarization-Maintaining Single-Mode Fiber Optic Isolators are available in various center wavelengths ranging from 780 – 2000 nm, with a maximum power option of 10W. All models come with polarization-maintaining fibers, making them suitable for polarization-maintaining optical transmission systems. Low-power versions provide FC/APC connectors, while high-power versions are available as bare fibers without connectors. Each isolator undergoes rigorous testing and comes with a test report to ensure product performance. The input end sleeve is marked with a black marker for identification, and the housing also features an incident direction indicator. LBTEK Polarization-Maintaining Single-Mode Fiber Optic Isolators offer customization services, including center wavelength, bandwidth, power, and fiber options.

LBTEK Polarization-Maintaining Single-Mode Fiber Optic Isolator

Product Model	Operating Wavelength	bandwidth	Connector Type	Unit Price	Lead Time
PMFOI-2000-N-10W	2000 nm	±10 nm	No joints	$2647.51	6 weeks
PMFOI-1550-FA-5W	1550 nm	±10 nm	FC/APC	$1246.75	6 weeks
PMFOI-1310-FA-0.3W	1310 nm	±20 nm	FC/APC	$355.75	6 weeks
PMFOI-1064-N-10W	1064 nm	±10 nm	No joints	$1742.78	6 weeks
PMFOI-1030-N-10W	1030 nm	±10 nm	No joints	$1734.94	6 weeks
PMFOI-980-FA-3W	980 nm	±10 nm	FC/APC	$1661.72	6 weeks
PMFOI-780-FA-3W	780 nm	±10 nm	FC/APC	$1661.72	6 weeks
