Product Description
- Multiple Attenuation Values Available
- FC/UPC and FC/APC Connectors Optional
- High Precision, Low Loss
The LBTEK fixed fiber attenuator is an optical passive device designed to reduce optical signal energy. It features one end with a connector and the other end with an adapter. It is primarily used to attenuate optical power within optical paths, achieving the desired target optical power level. This device finds applications in optical communication systems and fiber optic test instruments. Besides standard products, LBTEK provides customization for various attenuation values. For specific customization needs, please contact LBTEK technical support.
Attribute
Polarization Dependent Loss (PDL)≤0.1 dB
Maximum Optical Power1 W

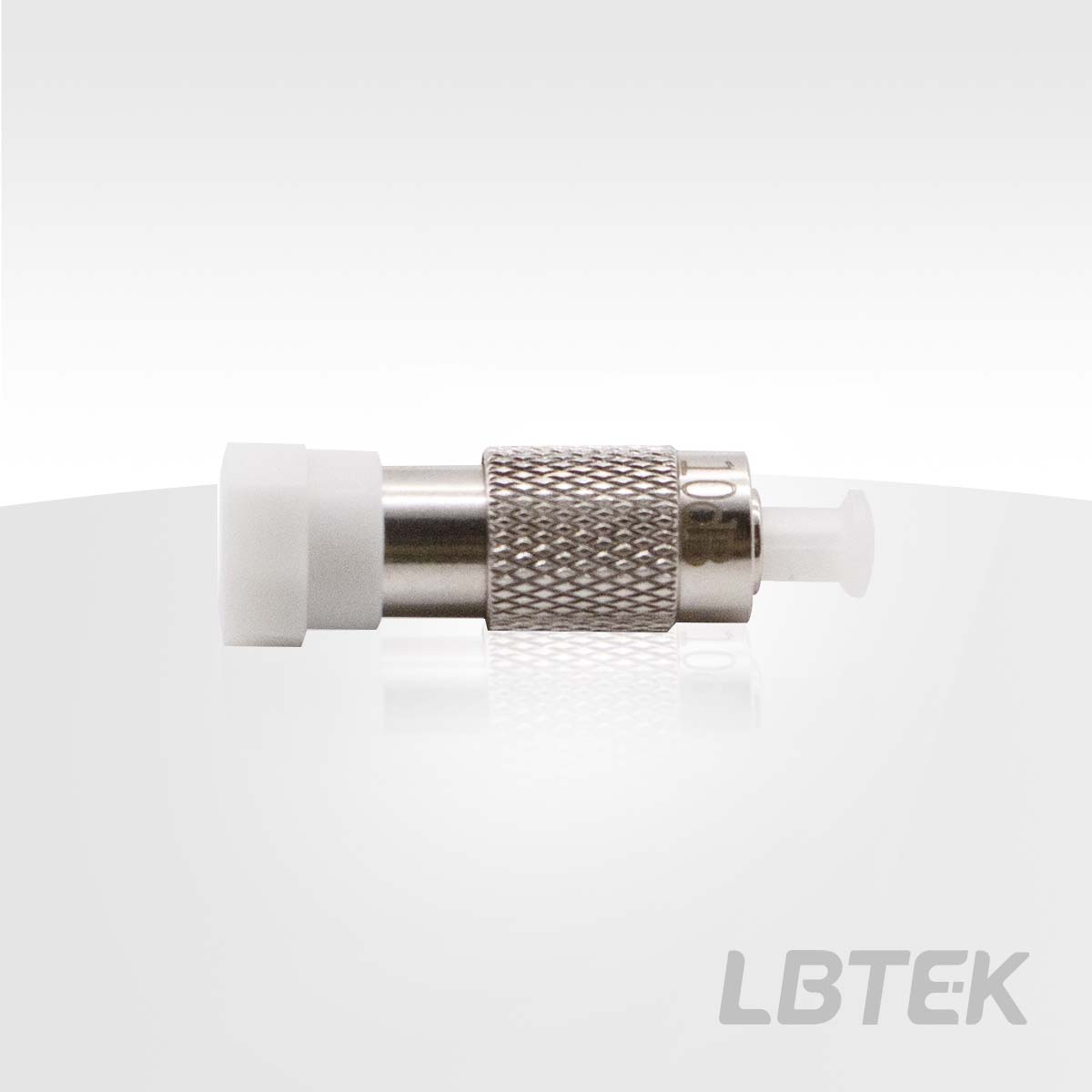

Fixed Optical Attenuator, FC/UPC Connector
- Attenuation Value: 3dB, 5dB, 10 dB, 15dB, 20dB and 25dB Available
- Operating Wavelength: 1240 nm-1620 nm
- Connector Type: FC/UPC
LBTEK fixed fiber optic attenuators are developed based on the principle that metal ions absorb light. By doping optical fibers with metal ions, they absorb additional light within specific wavelength ranges, thereby causing light attenuation. The fixed fiber optic attenuators with FC/UPC connectors are available in five attenuation values: 3dB, 5dB, 10dB, 15dB, 20dB, and 25dB, suitable for wavelength ranges between 1240-1620 nm.
LBTEK Fixed Optical Fiber Attenuator and Protective Cap
Product Model | Operating Wavelength | Attenuation value | Connector Type | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| FFA-25S-UPC | 1240 nm-1620 nm | 25 dB±0.5 dB@1550 nm | FC/UPC | $16.47 | 6 weeks | |||
| FFA-20S-UPC | 1240 nm-1620 nm | 20 dB±0.5 dB@1550 nm | FC/UPC | $16.47 | 6 weeks | |||
| FFA-15S-UPC | 1240 nm-1620 nm | 15 dB±0.5 dB@1550 nm | FC/UPC | $16.47 | 6 weeks | |||
| FFA-10S-UPC | 1240 nm-1620 nm | 10 dB±0.5 dB@1550 nm | FC/UPC | $16.47 | 4 weeks | |||
| FFA-05S-UPC | 1240 nm-1620 nm | 5 dB±0.5 dB@1550 nm | FC/UPC | $16.47 | 6 weeks | |||
| FFA-03S-UPC | 1240 nm-1620 nm | 3 dB±0.5 dB@1550 nm | FC/UPC | $16.47 | 6 weeks |

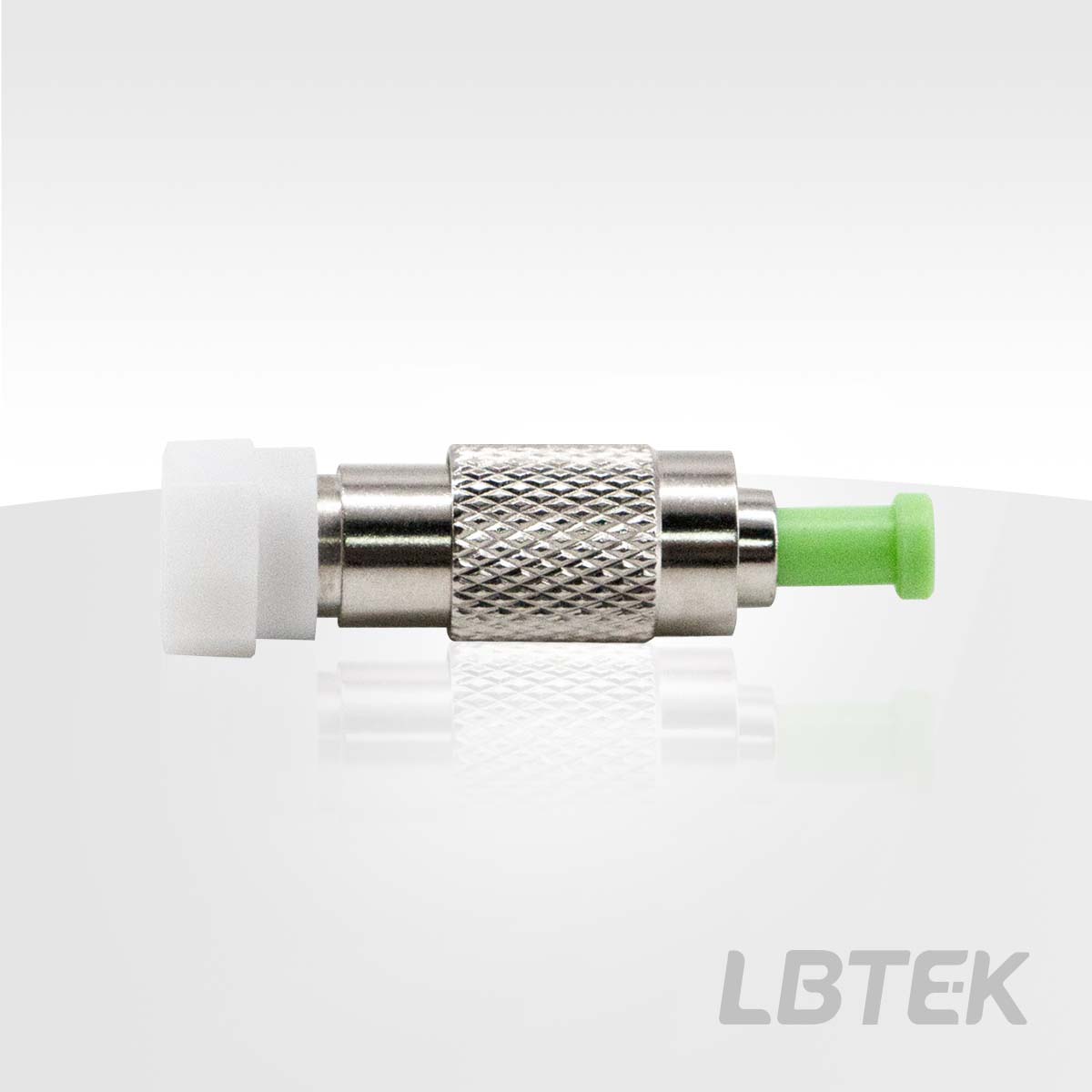

Fixed Optical Attenuator, FC/APC Connector
- Attenuation Value: 3dB, 5dB, 10dB, 15dB, 20dB and 25dB Available
- Operating Wavelength: 1240 nm-1620 nm
- Connector Type: FC/APC
LBTEK fixed fiber optic attenuators are developed based on the principle that metal ions absorb light. By doping optical fibers with metal ions, they absorb additional light within specific wavelength ranges, thereby causing light attenuation. The fixed fiber optic attenuators with FC/APC connectors are available in six attenuation values: 3dB, 5dB, 10dB, 15dB, 20dB, and 25dB, suitable for wavelength ranges between 1240-1620 nm.
LBTEK Fixed Optical Fiber Attenuator and Protective Cap
Product Model | Operating Wavelength | Attenuation value | Connector Type | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| FFA-25S-APC | 1240 nm-1620 nm | 25 dB±0.5 dB@1550 nm | FC/APC | $19.22 | 6 weeks | |||
| FFA-20S-APC | 1240 nm-1620 nm | 20 dB±0.5 dB@1550 nm | FC/APC | $19.22 | 6 weeks | |||
| FFA-05S-APC | 1240 nm-1620 nm | 5 dB±0.5 dB@1550 nm | FC/APC | $19.22 | 6 weeks | |||
| FFA-15S-APC | 1240 nm-1620 nm | 15 dB±0.5 dB@1550 nm | FC/APC | $19.22 | 6 weeks | |||
| FFA-10S-APC | 1240 nm-1620 nm | 10 dB±0.5 dB@1550 nm | FC/APC | $19.22 | 6 weeks | |||
| FFA-03S-APC | 1240 nm-1620 nm | 3 dB±0.5 dB@1550 nm | FC/APC | $19.22 | 6 weeks |
