Longitudinal Pockels cells
High extinction ratio, high transmission
Applications in Q-switching, regenerative amplification, pulse picking, cavity dumping, high-frequency optical switching, choppers, optical power stabilization, etc.

The LBTEK Pockels Cells utilize the longitudinal electro-optic effect of KD*P crystals. The KD*P crystal acts like a waveplate whose phase retardation is related to the applied electric field. As the applied electric field changes, the polarization state of the emergent light passing through the electro-optic crystal will vary. In the longitudinal electro-optic effect, the direction of light propagation is parallel to the electric field, and the voltage magnitude is independent of the aperture, allowing for a larger clear aperture. The Pockels cells provided by LBTEK feature excellent optical uniformity, high extinction ratio, and high transmission, making them suitable for applications such as Q-switching, regenerative amplification, pulse picking, cavity dumping, high-frequency optical switching, choppers, and optical power stabilization. For any other inquiries, please contact LBTEK Technical Support.

Longitudinal Pockels Cells

Operating wavelengths: 532 nm, 1064 nm optional
High extinction ratio, high transmission
Extinction ratio ≥1000:1

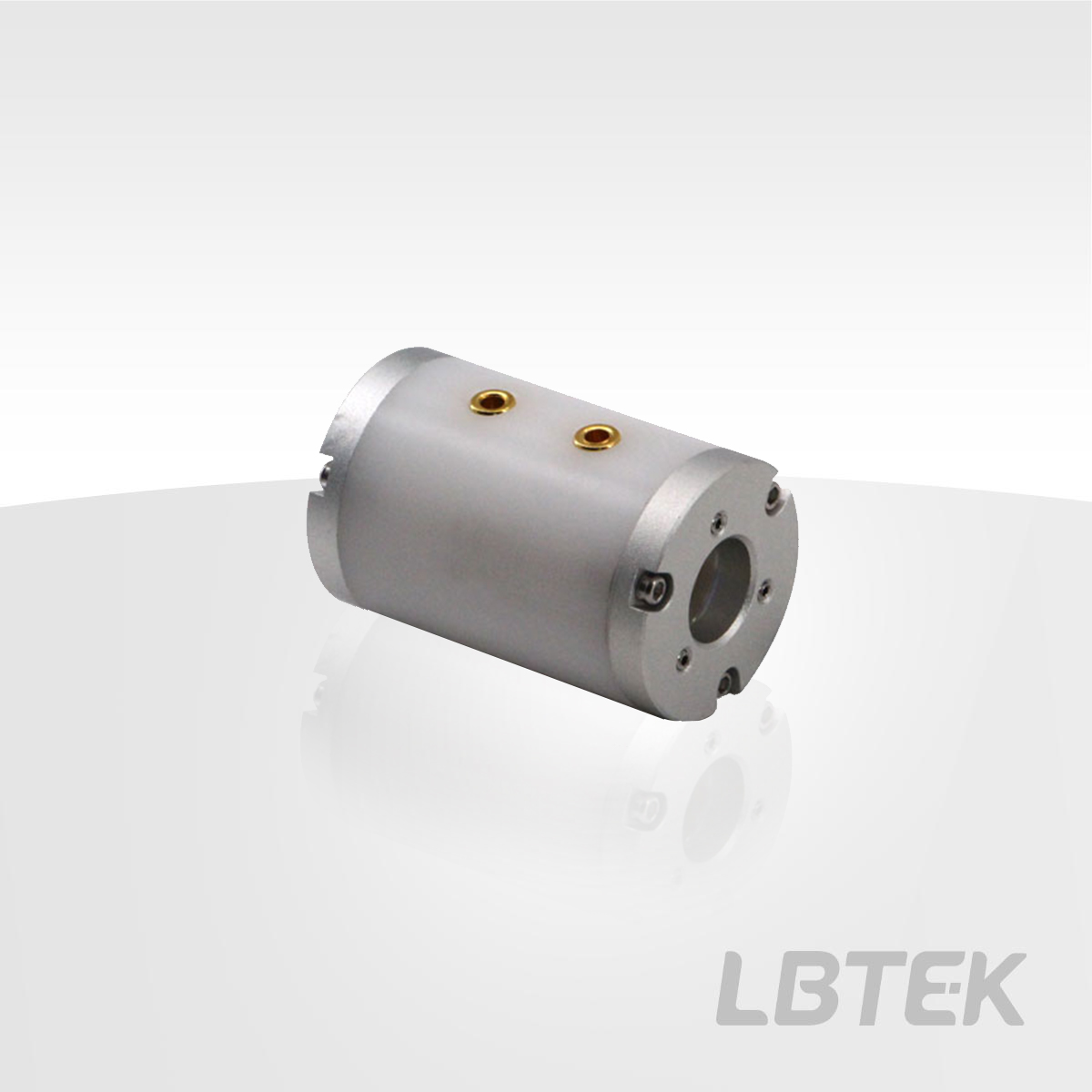

The LBTEK Pockels cell has two pin holes for connecting to the driving power supply. Pockels cells with a 10 mm clear aperture can be mounted on AMM-1B, AMC-1B, and other mounting brackets that use set screws for fixation, or they can be installed on the V-type gripper HM-V50. Pockels cells with other clear apertures can be mounted on the HM-V50. LBTEK offers Pockels cells with wavelengths of 532 nm and 1064 nm. For custom requirements such as other wavelengths, clear apertures, or Pockels cell mounting adapters, please contact LBTEK Technical Support.

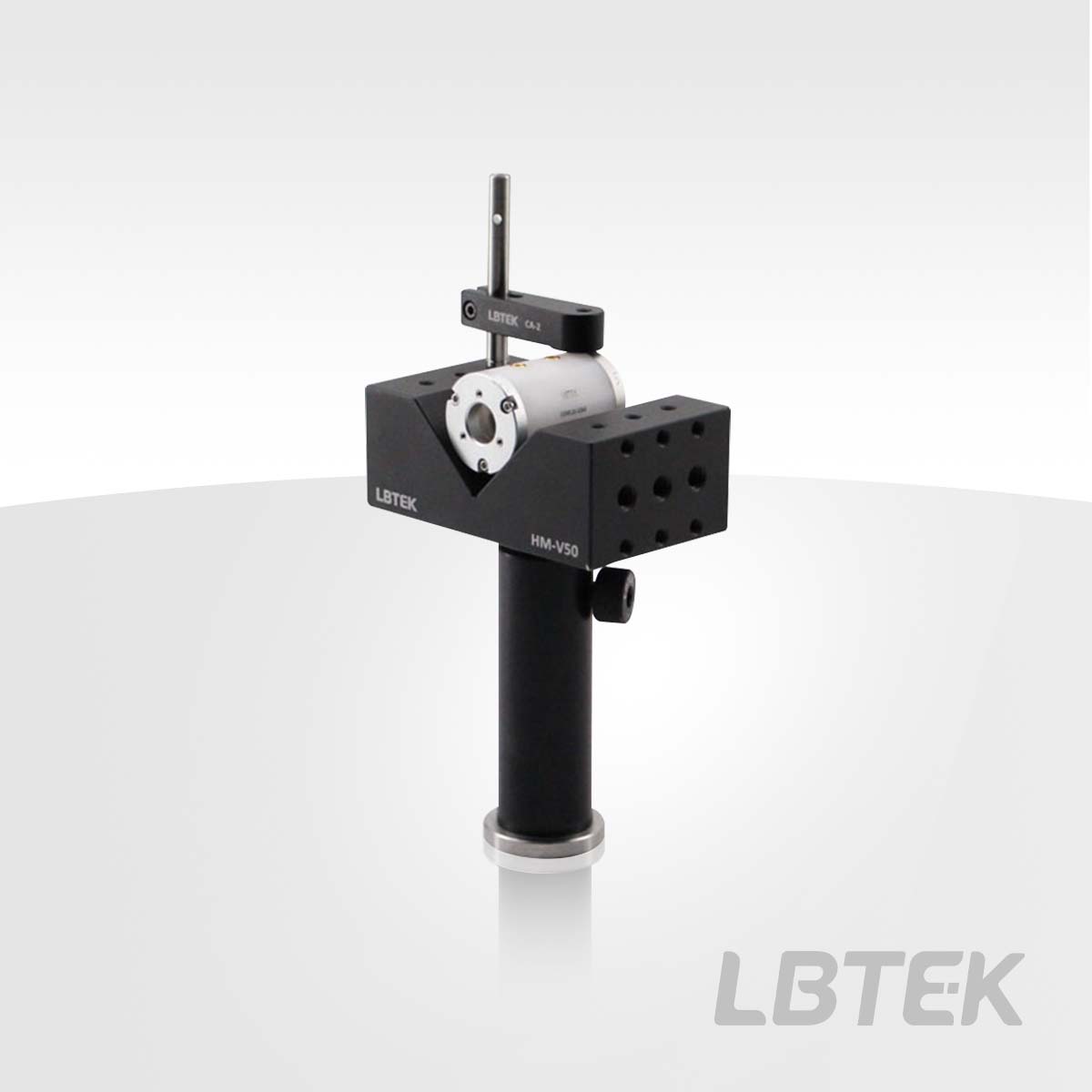

The LBTEK Pockels cell can be mounted on the HM-V50

Product Model	Operating Wavelength	Clear Aperture	Unit Price	Lead Time
EOML10-532	532 nm	10.0 mm	$2006.88	6 weeks
EOML08-1064	1064 nm	8.0 mm	$1751.93	6 weeks
EOML10-1064	1064 nm	10.0 mm	$2006.88	6 weeks

Pockels Cell Drivers

Adjustable output voltage
Maximum output voltage 5kV
Designed specifically for Pockels cells

The LBTEK Pockels cell driver integrates a high-voltage source and high-voltage pulse modulator internally, featuring a compact form factor. This driver is designed to drive Pockels cells, outputting square waves with a maximum voltage of 5 kV and a maximum repetition frequency of 1 kHz. The LBTEK Pockels cell driver offers two control modes: conventional control and analog voltage control. For detailed operating instructions, please refer to the Pockels Cell Driver Operation Manual tab. For any operational issues or customization needs, please contact LBTEK Technical Support.

Schematic Diagram of the LBTEK Pockels Cell Driver Input Interface

	Product Model	Maximum Output Voltage	Maximum repetition frequency	Compatible product models	Unit Price	Compare	Lead Time
	PBD-5K-1K	5 kV	1 kHz	EOML10-532、EOML10-1064	$1050.64		6 weeks
	PBD-5K-1K(8)	5 kV	1 kHz	EOML08-1064	$1040.18		6 weeks
