Product Description

High-purity UV Fused Silica Fabrication
Ultra-high Laser-induced Damage Threshold Dielectric Coating
High Reflectivity

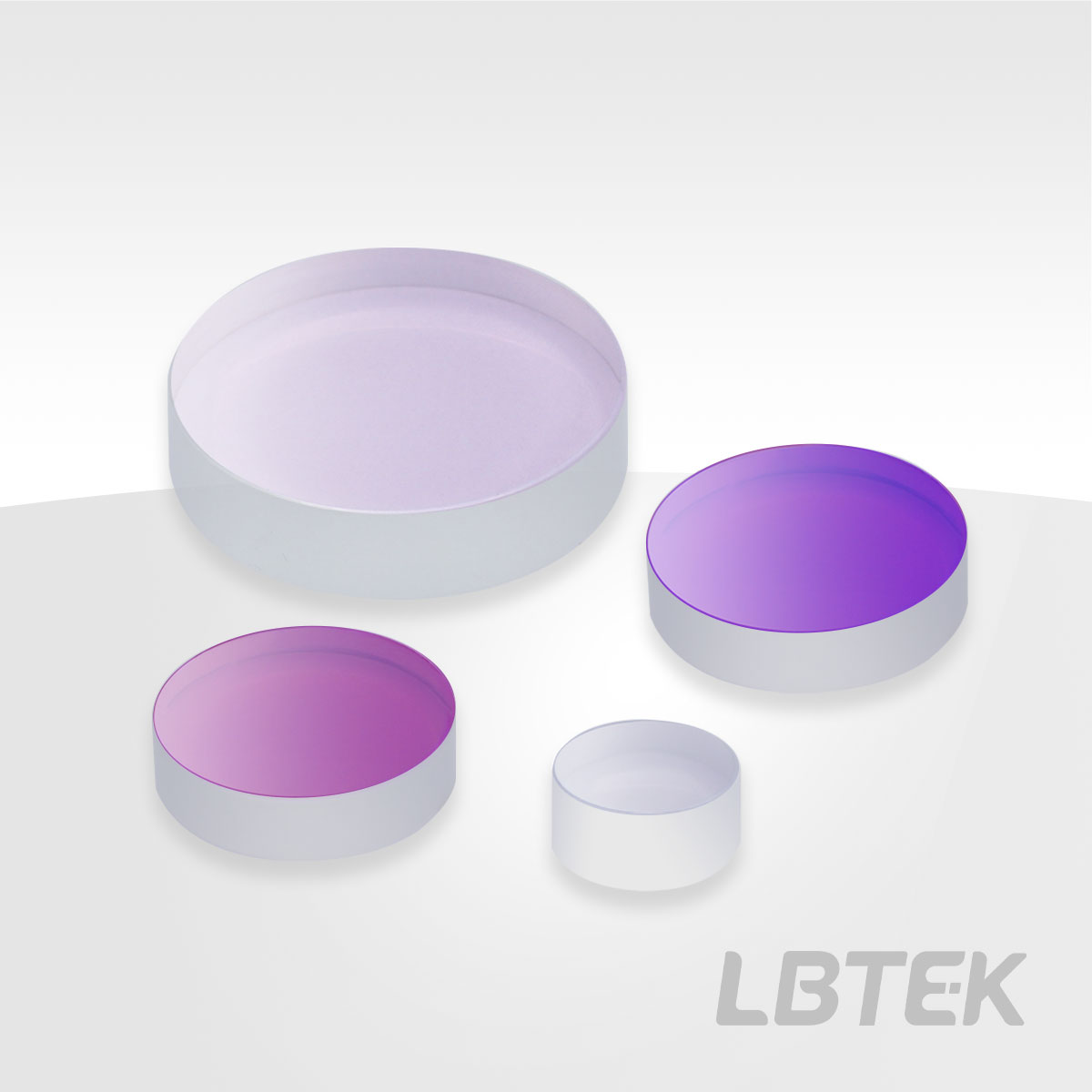

The LBTEK high-power laser line mirrors are manufactured using high-purity UV fused silica and ultra-high laser-induced damage threshold (LIDT) dielectric coatings, capable of withstanding high-energy pulses with superior damage thresholds. The LBTEK high-power laser line mirrors are highly efficient reflectors optimized for single-wavelength ranges. The UV fused silica substrate of LBTEK high-power laser line mirrors offers better uniformity and lower thermal expansion coefficients, ensuring superior performance under temperature fluctuations and enhanced resistance to environmental impacts. The LBTEK high-power laser line mirrors are available in seven working wavelengths: 266 nm, 355 nm, 532 nm, 780 nm, 1064 nm, 1550 nm, and a dual-wavelength option of 532 & 1064 nm, with an incident angle range of 0-45° and reflectivity exceeding 99%.

Attribute

Optical component materialUV fused silica

Diameter12.7 mm，25.4 mm，30.0 mm，50.8 mm

Thickness6 mm，12 mm

Clear Aperture＞90%CA

Surface Parallelism<3 arcmin

Product Model	Diameter	Operating Wavelength	Backside Processing	Unit Price	Lead Time
LPM12-1550P-HP	30.0 mm	1550 nm	Polishing	$181.6	8 weeks
LPM12-1550-HP	30.0 mm	1550 nm	Matte	$181.6	8 weeks
LPM12-1064P-HP	30.0 mm	1064 nm	Polishing	$181.6	8 weeks
LPM12-1064-HP	30.0 mm	1064 nm	Matte	$181.6	8 weeks
LPM12-780P-HP	30.0 mm	780 nm	Polishing	$181.6	8 weeks
LPM12-780-HP	30.0 mm	780 nm	Matte	$181.6	8 weeks
LPM12-532P-HP	30.0 mm	532 nm	Polishing	$181.6	8 weeks
LPM12-532-HP	30.0 mm	532 nm	Matte	$181.6	8 weeks
LPM12-532-1064-HP	30.0 mm	532 nm&1064 nm	Matte	$181.6	8 weeks
LPM12-355P-HP	30.0 mm	355 nm	Polishing	$181.6	8 weeks
LPM12-355-HP	30.0 mm	355 nm	Matte	$181.6	8 weeks
LPM12-266P-HP	30.0 mm	266 nm	Polishing	$181.6	8 weeks
LPM12-266-HP	30.0 mm	266 nm	Matte	$181.6	8 weeks
LPM20-1550P-HP	50.8 mm	1550 nm	Polishing	$251.68	8 weeks
LPM20-1550-HP	50.8 mm	1550 nm	Matte	$251.68	8 weeks
LPM20-1064P-HP	50.8 mm	1064 nm	Polishing	$251.68	8 weeks
LPM20-1064-HP	50.8 mm	1064 nm	Matte	$130.61	8 weeks
LPM20-780P-HP	50.8 mm	780 nm	Polishing	$251.68	8 weeks
LPM20-780-HP	50.8 mm	780 nm	Matte	$251.68	8 weeks
LPM20-532P-HP	50.8 mm	532 nm	Polishing	$251.68	8 weeks
LPM20-532-HP	50.8 mm	532 nm	Matte	$130.61	8 weeks
LPM20-355P-HP	50.8 mm	355 nm	Polishing	$251.68	8 weeks
LPM20-355-HP	50.8 mm	355 nm	Matte	$130.61	8 weeks
LPM05-1550P-HP	12.7 mm	1550 nm	Polishing	$103.42	8 weeks
LPM05-1550-HP	12.7 mm	1550 nm	Matte	$103.42	8 weeks
LPM05-1064P-HP	12.7 mm	1064 nm	Polishing	$103.42	8 weeks
LPM05-1064-HP	12.7 mm	1064 nm	Matte	$30.99	8 weeks
LPM05-780P-HP	12.7 mm	780 nm	Polishing	$103.42	8 weeks
LPM05-780-HP	12.7 mm	780 nm	Matte	$103.42	8 weeks
LPM05-532P-HP	12.7 mm	532 nm	Polishing	$103.42	8 weeks
LPM05-532-HP	12.7 mm	532 nm	Matte	$30.99	8 weeks
LPM05-355P-HP	12.7 mm	355 nm	Polishing	$103.42	8 weeks
LPM05-355-HP	12.7 mm	355 nm	Matte	$30.99	8 weeks
LPM05-532-1064-HP	12.7 mm	532 nm&1064 nm	Matte	$122.64	7 weeks
LPM10-532-1064-HP	25.4 mm	532 nm&1064 nm	Matte	$154.93	7 weeks
LPM10-1064P-HP	25.4 mm	1064 nm	Polishing	$154.93	6 weeks
LPM10-355P-HP	25.4 mm	355 nm	Polishing	$146.04	6 weeks
LPM10-1550P-HP	25.4 mm	1550 nm	Polishing	$159.5	7 weeks
LPM10-780P-HP	25.4 mm	780 nm	Polishing	$159.5	7 weeks
LPM10-532P-HP	25.4 mm	532 nm	Polishing	$154.93	7 weeks
LPM10-266P-HP	25.4 mm	266 nm	Polishing	$154.93	7 weeks
LPM10-1550-HP	25.4 mm	1550 nm	Matte	$159.5	6 weeks
LPM10-1064-HP	25.4 mm	1064 nm	Matte	$50.99	7 weeks
LPM10-780-HP	25.4 mm	780 nm	Matte	$159.5	6 weeks
LPM10-532-HP	25.4 mm	532 nm	Matte	$50.99	6 weeks
LPM10-355-HP	25.4 mm	355 nm	Matte	$50.99	7 weeks
LPM10-266-HP	25.4 mm	266 nm	Matte	$154.93	6 weeks

High-power Laser Line Mirrors
