LBTEK-Multimode fiber optic patch cord

Product Description

High coupling efficiency, high light transmittance
High return loss
Multiple core diameters options available

LBTEK multimode fiber patch cords feature excellent coupling performance, high light transmission efficiency, and good fatigue resistance. The multimode fiber patch cords provided by LBTEK are step-index fibers, with wavelength options of 200 nm-1200 nm and 300 nm-2400 nm. Currently, two connector types are available: FC/PC and SMA. Depending on the fiber core diameter, standard loose tubes are divided into Ø3 mm blue-jacketed stainless steel armored cables and Ø6 mm stainless steel armored cables. For other customization requirements, please contact LBTEK Technical Support.

Attributes

Fiber core materialLow hydroxyl quartz material

Cladding materialFluorine-doped quartz material

Loose tubeStainless Steel Cable

Fiber TypeStep-index multimode fiber optic patch cord

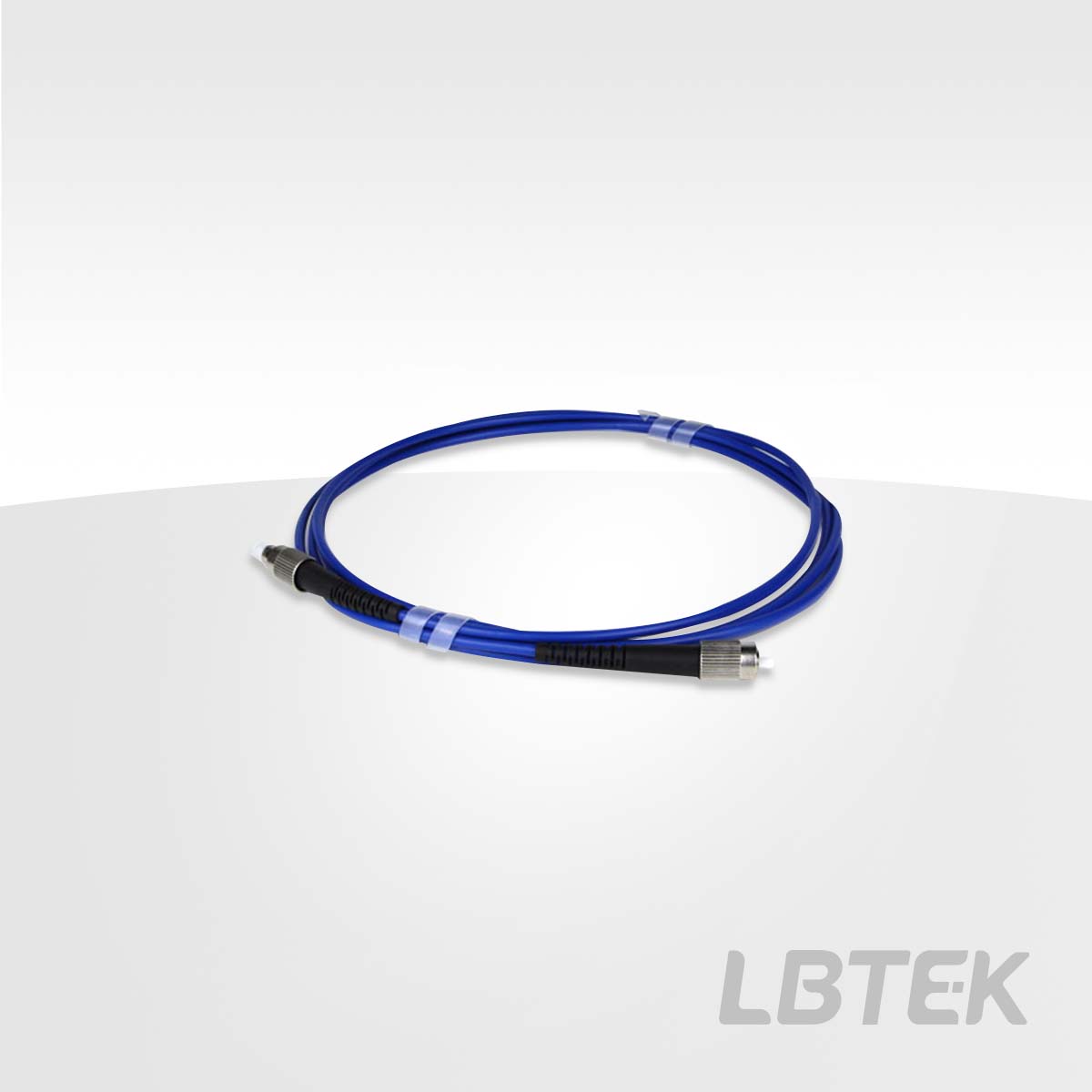

Multimode fiber optic patch cord, FC/PC connector

Multimode Fiber Patch Cord: FC/PC Connector
Core Diameter: 50 μm-1000 μm Optional
Loose Tube: Ø3 mm Blue Jacket Stainless Steel Armored Cable/Ø6 mm Stainless Steel Armored Cable

LBTEK multimode fiber patch cords feature excellent coupling efficiency, high light transmission, and superior fatigue resistance, making them an ideal choice for solid-state lasers and spectroscopic instruments. Among them, multimode fiber patch cords with FC/PC connectors offer core diameter options ranging from 50 μm to 1000 μm. Those with core diameters above 105 μm use metal ferrules, while others employ ceramic ferrules, with a loose tube design featuring Ø3 mm blue-jacketed stainless steel armored cable. Custom specifications are available upon request.

Multimode fiber optic patch cord with FC/PC connector

Product Model	Wavelength range	Fiber core diameter	Fiber length	Numerical Aperture	Unit Price	Lead Time
MMC1000L-0.37-PC-1	300 nm-2400 nm	1000 μm	1 m	0.37	$198.47	6 weeks	Add Cart
MMC800L-0.37-PC-5	300 nm-2400 nm	800 μm	5 m	0.37	$396.80	today	Add Cart
MMC800L-0.37-PC-2	300 nm-2400 nm	800 μm	2 m	0.37	$269.46	today	Add Cart
MMC800L-0.37-PC-1	300 nm-2400 nm	800 μm	1 m	0.37	$127.47	today	Add Cart
MMC600L-0.37-PC-5	300 nm-2400 nm	600 μm	5 m	0.37	$265.01	5 weeks	Add Cart
MMC600L-0.37-PC-2	300 nm-2400 nm	600 μm	2 m	0.37	$127.86	today	Add Cart
MMC600L-0.37-PC-1	300 nm-2400 nm	600 μm	1 m	0.37	$79.62	today	Add Cart
MMC1000L-0.22-PC-1	300 nm-2400 nm	1000 μm	1 m	0.22	$198.47	today	Add Cart
MMC800L-0.22-PC-5	300 nm-2400 nm	800 μm	5 m	0.22	$396.80	5 weeks	Add Cart
MMC800L-0.22-PC-2	300 nm-2400 nm	800 μm	2 m	0.22	$226.71	today	Add Cart
MMC800L-0.22-PC-1	300 nm-2400 nm	800 μm	1 m	0.22	$127.47	today	Add Cart
MMC600L-0.22-PC-5	300 nm-2400 nm	600 μm	5 m	0.22	$265.14	6 weeks	Add Cart
MMC600L-0.22-PC-2	300 nm-2400 nm	600 μm	2 m	0.22	$127.86	today	Add Cart
MMC600L-0.22-PC-1	300 nm-2400 nm	600 μm	1 m	0.22	$79.62	today	Add Cart
MMC400L-0.22-PC-5	300 nm-2400 nm	400 μm	5 m	0.22	$103.81	today	Add Cart
MMC400L-0.22-PC-1	300 nm-2400 nm	400 μm	1 m	0.22	$62.63	today	Add Cart
MMC400L-0.22-PC-2	300 nm-2400 nm	400 μm	2 m	0.22	$69.42	today	Add Cart
MMC200L-0.22-PC-5	300 nm-2400 nm	200 μm	5 m	0.22	$92.17	today	Add Cart
MMC200L-0.22-PC-2	300 nm-2400 nm	200 μm	2 m	0.22	$62.36	today	Add Cart
MMC200L-0.22-PC-1	300 nm-2400 nm	200 μm	1 m	0.22	$53.08	today	Add Cart
MMC400L-0.37-PC-2	300 nm-2400 nm	400 μm	2 m	0.37	$69.55	today	Add Cart
MMC400L-0.37-PC-5	300 nm-2400 nm	400 μm	5 m	0.37	$103.81	today	Add Cart
MMC200L-0.37-PC-2	300 nm-2400 nm	200 μm	2 m	0.37	$62.36	today	Add Cart
MMC400L-0.37-PC-1	300 nm-2400 nm	400 μm	1 m	0.37	$62.76	today	Add Cart
MMC200L-0.37-PC-5	300 nm-2400 nm	200 μm	5 m	0.37	$92.17	6 weeks	Add Cart
MMC200L-0.37-PC-1	300 nm-2400 nm	200 μm	1 m	0.37	$53.08	today	Add Cart
MMC105L-0.22-PC-5	300 nm-2400 nm	105 μm	5 m	0.22	$73.08	today	Add Cart
MMC105L-0.22-PC-2	300 nm-2400 nm	105 μm	2 m	0.22	$55.30	today	Add Cart
MMC105L-0.22-PC-1	300 nm-2400 nm	105 μm	1 m	0.22	$48.37	today	Add Cart
MMC50L-0.22-PC-5	300 nm-2400 nm	50 μm	5 m	0.22	$63.41	6 weeks	Add Cart
MMC50L-0.22-PC-2	300 nm-2400 nm	50 μm	2 m	0.22	$49.29	today	Add Cart
MMC50L-0.22-PC-1	300 nm-2400 nm	50 μm	1 m	0.22	$44.06	today	Add Cart

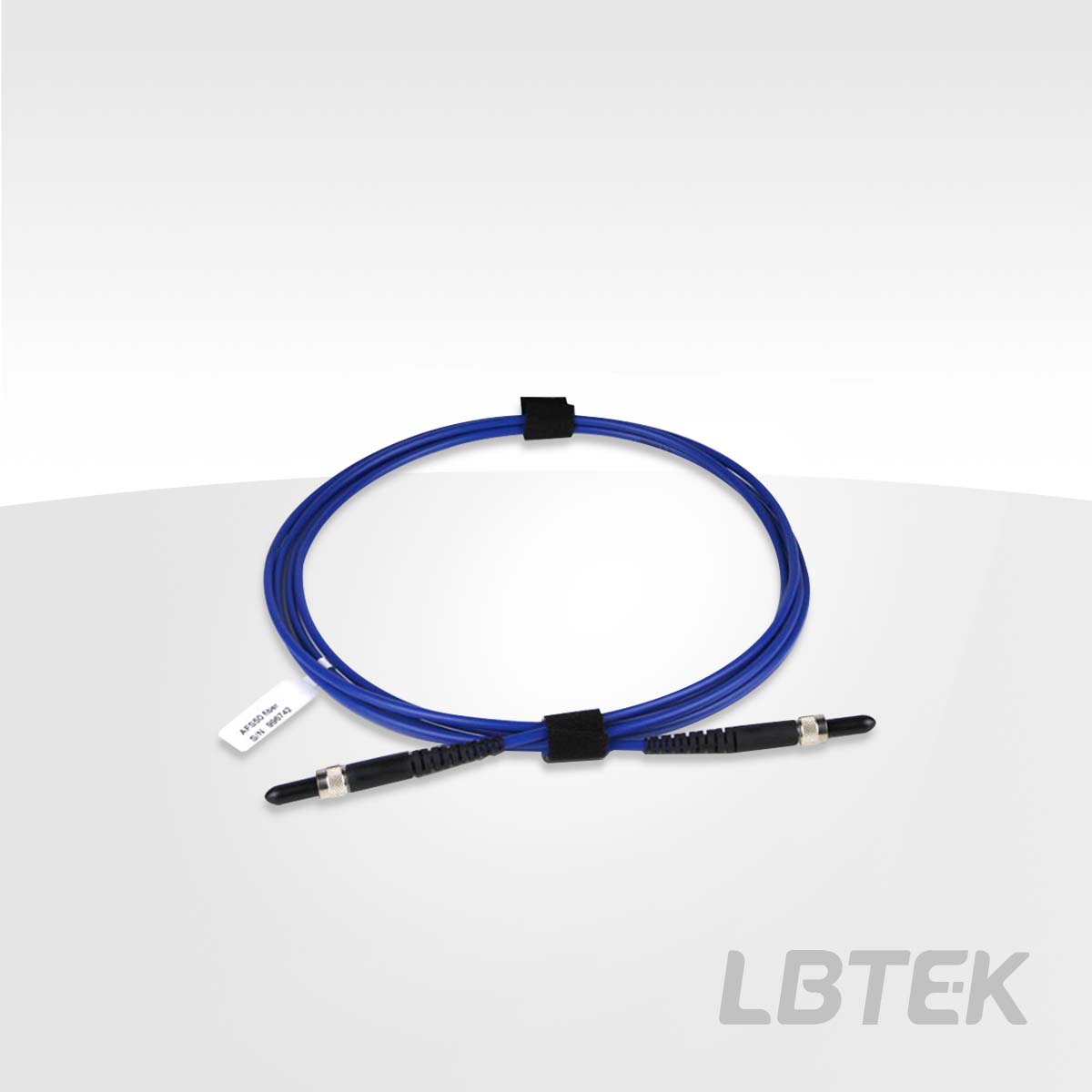

Multimode fiber patch cord, SMA connector

Multimode Fiber Patch Cord: SMA Connector
Core Diameter: 50 μm-1000 μm optional
Loose Tube: Ø3 mm blue jacket stainless steel armored cable/Ø6 mm stainless steel armored cable

LBTEK multimode fiber patch cords feature excellent coupling efficiency, high light transmission, and superior fatigue resistance, making them an ideal choice for solid-state lasers and spectroscopic instruments. Among them, the multimode fiber patch cords with SMA connectors offer core diameter options ranging from 50 μm to 1000 μm, with a loose tube design featuring Ø3 mm blue jacket stainless steel armored cable.

Multimode fiber optic patch cord with SMA connector

Product Model	Wavelength range	Fiber core diameter	Fiber length	Numerical Aperture	Unit Price	Lead Time
MMC200H-0.22-SMA-5	200 nm-1200 nm	200 μm	5 m	0.22	$92.17	today	Add Cart
MMC200H-0.22-SMA-2	200 nm-1200 nm	200 μm	2 m	0.22	$62.36	today	Add Cart
MMC200H-0.22-SMA-1	200 nm-1200 nm	200 μm	1 m	0.22	$53.08	today	Add Cart
MMC1000L-0.37-SMA-1	300 nm-2400 nm	1000 μm	1 m	0.37	$198.47	today	Add Cart
MMC800L-0.37-SMA-5	300 nm-2400 nm	800 μm	5 m	0.37	$396.80	6 weeks	Add Cart
MMC800L-0.37-SMA-2	300 nm-2400 nm	800 μm	2 m	0.37	$226.71	today	Add Cart
MMC800L-0.37-SMA-1	300 nm-2400 nm	800 μm	1 m	0.37	$127.47	today	Add Cart
MMC600L-0.37-SMA-5	300 nm-2400 nm	600 μm	5 m	0.37	$265.01	6 weeks	Add Cart
MMC600L-0.37-SMA-2	300 nm-2400 nm	600 μm	2 m	0.37	$127.86	today	Add Cart
MMC600L-0.37-SMA-1	300 nm-2400 nm	600 μm	1 m	0.37	$79.62	today	Add Cart
MMC200L-0.37-SMA-5	300 nm-2400 nm	200 μm	5 m	0.37	$92.17	today	Add Cart
MMC200L-0.37-SMA-2	300 nm-2400 nm	200 μm	2 m	0.37	$62.36	today	Add Cart
MMC200L-0.37-SMA-1	300 nm-2400 nm	200 μm	1 m	0.37	$52.95	today	Add Cart
MMC1000L-0.22-SMA-1	300 nm-2400 nm	1000 μm	1 m	0.22	$198.47	today	Add Cart
MMC800L-0.22-SMA-5	300 nm-2400 nm	800 μm	5 m	0.22	$396.80	6 weeks	Add Cart
MMC800L-0.22-SMA-2	300 nm-2400 nm	800 μm	2 m	0.22	$226.71	today	Add Cart
MMC800L-0.22-SMA-1	300 nm-2400 nm	800 μm	1 m	0.22	$127.47	6 weeks	Add Cart
MMC600L-0.22-SMA-5	300 nm-2400 nm	600 μm	5 m	0.22	$265.14	5 weeks	Add Cart
MMC600L-0.22-SMA-2	300 nm-2400 nm	600 μm	2 m	0.22	$127.86	today	Add Cart
MMC600L-0.22-SMA-1	300 nm-2400 nm	600 μm	1 m	0.22	$79.62	today	Add Cart
MMC400L-0.22-SMA-5	300 nm-2400 nm	400 μm	5 m	0.22	$103.68	5 weeks	Add Cart
MMC400L-0.22-SMA-2	300 nm-2400 nm	400 μm	2 m	0.22	$69.42	6 weeks	Add Cart
MMC400L-0.22-SMA-1	300 nm-2400 nm	400 μm	1 m	0.22	$62.76	6 weeks	Add Cart
MMC200L-0.22-SMA-5	300 nm-2400 nm	200 μm	5 m	0.22	$92.17	today	Add Cart
MMC200L-0.22-SMA-2	300 nm-2400 nm	200 μm	2 m	0.22	$62.36	today	Add Cart
MMC200L-0.22-SMA-1	300 nm-2400 nm	200 μm	1 m	0.22	$53.08	today	Add Cart
MMC400L-0.37-SMA-5	300 nm-2400 nm	400 μm	5 m	0.37	$103.81	today	Add Cart
MMC400L-0.37-SMA-2	300 nm-2400 nm	400 μm	2 m	0.37	$69.55	6 weeks	Add Cart
MMC400L-0.37-SMA-1	300 nm-2400 nm	400 μm	1 m	0.37	$62.76	today	Add Cart
MMC105L-0.22-SMA-5	300 nm-2400 nm	105 μm	5 m	0.22	$73.22	today	Add Cart
MMC105L-0.22-SMA-2	300 nm-2400 nm	105 μm	2 m	0.22	$55.17	today	Add Cart
MMC105L-0.22-SMA-1	300 nm-2400 nm	105 μm	1 m	0.22	$48.37	6 weeks	Add Cart
MMC50L-0.22-SMA-5	300 nm-2400 nm	50 μm	5 m	0.22	$63.54	today	Add Cart
MMC50L-0.22-SMA-2	300 nm-2400 nm	50 μm	2 m	0.22	$49.29	today	Add Cart
MMC50L-0.22-SMA-1	300 nm-2400 nm	50 μm	1 m	0.22	$44.06	today	Add Cart
