Product Description

Optical Material: N-BK7
Operating Wavelength: 350 nm-2 μm (uncoated)
Application: Imaging, beam expansion or reduction

A plano-concave lens has one concave surface and one flat surface, with a negative focal length. It is commonly used for beam collimation, increasing (or decreasing) focal length, or expanding (or reducing) image size. To minimize spherical aberration, when the incident beam is collimated, it should be directed onto the concave surface of the plano-concave lens. N-BK7 is the most common lens material, widely used in visible and near-infrared applications. In addition to N-BK7 plano-concave lenses, LBTEK also offers N-SF11, UV fused silica, and calcium fluoride plano-concave lenses. Due to its lower Abbe number, N-SF11 is often used to produce lenses with shorter focal lengths. UV fused silica exhibits excellent transmittance in the ultraviolet range and a low coefficient of thermal expansion, while calcium fluoride has an extremely high damage threshold and chemical inertness. LBTEK provides uncoated plano-concave lenses as well as lenses with three types of anti-reflection coatings: 400-700 nm, 700-1100 nm, and 1100-1650 nm. All our lenses undergo precision machining and strict quality control to ensure that LBTEK delivers high-quality lens products at reasonable prices.

Attribute

Optical component materialN-BK7

Surface finish (scratches/pits)40/20

Operating Wavelength350 nm-2 μm

Flatness (@633 nm)λ/2

Curved Aperture3

Focal length tolerance±1%

Local surface irregularity0.5

Design wavelength587.6 nm

Eccentricity≤3 arcmin

Plano-Concave Lens, N-BK7, Uncoated: 350 nm-2.0 μm

Substrate Material: N-BK7
Operating Wavelength: 350 nm-2 μm (uncoated)
Application: Imaging, beam expansion or reduction

LBTEK Plano-Concave Lenses have a negative focal length and are commonly used in applications such as imaging or beam collimation. LBTEK plano-concave lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification of lens parameters by users.

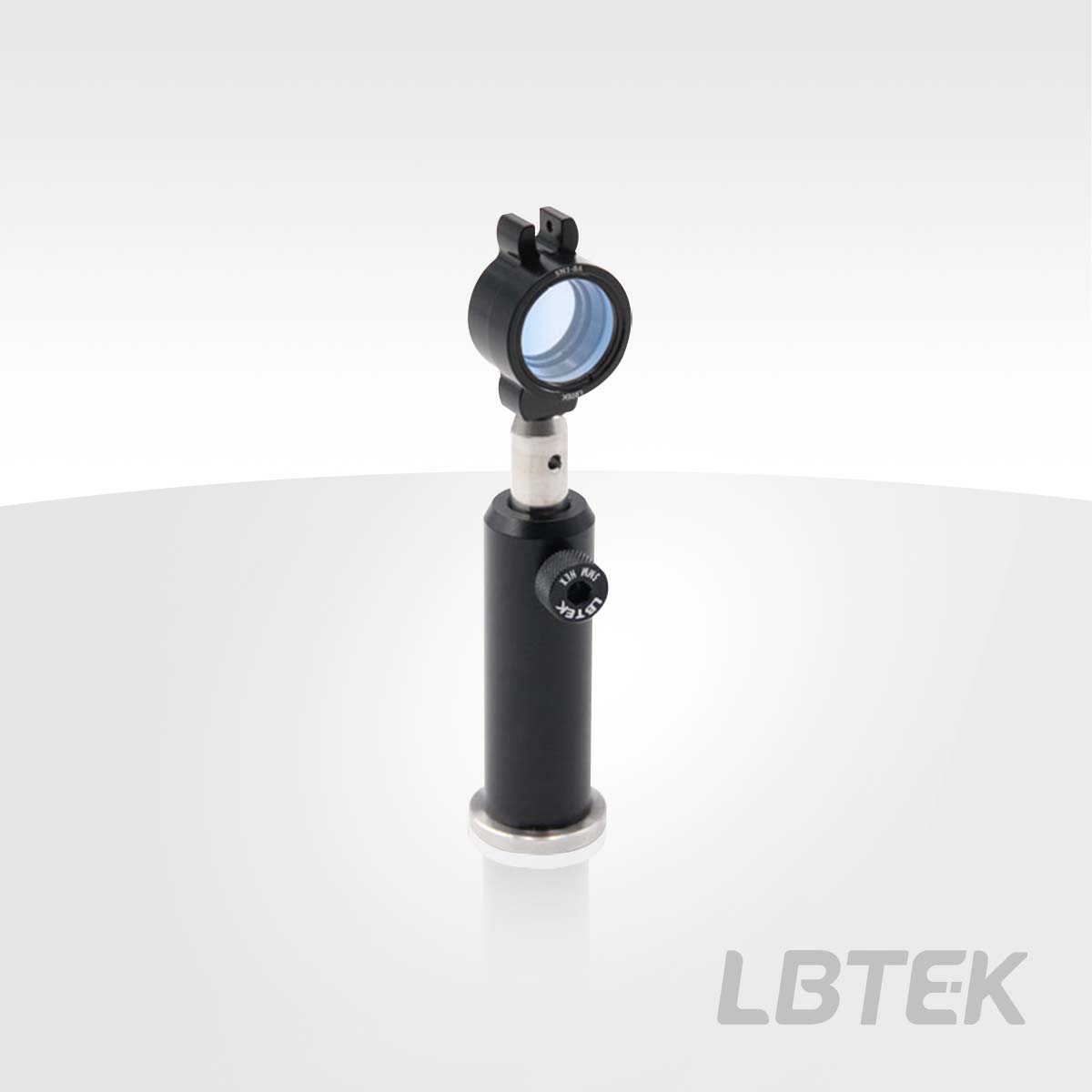

LBTEK lens mounted on a fixed lens mount

Product Model	Diameter	Focal length	Unit Price	Lead Time
MCC10305	12.7 mm	-25.0 mm	$26.28	6 weeks
MCC10307	12.7 mm	-30.0 mm	$26.28	6 weeks
MCC10310	12.7 mm	-50.0 mm	$26.28	6 weeks
MCC10610	25.4 mm	-50.0 mm	$29.16	6 weeks
MCC10612	25.4 mm	-75.0 mm	$29.16	6 weeks
MCC10613	25.4 mm	-100.0 mm	$29.29	6 weeks

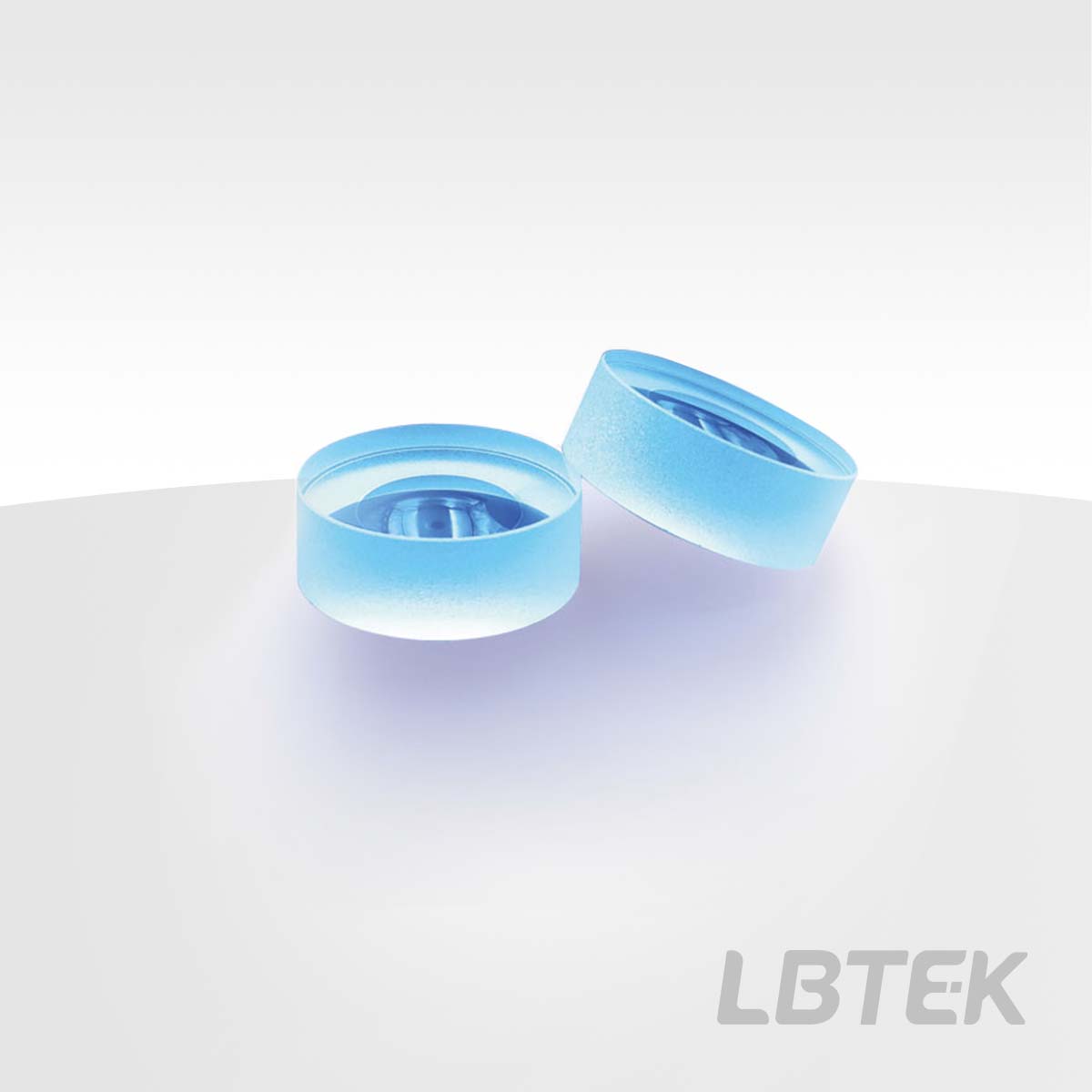

Plano-Concave Lens, N-BK7, Uncoated: 350 nm-2.0 μm, Unmounted

Substrate Material: N-BK7
Operating Wavelength: 350 nm-2 μm (uncoated)
Application: Imaging, beam expansion or reduction

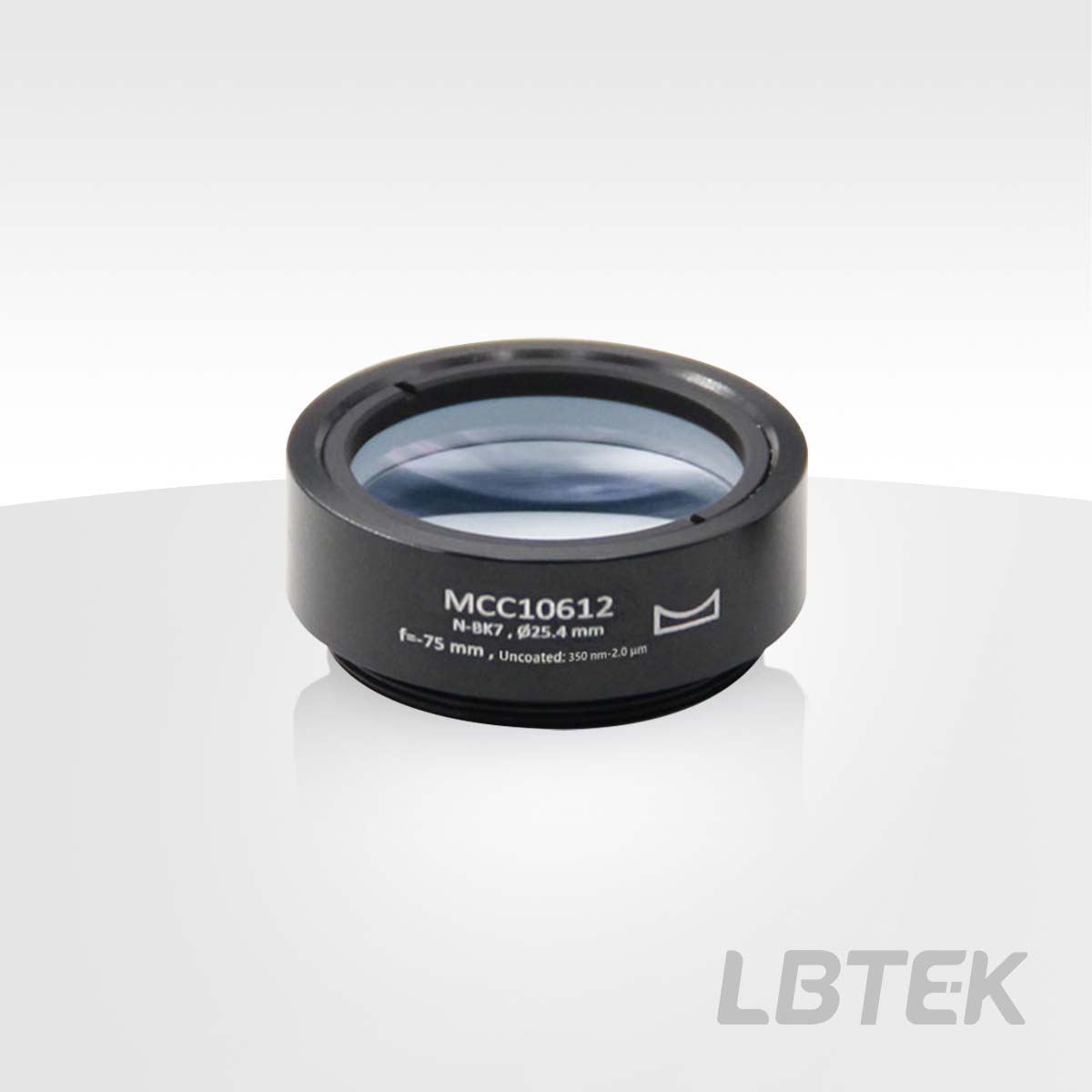

Pre-installed mechanical housing

The LBTEK plano-concave lens has a negative focal length and is commonly used in applications such as imaging or beam collimation. LBTEK plano-concave lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens holders, and various coaxial mounting plates. Customers can choose the optimal mounting method based on different application scenarios.

LBTEK's unmounted lens is mounted in a standard fixed mount.

Product Model	Diameter	Focal length	Unit Price	Lead Time
CC10024	6.0 mm	-24.0 mm	$23.14	6 weeks
CC10305	12.7 mm	-25.0 mm	$17.39	6 weeks
CC10307	12.7 mm	-30.0 mm	$17.39	6 weeks
CC10610	25.4 mm	-50.0 mm	$20.26	6 weeks
CC10310	12.7 mm	-50.0 mm	$17.65	6 weeks
CC10612	25.4 mm	-75.0 mm	$20.26	6 weeks
CC10613	25.4 mm	-100.0 mm	$20.26	6 weeks
