Product Description

Precise positioning
No damage to optical fibers
Fast and easy to use

During fiber stripping operations, using a proper stripping tool allows the coating to be removed quickly, easily, and precisely without damaging the fiber. A stripping tool must meet the following requirements: Accurate aperture size to ensure the fiber is properly aligned and stripped. Ease of operation to avoid difficulties that could affect user performance. To meet these needs, LBTEK offers a variety of stripping tools with different blade designs, types, and functions. In addition to standard models, LBTEK also provides customization services for various guide grooves and blade configurations. For specific customization requirements, please contact LBTEK technical support.

Fiber Stripping Pliers

Precise Positioning
Reduce Fiber Breakage Rate
Various Sizes Available

The LBTEK fiber stripper features a circular blade design with a front guide groove for precise positioning. During stripping, the blade closely fits the fiber coating, enabling clean and quick removal without damaging the fiber. The LBTEK fiber stripper performs longitudinal stripping with minimal stripping force, reducing tension on the fiber and preventing harmful dragging on the blade. This ensures high-quality stripping results. Each set includes a blade installation/removal tool and a cleaning brush.

Use wire strippers to remove the coating

Product Model	Cladding diameter	Coating layer diameter	Unit Price	Lead Time
FSC-28S46	605-680 µm	1016-1168 µm	$66.68	1week
FSC-21S31	435-500 µm	635-787 µm	$64.59	1week
FSC-12S16	235-280 µm	343-407 µm	$65.89	1week
FSC-06S13	125-135 µm	250-343 µm	$68.51	1week

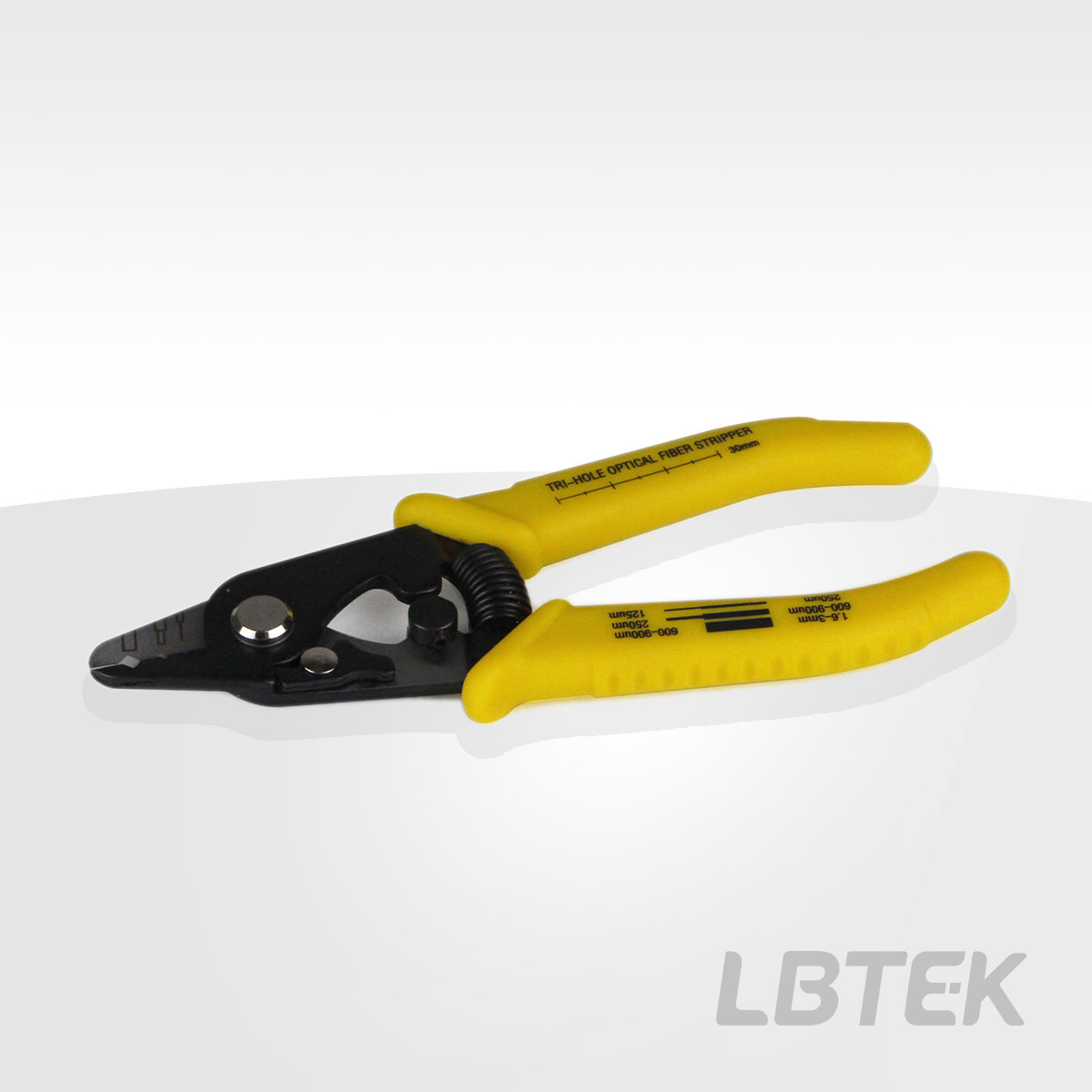

Three-port fiber optic stripper

Three-port model
Fast and simple
With safety lock

The LBTEK three-port fiber optic stripper can perform common fiber stripping functions. The large hole can be used to strip 2-3 mm fiber outer jackets, the medium hole for stripping 900 μm buffer coatings, and the small hole for stripping 250 μm coatings (all are factory-default apertures). The LBTEK Triple-Hole Fiber Optic Stripper comes pre-configured from the factory, and users can rotate the adjuster to modify the aperture (Note: Manual adjustment cannot be reset to factory defaults with a single click). Ensure the safety lock is released before use for normal operation.

Three-port fiber optic stripper

	Product Model	Peel size	Unit Price	Compare	Lead Time
	FSC-FOT-103	3 mm, 900 μm, 250 μm (factory preset)	$28.89		2 weeks

Fiber Stripping Tools
