Product Description
- Optical Element Material: D-ZK3/D-ZLAF52LA/D-LAK6
- Larger Numerical Aperture (NA), Lower F-number (f/#)
- Suitable for Focusing, Collimation, and Detection
- Anti-reflection Coating 350-700 nm, Available in Unmounted and Mounted Options
Compared to conventional spherical lenses, molded aspheric lenses do not introduce spherical aberration into the transmitted wavefront when focusing or collimating a beam. LBTEK utilizes D-ZK3, D-ZLAF52LA, and D-LAK6 glass to manufacture molded aspheric lenses in various sizes. These three materials have higher refractive indices than B270 glass, resulting in molded aspheric lenses with larger numerical apertures (NA) and lower f-numbers (f/#). To ensure optimal performance, when collimating a point source, the beam should be incident on the flatter surface of the lens; when focusing a collimated beam, the beam should be incident on the surface with greater curvature. Compared to precision-polished aspheric lenses, molded aspheric lenses have better production consistency and are suitable for mass production. LBTEK provides molded aspheric lenses with 350-700 nm anti-reflection coatings, available in both unmounted and mounted options. Our lenses are finely processed with strict quality control, ensuring that LBTEK delivers high-quality lens products to customers at reasonable prices.

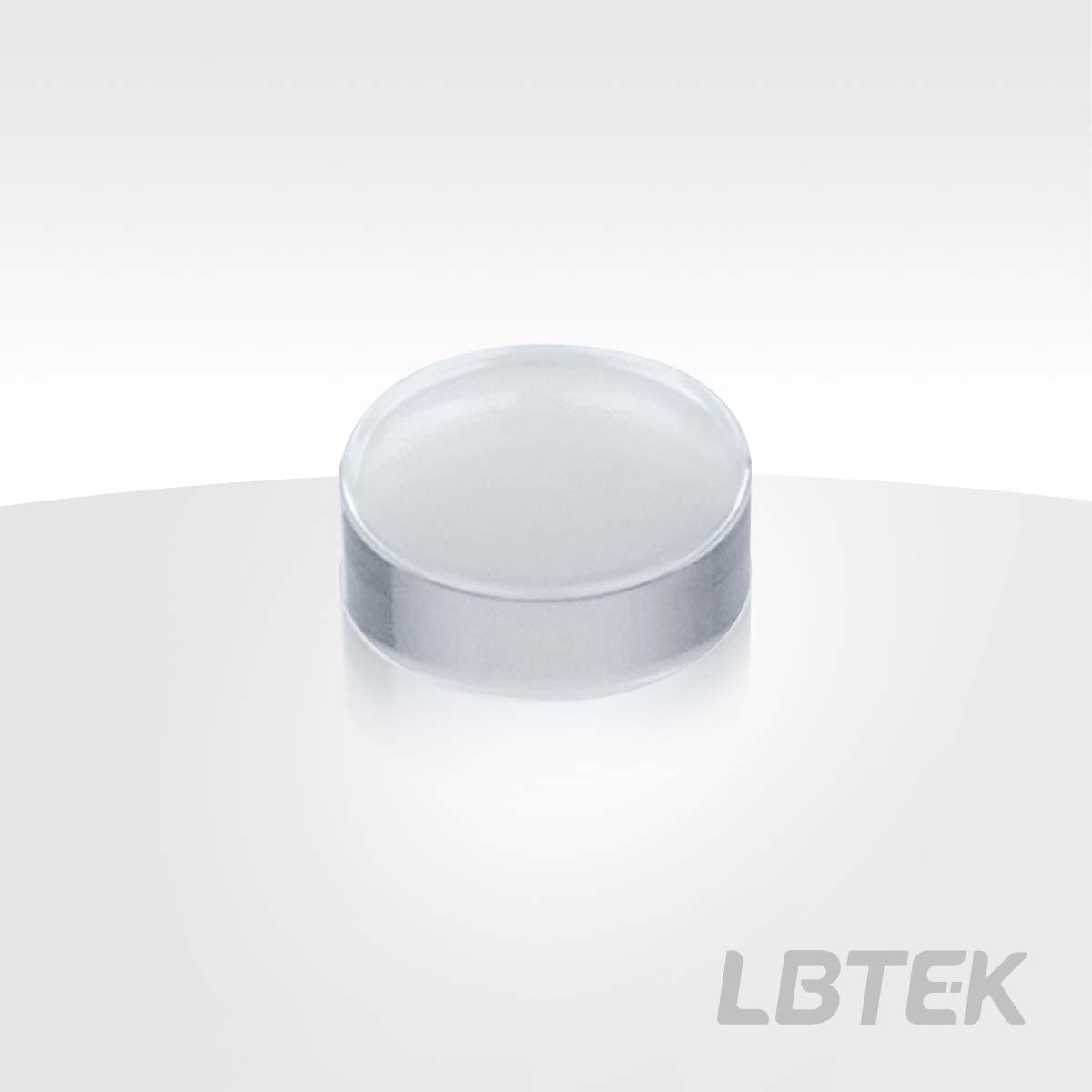

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted
- Optical Element Material: D-ZLAF52LA/D-ZK3/D-LAK6
- Working Wavelength: 350 nm-700 nm
- Various Diameter and Focal Length Options Available
LBTEK offers molded aspheric lenses with various diameter and focal length options currently available. The spherical refraction of conventional lenses cannot converge parallel light to a single point, resulting in spherical aberration. In contrast, the surface curvature of aspheric lenses varies continuously from the center to the edge. By adjusting the conic constant and aspheric coefficients, spherical aberration can be minimized to the greatest extent, allowing light rays to converge at a single point, thereby enhancing optical performance.

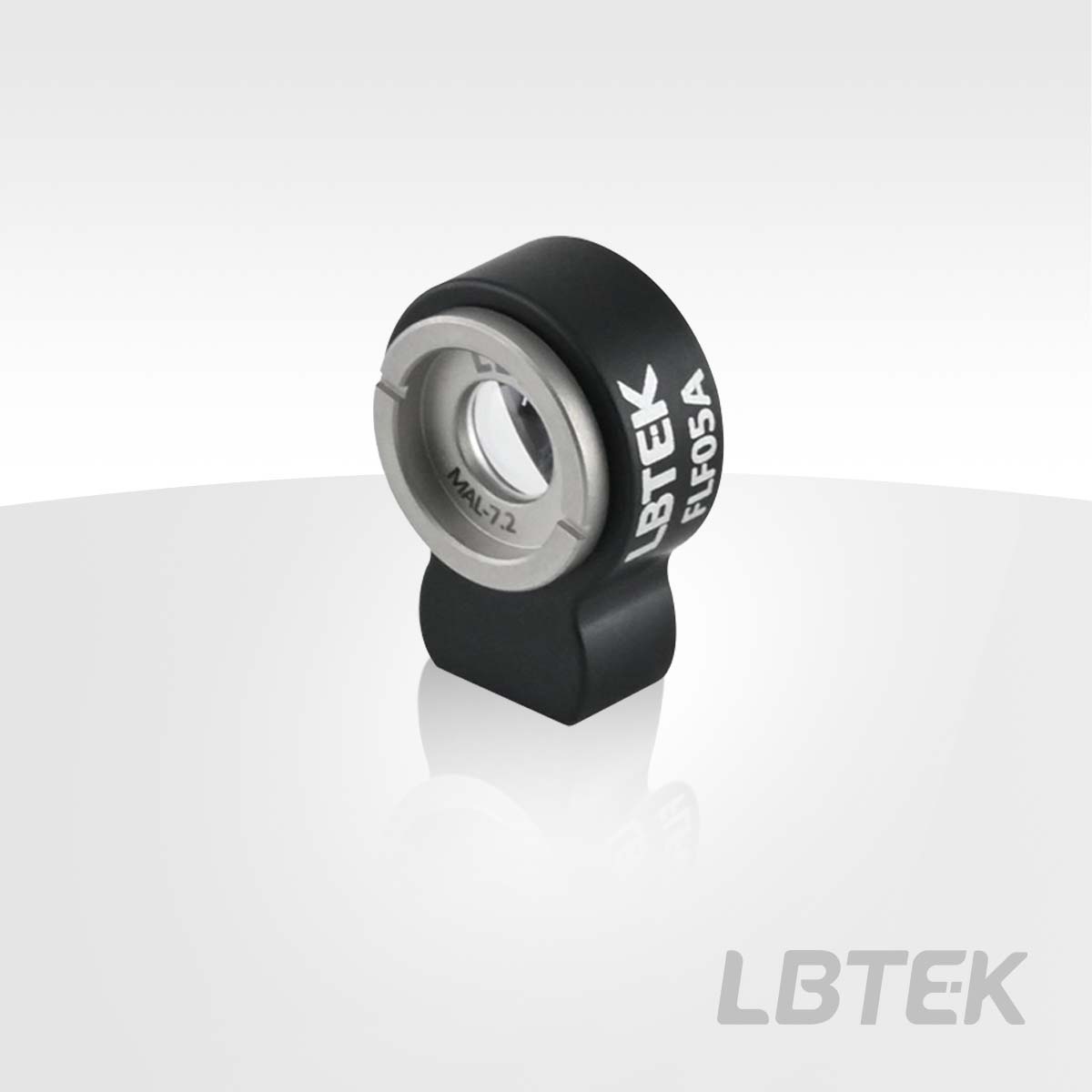

The unmounted molded aspheric lens can be bonded into a stainless steel optical adapter and installed in a fixed lens mount.
Product Model | Diameter | Focal length | Numerical Aperture (NA) | Optical component material | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| AC110618-A | 6.325 mm | 4.5 mm | 0.6 | D-ZLaF52LA | $65.5 | 6 weeks | |||
| AC120653-19-A | 6.325 mm | 4.0 mm | 0.6 | D-LAK6 | $120.67 | 6 weeks | |||
| AC120653-15-A | 6.325 mm | 4.0 mm | 0.6 | D-LAK6 | $120.67 | 6 weeks | |||
| AC111052-A | 4.000 mm | 3.0 mm | 0.5 | D-ZLaF52LA | $101.32 | 2 weeks | |||
| AC111635-A | 7.200 mm | 11.0 mm | 0.3 | D-ZLaF52LA | $68.64 | 2 weeks | |||
| AC111016-A | 4.000 mm | 2.8 mm | 0.6 | D-ZLaF52LA | $86.68 | 2 weeks | |||
| AC111619-A | 7.200 mm | 6.2 mm | 0.4 | D-ZLaF52LA | $84.59 | 2 weeks | |||
| AC90951-A | 2.650 mm | 1.5 mm | 0.5 | D-ZK3 | $74.78 | 2 weeks | |||
| AC91213-A | 6.000 mm | 4.6 mm | 0.5 | D-ZK3 | $68.64 | 2 weeks | |||
| AC90754-A | 2.000 mm | 5.0 mm | 0.2 | D-ZK3 | $85.5 | 2 weeks | |||
| AC90653-A | 6.325 mm | 4.0 mm | 0.6 | D-ZK3 | $74.78 | 2 weeks | |||
| AC90621-A | 6.325 mm | 3.1 mm | 0.7 | D-ZK3 | $74.78 | 2 weeks | |||
| AC91558-A | 6.500 mm | 18.4 mm | 0.2 | D-ZK3 | $74.78 | 2 weeks | |||
| AC91635-A | 7.200 mm | 11.0 mm | 0.3 | D-ZK3 | $76.61 | 2 weeks | |||
| AC90851-A | 2.400 mm | 1.5 mm | 0.6 | D-ZK3 | $60.93 | 2 weeks | |||
| AC91655-A | 7.200 mm | 5.5 mm | 0.6 | D-ZK3 | $131.53 | 2 weeks | |||
| AC90635-A | 6.325 mm | 11.0 mm | 0.2 | D-ZK3 | $72.43 | 2 weeks | |||
| AC90657-A | 6.325 mm | 9.6 mm | 0.3 | D-ZK3 | $68.64 | 2 weeks | |||
| AC90519-A | 4.700 mm | 6.2 mm | 0.3 | D-ZK3 | $65.63 | 5 weeks | |||
| AC90518-A | 4.700 mm | 4.5 mm | 0.4 | D-ZK3 | $67.07 | 5 weeks | |||
| AC90620-A | 6.330 mm | 13.8 mm | 0.2 | D-ZK3 | $102.76 | 5 weeks | |||
| AC110314-A | 3.000 mm | 2.0 mm | 0.5 | D-ZLAF52LA | $69.16 | 5 weeks | |||
| AC110416-A | 4.500 mm | 2.7 mm | 0.6 | D-ZLAF52LA | $89.82 | 5 weeks |

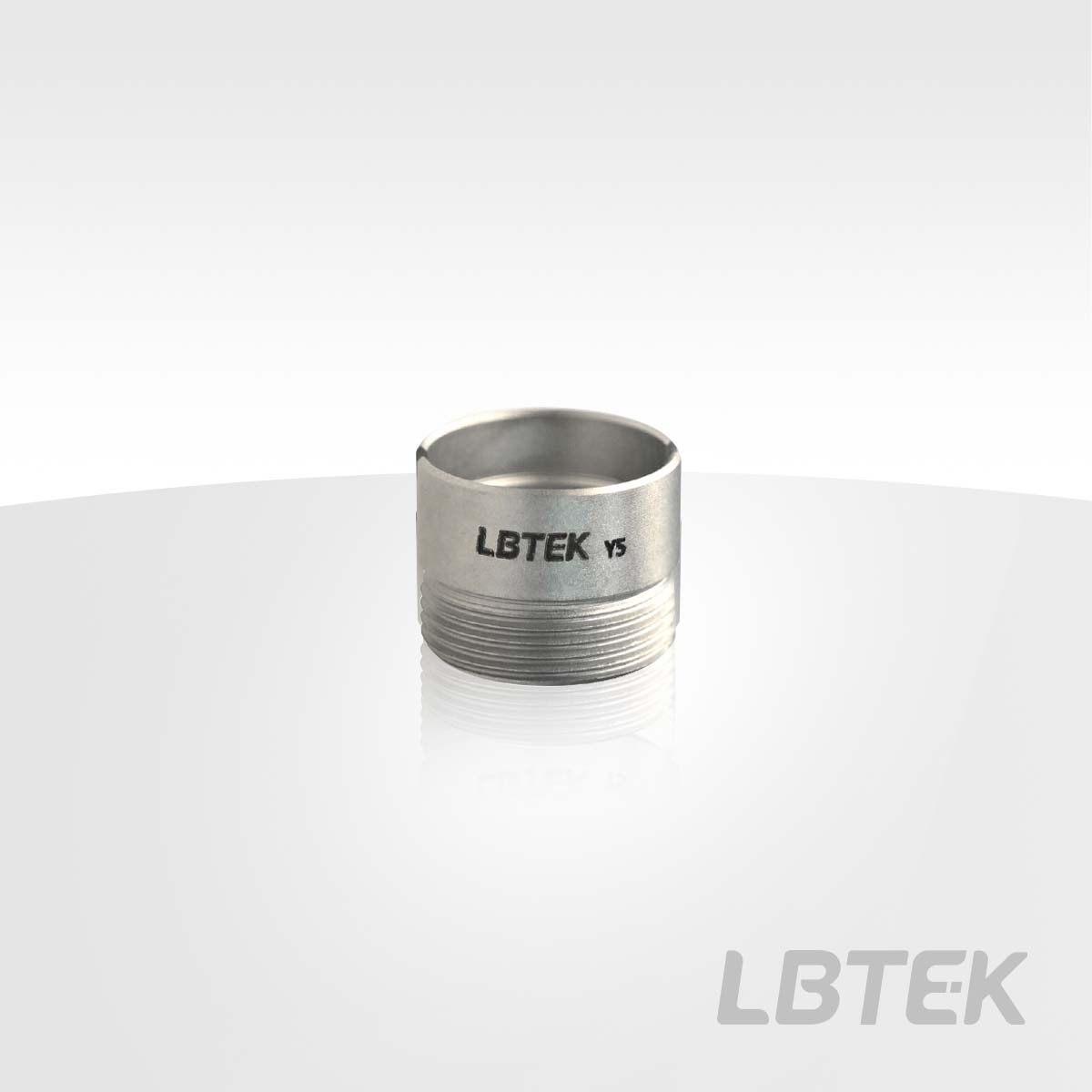

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount
- Optical Element Material: D-ZLAF52LA/D-ZK3/D-LAK6
- Working Wavelength: 350 nm-700 nm
- Various Diameter and Focal Length Options Available
- Different Element Sizes Correspond to Different Housing Thread Specifications
LBTEK offers mounted molded aspheric lenses, currently available in various diameters and focal lengths. Different element sizes correspond to different housing thread specifications, which can be adapted and installed using threaded adapters. The housing of the mounted molded aspheric lens is engraved with a LOGO and product model for easy identification during use. One end of the housing features a groove, allowing for assisted installation with a compatible wrench. The side facing the groove is the side with the larger curvature of the molded aspheric lens.

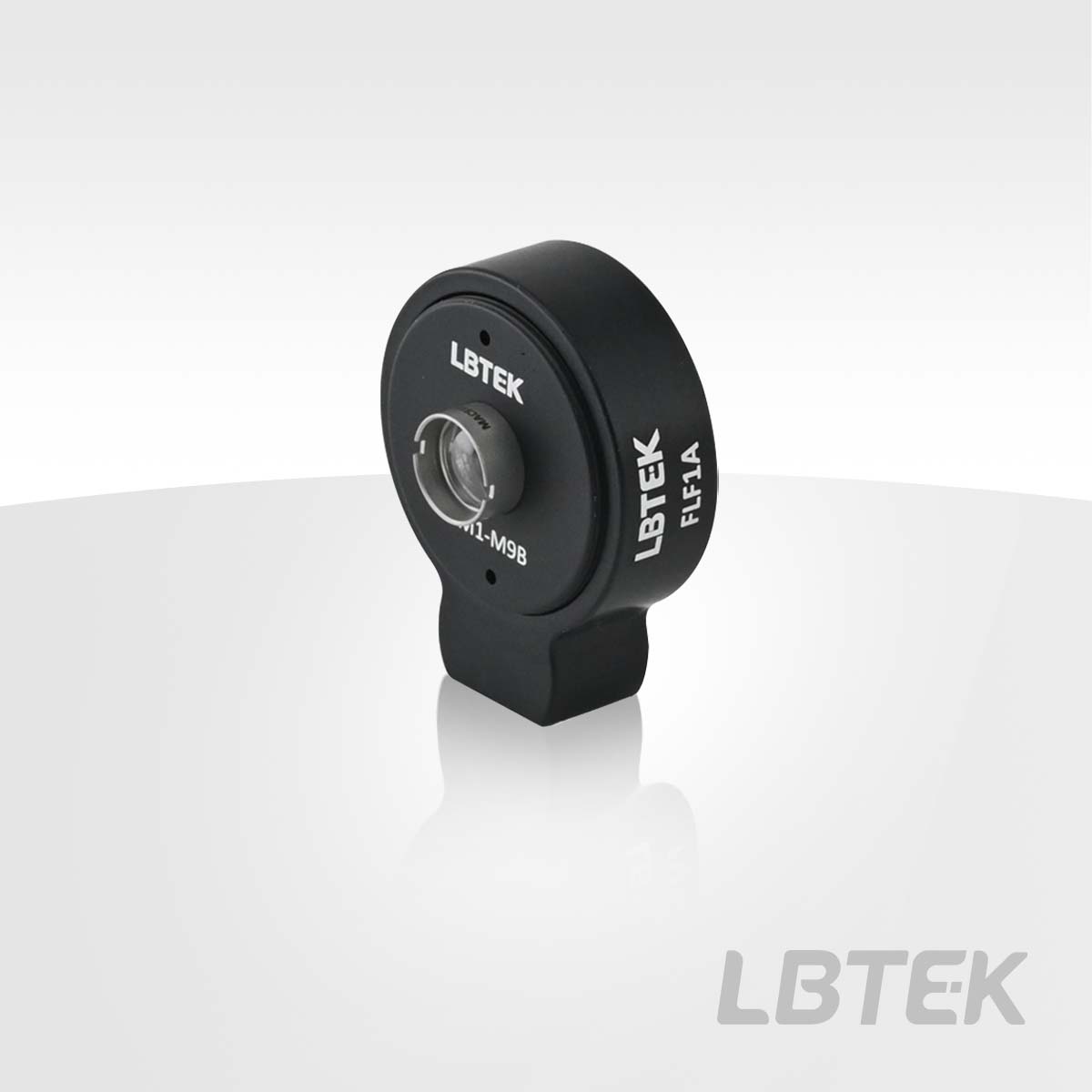

With installation molded aspheric lenses can be mounted to fixed lens mounts via threaded adapters.
Product Model | Optical component material | Diameter | Focal length | Numerical Aperture (NA) | Housing Thread | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MAC110618-A | D-ZLaF52LA | 6.325 mm | 4.5 mm | 0.6 | M9×0.5 | $81.58 | 7 weeks | |||
| MAC110416-A | D-ZLAF52LA | 4.500 mm | 2.7 mm | 0.6 | M8×0.5 | $111.78 | 7 weeks | |||
| MAC110314-A | D-ZLAF52LA | 3.000 mm | 2.0 mm | 0.5 | M6×0.5 | $90.73 | 7 weeks | |||
| MAC90620-A | D-ZK3 | 6.330 mm | 13.8 mm | 0.2 | M9×0.5 | $124.99 | 7 weeks | |||
| MAC90518-A | D-ZK3 | 4.700 mm | 4.5 mm | 0.4 | M8×0.5 | $88.51 | 7 weeks | |||
| MAC90519-A | D-ZK3 | 4.700 mm | 6.2 mm | 0.3 | M8×0.5 | $87.2 | 7 weeks | |||
| MAC90657-A | D-ZK3 | 6.325 mm | 9.6 mm | 0.3 | M9×0.5 | $88.77 | 7 weeks | |||
| MAC90635-A | D-ZK3 | 6.325 mm | 11.0 mm | 0.2 | M9×0.5 | $92.56 | 7 weeks | |||
| MAC91655-A | D-ZK3 | 7.200 mm | 5.5 mm | 0.6 | M9×0.5 | $151.66 | 7 weeks | |||
| MAC90851-A | D-ZK3 | 2.400 mm | 1.5 mm | 0.6 | M6×0.5 | $81.19 | 7 weeks | |||
| MAC91635-A | D-ZK3 | 7.200 mm | 11.0 mm | 0.3 | M9×0.5 | $96.75 | 7 weeks | |||
| MAC91558-A | D-ZK3 | 6.500 mm | 18.4 mm | 0.2 | M9×0.5 | $95.05 | 7 weeks | |||
| MAC90621-A | D-ZK3 | 6.325 mm | 3.1 mm | 0.7 | M9×0.5 | $95.05 | 7 weeks | |||
| MAC90653-A | D-ZK3 | 6.325 mm | 4.0 mm | 0.6 | M9×0.5 | $95.05 | 7 weeks | |||
| MAC90754-A | D-ZK3 | 2.000 mm | 5.0 mm | 0.2 | M6×0.5 | $105.64 | 7 weeks | |||
| MAC91213-A | D-ZK3 | 6.000 mm | 4.6 mm | 0.5 | M9×0.5 | $88.77 | 7 weeks | |||
| MAC90951-A | D-ZK3 | 2.650 mm | 1.5 mm | 0.5 | M6×0.5 | $95.05 | 7 weeks | |||
| MAC111619-A | D-ZLaF52LA | 7.200 mm | 6.2 mm | 0.4 | M9×0.5 | $106.42 | 7 weeks | |||
| MAC111016-A | D-ZLaF52LA | 4.000 mm | 2.8 mm | 0.6 | M6×0.5 | $106.82 | 7 weeks | |||
| MAC111635-A | D-ZLaF52LA | 7.200 mm | 11.0 mm | 0.3 | M9×0.5 | $88.77 | 7 weeks | |||
| MAC111052-A | D-ZLaF52LA | 4.000 mm | 3.0 mm | 0.5 | M8×0.5 | $121.59 | 7 weeks | |||
| MAC120653-15-A | D-LAK6 | 6.325 mm | 4.0 mm | 0.6 | M9×0.5 | $140.94 | 7 weeks | |||
| MAC120653-19-A | D-LAK6 | 6.325 mm | 4.0 mm | 0.6 | M9×0.5 | $140.94 | 7 weeks |
