- Passband transmittance > 85%
- Optical Density in Rejection Region (avg) > 5
- Longpass, shortpass optional
- Shortpass Filter
- Passband transmittance >85%
- Stopband optical density >OD 5

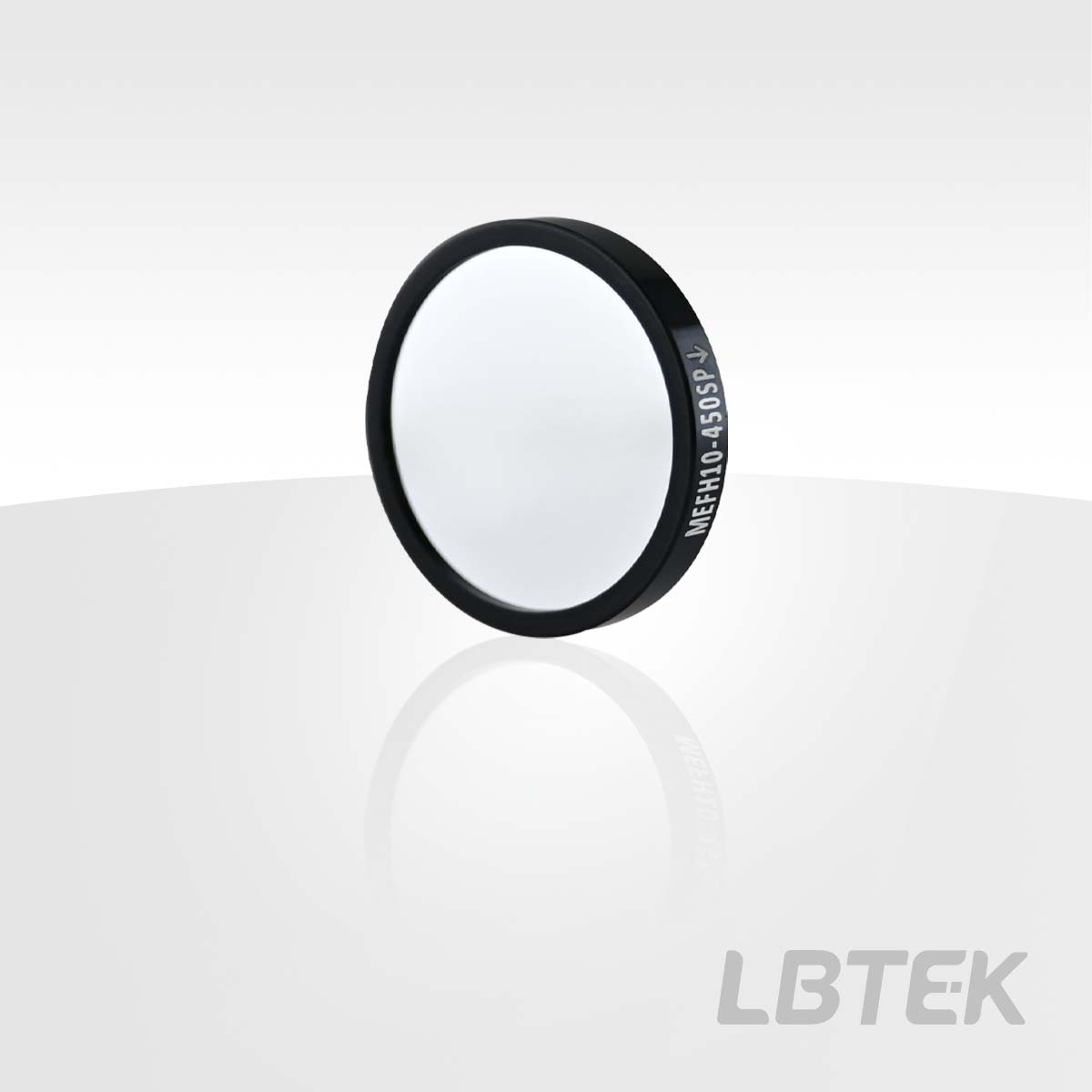

LBTEK Quality Shortpass Filters allow light below the cut-on (cut-off) wavelength to pass through. One side of the filter is coated with a filter film, while the other side has an anti-reflection coating, ensuring high transmittance for light below the cut-on (cut-off) wavelength and effectively suppressing light above it. The optical density (average) in the stopband can reach OD 5, meaning the transmittance is <0.001%. These Quality Edgepass Filters come mounted in black anodized aluminum rings, with the light direction clearly marked by an arrow on the housing for easy installation and use.

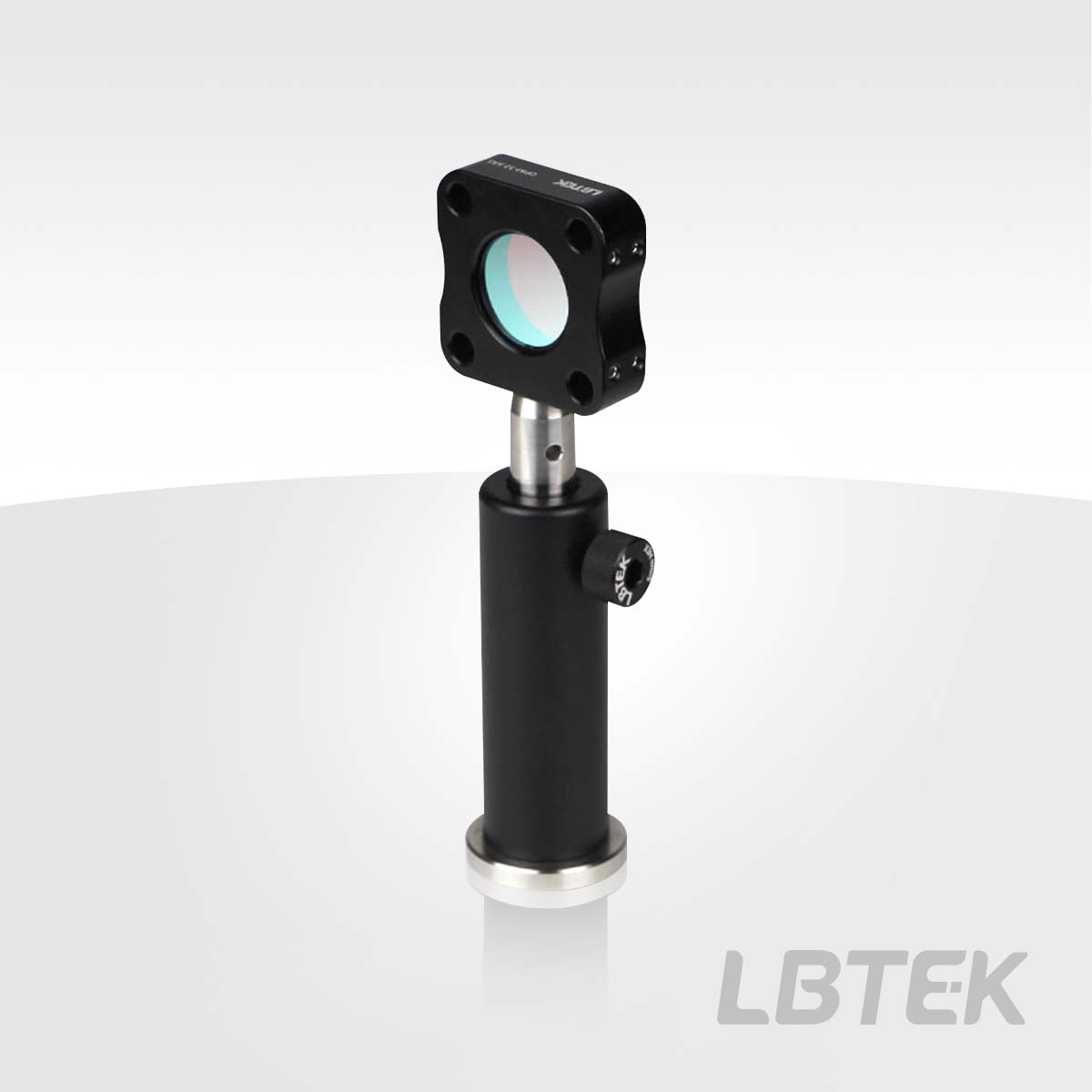

The shortpass filter is mounted in a 30 mm coaxial mounting plate.
Product Model | Start (Stop) Wavelength | Unit Price | Curve | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| MEFH10-1000SP | 1000 nm | $112.7 |  | Contact | |||
| MEFH10-950SP | 950 nm | $118.32 | | Contact | |||
| MEFH10-900SP | 900 nm | $118.32 | | Contact | |||
| MEFH10-850SP | 850 nm | $118.32 | | Contact | |||
| MEFH10-800SP | 800 nm | $118.32 | | Contact | |||
| MEFH10-750SP | 750 nm | $118.32 | | Contact | |||
| MEFH10-700SP | 700 nm | $118.32 | | Contact | |||
| MEFH10-650SP | 650 nm | $118.32 | | Contact | |||
| MEFH10-600SP | 600 nm | $118.32 | | Contact | |||
| MEFH10-550SP | 550 nm | $118.32 | | Contact | |||
| MEFH10-500SP | 500 nm | $118.32 | | Contact | |||
| MEFH10-450SP | 450 nm | $118.32 | | Contact |
- Longpass Filter
- Passband Transmittance >90%
- Stopand Optical Density >OD 5

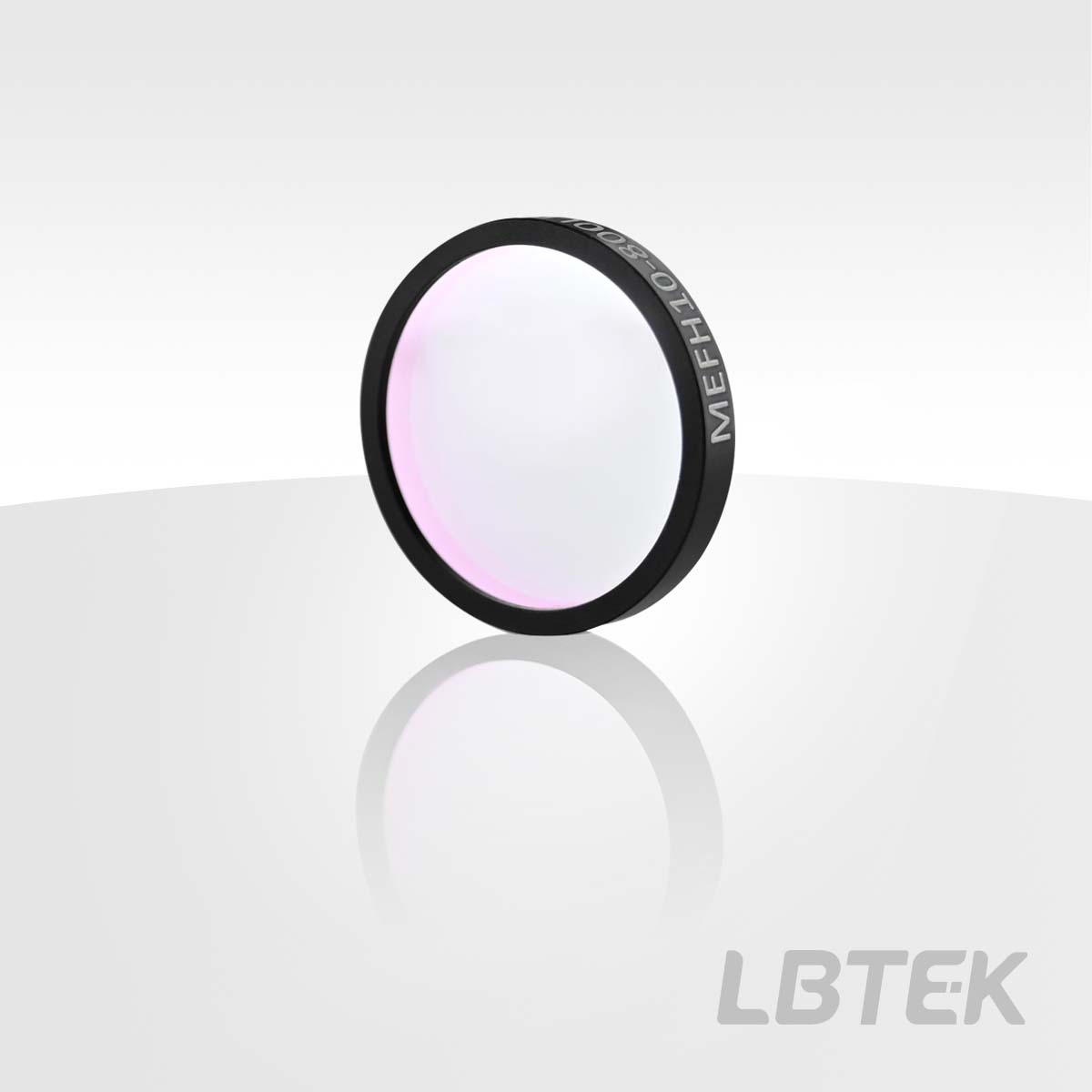

LBTEK Quality Longpass Filters transmit light above the cut-on (cut-off) wavelength with a transmittance exceeding 90%. They also suppress light below the cut-on (cut-off) wavelength, achieving an average optical density (OD) of 5 (OD), meaning a transmittance of less than 0.001%. These Quality Longpass Filters are pre-mounted in a black anodized aluminum ring with an arrow marking the direction of light for easy installation.

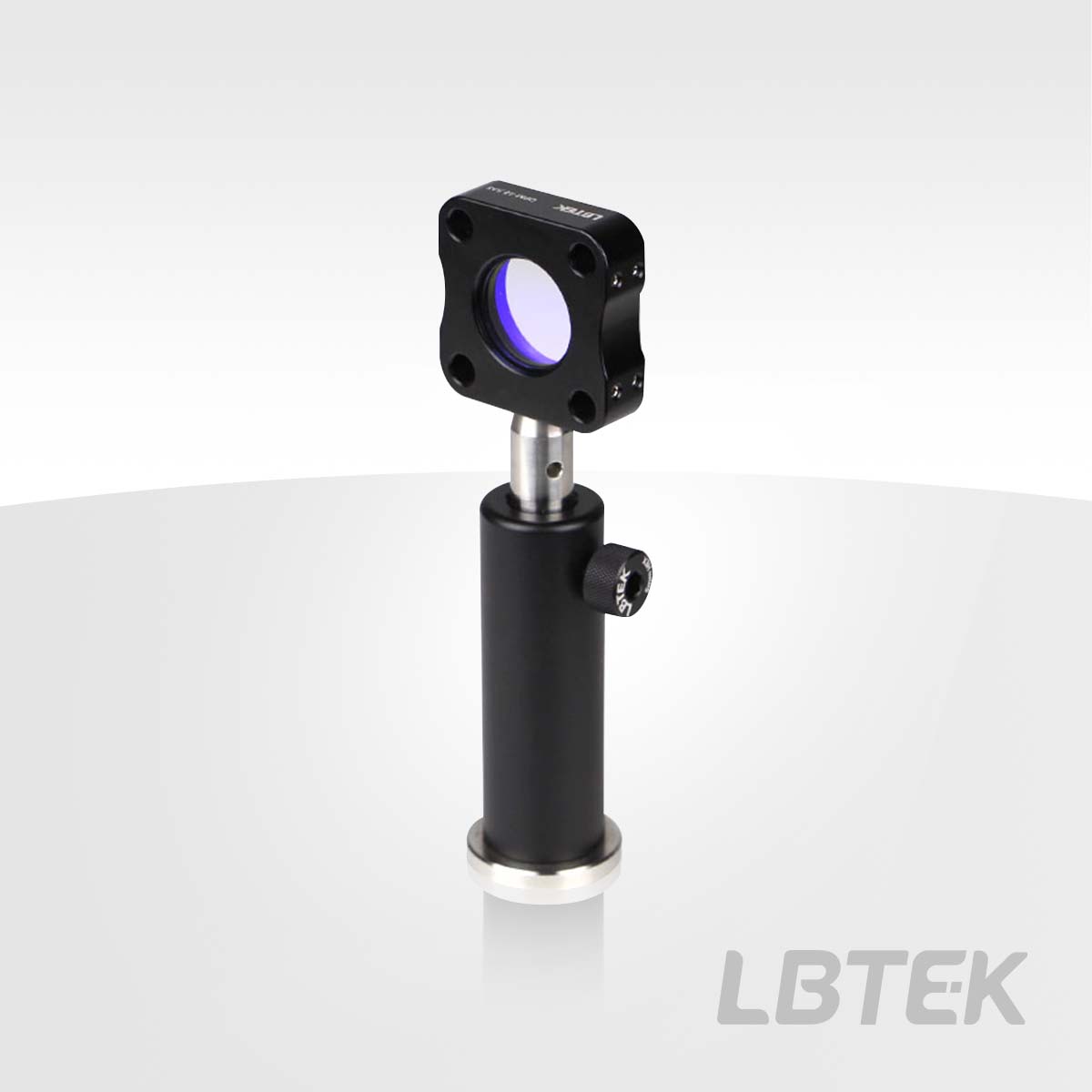

The longpass filter is mounted in a 30 mm coaxial mounting plate.
Product Model | Start (Stop) Wavelength | Unit Price | Curve | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| MEFH10-1150LP | 1150 nm | $118.32 | | Contact | |||
| MEFH10-1100LP | 1100 nm | $118.32 | | Contact | |||
| MEFH10-1050LP | 1050 nm | $118.32 | | Contact | |||
| MEFH10-1000LP | 1000 nm | $118.32 | | Contact | |||
| MEFH10-950LP | 950 nm | $112.7 | | Contact | |||
| MEFH10-900LP | 900 nm | $118.32 | | Contact | |||
| MEFH10-850LP | 850 nm | $118.32 | | Contact | |||
| MEFH10-800LP | 800 nm | $118.32 | | Contact | |||
| MEFH10-750LP | 750 nm | $118.32 | | Contact | |||
| MEFH10-700LP | 700 nm | $118.32 | | Contact | |||
| MEFH10-650LP | 650 nm | $112.7 | | Contact | |||
| MEFH10-600LP | 600 nm | $118.32 | | Contact | |||
| MEFH10-550LP | 550 nm | $118.32 | | 8 weeks | |||
| MEFH10-500LP | 500 nm | $118.32 | | Contact | |||
| MEFH10-450LP | 450 nm | $118.32 | | Contact | |||
| MEFH10-400LP | 400 nm | $118.32 | | Contact |
