Product Description
- Optical material: UV Fused Silica
- Reflectivity Greater than 99%
- Beam Focusing, Collimation, Collection and Imaging

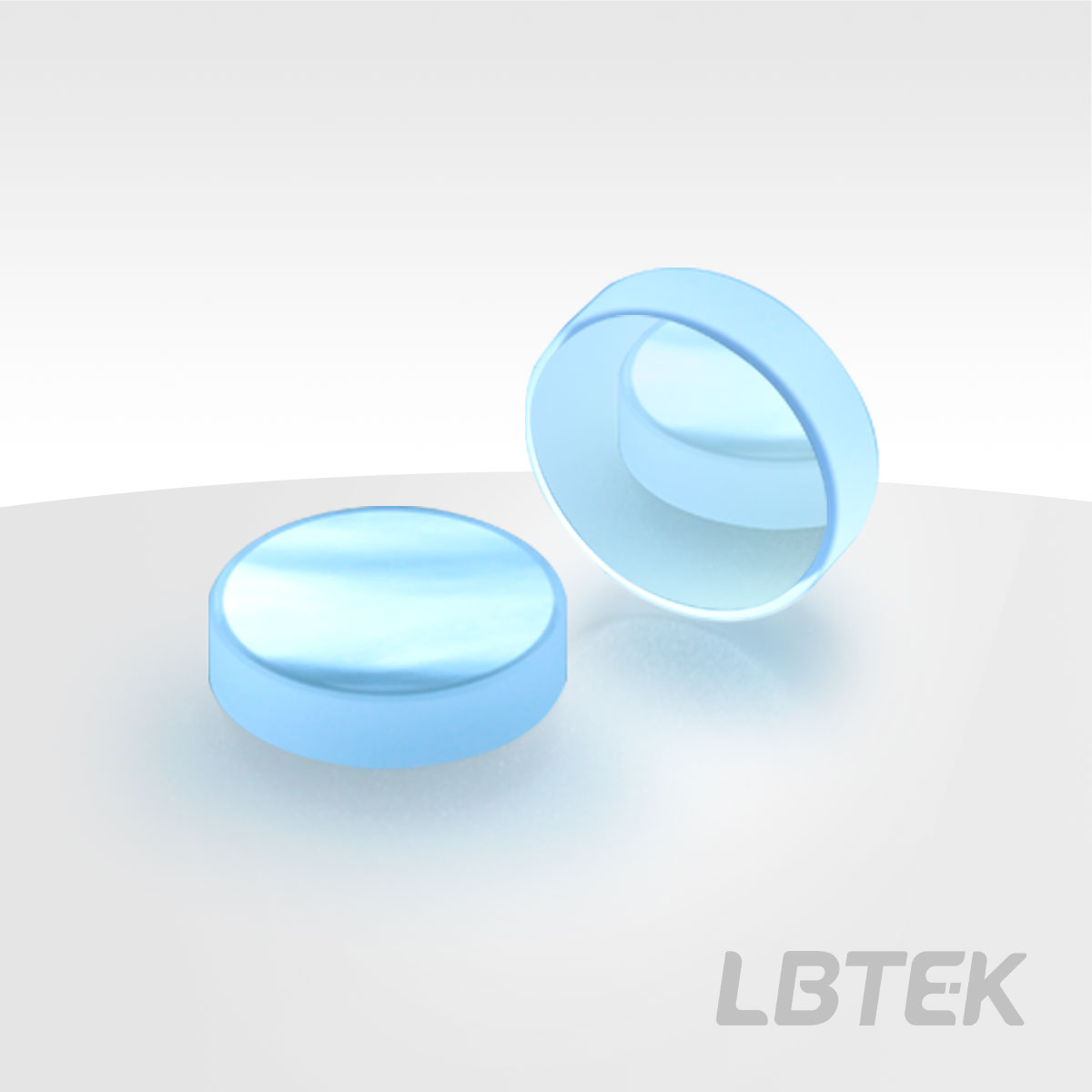

Concave mirrors can be used for beam focusing, collimation, or light collection, offering high reflectivity within their operational range. LBTEK dielectric-coated concave mirrors feature a dielectric reflective film on the concave surface and a frosted backside, achieving an average reflectivity of up to 99% across the working wavelength range. In addition to standard products, LBTEK can customize concave mirrors with different sizes, focal lengths, and working wavelengths. For inquiries, please contact LBTEK Technical Support.
Diagram
Attributes
MaterialUV fused silica
Clear Aperture90% CA
Surface Quality (Scratch/Dig)40/20
Surface irregularityλ/4 @633 nm
Concave Dielectric Mirrors
- Material: UV Fused Silica
- Reflectivity Greater than 99%
- Beam Focusing, Collimation, Collection, and Imaging
LBTEK dielectric-coated concave mirrors are suitable for beam focusing, collimation, or light collection, featuring high reflectivity within their operational range. The concave surface of LBTEK dielectric-coated concave mirrors is coated with a dielectric reflective film, while the back side undergoes frosted treatment. The reflectivity can reach an average of 99% across the working wavelength range.
LBTEK mirror mounted in the mirror holder
Product Model | Diameter | Focal length | Operating Wavelength | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | CM05-F100-B | 12.7 mm | -100 mm | 750 nm-1100 nm | $59.49 | today | Add Cart | |
| CM05-F100-370-SP | 12.7 mm | -100 mm | 370 nm | $59.49 | today | Add Cart |
