- 2/4/8 channel output
- Maximum output frequency: 500 MHz
- Supports multiple analog and digital modulation functions
- Sweep and Burst functions
- Harmonic generation function
- Channel merging function
- Dual-channel output
- 4.3-inch display
LBTEK offers function/arbitrary waveform generators with maximum output frequencies of 25 MHz, 60 MHz, and 80 MHz, featuring a maximum output amplitude of ±10 V and dual-channel output. These generators are equipped with rich modulation functions, burst function, sweep function, harmonic generation function, and channel merging function, while also serving as a hardware frequency counter with a test range of 0.1 Hz to 200 MHz. The SDG2082X model features a touch panel for simplified operation. It comes with a USB cable and a BNC output cable. The included EasyWaveX software provides powerful arbitrary waveform editing capabilities, supporting various drawing methods such as manual, straight-line, coordinate, and equation plotting, enabling quick and convenient generation of arbitrary waveforms.
Product Model | Maximum output frequency | Maximum Output Amplitude | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | SDG1022X | 25 MHz | ±10 V | $261.35 | today | Add Cart | ||
| SDG1062X | 60 MHz | ±10 V | $520.35 | today | Add Cart | ||
| SDG2082X | 80 MHz | ±10 V | $781.83 | 2 weeks | Add Cart |
- Maximum output frequency: 500 MHz
- Maximum sampling rate: 2.5 GSa/s
- 2/4/8 channel output
Function/Arbitrary Waveform Generator Display Panel
Product Model | Number of channels | Maximum output frequency | Sample rate | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| DG5502 Pro New | 2 | 500 MHz | 2.5 GSa/s | $5,879.95 | 5 weeks | Add Cart | ||
| DG5352 Pro New | 2 | 350 MHz | 2.5 GSa/s | $4,402.58 | 5 weeks | Add Cart | ||
| DG5252 Pro New | 2 | 250 MHz | 2.5 GSa/s | $2,925.20 | 5 weeks | Add Cart | ||
| DG922 Pro New | 2 | 200 MHz | 1.25 GSa/s | $1,176.54 | 5 weeks | Add Cart | ||
| DG4202 New | 2 | 200 MHz | 500 MSa/s | $1,843.32 | 5 weeks | Add Cart | ||
| DG912 Pro New | 2 | 150 MHz | 1.25 GSa/s | $915.06 | 5 weeks | Add Cart | ||
| DG4162 New | 2 | 160 MHz | 500 MSa/s | $1,438.02 | 5 weeks | Add Cart | ||
| DG902 Pro New | 2 | 70 MHz | 1.25 GSa/s | $653.58 | 5 weeks | Add Cart | ||
| DG4102 New | 2 | 100 MHz | 500 MSa/s | $1,150.39 | 5 weeks | Add Cart | ||
| DG4062 New | 2 | 60 MHz | 500 MSa/s | $718.95 | 5 weeks | Add Cart | ||

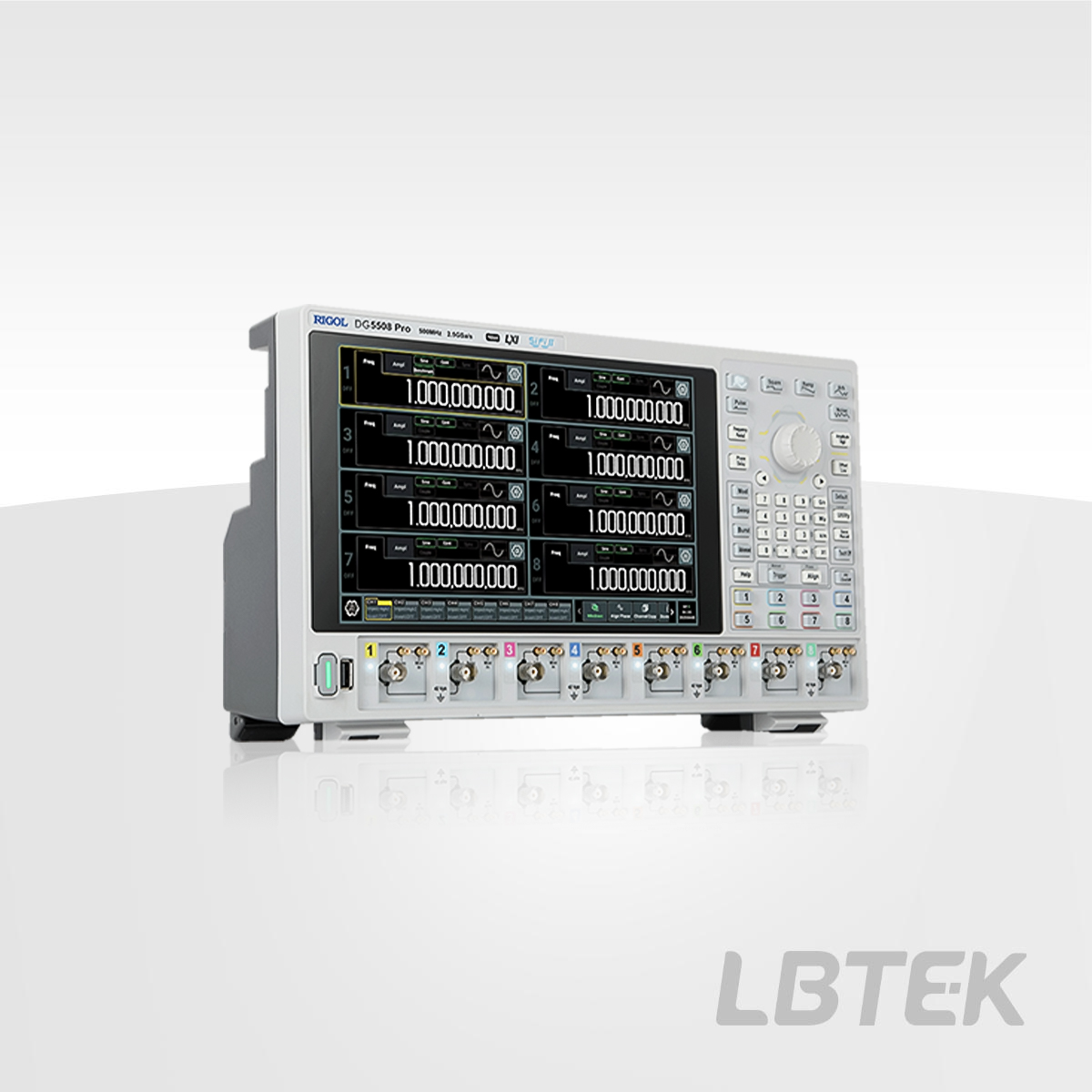

| DG5504 Pro New | 4 | 500 MHz | 2.5 GSa/s | $8,982.44 | 5 weeks | Add Cart | ||
| DG5354 Pro New | 4 | 350 MHz | 2.5 GSa/s | $6,766.38 | 5 weeks | Add Cart | ||
| DG5254 Pro New | 4 | 250 MHz | 2.5 GSa/s | $4,402.58 | 5 weeks | Add Cart | ||
| DG5508 Pro New | 8 | 500 MHz | 2.5 GSa/s | $14,744.20 | 5 weeks | Add Cart | ||
| DG5358 Pro New | 8 | 350 MHz | 2.5 GSa/s | $11,789.45 | 5 weeks | Add Cart | ||
| DG5258 Pro New | 8 | 250 MHz | 2.5 GSa/s | $7,357.33 | 5 weeks | Add Cart |
