Fiber Polarizers

Specifications
Feedback
Product Description
  • Obtain High Extinction Ratio Polarized Light
  • Multiple Center Wavelengths Available from 780-2000 nm
  • Two Connector Options: FC/UPC and FC/APC
  • 2.0 mm Narrow Key
The LBTEK fiber polarizer is made of fiber, collimator, and polarizer. By precisely adjusting the axial alignment between the fiber and the polarizer, high extinction ratio linearly polarized light output can be obtained. The fiber polarizer can be used in non-polarization-maintaining single-mode fiber transmission systems to obtain linearly polarized light output, and also in polarization-maintaining single-mode fiber transmission systems to attenuate orthogonally polarized light and enhance the extinction ratio of the polarization signal. All LBTEK fiber polarizers use 2.0 mm narrow key connectors to ensure the alignment accuracy between connectors and prevent the deterioration of the extinction ratio during transmission. LBTEK offers fiber polarizers with various center wavelengths from 780 nm to 2000 nm and multiple types of connectors. Fiber polarizers are widely used in fiber optic gyro systems, polarization-maintaining fiber amplifiers, fiber lasers, high-speed communication systems, and instrumentation applications. LBTEK provides customization services and can customize fiber polarizers with different wavelengths and fiber lengths. For detailed requirements, please consult LBTEK technical support.

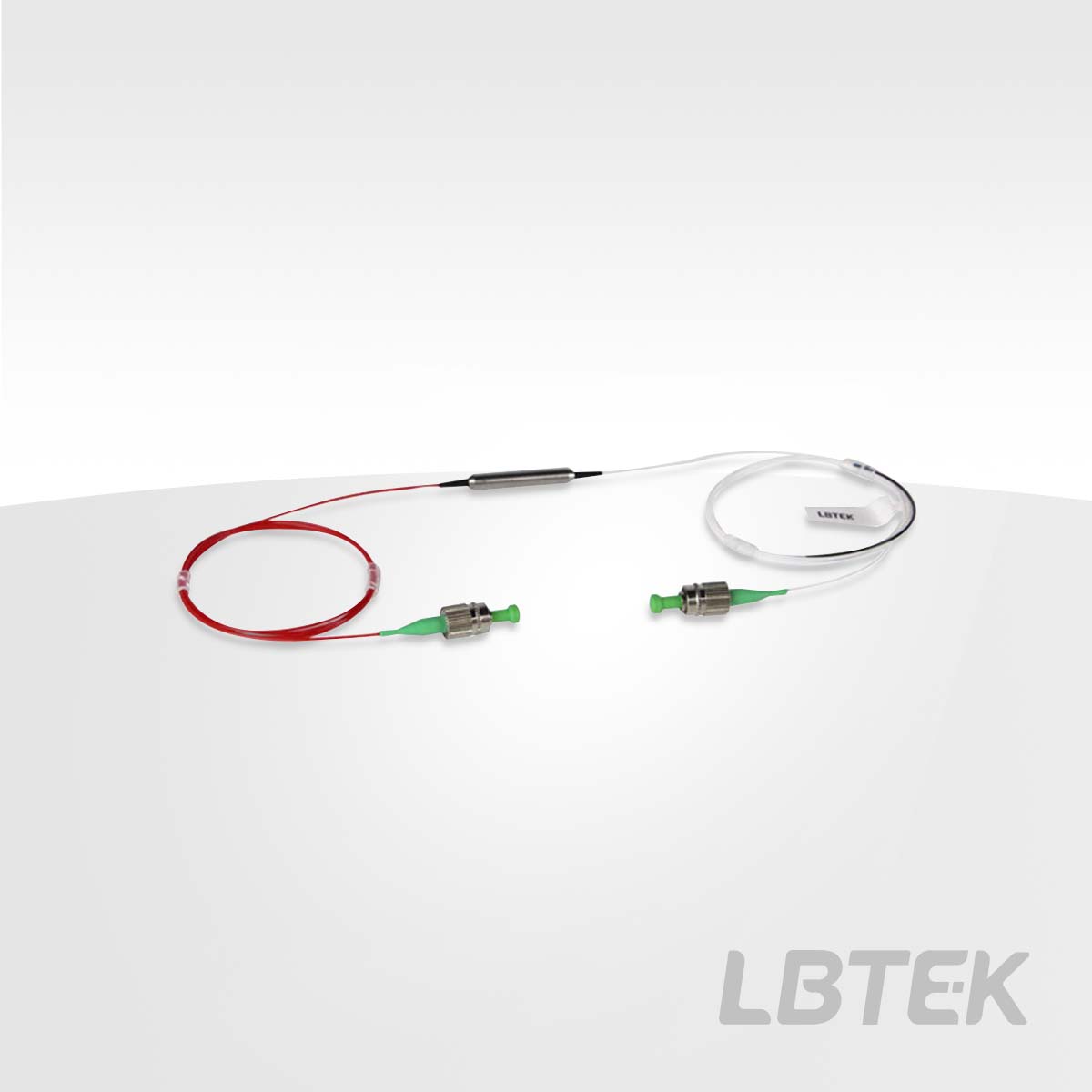

Single-Mode Fiber Input, Polarization-Maintaining Fiber Output
  • Non-Polarization-Maintaining Single-Mode Fiber Input, Polarization-Maintaining Single-Mode Fiber Output
  • Can be Used to Obtain Linearly Polarized Light
  • High Extinction Ratio
  • Fiber Slow Axis Aligned with Key
LBTEK Non-Polarization-Maintaining Fiber Input Polarizer, with non-polarization-maintaining single-mode fiber as input and polarization-maintaining single-mode fiber as output. The LBTEK fiber polarizer is suitable for fiber optic network transmission and measurement applications, including polarization analysis, polarization monitoring and control, polarization mode dispersion (PMD) monitoring, and optimizing polarization extinction ratio, such as in polarization-maintaining fiber amplifiers, fiber lasers, high-speed communication systems, and instrumentation applications. Additionally, SM and PM patch cords, as well as collimators with pigtail connectors, are available, which can be well-matched with our fiber polarizers. Furthermore, LBTEK offers customized services, providing specialized customization for different fiber lengths, wavelengths, connector types, and other requirements. For details, please consult LBTEK technical support.
Adopting 2.0mm narrow key alignment for higher precision
Product Model
Center wavelength
Insertion Loss
Connector Type
Unit Price
Compare
Lead Time
ILP-2000-S19-P19-0.3W-FU 2000 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$357.186 weeks
ILP-2000-S19-P19-0.3W-FA 2000 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$357.186 weeks
ILP-1940-S19-P19-0.3W-FU 1940 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$357.186 weeks
ILP-1940-S19-P19-0.3W-FA 1940 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$357.186 weeks
ILP-1550-S28-P15-0.3W-FU 1550 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$168.926 weeks
ILP-1550-S28-P15-0.3W-FA 1550 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$173.896 weeks
ILP-1480-S28-P15-0.3W-FU 1480 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$170.626 weeks
ILP-1480-S28-P15-0.3W-FA 1480 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$170.626 weeks
ILP-1310-S28-P13-0.3W-FU 1310 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$170.626 weeks
ILP-1310-S28-P13-0.3W-FA 1310 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$170.626 weeks
ILP-850-S78-P78-0.3W-FU 850 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$186.316 weeks
ILP-850-S78-P78-0.3W-FA 850 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$186.316 weeks
ILP-780-S78-P78-0.3W-FA 780 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$201.086 weeks
ILP-780-S78-P78-0.3W-FU 780 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$201.086 weeks

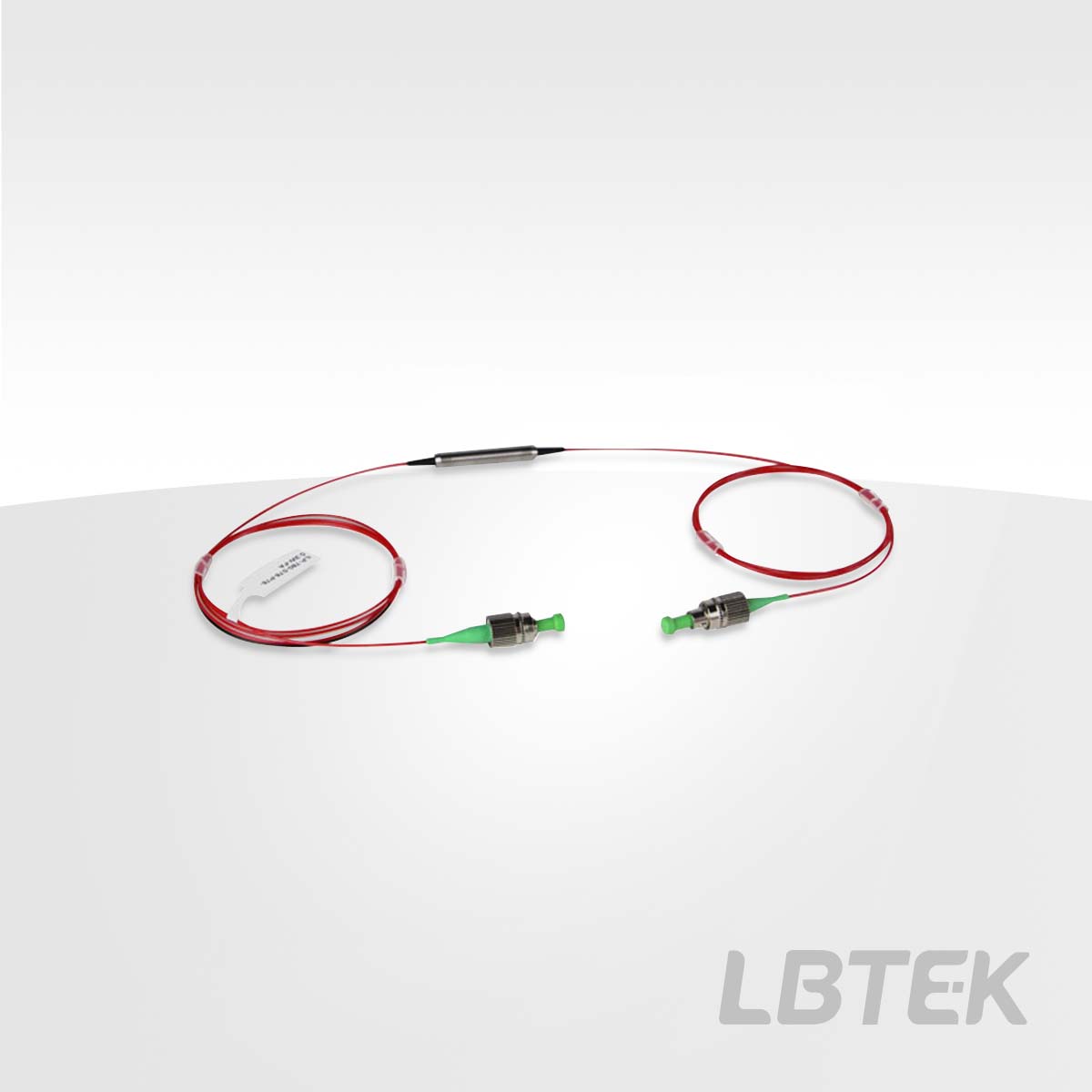

Polarization-Maintaining Fiber Input, Polarization-Maintaining Fiber Output
  • Polarization-Maintaining Single-Mode Fiber Input, Polarization-Maintaining Single-Mode Fiber Output
  • Can be Used to Obtain Linearly Polarized Light
  • High Extinction Ratio
  • Fiber Slow Axis Aligned with Key
LBTEK Polarization-Maintaining Fiber Input Polarizer, with both input and output fibers being polarization-maintaining single-mode fibers. This fiber polarizer is suitable for use in fiber optic network transmission and measurement applications, including polarization analysis, polarization monitoring and control, polarization mode dispersion (PMD) monitoring, and optimizing polarization extinction ratio, such as in polarization-maintaining fiber amplifiers, fiber lasers, high-speed communication systems, and instrumentation applications. LBTEK also offers SM and PM patch cords, as well as collimators with pigtail connectors, which can be well-matched with our fiber polarizers. Additionally, LBTEK provides customization services, offering specialized customization for different fiber lengths, wavelengths, connector types, and other requirements. For details, please consult technical support.
Adopting 2.0mm narrow key alignment for higher precision
Product Model
Center wavelength
Insertion Loss
Connector Type
Unit Price
Compare
Lead Time
ILP-2000-P19-P19-0.3W-FU 2000 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$428.576 weeks
ILP-2000-P19-P19-0.3W-FA 2000 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$428.576 weeks
ILP-1940-P19-P19-0.3W-FU 1940 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$428.576 weeks
ILP-1940-P19-P19-0.3W-FA 1940 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$428.576 weeks
ILP-1550-P15-P15-0.3W-FU 1550 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$198.076 weeks
ILP-1550-P15-P15-0.3W-FA 1550 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$201.866 weeks
ILP-1480-P15-P15-0.3W-FU 1480 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$189.716 weeks
ILP-1480-P15-P15-0.3W-FA 1480 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$189.716 weeks
ILP-1310-P13-P13-0.3W-FU 1310 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$198.076 weeks
ILP-1310-P13-P13-0.3W-FA 1310 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$201.866 weeks
ILP-1064-S06-P98-0.3W-FA 1064 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$182.656 weeks
ILP-1064-S06-P98-0.3W-FU 1064 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$182.656 weeks
ILP-1064-P98-P98-0.3W-FU 1064 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$210.756 weeks
ILP-1064-P98-P98-0.3W-FA 1064 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$214.686 weeks
ILP-1030-S06-P98-0.3W-FU 1030 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$182.656 weeks
ILP-1030-S06-P98-0.3W-FA 1030 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$182.656 weeks
ILP-1030-P98-P98-0.3W-FU 1030 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$189.716 weeks
ILP-1030-P98-P98-0.3W-FA 1030 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$189.716 weeks
ILP-980-S06-P98-0.3W-FU 980 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$167.226 weeks
ILP-980-S06-P98-0.3W-FA 980 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$167.226 weeks
ILP-980-P98-P98-0.3W-FU 980 nm≤ 0.6 dBFC/UPC 2.0 mm Narrow Key$194.546 weeks
ILP-980-P98-P98-0.3W-FA 980 nm≤ 0.6 dBFC/APC 2.0 mm Narrow Key$198.26 weeks
ILP-850-P78-P78-0.3W-FA 850 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$218.66 weeks
ILP-850-P78-P78-0.3W-FU 850 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$214.556 weeks
ILP-780-P78-P78-0.3W-FU 780 nm≤ 1.0 dBFC/UPC 2.0 mm Narrow Key$224.486 weeks
ILP-780-P78-P78-0.3W-FA 780 nm≤ 1.0 dBFC/APC 2.0 mm Narrow Key$234.426 weeks
