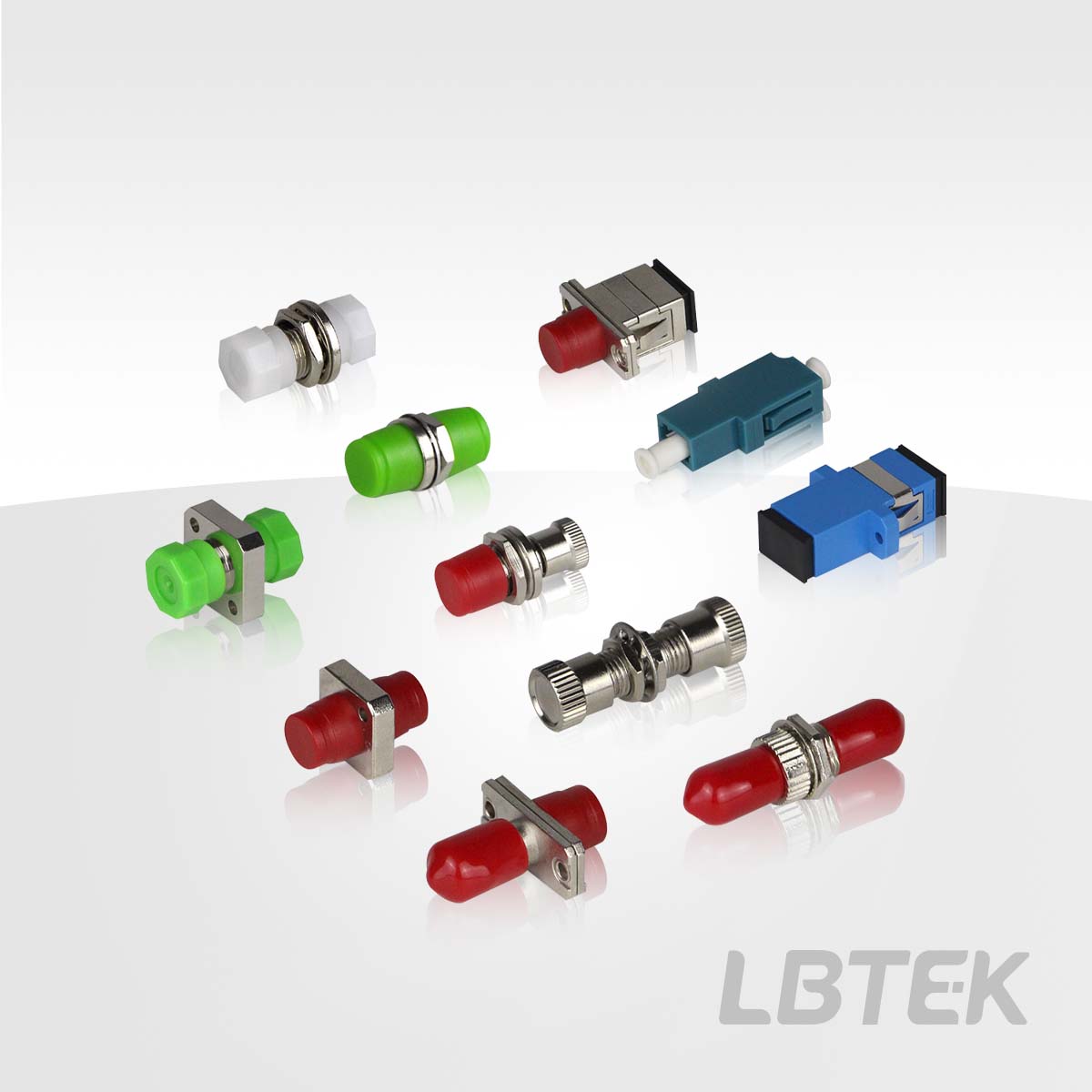

The optical fibers are connected through adapters via other internal open-ended sleeves. To secure them on various panels, LBTEK has designed a variety of precision fixing flanges. We provide high-performance adapters in various shapes, capable of connecting fiber patch cords with industry-standard connectors, and precisely aligning the core of each connectorized fiber to ensure direct fiber contact, minimizing back reflection. Both ends of LBTEK fiber adapters come with protective caps to prevent contamination from dust or other foreign particles (it is recommended to cover the adapter with the dust cap after use). Customers can select the appropriate matching sleeve based on the required connection type.

The LBTEK bare fiber adapter is a simple and fast fiber optic mating connector. The sleeve and fiber through-hole of the bare fiber adapter contain no epoxy glue or any medium, making it easy to insert, remove, and reuse bare fibers multiple times, with low insertion loss. The LBTEK bare fiber adapter is equipped with various multimode fiber connectors, with diameters ranging from Ø127 µm to Ø1050 µm. Customers can select the appropriate configuration based on their needs or purchase them separately.

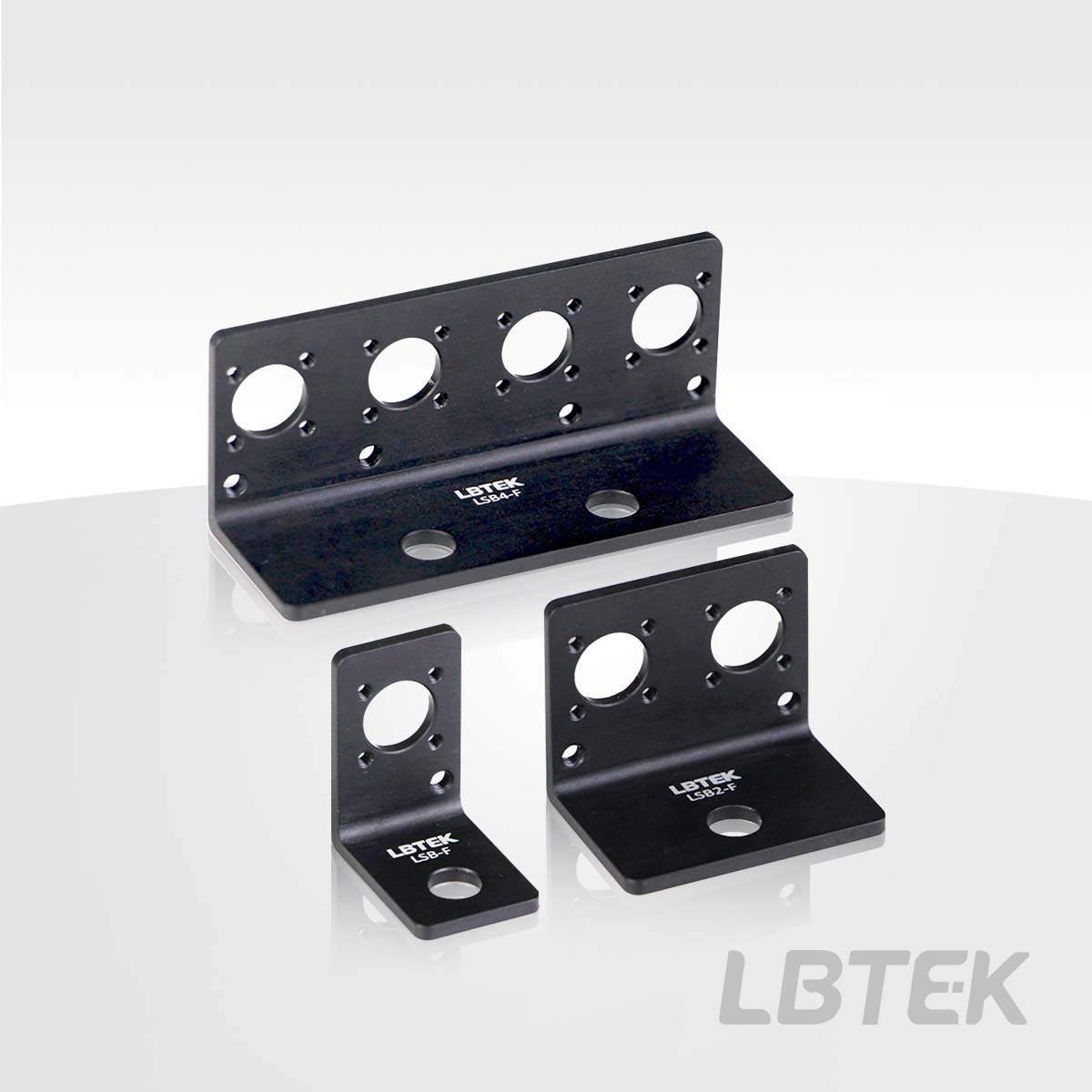

LBTEK Fiber Optic L-Shaped Bracket, featuring a Ø9.5 mm through hole and M2 threaded hole for mounting square flange-type mating connectors. The bottom surface includes a Ø6.6 mm through hole, allowing the bracket to be installed on an optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole configurations, it enables organized arrangement of fiber optic interconnect tools with multiple inputs or outputs, reducing clutter and confusion. Includes complimentary M6×16 cap screws, M6 flat washers, and M2×5 mounting screws.

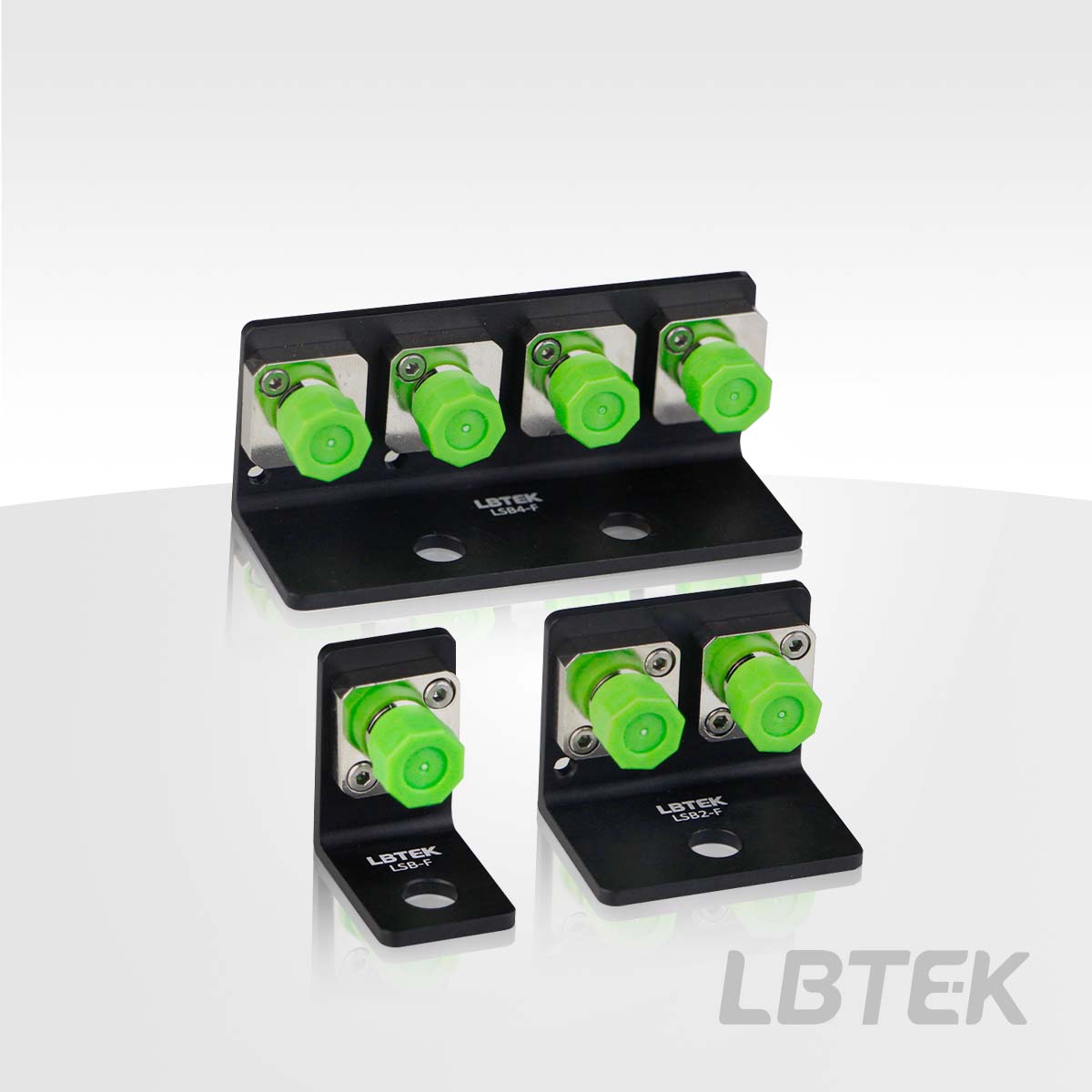

LBTEK Fiber Optic L-Bracket, comes with OFA-AFC-AD fiber adapter, FC/APC-FC/APC mating sleeve, narrow key (2.0 mm), with a Ø6.6 mm through hole on the bottom, allowing the bracket to be mounted on an optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole configurations, enabling the organization of fiber mating connectors with multiple input or output ports as needed, reducing clutter and confusion. Includes complimentary M6×16 cap screws, M6 flat washers, and M2×5 mounting screws.

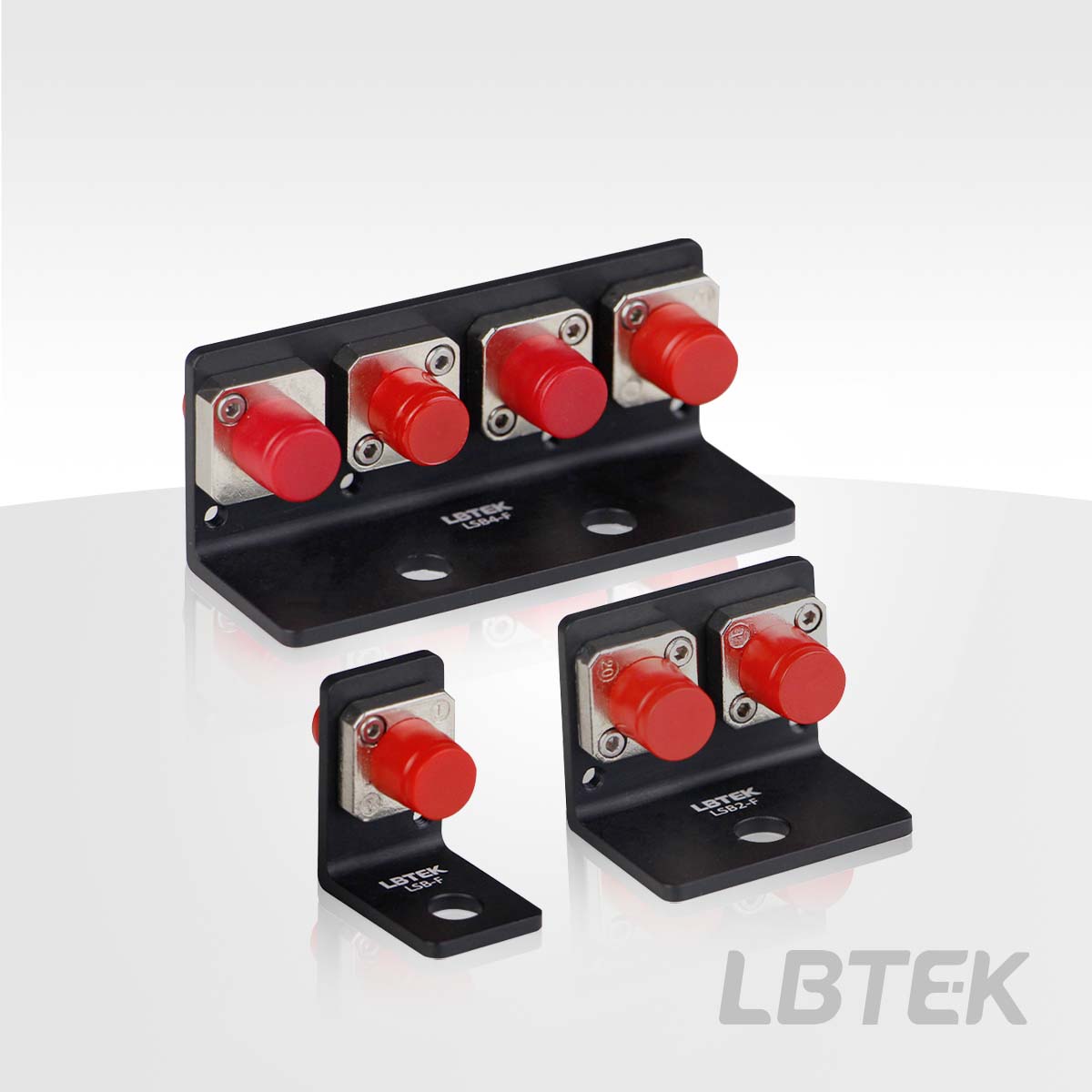

LBTEK Fiber Optic L-Bracket, includes OFA-FC-AD fiber adapter, FC/PC-FC/PC mating sleeve, wide key (2.2 mm), with a Ø6.6 mm through hole on the bottom for mounting the bracket to an optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole configurations to organize fiber mating connectors with multiple input or output ports as needed, reducing clutter and confusion. Includes with complimentary M6×16 cap screws, M6 flat washers, and M2×5 mounting screws.

LBTEK Fiber Optic L-Bracket, comes with OFA-SMA905-F-FC-F-AD-M-R fiber adapter, FC/PC-SMA mating sleeve, bottom surface with Ø6.6 mm through hole, can be mounted on optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole configurations, allowing organization of fiber mating connectors with multiple inputs or outputs as needed, reducing clutter and confusion. Includes complimentary M6×16 cap screws and M6 flat washers.

LBTEK Fiber Optic L-Bracket, comes with OFA-SMA905-AD-W fiber adapter, SMA-SMA mating sleeve, bottom surface with Ø6.6 mm through hole, can be mounted on optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole specifications, allowing you to organize fiber mating connectors with multiple inputs or outputs according to actual needs, reducing clutter and confusion. Includes complimentary M6×16 cap screws and M6 flat washers.
