LBTEK-Tunable Polarizing Beamsplitters

Product Description

Various design wavelengths available within the range of 405 nm-1600 nm
Composed of a half-wave plate and a polarizing beamsplitter cube
Commonly used for continuously adjusting the transmission intensity of linearly polarized light beams

The LBTEK Tunable Polarizing Beamsplitter consists of a half-wave plate mounted in an RM05 rotation mount and a polarizing beamsplitter cube installed in a 30 mm coaxial cube mount. The combination of the half-wave plate and polarizing beamsplitter cube enables continuous variation of the transmission intensity of linearly polarized incident light. It can also be used individually to meet specific beam splitting requirements. LBTEK offers two types (single-point and broadband) with a total of 13 optional design wavelengths , along with a high-power laser line version. LBTEK provides various customization services, including specific design wavelength, size, and etc. For any customization needs, please contact LBTEK Technical Support.

Diagram

Attributes

Clear Aperture10.0 mm

Transmitted light deflection0〫± 5 arcmin

Laser Line Tunable Polarizing Beamsplitters

Design wavelength: 9 options available within the range of 405 nm-1550 nm range
Extinction ratio (Tp:Ts): >2000:1
Four light-transmitting surfaces wit V-type anti-reflection coatings Rabs<0.25%@design wavelength

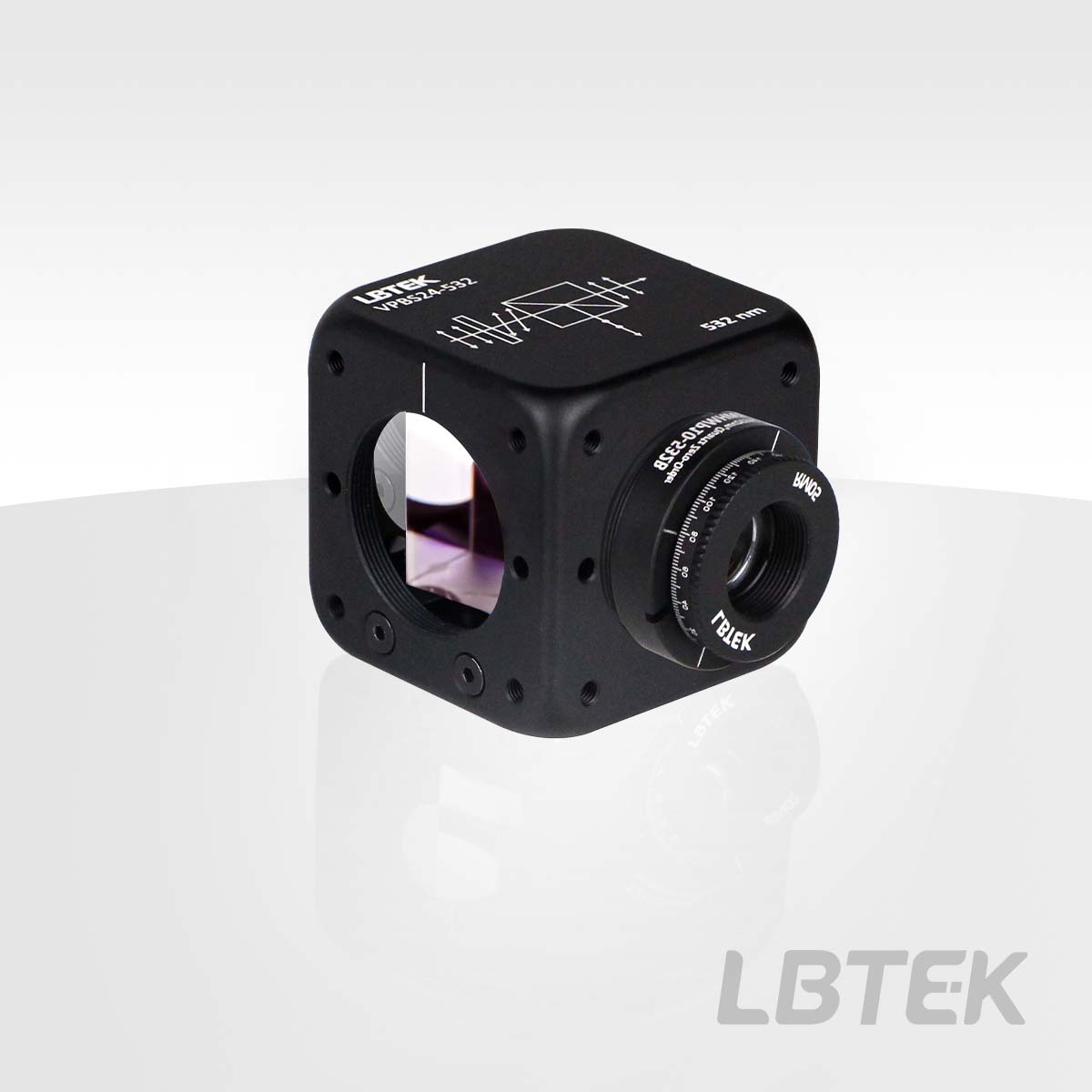

LBTEK assembles a quartz air-spaced half-wave plate mounted in the RM05 rotation mount with a laser line polarizing beamsplitter cube installed in a 30 mm coaxial cube mount to form a laser line tunable polarizing beamsplitter. The top scribed line indicates the optical path direction, with the fast axis of the waveplate aligned to the 0° scribed line on the rotation mount. The initial position is preset and locked, ensuring the waveplate does not alter the polarization direction of the incident light. The included wrench can be used to loosen and rotate the half-wave plate for continuous adjustment of the transmission intensity of the linearly polarized light.

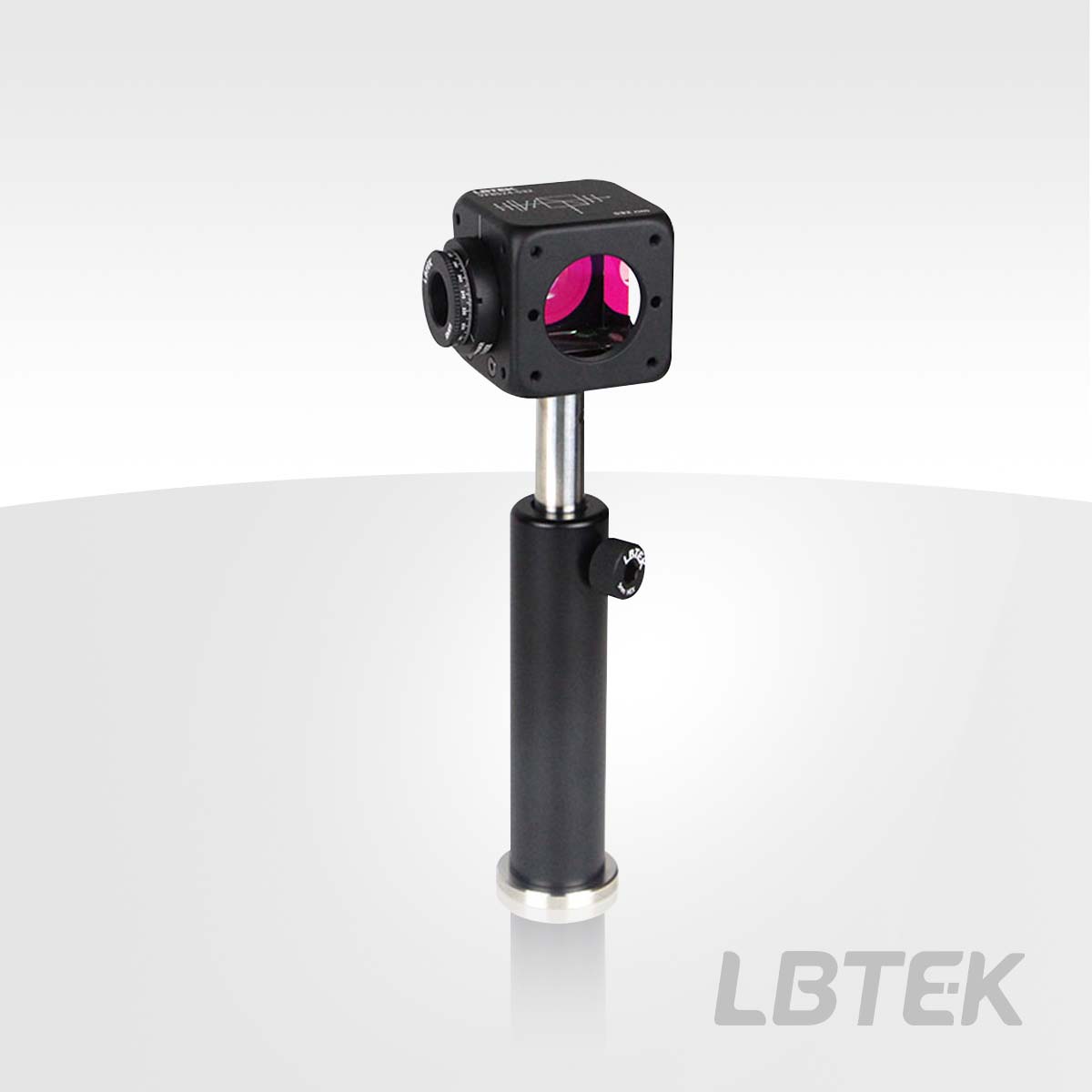

The Laser Line Tunable Polarizing Beamsplitter is connected with the Ø12.7 mm post

Product Model	Operating Wavelength	Clear Aperture	Unit Price	Lead Time
VPBS24-405	405 nm	10.0 mm	$741.04	today	Add Cart
VPBS24-532	532 nm	10.0 mm	$748.23	today	Add Cart
VPBS24-633	633 nm	10.0 mm	$748.23	4 weeks	Add Cart
VPBS24-780	780 nm	10.0 mm	$748.23	today	Add Cart
VPBS24-808	808 nm	10.0 mm	$741.04	7 weeks	Add Cart
VPBS24-850	850 nm	10.0 mm	$741.04	7 weeks	Add Cart
VPBS24-1030	1030 nm	10.0 mm	$741.04	today	Add Cart
VPBS24-1064	1064 nm	10.0 mm	$748.23	today	Add Cart
VPBS24-1550	1550 nm	10.0 mm	$748.23	today	Add Cart

High-Power Laser Line Tunable Polarizing Beamsplitters

Design Wavelength: 13 options available within the range of 266 nm-1550 nm
Extinction Ratio (Tp:Ts): >2000:1
Four light-transmitting surfaces with V-type anti-reflection coatings Rabs<0.25%@design wavelength
Suitable for high-power applications

LBTEK assembles a quartz air-spaced half-wave plate installed in the RM05 rotation mount with a high-power laser line polarizing beamsplitter cube mounted in a 30 mm coaxial beamsplitter cube mount to create a high-power laser line tunable polarizing beamsplitter. The top scribed line indicates the optical path direction, with the fast axis of the waveplate aligned to the 0° scribed line on the rotation mount. The initial position is preset and locked, ensuring the waveplate does not alter the polarization direction of the incident light. The included wrench can be used to loosen and rotate the half-wave plate for continuous adjustment of the transmission intensity of the linearly polarized light.

The tunable polarizing beamsplitter is connected with the Ø12.7 mm post

Product Model	Operating Wavelength	Clear Aperture	Unit Price	Lead Time
VPBS24-460-HP	460 nm	10.0 mm	$895.18	Contact	Add Cart
VPBS24-1550-HP	1550 nm	10.0 mm	$947.74	today	Add Cart
VPBS24-1064-HP	1064 nm	10.0 mm	$877.53	today	Add Cart
VPBS24-1030-HP	1030 nm	10.0 mm	$895.18	today	Add Cart
VPBS24-850-HP	850 nm	10.0 mm	$895.18	Contact	Add Cart
VPBS24-830-HP	830 nm	10.0 mm	$895.18	Contact	Add Cart
VPBS24-808-HP	808 nm	10.0 mm	$895.18	Contact	Add Cart
VPBS24-780-HP	780 nm	10.0 mm	$877.53	today	Add Cart
VPBS24-633-HP	633 nm	10.0 mm	$947.74	today	Add Cart
VPBS24-532-HP	532 nm	10.0 mm	$877.53	today	Add Cart
VPBS24-405-HP	405 nm	10.0 mm	$895.18	today	Add Cart
VPBS24-355-HP	355 nm	10.0 mm	$895.18	6 weeks	Add Cart
VPBS24-266-HP	266 nm	10.0 mm	$895.18	Contact	Add Cart

Broadband Tunable Polarizing Beamsplitters

Design Wavelength: 420-680 nm, 700-1000 nm, 900-1100 nm, 1200-1600 nm
Extinction Ratio (Tp:Ts): >1000:1
Four light-transmitting surfaces with anti-reflection coatings Rabs<0.5%@design wavelength

LBTEK mounts the achromatic half-wave plate in an RM05 rotation mount and assembles it with a broadband linear polarizing beamsplitter cube installed in a 30 mm coaxial cube mount to form a broadband tunable polarizing beamsplitter. The top scribed line indicates the optical path direction, with the fast axis of the waveplate aligned to the 0° scribed line on the rotation mount. The initial position is preset and locked, in which case the waveplate does not alter the polarization direction of the incident light. The included wrench can be used to loosen and rotate the half-wave plate to achieve continuous adjustment of the transmission intensity of the linearly polarized light.

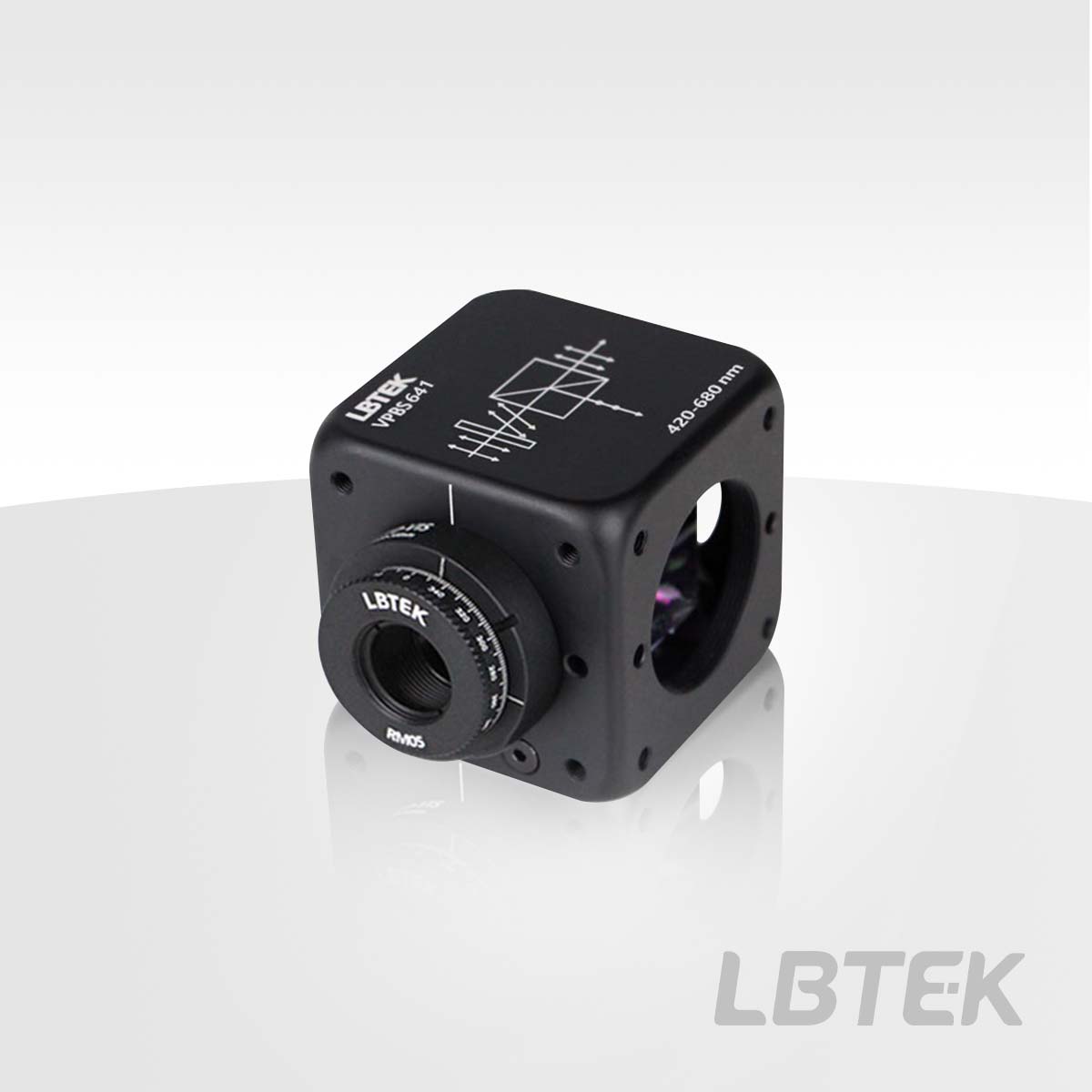

The broadband tunable polarizing beamsplitter is connected with the Ø12.7 mm post

Product Model	Operating Wavelength	Clear Aperture	Unit Price	Lead Time
VPBS641	420-680 nm	10.0 mm	$1,096.26	today	Add Cart
VPBS642	700-1000 nm	10.0 mm	$1,096.26	today	Add Cart
VPBS643	900-1100 nm	10.0 mm	$1,096.26	Contact	Add Cart
VPBS644	1200-1600 nm	10.0 mm	$1,096.26	today	Add Cart
