Product Description
- Up to 6 GHz analog bandwidth
- Vertical resolution: 8-bit, 10-bit, and 12-bit selectable
- 2-channel/4-channel/8-channel
- 10.1-inch touch screen, supports multiple gesture operations
LBTEK launches seven series of digital oscilloscopes: SDS2000X-HD, SDS5000X, SDS2000X-Plus, MHO/DHO5000, and MSO/DS9000, fully adapting to various high-precision testing scenarios. The SDS2000X-HD series digital oscilloscope features 12-bit vertical resolution, excellent background noise performance, and vertical measurement accuracy, with a maximum bandwidth of 500MHz, a maximum sampling rate of 2GSa/s, and a single-channel memory depth of 200Mpts; the SDS5000X series digital oscilloscope has a maximum bandwidth of 1GHz, a maximum sampling rate of 5GSa/s, and a single-channel memory depth of 250Mpts; the SDS2000X-Plus digital oscilloscope offers a maximum bandwidth of 500MHz, a maximum sampling rate of 2GSa/s, and a single-channel memory depth of 200Mpts; the MHO/DHO5000 series digital oscilloscope provides a maximum bandwidth of 1GHz, a maximum sampling rate of 4GSa/s, equipped with 500Mpts memory depth and 12-bit high resolution; the MSO/DS9000 digital oscilloscope delivers a maximum bandwidth of 6GHz, featuring a massive 2Gpts memory depth and supports adjustable vertical resolution from 8-bit to 16-bit. Detailed specifications for each series can be found in the downloadable datasheets/user manuals.
Digital Oscilloscope
- Up to 1 GHz analog bandwidth
- Up to 5 GSa/s real-time sampling rate
- 10.1-inch capacitive touch screen, supports multiple gesture operations
The SDS2000X-HD series digital oscilloscope features up to 12-bit vertical resolution, excellent noise floor performance, and vertical measurement accuracy, meeting higher precision measurement needs. Its maximum bandwidth is 500 MHz, maximum sample rate is 2 GSa/s, memory depth reaches 200 Mpts per channel, and waveform capture rate is up to 500,000 frames/second. The SDS5000X series digital oscilloscope has a maximum bandwidth of 1 GHz, a maximum sample rate of 5 GSa/s, a memory depth of up to 250 Mpts per channel, and a waveform capture rate of up to 500,000 frames/second. The SDS2000X-Plus series digital oscilloscope offers a maximum bandwidth of 500 MHz, a maximum sample rate of 2 GSa/s, a memory depth of up to 200 Mpts per channel, and a waveform capture rate of up to 500,000 frames/second in Sequence mode and up to 120,000 frames/second in normal mode. All three series support up to 4 analog channels and 16 digital channels (optional). The parameter table only includes the main measurement characteristics of the product; for detailed parameters, please download the user manual.
Oscilloscope Baud Rate Measurement Chart
Product Model | Number of channels | Analog Bandwidth | Vertical resolution | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
 | SDS2502X-Plus | 2 | 500 MHz | 8 bit/10 bit (adjustable) | $3,135.17 | 6 weeks | Add Cart | ||
| SDS2352X-Plus | 2 | 350 MHz | 8 bit/10 bit (adjustable) | $2,089.24 | 6 weeks | Add Cart | ||
| SDS2202X-Plus | 2 | 200 MHz | 8 bit/10 bit (adjustable) | $1,438.15 | 6 weeks | Add Cart | ||
| SDS2102X-Plus | 2 | 100 MHz | 8 bit/10 bit (adjustable) | $1,239.43 | 6 weeks | Add Cart | ||
| SDS2072X-Plus | 2 | 70 MHz | 8 bit/10 bit (adjustable) | $847.20 | 6 weeks | Add Cart | ||
| SDS2504X-Plus | 4 | 500 MHz | 8 bit/10 bit (adjustable) | $3,645.06 | 6 weeks | Add Cart | ||
| SDS2354X-Plus | 4 | 350 MHz | 8 bit/10 bit (adjustable) | $2,481.47 | 6 weeks | Add Cart | ||
| SDS2204X-Plus | 4 | 200 MHz | 8 bit/10 bit (adjustable) | $1,827.76 | 6 weeks | Add Cart | ||
| SDS2104X-Plus | 4 | 100 MHz | 8 bit/10 bit (adjustable) | $1,566.28 | 6 weeks | Add Cart | ||
| SDS2074X-Plus | 4 | 70 MHz | 8 bit/10 bit (adjustable) | $1,108.68 | 6 weeks | Add Cart | ||
| SDS5054X | 4 | 500 MHz | 8 bit | $6,142.22 | 6 weeks | Add Cart | ||
| SDS5034X | 4 | 350 MHz | 8 bit | $3,919.62 | 6 weeks | Add Cart | ||
| SDS5104X | 4 | 1 GHz | 8 bit | $8,234.08 | 6 weeks | Add Cart | ||
| SDS2504X-HD | 4 | 500 MHz | 12 bit | $3,919.62 | 6 weeks | Add Cart | ||
| SDS2354X-HD | 4 | 350 MHz | 12 bit | $3,004.43 | 6 weeks | Add Cart | ||
| SDS2204X-HD | 4 | 200 MHz | 12 bit | $2,206.91 | 6 weeks | Add Cart |
RIGOL digital oscilloscope
- Up to 6 GHz analog bandwidth
- Maximum real-time sampling rate: 20 GSa/s
- 10.1-inch 1280*800 HD touch display
The MHO/DHO5000 series digital oscilloscopes feature a brand-new self-developed Centaurus technology platform, achieving a waveform capture rate of 1,000,000 waveforms per second (fast recording mode), a 500 Mpts memory depth, 12-bit resolution, excellent noise floor performance and vertical measurement accuracy, meeting the needs for higher-precision measurements. The MHO/DHO5000 series digital oscilloscopes come in multiple models and support different combinations of functions such as arbitrary waveform generator, digital signal analysis, and Bode plot. They support battery pack power supply to meet various complex measurement scenarios.
The MSO/DS9000 series digital oscilloscopes are equipped with a brand-new self-developed core module, achieving a waveform capture rate of 1,000,000 waveforms per second (fast recording mode), a 2 Gpts memory depth, an adjustable resolution mode from 8 bits to 16 bits, excellent noise floor performance and vertical measurement accuracy, meeting the needs for higher-precision measurements and providing users with an extraordinary test and measurement experience.
The parameter table only contains the main characteristic parameters of the product measurement. For detailed parameters, please download the data sheet.
Oscilloscope measurement interface diagram
Product Model | Number of channels | Analog Bandwidth | Vertical resolution | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| MSO9402 New | 2 analog + 16 digital | 4 GHz | 8 bit | $10,312.08 | 5 weeks | Add Cart | ||
| MHO5104 New | 4 analog + 16 digital | 1 GHz | 12 bit | $5,879.95 | 5 weeks | Add Cart | ||
| MHO5054 New | 4 analog + 16 digital | 500 MHz | 12 bit | $4,402.58 | 5 weeks | Add Cart | ||
| DHO5104 New | 4 analog channels | 1 GHz | 12 bit | $7,357.33 | 5 weeks | Add Cart | ||
| DHO5054 New | 4 analog channels | 500 MHz | 12 bit | $5,879.95 | 5 weeks | Add Cart | ||
| DS9604 New | 4 analog channels | 6 GHz（Half Channel） 4 GHz（Full Channel） | 8 bit | $16,221.58 | 5 weeks | Add Cart | ||
| DS9404 New | 4 analog channels | 4 GHz | 8 bit | $13,266.83 | 5 weeks | Add Cart | ||
| DS9204 New | 4 analog channels | 2.5 GHz | 8 bit | $11,050.77 | 5 weeks | Add Cart | ||
| MHO5106 New | 6 analog + 16 digital | 1 GHz | 12 bit | $13,266.83 | 5 weeks | Add Cart | ||
| MHO5056 New | 6 analog + 16 digital | 500 MHz | 12 bit | $10,312.08 | 5 weeks | Add Cart | ||

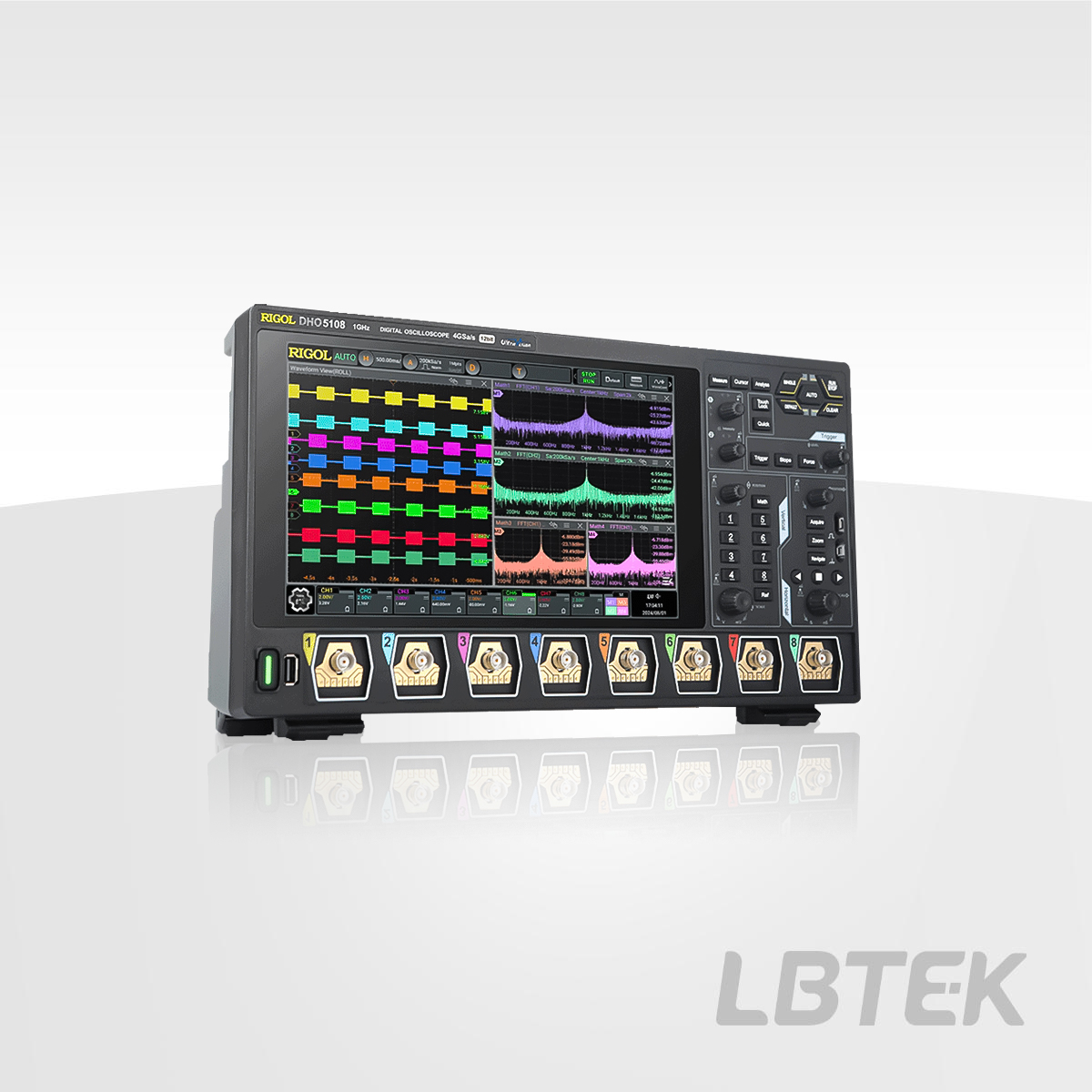

| DHO5108 New | 8 analog channels | 1 GHz | 12 bit | $14,744.20 | 5 weeks | Add Cart | ||
| DHO5058 New | 8 analog channels | 500 MHz | 12 bit | $11,789.45 | 5 weeks | Add Cart |
