Product Description

Linear ball-bearing stages with Gothic arch guides and 4-point ball contact rolling system, supporting high load capacity and high positioning accuracy；
Full 440C stainless steel construction of stage surface, base, micrometer head mount, micrometer head clamping mechanism;
Three drive orientations: end direct drive, left-side drive, and right-side drive;
Available configurations: single-axis, dual-axis, or three-axis;
Comprehensive 100% factory verification ensuring guaranteed performance specifications;

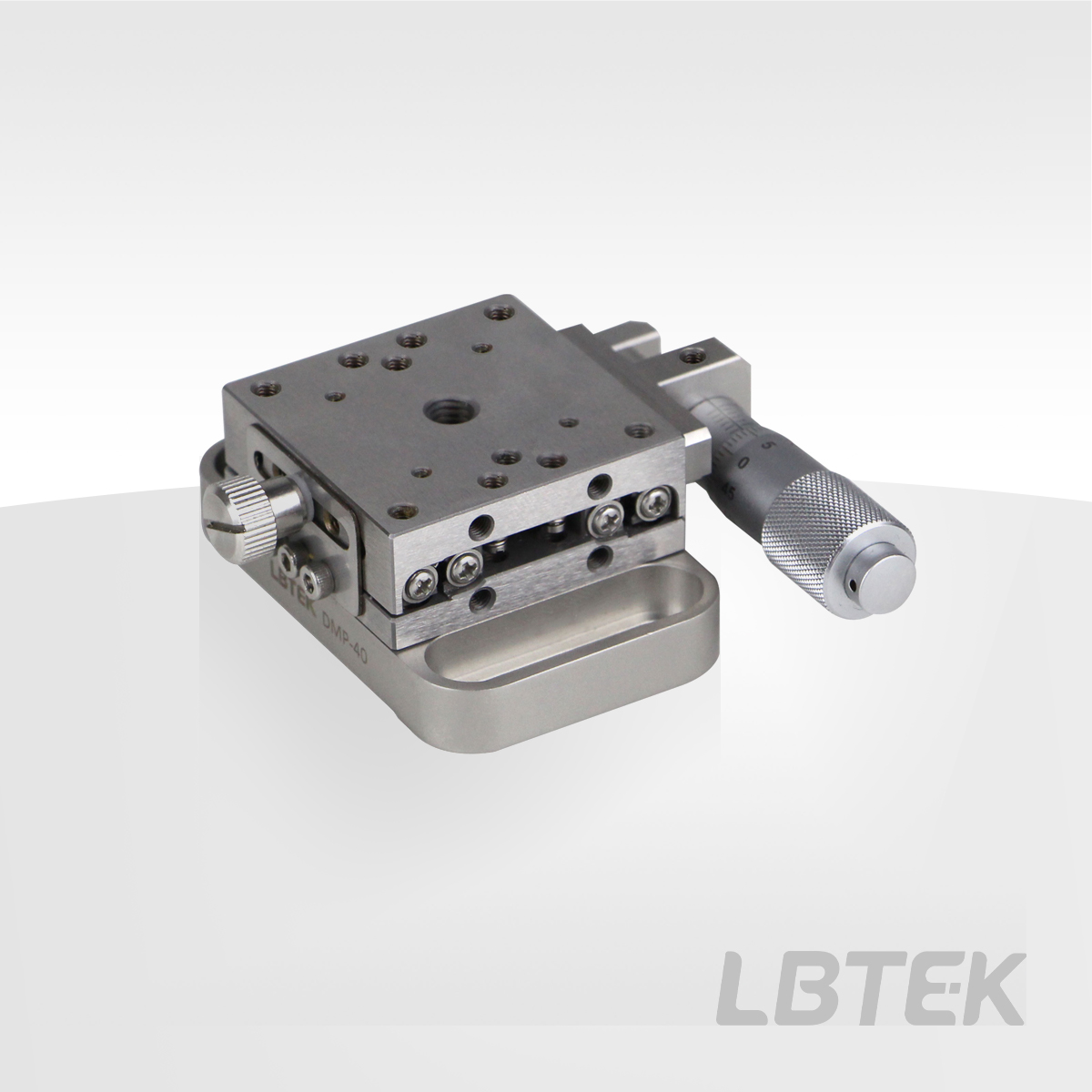

The 13 mm stainless steel manual linear translation stage from LBTEK is available in single-axis, dual-axis, and three-axis types. Featuring Gothic arch rails with an integrated thin-section design combining guideway, stage surface, and base, each stage has a total thickness of only 16 mm. The 40 mm × 40 mm stage surface incorporates M3 tapped holes at 32 mm pitch and M2 tapped holes at 20 mm pitch. Micrometer heads offer three drive types: end direct drive, left-side drive, and right-side drive, with 10 μm minimum graduation. All nominal specifications undergo 100% inspection before delivery, ensuring ≤10 μm running parallelism and ≤20 μm static parallelism. The base contains four M3 countersunk mounting holes, enabling direct fixation to 25 mm stainless steel stages or other mechanical components with 32 mm hole pitch using included M3×6 socket head cap screws.

Attribute

Material440C stainless steel

Tabletop size40 mm×40 mm

stroke13 mm

Micrometer head minimum scale10 μm

Single-Axis Stainless Steel Translation Stage

Single-axis drive with standard micrometer head;
Stage size: 40 mm × 40 mm;
Travel: 13 mm;
Minimum graduation: 10 μm;

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with 1 micrometer driver, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 40 mm × 40 mm with six M3 tapped holes (four at 32 mm pitch, two at 25 mm pitch), four M2 tapped holes at 20 mm pitch, and one central M6 tapped hole. Specific distribution patterns are detailed in the website drawings.

The optical mount is installed on a 13 mm travel single-axis stainless steel manual translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LSS40-13R1	40 mm×40 mm	13 mm	Right-side drive	Single axis	$285.02	7 weeks
LSS40-13L1	40 mm×40 mm	13 mm	Left-side drive	Single axis	$285.02	7 weeks
LSS40-13C1	40 mm×40 mm	13 mm	End direct drive	Single axis	$285.02	7 weeks

Dual-Axis Stainless Steel Translation Stage

Dual-axis drive with standard micrometer head;
Stage size: 40 mm×40 mm;
Travel: 13 mm;
Minimum graduation: 10 μm;

The dual-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature two-axis drive with 2 micrometer drivers, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 40 mm × 40 mm with six M3 tapped holes (four at 32 mm pitch, two at 25 mm pitch), four M2 tapped holes at 20 mm pitch, and one central M6 tapped hole. Specific distribution patterns are detailed in the website drawings.

The optical mount is installed on a 13 mm travel dual-axis stainless steel manual translation stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LSS40-13R2	40 mm×40 mm	13 mm	Right-side drive	dual-axis	$569.51	7 weeks
LSS40-13L2	40 mm×40 mm	13 mm	Left-side drive	dual-axis	$569.51	7 weeks
LSS40-13C2	40 mm×40 mm	13 mm	End direct drive	dual-axis	$569.51	7 weeks

Three-axis Stainless Steel Translation Stage

Three-axis drive with standard micrometer head;
Stage size: 40 mm × 40 mm;
Travel: 13 mm;
Minimum graduation: 10 μm;

The three-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature three-axis drive with 3 micrometer drivers, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 40 mm × 40 mm with six M3 tapped holes (four at 32 mm pitch, two at 25 mm pitch), four M2 tapped holes at 20 mm pitch, and one central M6 tapped hole. Specific distribution patterns are detailed in the website drawings.

The optical component is mounted on the XYZ-axis linear displacement stage.

Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Lead Time
LSS40-13C3	40 mm×40 mm	13 mm	End direct drive	Three-axis	$907.08	7 weeks
LSS40-13R3	40 mm×40 mm	13 mm	Right-side drive	Three-axis	$907.08	7 weeks
LSS40-13L3	40 mm×40 mm	13 mm	Left-side drive	Three-axis	$907.08	7 weeks

40mm Stainless Steel Right Angle Adapter Plate

Material: Stainless Steel;
Surface Treatment: Sandblasting + Passivation;
Mounting Hole Specifications: M3 tapped hole, M3 countersunk hole, M2 countersunk hole;

The 40 mm right-angle three-axial adapter plate from LBTEK is designed for 13 mm stainless steel manual translation stages, commonly used to mount two stages in vertical orientations. An XY-axis manual translation stage and a single-axis manual translation stage can be combined through this right-angle adapter plate to form an XYZ-axis linear translation stage. Alternatively, two single-axis manual stages can be assembled via the right-angle adapter plate into an XZ-axis linear translation stage.

EM-LSS40VA is commonly used for assembling XZ-axis translation stages.

	Product Model	Material	Mounting hole center distance	Unit Price	Compare	Lead Time
	EM-LSS40VA	303 Stainless Steel	32 mm、20 mm	$74		8 weeks
