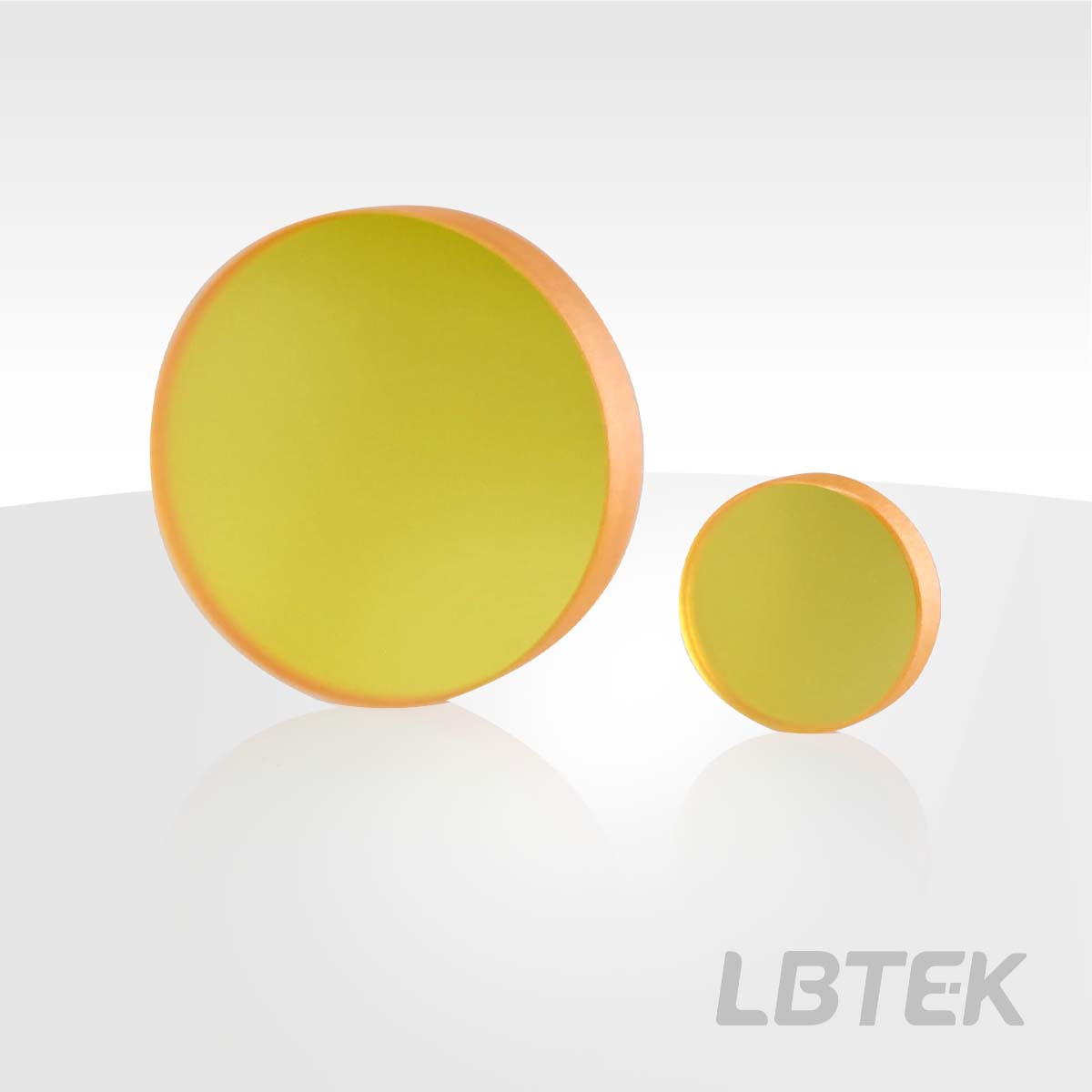

Zinc Selenide (ZnSe) Window, Uncoated, 600 nm-16.0 μm

Specifications
Curve
Tutorial
Assembly
Feedback
Product Description
  • Optical Material: ZnSe
  • Operating Wavelength: 600 nm-16.0 μm
LBTEK provides standard uncoated zinc selenide (ZnSe) high-precision windows. These uncoated windows operate across a wavelength range from visible light (600 nm) to infrared (16.0 μm), with high transmittance throughout the entire spectral range. For details, see the transmittance curve. The low absorption of zinc selenide itself makes this material suitable for applications such as helium-neon lasers (HeNe) at 633 nm and high-power carbon dioxide lasers at 10.6 μm. Zinc selenide is a hazardous and irritating substance. Frequent direct skin contact may cause dermatitis. It easily decomposes and releasing harmful hydrogen selenide gas when exposed to acids. It can irritate the eyes and respiratory tract mucosa. While operation, wear a filtered dust mask, chemical safety goggles, and impermeable work clothing.
Attribute
Optical component materialZnSe
Diameter25.4 mm
Clear Aperture90% CA
Operating Wavelength600 nm-16.0 μm
Surface Parallelism≤1 arcmin
Surface Flatness (@633 nm)λ/2
40/20
Zinc Selenide (ZnSe) Windows, Uncoated, 600 nm-16.0 μm
  • Substrate Material: ZnSe
  • Operating Wavelength: 600 nm -16.0 μm
Zinc selenide is a hazardous substance with irritant properties. Frequent direct skin contact may cause dermatitis. It readily decomposes in the presence of acids, releasing harmful hydrogen selenide gas. It has an irritating effect on human eyes and respiratory mucosa. Always wear a filtering dust mask, chemical safety goggles, and impermeable protective clothing when handling. All LBTEK circular lenses can be mounted in LBTEK standard lens sleeves, fixed lens holders, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

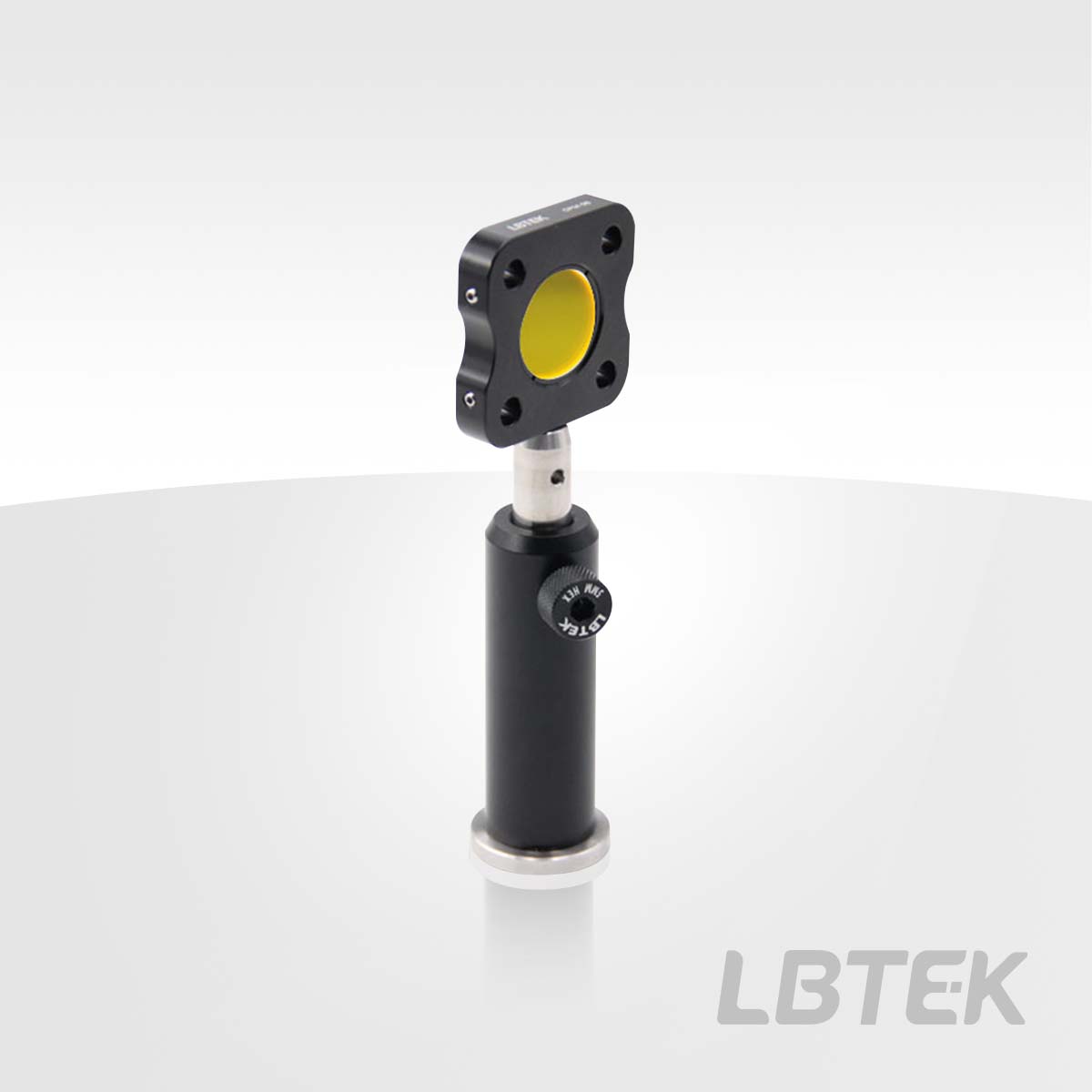

LBTEK Installed Window Plates
Product Model
Optical component material
Diameter
Clear Aperture
Unit Price
Compare
Lead Time
OW1-ZnSe ZnSe12.7 mm90% CA$144.477 weeks
OW2-ZnSe ZnSe25.4 mm90% CA$144.216 weeks
