- Substrate Material: UV Fused Silica
- Four sizes available: Ø12.7 mm, Ø25.4 mm, Ø50.8 mm, and 36.0 mm × 25.0 mm
- Application: filtering and beam splitting
- Substrate Material: UVFS
- Size: Ø12.7 mm
- Application: Filtering and beam splitting
LBTEK dichroic mirrors can separate light beams based on wavelength. Shortpass dichroic mirrors transmit light beams below the cutoff wavelength while reflecting those above it, featuring both high transmission and high reflection characteristics. Our dichroic mirrors offer 8 cutoff wavelength options: 490 nm, 550 nm, 650 nm, 950 nm, 1000 nm, 1180 nm, 1500 nm, and 1800 nm, achieving average transmission and reflection rates of over 90% within their specified wavelength ranges. One surface of the dichroic mirror is coated with a filter coating, while the other side has an anti-reflection coating, with the arrow indicating the filter-coated surface.
LBTEK round dichroic mirrors are often mounted in 15 mm coaxial cube round flat mount holders.
Product Model | Start (Stop) Wavelength | Diameter | Thickness | Unit Price | Curve | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| DM05-1800SP | 1800 nm | 12.7 mm | 3.2 mm | $149.83 |  | today | Add Cart | ||
| DM05-1500SP | 1500 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-1180SP | 1180 nm | 12.7 mm | 3.2 mm | $157.28 | | today | Add Cart | ||
| DM05-1000SP | 1000 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-950SP | 950 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-805SP | 805 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-650SP | 650 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-638SP | 638 nm | 12.7 mm | 3.2 mm | $151.27 | | today | Add Cart | ||
| DM05-605SP | 605 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-550SP | 550 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-505SP | 505 nm | 12.7 mm | 3.2 mm | $157.28 | | today | Add Cart | ||
| DM05-490SP | 490 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart | ||
| DM05-425SP | 425 nm | 12.7 mm | 3.2 mm | $149.83 | | today | Add Cart |
- Substrate Material: UVFS
- Size: Ø25.4 mm
- Application: Filtering and beam splitting
LBTEK dichroic mirrors can separate light beams based on wavelength. Shortpass dichroic mirrors transmit light beams below the cut-off wavelength while reflecting those above it, featuring high transmission and high reflection characteristics. Our dichroic mirrors offer various cutoff wavelengths to choose from, with average transmission and reflection rates exceeding 90% within the specified wavelength range. One surface of the dichroic mirror is coated with a filter coating, while the other side has an anti-reflection coating, with the arrow indicating the filter-coated surface.
LBTEK round dichroic mirrors are often mounted in 30 mm coaxial cube round flat mount holders.
Product Model | Start (Stop) Wavelength | Diameter | Thickness | Unit Price | Curve | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| DM10-638SP | 638 nm | 25.4 mm | 3.2 mm | $231.54 | | 4 weeks | Add Cart | ||
| DM10-505SP | 505 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-805SP | 805 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-605SP | 605 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-425SP | 425 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-780SP | 780 nm | 25.4 mm | 3.2 mm | $213.11 | | today | Add Cart | ||
| DM10-1800SP | 1800 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-1500SP | 1500 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-1180SP | 1180 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-550SP | 550 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-490SP | 490 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-1000SP | 1000 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-950SP | 950 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart | ||
| DM10-650SP | 650 nm | 25.4 mm | 3.2 mm | $231.54 | | today | Add Cart |
- Substrate Material: UVFS
- Size: Ø50.8 mm
- Application: Filtering and beam splitting
LBTEK round dichroic mirrors are often mounted in 60 mm coaxial cube round flat mount holders
Product Model | Start (Stop) Wavelength | Diameter | Thickness | Unit Price | Curve | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| DM20-425SP | 425 nm | 50.8 mm | 5.0 mm | $436.94 | | today | Add Cart | ||
| DM20-490SP | 490 nm | 50.8 mm | 5.0 mm | $436.94 | | today | Add Cart | ||
| DM20-505SP | 505 nm | 50.8 mm | 5.0 mm | $436.94 | | today | Add Cart | ||
| DM20-550SP | 550 nm | 50.8 mm | 5.0 mm | $460.86 | | today | Add Cart | ||
| DM20-605SP | 605 nm | 50.8 mm | 5.0 mm | $460.86 | | today | Add Cart | ||
| DM20-638SP | 638 nm | 50.8 mm | 5.0 mm | $460.86 | | today | Add Cart | ||
| DM20-650SP | 650 nm | 50.8 mm | 5.0 mm | $436.94 | | 6 weeks | Add Cart | ||
| DM20-805SP | 805 nm | 50.8 mm | 5.0 mm | $460.86 | | Contact | Add Cart | ||
| DM20-950SP | 950 nm | 50.8 mm | 5.0 mm | $436.94 | | 7 weeks | Add Cart | ||
| DM20-1000SP | 1000 nm | 50.8 mm | 5.0 mm | $441.25 | | 6 weeks | Add Cart | ||
| DM20-1180SP | 1180 nm | 50.8 mm | 5.0 mm | $436.94 | | today | Add Cart | ||
| DM20-1500SP | 1500 nm | 50.8 mm | 5.0 mm | $436.94 | | today | Add Cart | ||
| DM20-1800SP | 1800 nm | 50.8 mm | 5.0 mm | $436.94 | | today | Add Cart |

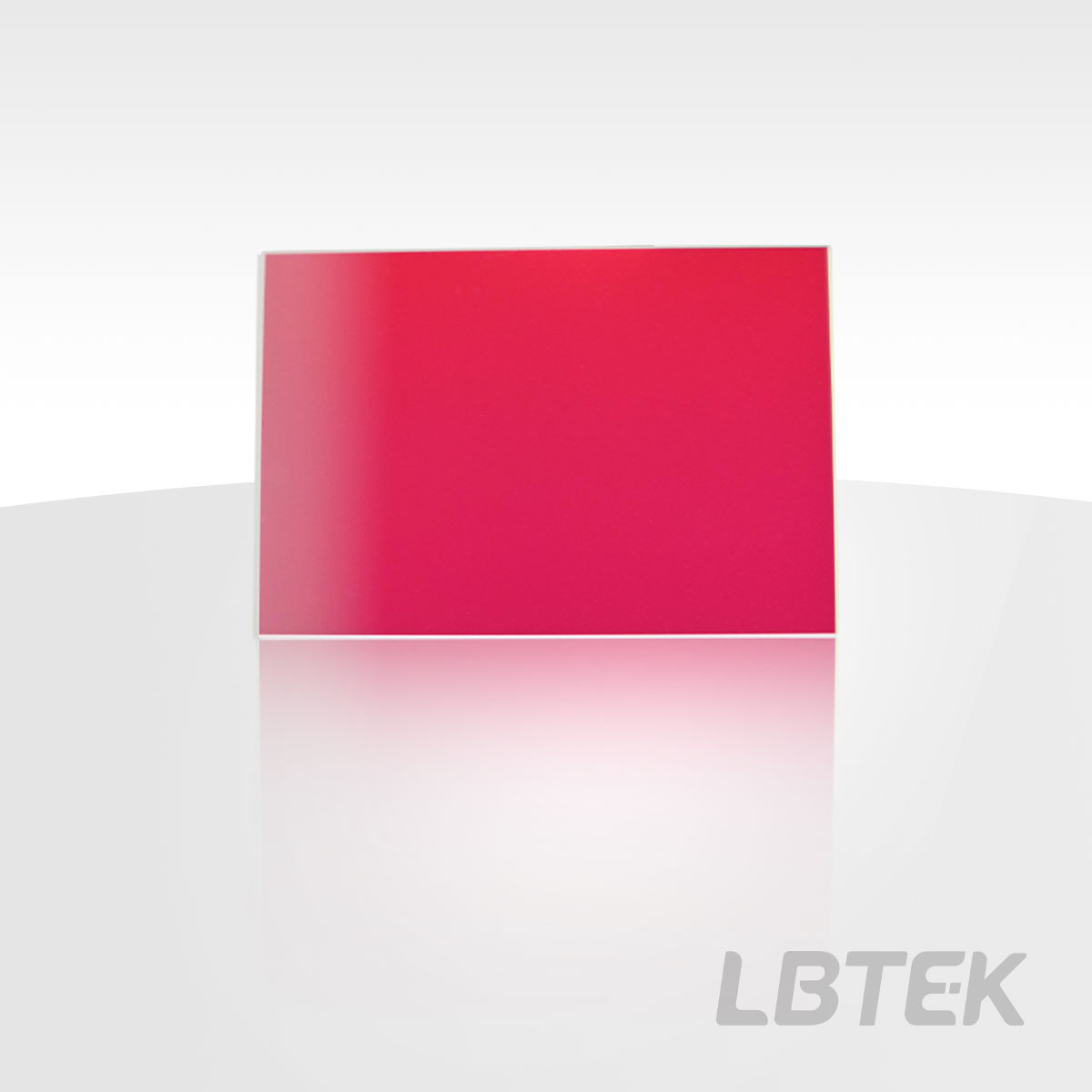

- Substrate Material: UVFS
- Size: 36.0 mm×25.0 mm
- Application: Filtering and beam splitting
LBTEK dichroic mirrors can separate light beams based on wavelength. Shortpass dichroic mirrors transmit light beams below the cut-off wavelength while reflecting those above it, featuring high transmission and high reflection characteristics. Our dichroic mirrors offer various cutoff wavelengths to choose from, with average transmission and reflection rates exceeding 90% within the specified wavelength range. One surface of the dichroic mirror is coated with a filter coating, while the other side has an anti-reflection coating, with the arrow indicating the filter-coated surface.

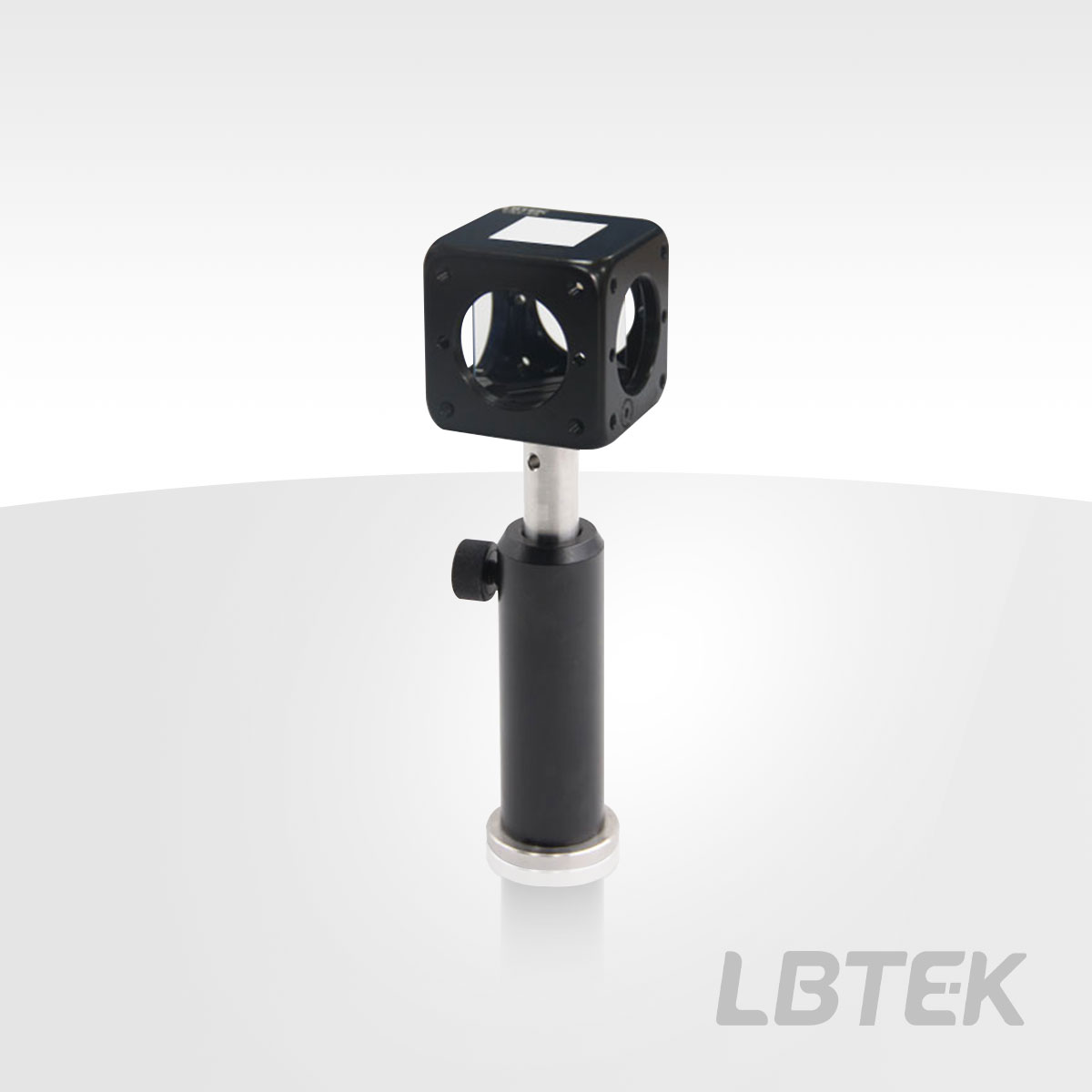

LBTEK rectangular dichroic mirrors are often mounted in 30 mm coaxial cube rectangular flat plate mounts.
Product Model | Start (Stop) Wavelength | Size | Thickness | Unit Price | Curve | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| DMR-425SP | 425 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-490SP | 490 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-505SP | 505 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-550SP | 550 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-605SP | 605 nm | 36.0 mm×25.0 mm | 1.0 mm | $442.56 | | today | Add Cart | ||
| DMR-638SP | 638 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-805SP | 805 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-1000SP | 1000 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-1180SP | 1180 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-1500SP | 1500 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-1800SP | 1800 nm | 36.0 mm×25.0 mm | 1.0 mm | $421.51 | | today | Add Cart | ||
| DMR-680SP-SP | 680 nm | 36.0 mm×25.0 mm | 1.0 mm | $415.36 | | today | Add Cart | ||
| DMR-650SP | 650 nm | 36.0 mm×25.0 mm | 1.0 mm | $442.56 | | today | Add Cart | ||
| DMR-950SP | 950 nm | 36.0 mm×25.0 mm | 1.0 mm | $442.56 | | today | Add Cart |
- Substrate Material: UVFS
- Elliptical
- Application: Filtering and Beam Splitting
LBTEK dichroic mirrors can separate light beams based on wavelength. Shortpass dichroic mirrors transmit light beams below the cutoff wavelength while reflecting those above it, featuring high transmission and high reflection characteristics. Currently, the elliptical dichroic mirror has a cutoff wavelength of 550 nm, achieving over 90% transmittance in the specified band range (390-533 nm) and over 90% reflectance in the range (565-800 nm). One surface of the dichroic mirror is coated with a filter film, and the other side is coated with an anti-reflection film. It is recommended to have the light incident from the filter film side (the side arrow points to the filter film-coated surface).

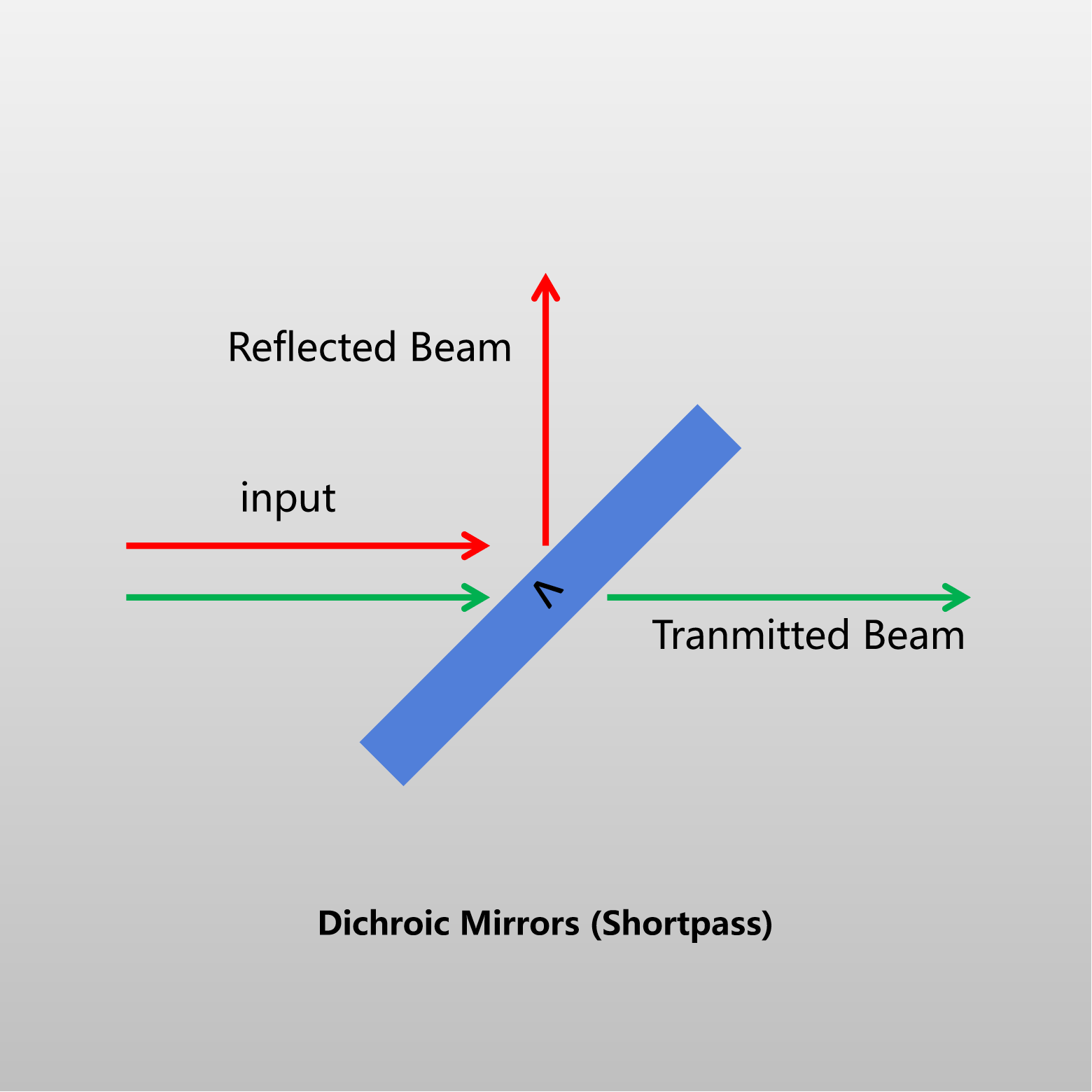

LBTEK Shortpass Dichroic Mirror Schematic Diagram
Product Model | Start (Stop) Wavelength | Dimensional specifications | Thickness | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| DME38×57-550SP-SP New | 550 nm | Long axis 56.6 mm, short axis 37.6 mm | 3.0 mm | $485.70 | today | Add Cart |
