Product Description
- Optical Material: UV Fused Silica
- Application: Beam Deflection
- Operating Wavelength: 300 nm-1650 nm
Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.
Diagram
Attributes
MaterialUV fused silica
CoatingBoadband Dielectric Coating
ReflectivityRavg>99% (6° incidence angle)
Clear Aperture90% CA
Surface Parallelism<3 arcmin
Thickness Tolerance±0.2 mm
Broadband Dielectric Mirrors, Circular
- Working Wavelength: 300 nm-750 nm, 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
- Application: Deflecting Optical Path
- Optical Material: UV Fused Silica

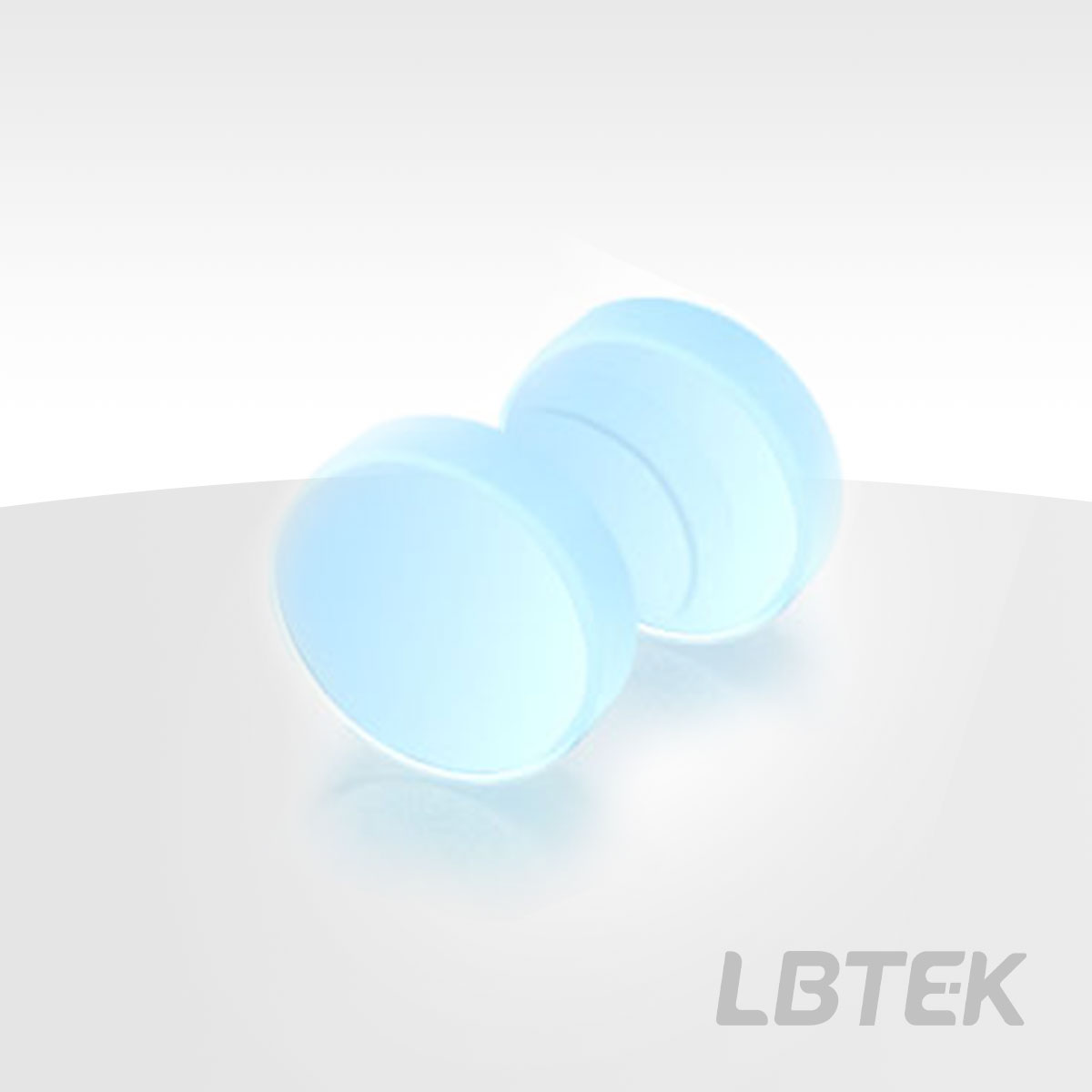

The reflector is used to change the direction of the light beam. LBTEK's fused silica broadband dielectric coating achieves a reflectivity of over 99% within the working wavelength range. To meet various size requirements from customers, LBTEK offers UV fused silica dielectric mirrors in multiple sizes, including Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. Additionally, LBTEK provides customized services for reflectors with other materials and coating systems. For customization needs, please contact technical support.

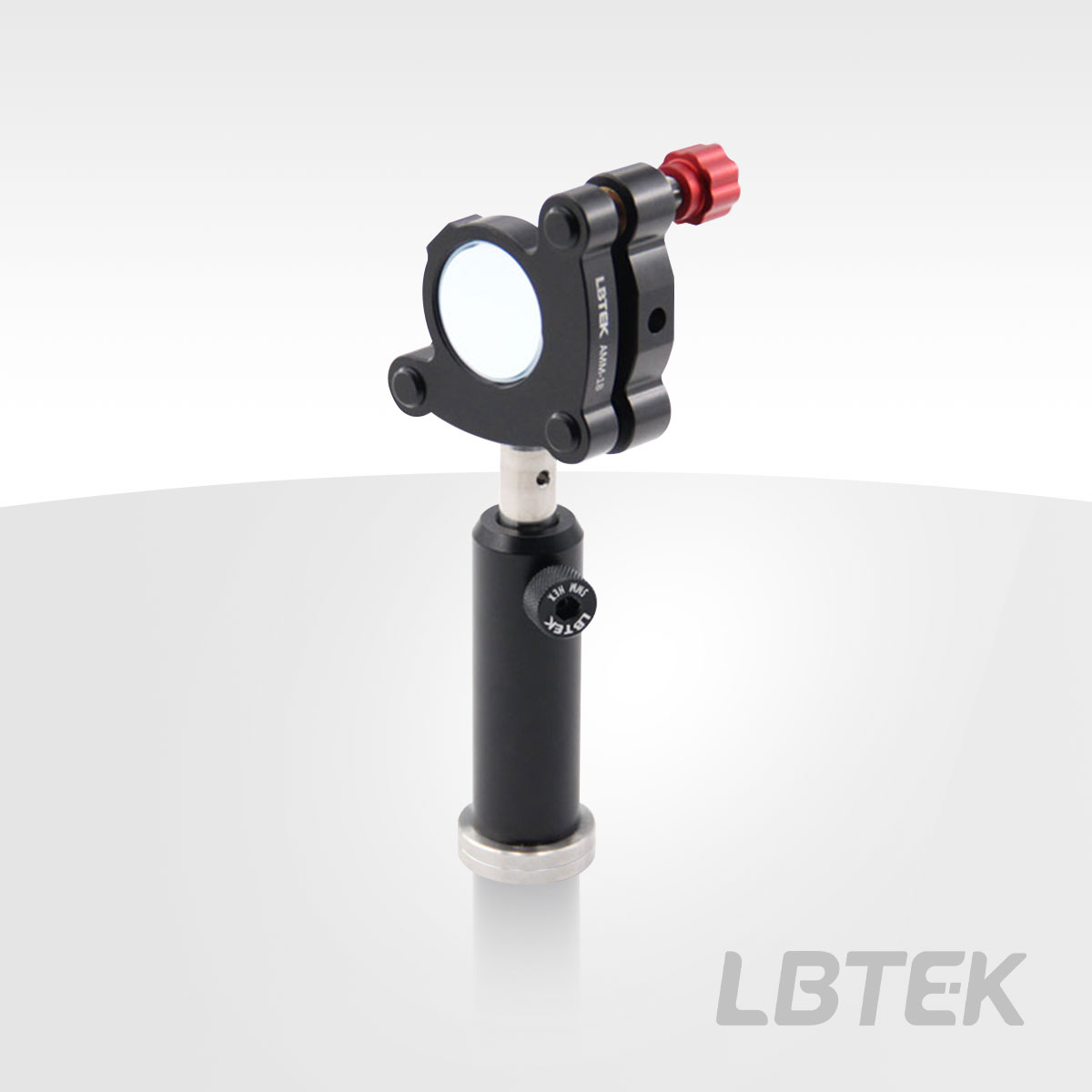

LBTEK mirror mounted on mirror mount AMM-1B
Product Model | Operating Wavelength | Diameter | Thickness | Package Quantity | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
 | BDM2-UVA | 300 nm-750 nm | 50.8 mm | 12.0 mm | 1 | $317.18 | today | Add Cart | |
| BDM1-UVA-P10 | 300 nm-750 nm | 25.4 mm | 6.0 mm | 10 | $1,193.93 | 8 weeks | Add Cart | |
| BDM1-UVA | 300 nm-750 nm | 25.4 mm | 6.0 mm | 1 | $132.70 | today | Add Cart | |
| BDM05-UVA | 300 nm-750 nm | 12.7 mm | 6.0 mm | 1 | $90.08 | today | Add Cart | |
| BDM1-T1-A-SP | 400 nm-750 nm | 25.4 mm | 1.0 mm | 1 | $73.08 | today | Add Cart | |
| BDM1-A-P10 | 400 nm-750 nm | 25.4 mm | 6.0 mm | 10 | $660.64 | today | Add Cart | |
| BDM2-A | 400 nm-750 nm | 50.8 mm | 12 mm | 1 | $148.00 | today | Add Cart | |
| BDM1-A | 400 nm-750 nm | 25.4 mm | 6.0 mm | 1 | $73.08 | today | Add Cart | |
| BDM05-A | 400 nm-750 nm | 12.7 mm | 6.0 mm | 1 | $50.07 | today | Add Cart | |
| BDM1-A-SP New | 400 nm-750 nm | 25.4 mm | 6.0 mm | 1 | $51.64 | today | Add Cart | |
| BDM1-B-P10 | 750 nm-1100 nm | 25.4 mm | 6.0 mm | 10 | $660.64 | today | Add Cart | |
| BDM2-B | 750 nm-1100 nm | 50.8 mm | 12 mm | 1 | $148.00 | today | Add Cart | |
| BDM1-B | 750 nm-1100 nm | 25.4 mm | 6.0 mm | 1 | $73.08 | today | Add Cart | |
| BDM05-B | 750 nm-1100 nm | 12.7 mm | 6.0 mm | 1 | $50.07 | today | Add Cart | |
| BDM1-C-P10 | 1100 nm-1650 nm | 25.4 mm | 6.0 mm | 10 | $1,123.98 | today | Add Cart | |
| BDM2-C | 1100 nm-1650 nm | 50.8 mm | 12 mm | 1 | $245.92 | today | Add Cart | |
| BDM1-C | 1100 nm-1650 nm | 25.4 mm | 6.0 mm | 1 | $124.60 | today | Add Cart | |
| BDM05-C | 1100 nm-1650 nm | 12.7 mm | 6.0 mm | 1 | $83.02 | today | Add Cart |
Broadband Dielectric Mirrors, Elliptical
- Substrate Material: UVFS
- Application: Beam Deflection
- Operating Wavelength: 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
The reflector is used to change the direction of the light beam. LBTEK's fused silica broadband dielectric coating achieves a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UVFS dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized services for dielectric-coated fused silica reflectors. For customization needs, please contact our technical support.
LBTEK Elliptical Broadband Dielectric Mirror Mounted on 45° Adjustable Mount
Product Model | Operating Wavelength | Size | Thickness | Clear Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| BDM05E-A | 400 nm-750 nm | Ellipse: Major axis: 18.0 mm (reference value) Minor axis: 12.7 mm | 6.0 mm | 90% CA | $84.85 | today | Add Cart | |
| BDM1E-A | 400 nm-750 nm | Ellipse: Major axis: 35.9 mm Minor axis: 25.4 mm | 6.0 mm | 90% CA | $118.32 | today | Add Cart | |
| BDM05E-B | 750 nm-1100 nm | Ellipse: Major axis: 18.0 mm (reference value) Minor axis: 12.7 mm | 6.0 mm | 90% CA | $84.85 | today | Add Cart | |
| BDM1E-B | 750 nm-1100 nm | Ellipse: Major axis: 35.9 mm Minor axis: 25.4 mm | 6.0 mm | 90% CA | $118.32 | today | Add Cart | |
| BDM05E-C | 1100 nm-1650 nm | Ellipse: Major axis: 18.0 mm (reference value) Minor axis: 12.7 mm | 6.0 mm | 90% CA | $106.42 | today | Add Cart | |
| BDM1E-C | 1100 nm-1650 nm | Ellipse: Major axis: 35.9 mm Minor axis: 25.4 mm | 6.0 mm | 90% CA | $150.09 | today | Add Cart |
Broadband Dielectric Mirrors, Square
- Substrate Material: UVFS
- Application: Beam Deflection
- Operating Wavelength: 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
The reflector is used to change the direction of the light beam. LBTEK's fused silica broadband dielectric coating achieves a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UVFS dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized services for dielectric-coated fused silica reflectors. For customization needs, please contact our technical support.

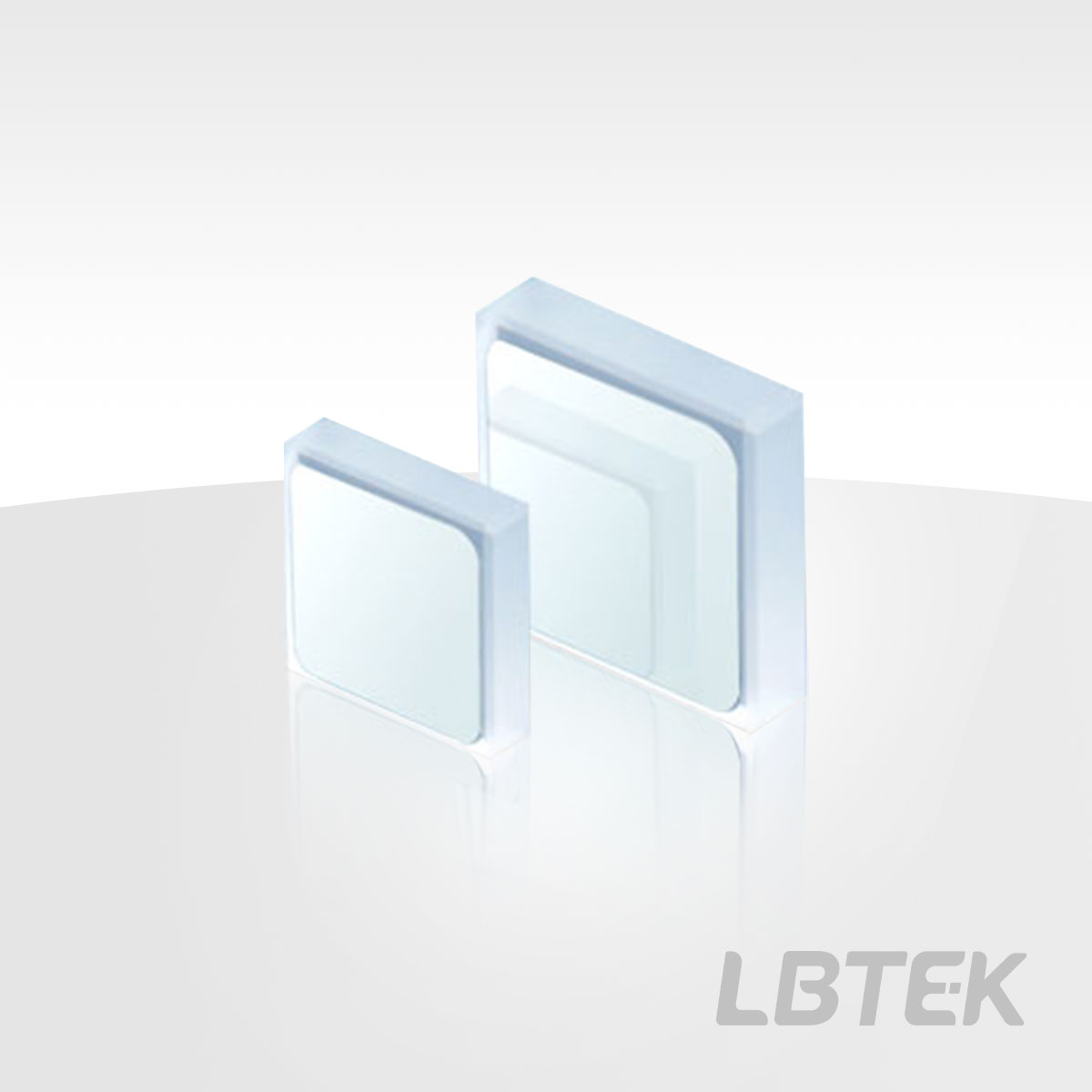

LBTEK square dielectric film mirror mounted on rectangular precision optical mount AMM3-1SL
Product Model | Operating Wavelength | Size | Thickness | Clear Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| BDMR-39×30-A-SP | 400 nm-750 nm | 39 mm × 30 mm | 5.0 mm | 90% CA | $147.08 | today | Add Cart | |
| BDM1S-A | 400 nm-750 nm | 25.4 mm x 25.4 mm | 6.0 mm | 90% CA | $77.92 | today | Add Cart | |
| BDM1S-B | 750 nm-1100 nm | 25.4 mm x 25.4 mm | 6.0 mm | 90% CA | $80.67 | today | Add Cart | |
| BDM1S-C | 1100 nm-1650 nm | 25.4 mm x 25.4 mm | 6.0 mm | 90% CA | $154.14 | today | Add Cart |
Broadband Dielectric Mirrors, D-shaped
- Substrate Material: UVFS
- Application: Beam Splitting
- Operating Wavelength: 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm

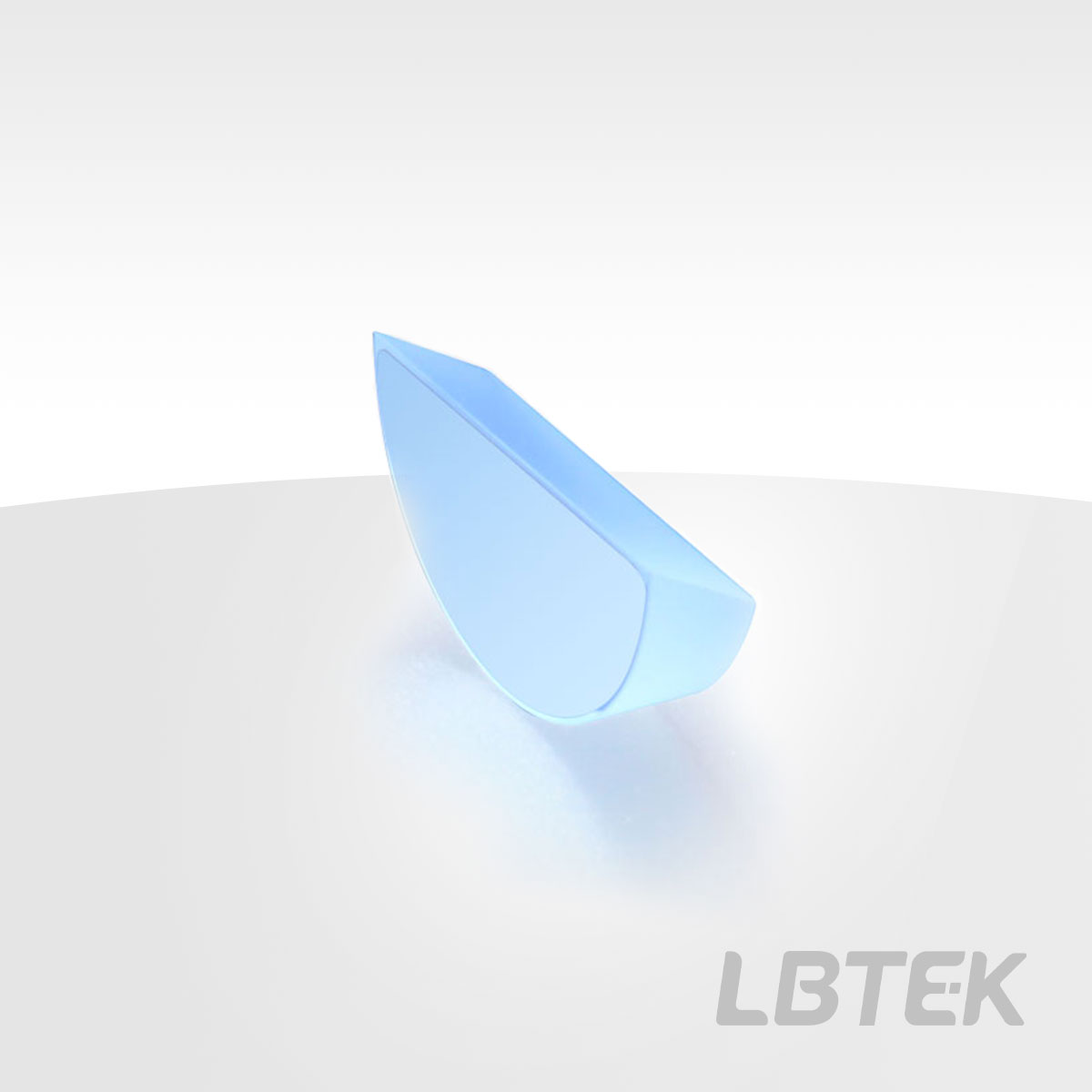

LBTEK broadband dielectric-coated D-shaped mirrors are available in various coating types, with the coating covering the entire reflective surface. The coating wavelength ranges include 400 nm-750 nm, 750 nm-1100 nm, and 1100 nm-1650 nm. They are suitable for selecting one beam from two closely spaced beams. Additionally, the backside of the mirror's straight edge features a wedge-shaped cut with a 45° angle, facilitating beam splitting for diverging or converging light.

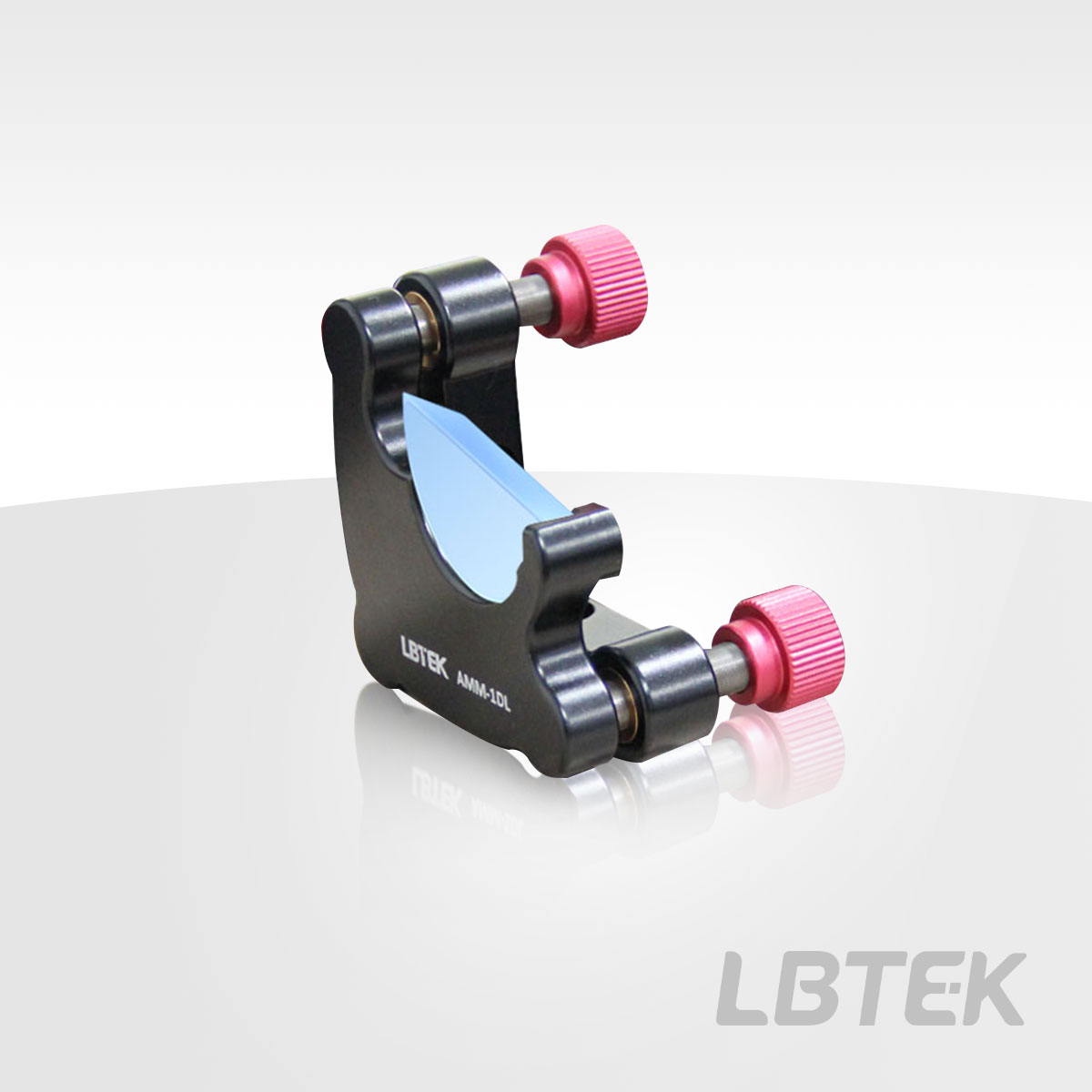

LBTEK D-shaped mirror is mounted in the D-shaped mirror holder AMM-1DL
Product Model | Operating Wavelength | Size | Thickness | Clear Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| BDM1D-A | 400 nm-750 nm | 25.4 mm | 6.0 mm | 90% CA | $92.96 | today | Add Cart | |
| BDM1D-B | 750 nm-1100 nm | 25.4 mm | 6.0 mm | 90% CA | $91.39 | today | Add Cart | |
| BDM1D-C | 1100 nm-1650 nm | 25.4 mm | 6.0 mm | 90% CA | $95.83 | today | Add Cart |
