Product Description

Optical Material: N-BK7;
Operating Wavelength: 400 nm-1100 nm
Application: Beam Expander, Imaging, Beam Reducer;

The plano-convex lenses from LBTEK feature one convex surface and one flat surface, providing positive focal lengths typically used for beam reduction, focal length shortening, or imaging magnification applications. To minimize spherical aberration, when a plano-convex lens is used for focusing a collimated beam, the beam should be incident on the curved surface. LBTEK manufactures these lenses using N-BK7, the most common optical material for visible and near-infrared applications. All lenses undergo precision machining and strict quality control, ensuring LBTEK delivers high-quality optical products at competitive prices.

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm, Unmounted

Substrate Material: N-BK7;
Operating Wavelength: 400 nm - 1100 nm;
Application: Imaging, Collimation, Beam Expander;

The plano-convex lenses from LBTEK feature positive focal lengths and are commonly used for imaging or beam collimation applications. Manufactured using RoHS-compliant N-BK7 glass, a material frequently employed in high-quality optical components, these lenses are particularly suitable for visible light and near-infrared applications. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mount, and various coaxial mounting plates, allowing customers to select the optimal mounting solution for different application scenarios.

Lens unmounted from LBTEK is suitable for building compact systems.

Product Model	Diameter	Focal length	Unit Price	Lead Time
CX10823-AB	50.8 mm	1000.0 mm	$52.03	7 weeks
CX10822-AB	50.8 mm	750.0 mm	$52.03	7 weeks
CX10821-AB	50.8 mm	500.0 mm	$52.03	7 weeks
CX10820-AB	50.8 mm	400.0 mm	$52.03	7 weeks
CX10819-AB	50.8 mm	300.0 mm	$52.03	7 weeks
CX10818-AB	50.8 mm	250.0 mm	$52.03	7 weeks
CX10817-AB	50.8 mm	200.0 mm	$52.03	7 weeks
CX10816-AB	50.8 mm	175.0 mm	$52.03	7 weeks
CX10815-AB	50.8 mm	150.0 mm	$52.03	7 weeks
CX10814-AB	50.8 mm	125.0 mm	$52.03	7 weeks
CX10813-AB	50.8 mm	100.0 mm	$52.03	7 weeks
CX10812-AB	50.8 mm	75.0 mm	$52.03	7 weeks
CX10810-AB	50.8 mm	60.0 mm	$52.03	7 weeks
CX10721-AB	30.0 mm	498.3 mm	$37.39	7 weeks
CX10719-AB	30.0 mm	299.0 mm	$37.39	7 weeks
CX10718-AB	30.0 mm	249.2 mm	$37.39	7 weeks
CX10717-AB	30.0 mm	199.3 mm	$37.39	7 weeks
CX10715-AB	30.0 mm	149.5 mm	$37.39	7 weeks
CX10713-AB	30.0 mm	99.7 mm	$37.39	7 weeks
CX10712-AB	30.0 mm	74.8 mm	$37.39	7 weeks
CX10710-AB	30.0 mm	49.8 mm	$37.39	7 weeks
CX10709-AB	30.0 mm	39.9 mm	$37.39	7 weeks
CX10623-AB	25.4 mm	1000.0 mm	$36.74	8 weeks
CX10622-AB	25.4 mm	750.0 mm	$36.22	8 weeks
CX10621-AB	25.4 mm	500.0 mm	$36.22	8 weeks
CX10620-AB	25.4 mm	400.0 mm	$36.22	8 weeks
CX10619-AB	25.4 mm	300.0 mm	$36.22	8 weeks
CX10618-AB	25.4 mm	250.0 mm	$36.22	8 weeks
CX10617-AB	25.4 mm	200.0 mm	$36.22	8 weeks
CX10616-AB	25.4 mm	175.0 mm	$36.22	8 weeks
CX10615-AB	25.4 mm	150.0 mm	$36.22	8 weeks
CX10614-AB	25.4 mm	125.0 mm	$36.22	8 weeks
CX10613-AB	25.4 mm	100.0 mm	$36.22	8 weeks
CX10612-AB	25.4 mm	75.0 mm	$36.22	8 weeks
CX10611-AB	25.4 mm	60.0 mm	$39.22	8 weeks
CX10610-AB	25.4 mm	50.0 mm	$36.22	8 weeks
CX10609-AB	25.4 mm	40.0 mm	$38.83	8 weeks
CX10608-AB	25.4 mm	35.0 mm	$36.22	8 weeks
CX10607-AB	25.4 mm	30.0 mm	$36.22	8 weeks
CX10606-AB	25.4 mm	25.4 mm	$36.22	8 weeks
CX10313-AB	12.7 mm	100.0 mm	$32.55	8 weeks
CX10310-AB	12.7 mm	50.0 mm	$33.08	8 weeks
CX10309-AB	12.7 mm	40.0 mm	$32.55	8 weeks
CX10307-AB	12.7 mm	30.0 mm	$31.64	8 weeks
CX10305-AB	12.7 mm	25.0 mm	$32.55	8 weeks
CX10304-AB	12.7 mm	20.0 mm	$32.55	8 weeks
CX10303-AB	12.7 mm	15.0 mm	$31.64	8 weeks

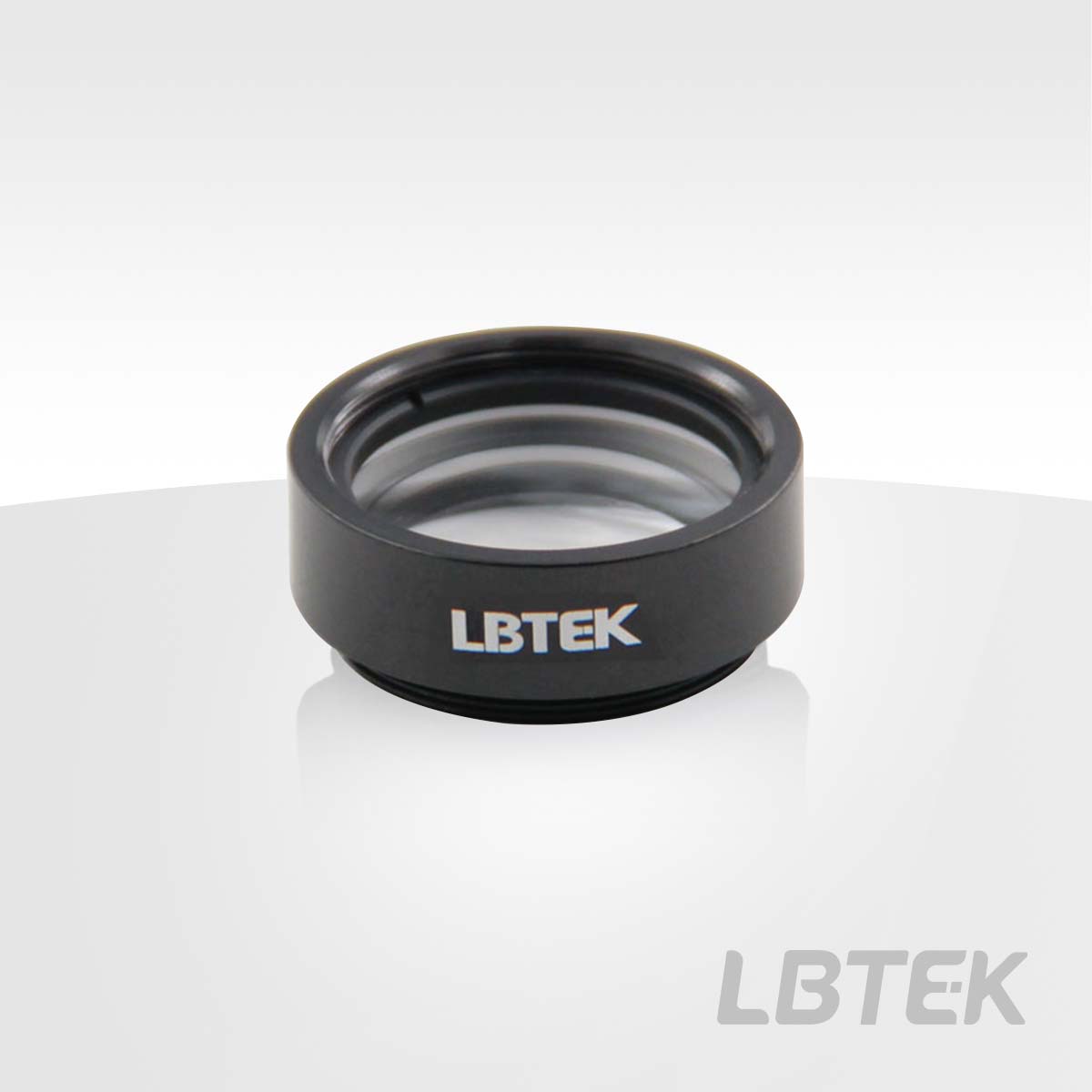

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm.

Substrate Material: N-BK7;
Operating Wavelength: 400 nm - 1100 nm;
Application: Beam Expander, Imaging, Beam Reducer;
Pre-mounted mechanical housing;

The plano-convex lenses from LBTEK feature positive focal lengths and are commonly used for imaging or beam collimation applications. Manufactured using RoHS-compliant ZnSe glass, a material frequently employed in high-quality optical components, these lenses are particularly suitable for visible light and near-infrared applications. All circular lenses from LBTEK come pre-mounted in standard lens tubes or mounting adapters, with each mechanical component clearly marked with the product model, type, diameter, and focal length for quick parameter identification.

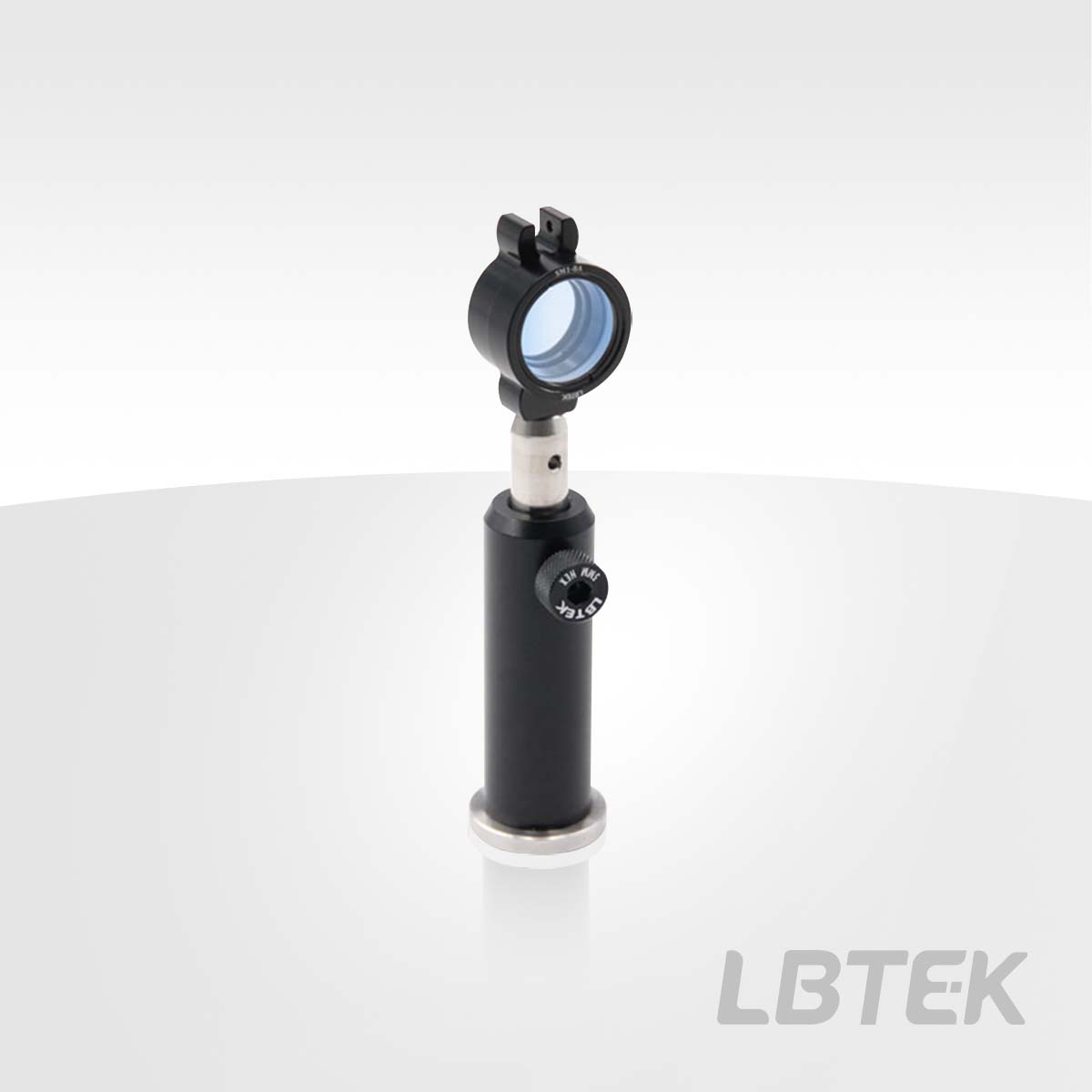

The lens housing surface from LBTEK is engraved with product model and other information.

Product Model	Diameter	Focal length	Unit Price	Lead Time
MCX10623-AB	25.4 mm	1000.0 mm	$45.76	8 weeks
MCX10622-AB	25.4 mm	750.0 mm	$45.76	8 weeks
MCX10621-AB	25.4 mm	500.0 mm	$45.76	8 weeks
MCX10620-AB	25.4 mm	400.0 mm	$45.76	8 weeks
MCX10619-AB	25.4 mm	300.0 mm	$45.76	8 weeks
MCX10618-AB	25.4 mm	250.0 mm	$45.76	8 weeks
MCX10617-AB	25.4 mm	200.0 mm	$45.76	8 weeks
MCX10616-AB	25.4 mm	175.0 mm	$45.76	8 weeks
MCX10615-AB	25.4 mm	150.0 mm	$45.76	8 weeks
MCX10614-AB	25.4 mm	125.0 mm	$45.76	8 weeks
MCX10613-AB	25.4 mm	100.0 mm	$45.76	8 weeks
MCX10612-AB	25.4 mm	75.0 mm	$45.76	8 weeks
MCX10611-AB	25.4 mm	60.0 mm	$49.16	8 weeks
MCX10610-AB	25.4 mm	50.0 mm	$45.76	8 weeks
MCX10609-AB	25.4 mm	40.0 mm	$48.37	8 weeks
MCX10608-AB	25.4 mm	35.0 mm	$45.76	8 weeks
MCX10607-AB	25.4 mm	30.0 mm	$45.76	8 weeks
MCX10606-AB	25.4 mm	25.4 mm	$45.76	8 weeks
MCX10313-AB	12.7 mm	100.0 mm	$40.4	8 weeks
MCX10310-AB	12.7 mm	50.0 mm	$40.4	8 weeks
MCX10309-AB	12.7 mm	40.0 mm	$39.88	8 weeks
MCX10307-AB	12.7 mm	30.0 mm	$39.75	8 weeks
MCX10305-AB	12.7 mm	25.0 mm	$40.4	8 weeks
MCX10304-AB	12.7 mm	20.0 mm	$40.4	8 weeks
MCX10303-AB	12.7 mm	15.0 mm	$39.75	8 weeks
