The LBTEK Liquid Crystal Polarization Rotator is coated with anti-reflection coatings of the 400-700 nm wavelength range on both sides . Under the control of an external AC voltage, it can continuously rotate the polarization direction of incident linearly polarized light by 180°, with an extinction ratio of >1000:1 for the emergent light. It features a clear aperture of Ø10 mm, mounted in a mechanical housing with attached wiring, The housing is compatible with Ø1-inch optical component mounts. The polarization direction of the incident light is marked on the rotator's housing. Each rotator comes with a test report, which includes a "voltage-rotation angle" curve and reference table for incident alignment adjustment.

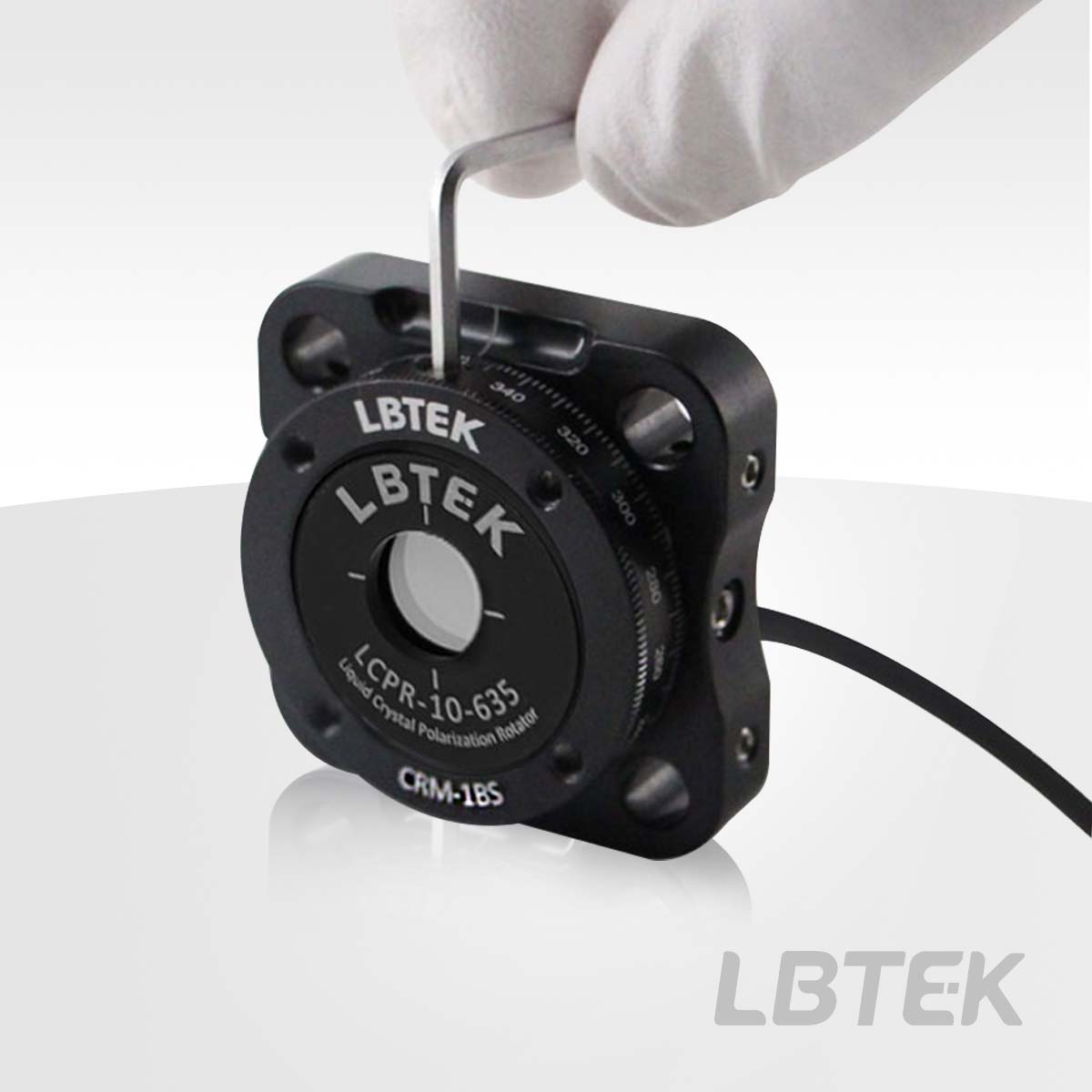

Liquid Crystal Polarization Rotator Assembly Diagram
Product Model | Operating Wavelength | Clear Aperture | Extinction ratio | Unit Price | Compare | Lead Time | ||
---|---|---|---|---|---|---|---|---|
LCPR-10-635 | 635 nm | Ø10 mm | >1000:1 | $871.39 | 3 weeks |
