Product Description

Passband transmittance: >85%
Optical Density (OD) in the Rejection Region: >OD2
Unmounted, without housing

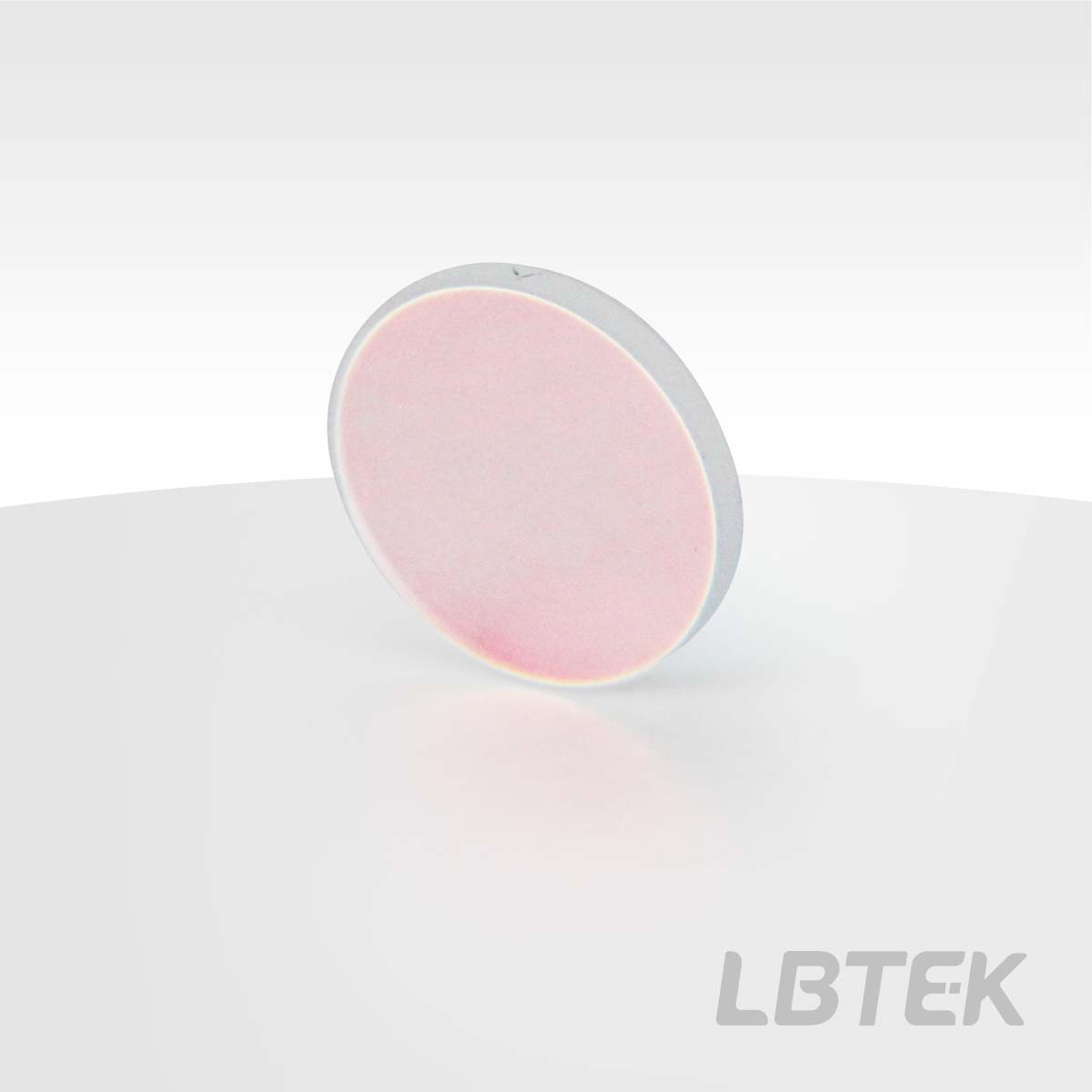

LBTEK's Edgepass Filters use Borofloat 33 as the substrate, with a filter coating applied on one side. The arrow indicates the surface with the filter coating (recommended for light incidence), allowing transmission of specific wavelength ranges while rejecting others. LBTEK Edgepass Filters feature >85% transmittance in the passband wavelength range and optical density >OD 2 in the rejection region. Available options include diameters of 25.4 mm and wavelength ranges from 600 nm to 950 nm. In addition to standard edgepass filters, LBTEK offers customized filter services. For special requirements, please contact LBTEK Technical Support.

Shortpass Filters

Shortwave Transmission
Passband Transmittance: >85%
Stopband Optical Density: >OD2

LBTEK Shortpass Filters allow transmission of light with wavelengths shorter than the cut-on (cut-off) wavelength, with a transmittance of over 85%. They effectively suppress light with wavelengths longer than the cut-on (cut-off) wavelength, achieving an optical density of OD 2, meaning the transmittance is <1%.

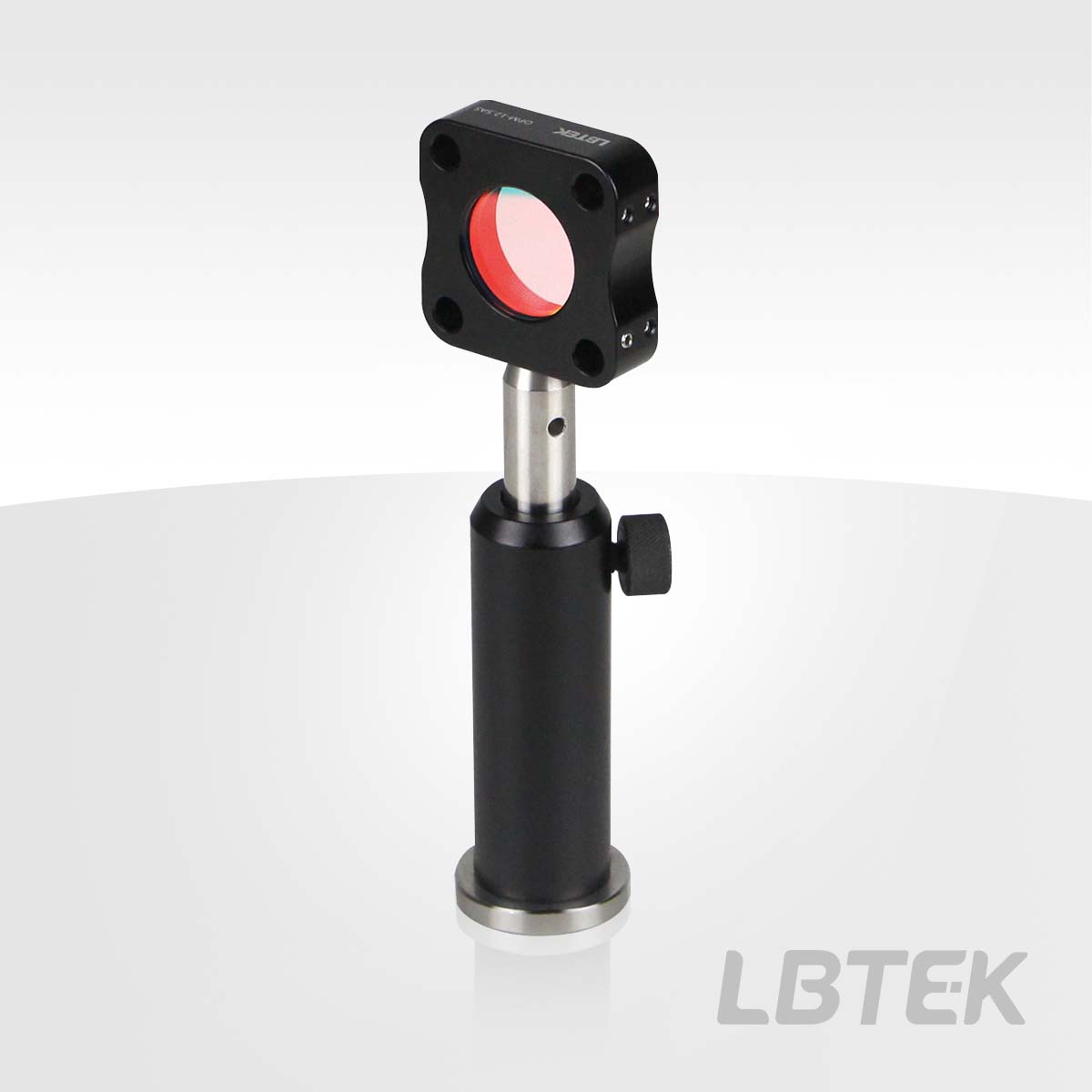

The edgepass filter is mounted in a 30 mm coaxial mounting plate.

Product Model	Start (Stop) Wavelength	Unit Price	Lead Time
EF10-950SP	950 nm	$90.73	Contact
EF10-900SP	900 nm	$91.65	Contact
EF10-850SP	850 nm	$90.73	Contact
EF10-800SP	800 nm	$90.73	Contact
EF10-750SP	750 nm	$90.73	Contact
EF10-700SP	700 nm	$90.73	Contact
EF10-650SP	650 nm	$90.73	Contact
EF10-600SP	600 nm	$90.73	Contact
