Product Description
- Material: 6061-T6 Aluminum Alloy
- Multiple optical component mounting sizes available
- Two mounting options: retaining ring or adhesive-tipped set screw
- Compatible with 16 mm coaxial systems
LBTEK offers a variety of coaxial mounting plates in different specifications, made of aluminum alloy with a black anodized surface, suitable for mounting optical components or lens tubes of various sizes. The central mounting hole provides two options for securing optical components: a retaining ring fixation or a set screw fixation with a rubber tip. The retaining ring can accommodate optical components with diameters ranging from Ø5 to Ø12 mm, as well as 12.7 mm, while the set screw fixation is suitable for optical devices with a diameter of Ø16 mm. All coaxial plates feature four through-holes for coaxial rods, allowing free sliding along the rods. Each through-hole is equipped with an M4 locking screw on the side, which can be tightened using a 2.0 mm hex wrench.
Attribute
Material6061-T6 Aluminum Alloy
Surface treatmentBlack anodized
Rod mounting threaded holeM3

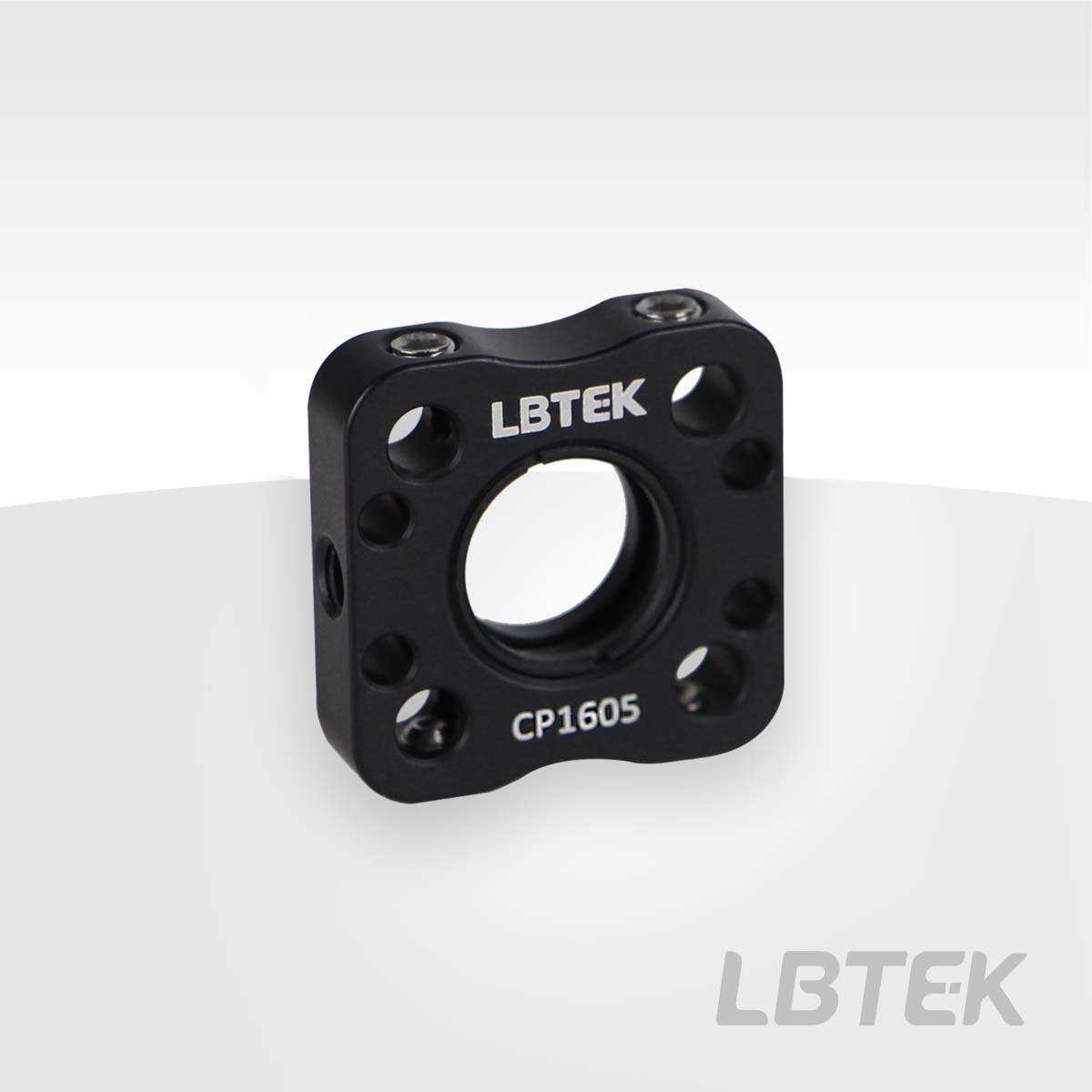

16 mm coaxial mounting plate for installing optical components with a diameter of Ø12.7 mm
- SM05 threaded through hole with dual retaining rings in the center for securing optical components or SM05 lens tubes
- Comes with 4 coaxial through holes for mounting Ø4 mm posts
- Side M4 threaded holes for rigid mounting onto posts
- Mounts to 16 mm coaxial cubes using M2.5 socket head cap screws
LBTEK 16 mm Coaxial Mounting Plate CP1605 features a central SM05 threaded through-hole with double retaining rings, primarily used for securing optical components or SM05 lens tubes, with a compact structural design. It includes four coaxial through-holes for mounting Ø4 mm posts, secured by side M4 set screws and adjustable with a 2.0 mm hex wrench. Both sides are equipped with M4 threaded holes for direct mounting onto posts. Additionally, it can be installed onto 16 mm coaxial cubes using four M2.5 pan head screws.
Application Installation Diagram
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| CP1605 | Ø12.7 mm | 3 mm | $15.69 | 7 weeks |

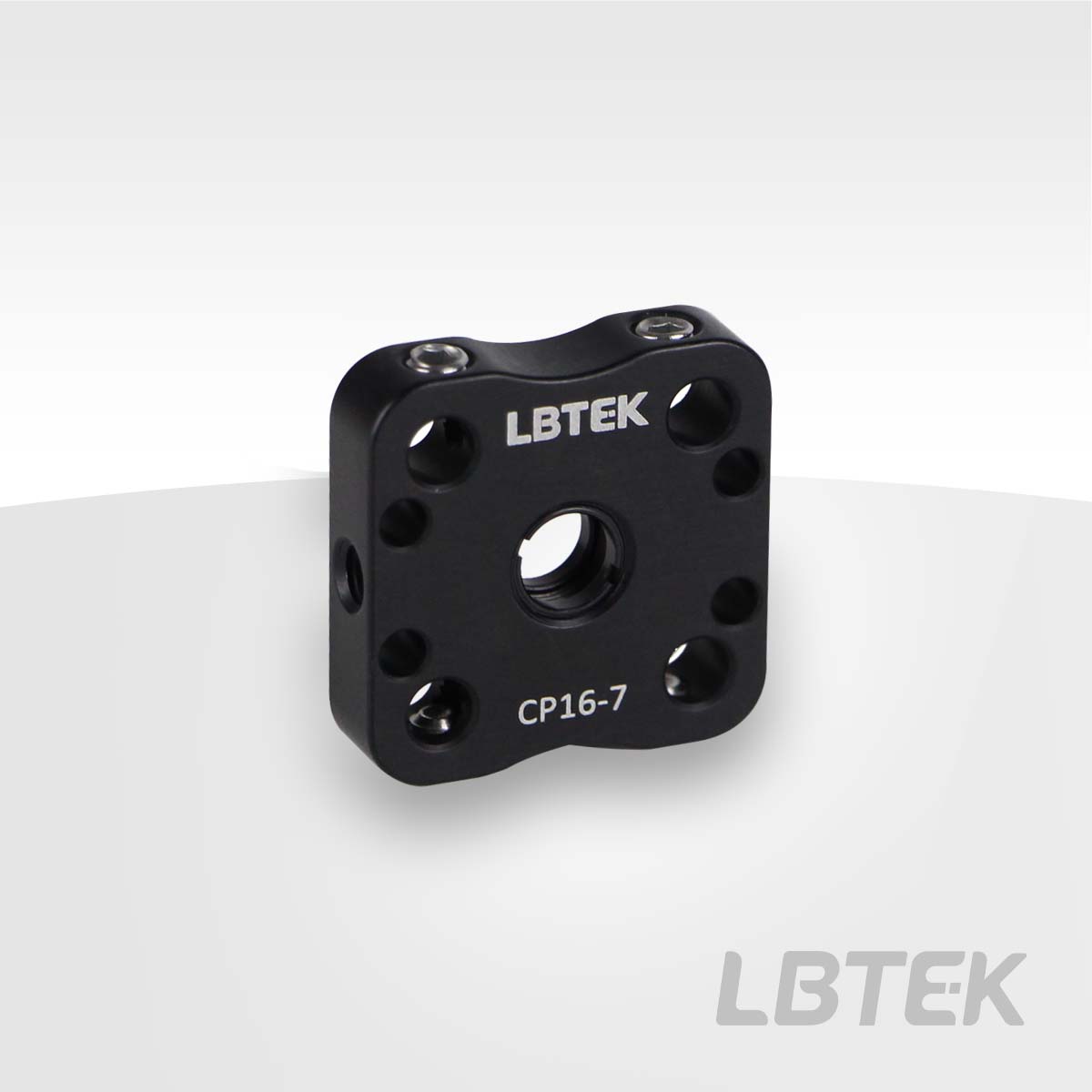

16 mm coaxial mounting plate for installing optical components with diameters from Ø5 mm to Ø12 mm
- Double snap rings for securing optical components, compatible with optical component diameters: Ø5 mm~Ø12 mm
- Comes with 4 coaxial through holes for mounting Ø4 mm rods
- Side M4 threaded holes for secure attachment to rods
- Mounts to 16 mm coaxial cubes using M2.5 pan head screws
LBTEK 16 mm Coaxial Mounting Plate CP16-XX features dual retaining rings for securing optical components, compatible with optical elements ranging from Ø5 mm to Ø12 mm in diameter, designed with a compact structure. It includes four coaxial through-holes for mounting Ø4 mm posts, secured by side M4 set screws adjustable with a 2.0 mm hex wrench. Both sides are equipped with M4 threaded holes for direct attachment to posts. Additionally, it can be mounted onto 16 mm coaxial cubes using four M2.5 pan head screws.
Application Installation Diagram
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| CP16-5 | Ø5 mm | 2.6 mm | $18.43 | 7 weeks | |||
| CP16-6 | Ø6 mm | 3.2 mm | $18.43 | 7 weeks | |||
| CP16-7 | Ø7 mm | 3.2 mm | $18.43 | 7 weeks | |||
| CP16-8 | Ø8 mm | 4.4 mm | $18.43 | 7 weeks | |||
| CP16-9 | Ø9 mm | 4.4 mm | $18.43 | 7 weeks | |||
| CP16-10 | Ø10 mm | 4.4 mm | $18.43 | 7 weeks | |||
| CP16-11 | Ø11 mm | 4.4 mm | $18.43 | 7 weeks | |||
| CP16-12 | Ø12 mm | 4.4 mm | $18.43 | 7 weeks |

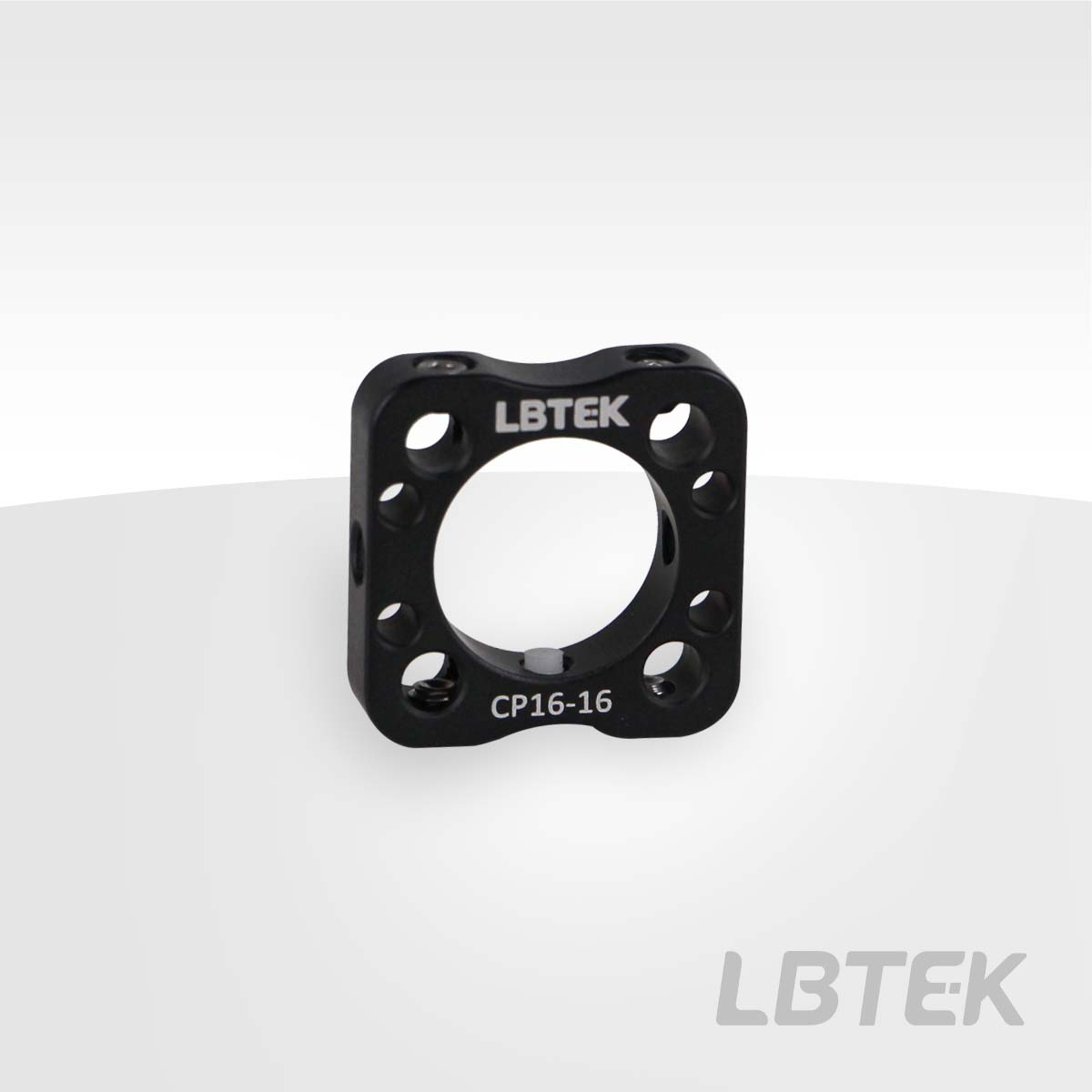

16 mm coaxial mounting plate for installing Ø16 mm optical components
- Rubber-tip set screw secures Ø16 mm optics
- 4 coaxial through holes for mounting Ø4 mm posts
- Side M4 threaded holes for mounting to posts
- Mounts to 16 mm coaxial cubes with M2.5 pan head screws
LBTEK 16 mm Coaxial Mounting Plate CP16-16, secured with adhesive head set screws for Ø16 mm optical components, features a compact structural design. It includes four coaxial through-holes for mounting Ø4 mm posts, fixed via side M4 set screws and adjustable with a 2.0 mm hex wrench. Both sides are equipped with M4 threaded holes for direct mounting onto posts. Additionally, it can be installed onto a 16 mm coaxial cube using four M2.5 pan head screws.
Application Installation Diagram
Product Model | Applicable optical element diameter | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| CP16-16 | Ø16 mm | $16.6 | 7 weeks |
