Product Description
- Fiber collimated output
- Free-space light-to-fiber coupling
- FC/PC interface, FC/APC interface, SMA connector optional
- Wide spectrum applicable
The LBTEK reflective collimator is precisely assembled with off-axis parabolic mirrors and housed in a stainless steel casing. It features an additional 25.4 mm/50.8 mm adapter for direct installation into LBTEK's 25.4 mm/50.8 mm mounting components. The integrated off-axis parabolic mirror ensures that the focal length remains constant across a broad wavelength range. Due to this inherent property, the reflective collimator can collimate light of different wavelengths without requiring adjustment, making it an ideal choice for collimating polychromatic light. It is commonly used in broadband light source systems, infrared beam collimation/coupling systems, and polychromatic light coupling systems.

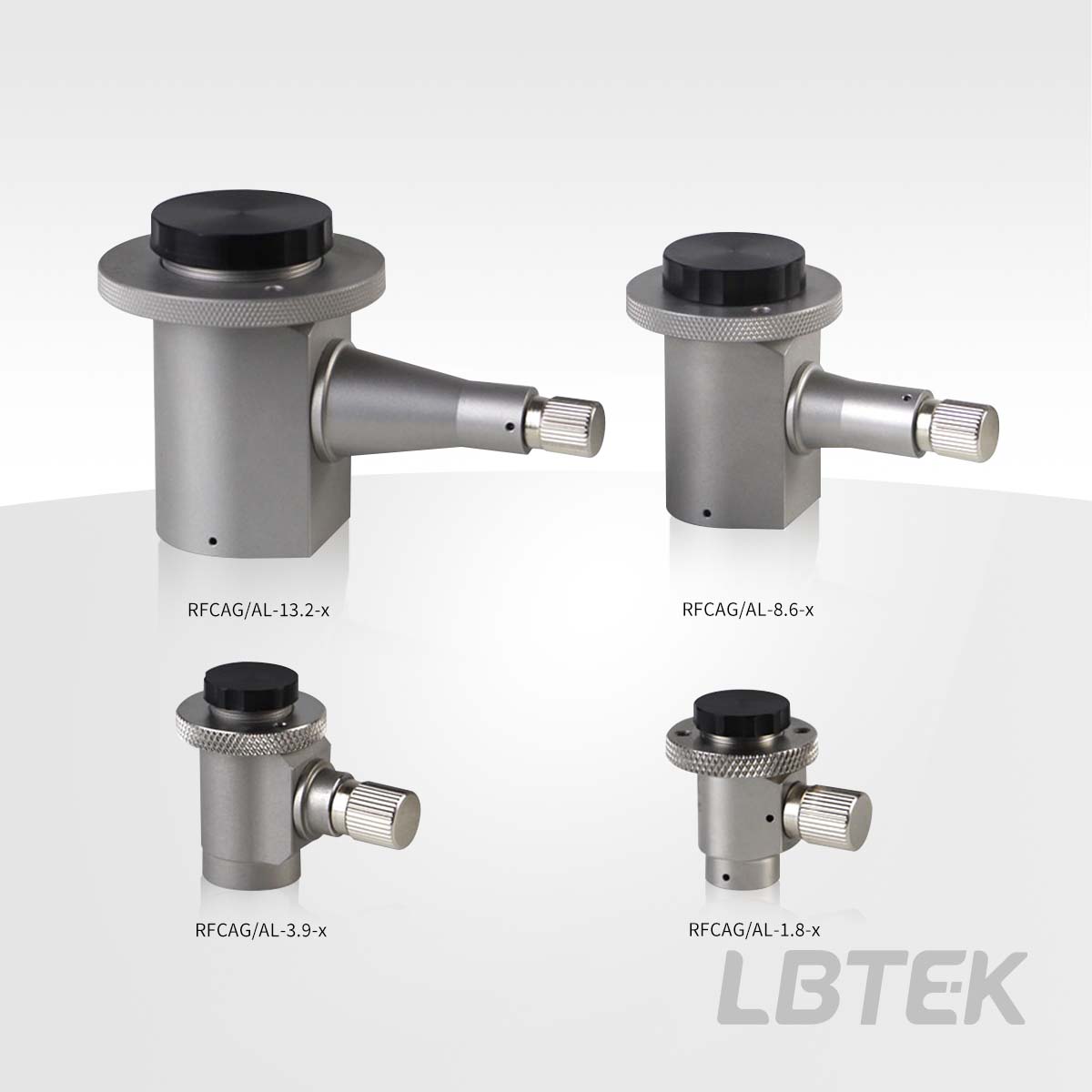

Reflective collimator with UV-enhanced aluminum coating, 250 nm-450 nm
- Working wavelength 250 nm-450 nm
- Multiple output spot options available
- Fiber connector: FC/PC, FC/APC, SMA optional
The LBTEK reflective fiber collimator can operate in the 250 nm-450 nm wavelength range, with optional output spot sizes available. It is compatible with fibers featuring FC/PC, FC/APC, or SMA connectors. As shown in the assembly diagram, the LBTEK reflective collimator can be paired with various mirror mounts to enable three-axis angular adjustment of the output spatial beam.
RFCAL-3.9-APC installed in AMC-1B
Product Model | Reflective Focal Length | Theoretical spot diameter<sup>a</sup> | Interface Type | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| RFCAL-13.2-SMA | 50.8 mm | 13.2 mm | SMA | $889.69 | 5 weeks | |||
| RFCAL-13.2-PC | 50.8 mm | 13.2 mm | FC/PC | $889.69 | 5 weeks | |||
| RFCAL-13.2-APC | 50.8 mm | 13.2 mm | FC/APC | $889.69 | 5 weeks | |||
| RFCAL-8.6-SMA | 33 mm | 8.6 mm | SMA | $729.14 | 5 weeks | |||
| RFCAL-8.6-PC | 33 mm | 8.6 mm | FC/PC | $729.14 | 5 weeks | |||
| RFCAL-8.6-APC | 33 mm | 8.6 mm | FC/APC | $729.14 | 5 weeks | |||
| RFCAL-3.9-SMA | 15 mm | 3.9 mm | SMA | $761.83 | 5 weeks | |||
| RFCAL-3.9-PC | 15 mm | 3.9 mm | FC/PC | $761.83 | 5 weeks | |||
| RFCAL-3.9-APC | 15 mm | 3.9 mm | FC/APC | $761.83 | 5 weeks | |||
| RFCAL-1.8-SMA | 7 mm | 1.8 mm | SMA | $761.83 | 5 weeks | |||
| RFCAL-1.8-PC | 7 mm | 1.8 mm | FC/PC | $761.83 | 5 weeks | |||
| RFCAL-1.8-APC | 7 mm | 1.8 mm | FC/APC | $761.83 | 5 weeks |

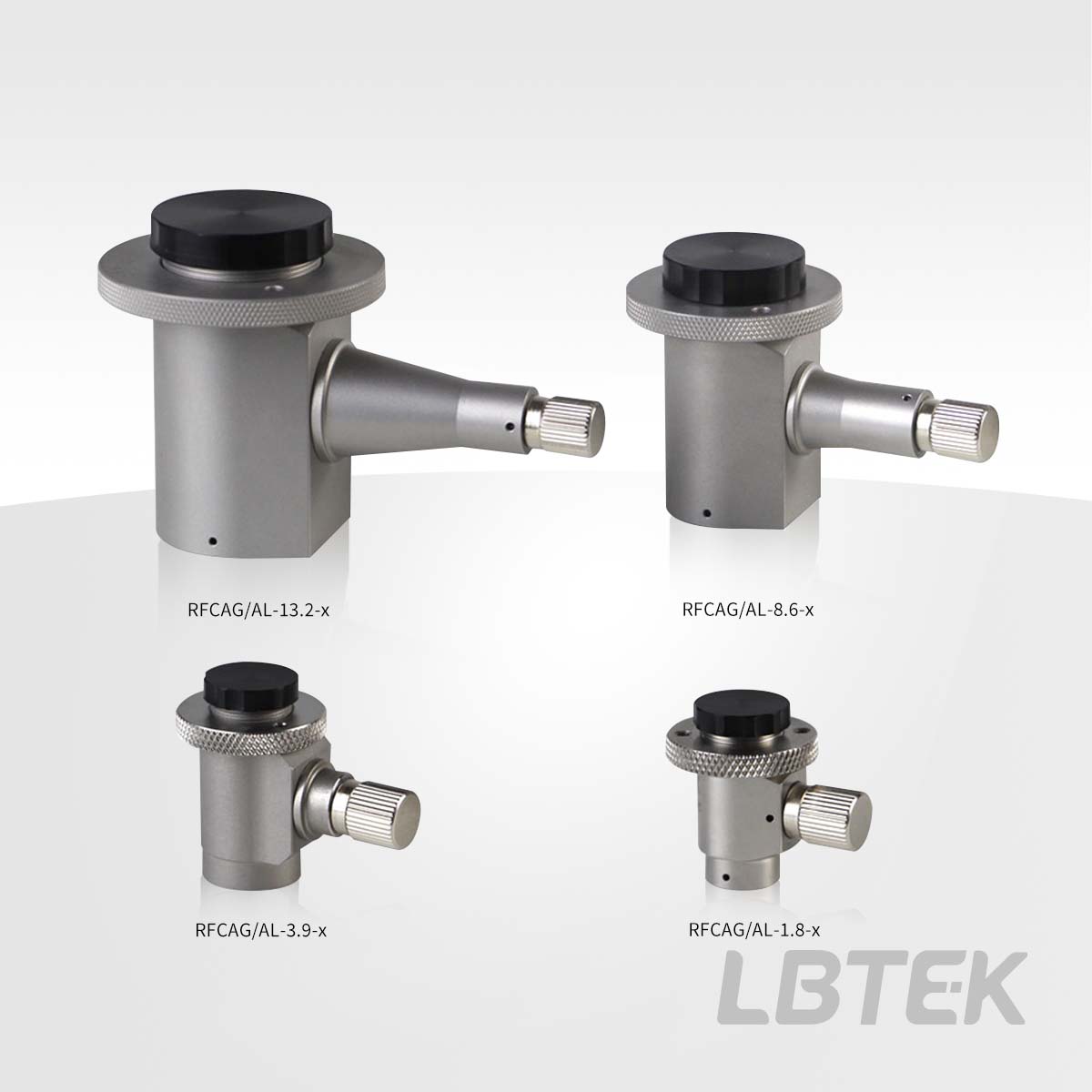

Reflective collimator with protective silver film, 450 nm - 20.0 μm
- Working wavelength 450 nm-20.0 μm
- Multiple output spot options available
- Fiber connector: FC/PC, FC/APC, SMA optional
The LBTEK reflective fiber collimator can operate in a wavelength range of 450 nm to 20 μm, with optional output beam spot sizes. It is compatible with fibers featuring FC/PC, FC/APC, or SMA connectors. As shown in the assembly diagram, the LBTEK reflective collimator can be paired with various mirror mounts to enable three-axis angular adjustment of the output spatial beam.
RFCAL-3.9-APC installed in AMC-1B
Product Model | Reflective Focal Length | Theoretical spot diameter<sup>a</sup> | Interface Type | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| RFCAG-13.2-SMA | 50.8 mm | 13.2 mm | SMA | $889.69 | 5 weeks | |||
| RFCAG-13.2-PC | 50.8 mm | 13.2 mm | FC/PC | $889.69 | 5 weeks | |||
| RFCAG-13.2-APC | 50.8 mm | 13.2 mm | FC/APC | $889.69 | 5 weeks | |||
| RFCAG-8.6-SMA | 33 mm | 8.6 mm | SMA | $729.14 | 5 weeks | |||
| RFCAG-8.6-PC | 33 mm | 8.6 mm | FC/PC | $729.14 | 5 weeks | |||
| RFCAG-8.6-APC | 33 mm | 8.6 mm | FC/APC | $729.14 | 5 weeks | |||
| RFCAG-3.9-SMA | 15 mm | 3.9 mm | SMA | $761.83 | 5 weeks | |||
| RFCAG-3.9-PC | 15 mm | 3.9 mm | FC/PC | $761.83 | 5 weeks | |||
| RFCAG-3.9-APC | 15 mm | 3.9 mm | FC/APC | $761.83 | 5 weeks | |||
| RFCAG-1.8-SMA | 7 mm | 1.8 mm | SMA | $761.83 | 5 weeks | |||
| RFCAG-1.8-PC | 7 mm | 1.8 mm | FC/PC | $761.83 | 5 weeks | |||
| RFCAG-1.8-APC | 7 mm | 1.8 mm | FC/APC | $761.83 | 5 weeks |
Reflective collimator adapter
- Material: 300 Series Stainless Steel
- Reflective collimator adapter for SM1 thread mounting
- Sandblasted surface processing
LBTEK threaded adapters are all made of 300 series stainless steel with a sandblasted surface finish. They are used to adapt reflective collimators with external threads of M20×0.8 and M28×0.8 to SM1 threads. Among them, RFCAGA1 is suitable for M20×0.8 reflective collimators, while RFCAGA2 is suitable for M28×0.8 reflective collimators.

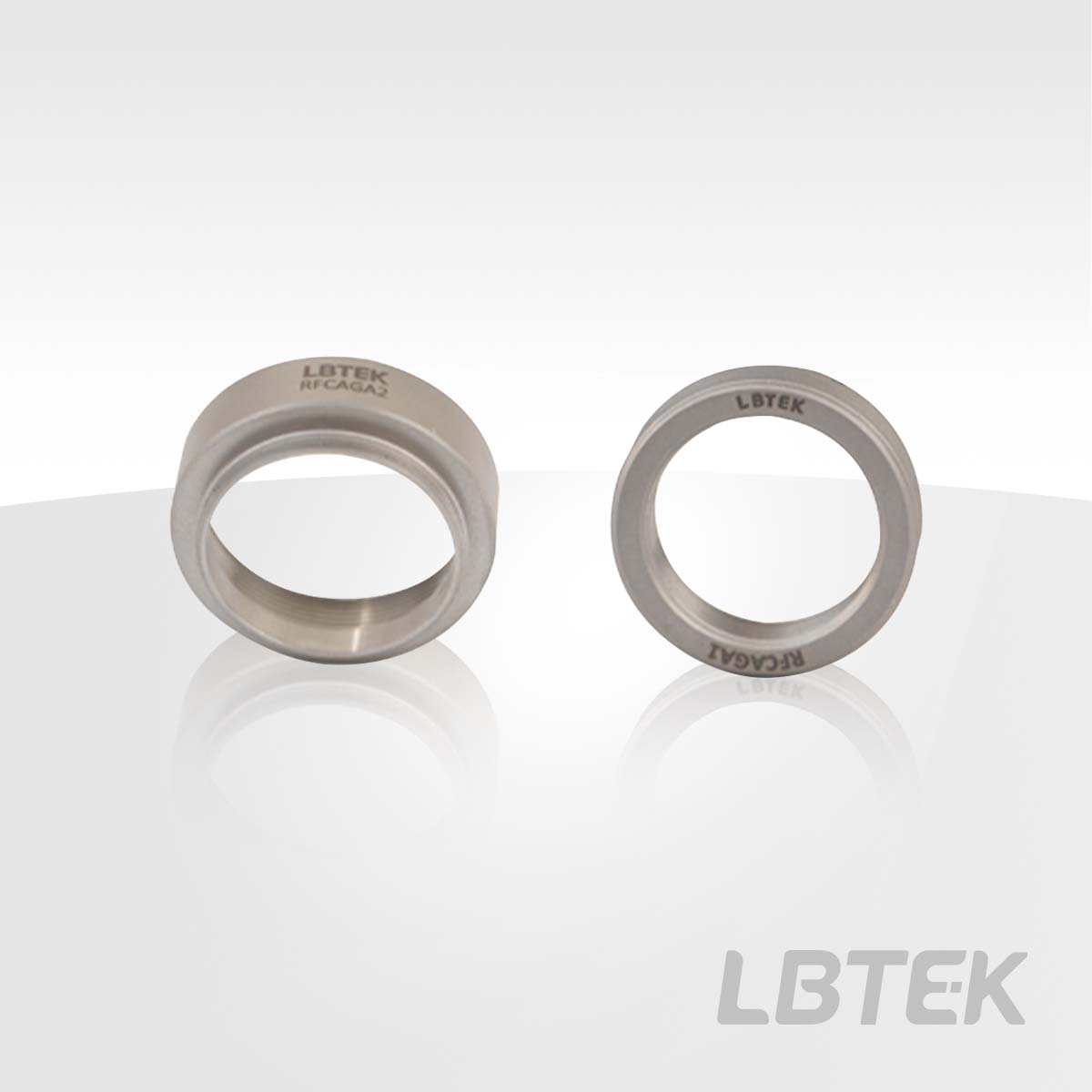

RFCAG-8.6-SMA to AMM5-1A adapter
Product Model | Thread specification | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| RFCAGA2 | M28×0.8 internal thread, SM1 external thread | $7.84 | 7 weeks | |||
| RFCAGA1 | M20×0.8 internal thread, SM1 external thread | $6.54 | 7 weeks |
