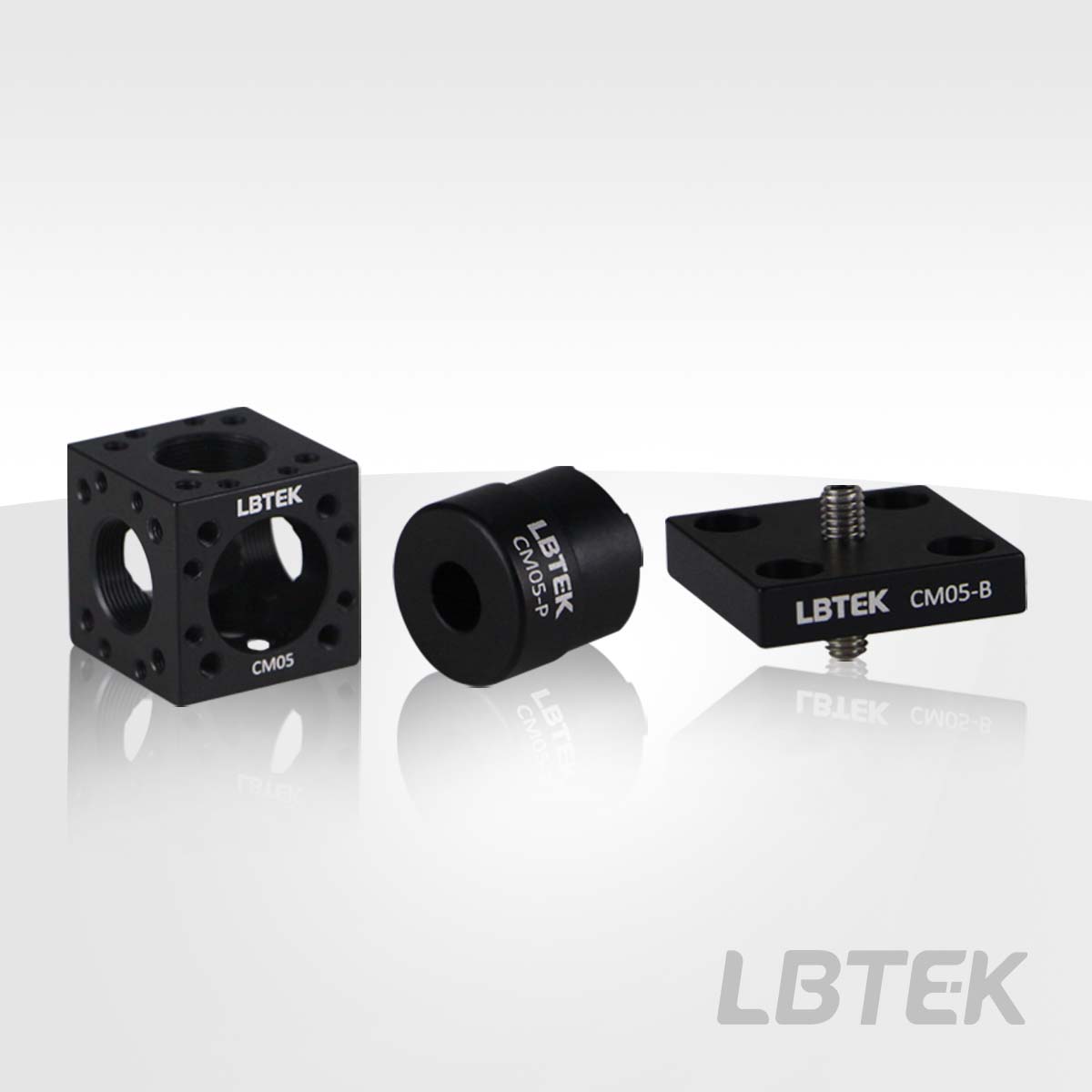

The LBTEK 16 mm coaxial cube mount is compatible with 16 mm coaxial systems. The CM05 cube, when used with the pressure plate CM05-B and mount CM05-P, can accommodate prisms or cubes with a side length of 10 mm. The CM05 cube features SM05 threaded through-holes on all four sides for integrating additional accessories, such as SM05 threaded sleeves. Additionally, each side includes M3 and M2.5 threaded holes. The M3 threaded holes allow for the extension of Ø4 mm coaxial rods, while the M2.5 threaded holes enable direct connection to 16 mm coaxial plates. The pressure plate CM05-B and mount CM05-P work together to secure optical components within the cube. The M4 rubber-tipped set screw at the center of CM05-B is used to clamp optical components and can be adjusted using a 2 mm hex key. The included M3 cylindrical head screws can be used to fasten the plate to the CM05 cube. The CM05-P mount is designed to install prisms or cube optical components with a height of up to 10 mm into the CM05 cube or other optical devices featuring Ø16.1 mm smooth-walled holes. When installed in the CM05 cube, the mount can rotate 360 degrees for coarse adjustment and includes a central through-hole to allow laser beams to pass through. Once adjusted to the desired position, it can be secured using the M4 rubber-tipped screws on the cube. When installed in other optical devices with Ø16.1 mm smooth-walled holes, adhesive is required to fix the optical components.
