Product Description
- FC/PC, FC/APC, SMA Three Interfaces
- Optical Axis Height 12.5 mm
- Convex Groove Positioning, Quick Installation

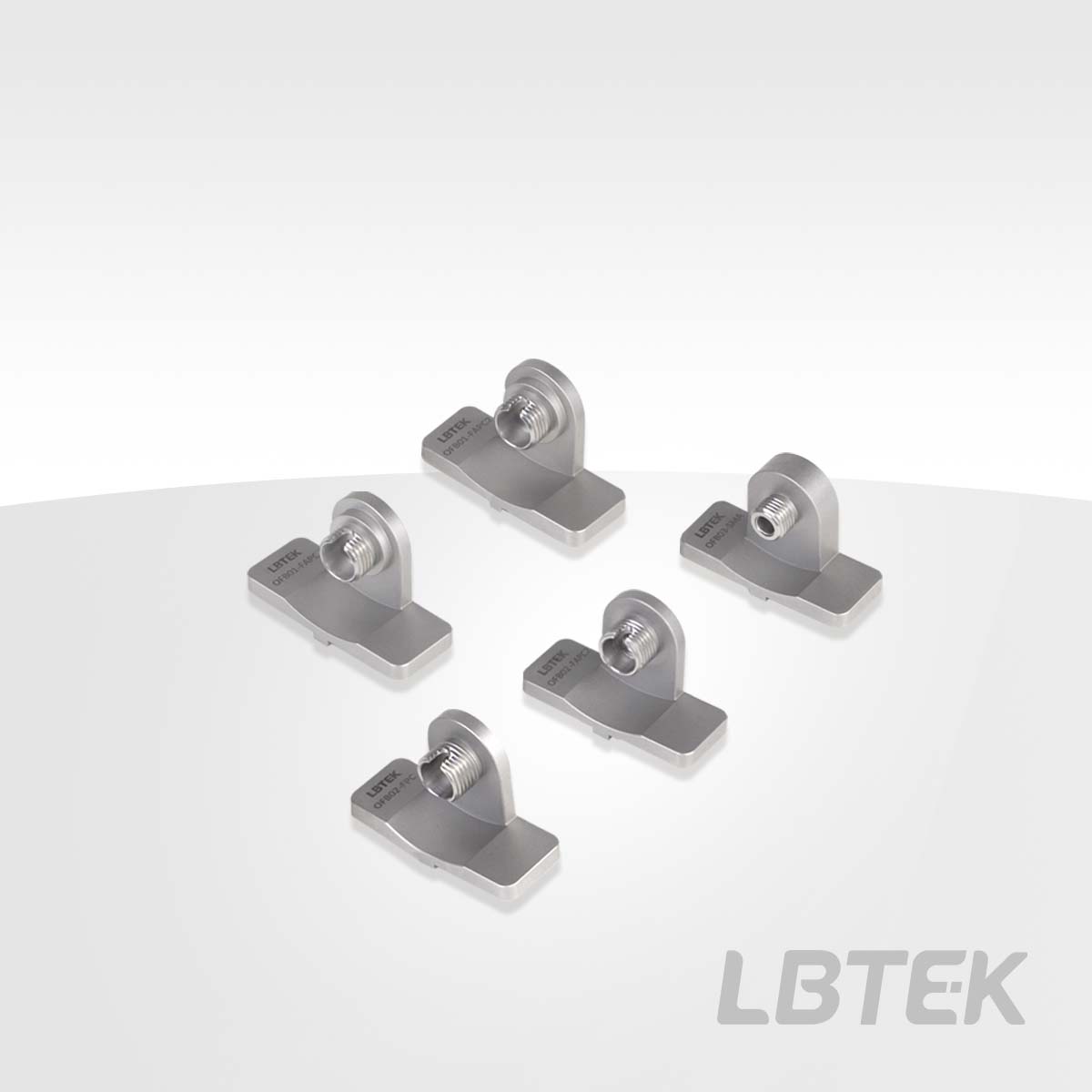

The LBTEK fiber optic bracket is designed for use with multi-axis translation stages. Each bracket positions the center of the connector 12.5 mm above the stage platform, a design that virtually eliminates minute vibrations at the fiber end while significantly improving positioning repeatability. For FC/PC and FC/APC connector fibers, optional wide-key (2.2 mm) or narrow-key (2.0 mm) slots are available. All adapters are manufactured from 304 stainless steel and undergo electromagnetic demagnetization treatment.
Attribute
Material304 Stainless Steel
Surface treatmentElectromagnetic demagnetization treatment (Note: Weak magnetic force remains after demagnetization)
Optical axis center height12.5 mm
OFB Series Fiber Optic Bracket
- With FC/PC, FC/APC, SMA Interfaces
- For Multi-Axis Translation Stages
- Groove Positioning, Quick Installation
The LBTEK fiber optic bracket is designed for multi-axis translation stages, with the boss position installed in the groove of the stage's top plate for quick positioning. Installation and fixation methods include optional accessories such as FF05 fixing clips, CP20 clamping plates, and AC270M adjustable clamping plates (fixing accessories need to be purchased separately). Tighten the installation on both sides of the fiber optic mount to maintain the optical axis center height at 12.5 mm.
The fiber optic patch cord is inserted into the fiber optic holder and mounted on the LS60G-XYZ three-axis translation stage.
Product Model | Connector Type | Thread specification | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| OFB01-FAPC | FC/APC, Wide Key (2.2 mm) | M8 external thread | $38.83 | 6 weeks | |||
| OFB01-FAPC2 | FC/APC, Narrow Key (2 mm) | M8 external thread | $38.83 | 6 weeks | |||
| OFB02-FPC | FC/PC, Wide Key (2.2 mm) | M8 External Thread | $36.08 | 6 weeks | |||
| OFB02-FPC2 | FC/PC, Narrow Key (2 mm) | M8 External Thread | $36.08 | 6 weeks | |||
| OFB03-SMA | SMA | 1/4-36-UNS-2A | $34.78 | 6 weeks |
