Product Description
  • Optical Material: N-BK7
  • Working Wavelength: 350 nm-2.0 um
  • Drilled centering hole

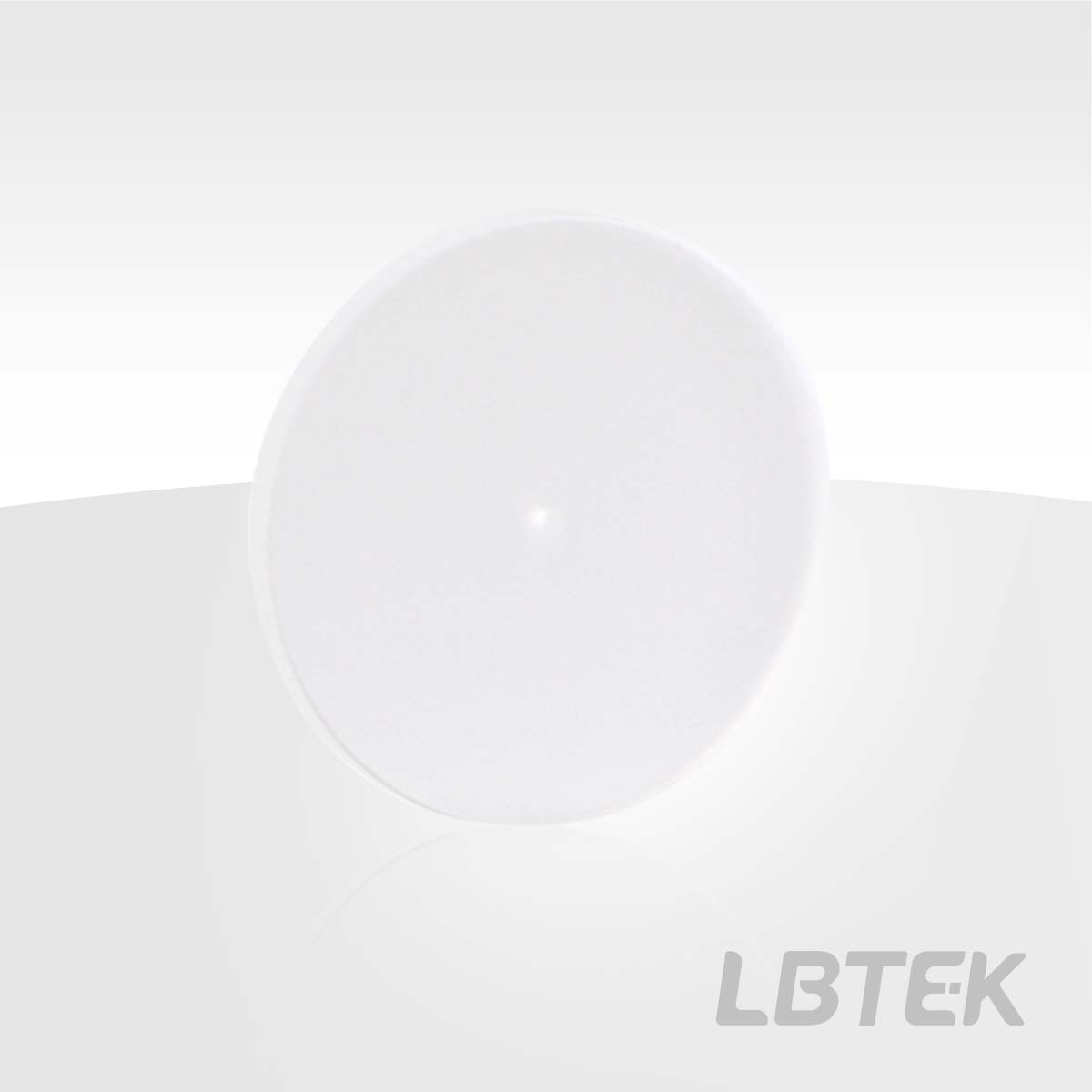

The N-BK7 Ground Glass Alignment Disk is made of double-sided ground glass scattering sheets. Due to the high diffuse reflection and diffuse reflection characteristics of frosted glass, users can see the beam size and spot position from the side. It can be used to observe the beam status in the optical path and facilitate users to adjust the optical path in real time. The LBTEK Ground Glass Alignment Disk has a drilled centering hole to help users better observe the position of the outgoing beam. LBTEK also provides special size customization services, please contact LBTEK technical support if needed.
Attribute
Optical component materialN-BK7
Clear Aperture>90% CA
Ground Glass Alignment Disks
  • Substrate Material: N-BK7
  • Operating Wavelength: 350 nm-2.0 um

The N-BK7 Ground Glass Alignment Disk is made of ground glass diffuser. Due to the diffuse reflection properties of ground glass, the user can see the beam size and spot position from the side, allowing for observation of the beam status within the optical path and facilitating real-time optical path adjustments. The LBTEK Ground Glass Alignment Disk features an alignment hole in the center, allowing the user to clearly observe the outgoing beam position. All LBTEK circular optical components can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can select the optimal mounting method for their specific application.

LBTEK Unmounted  Ground Glass Alignment Disk is used for compact system setup

Product Model
Diameter
Center hole size
Sand count
Thickness
Unit Price
Compare
Lead Time
AP1101-1500 25.4 mm1 mmDouble-sided 1500 grit2.0 mm$21.836 weeks
