Product Description

Optical Material: N-BK7
Available in both single-side and double-side ground versions
Grit options: 120, 220, 600, 1500
Uncoated and AR-coated versions available

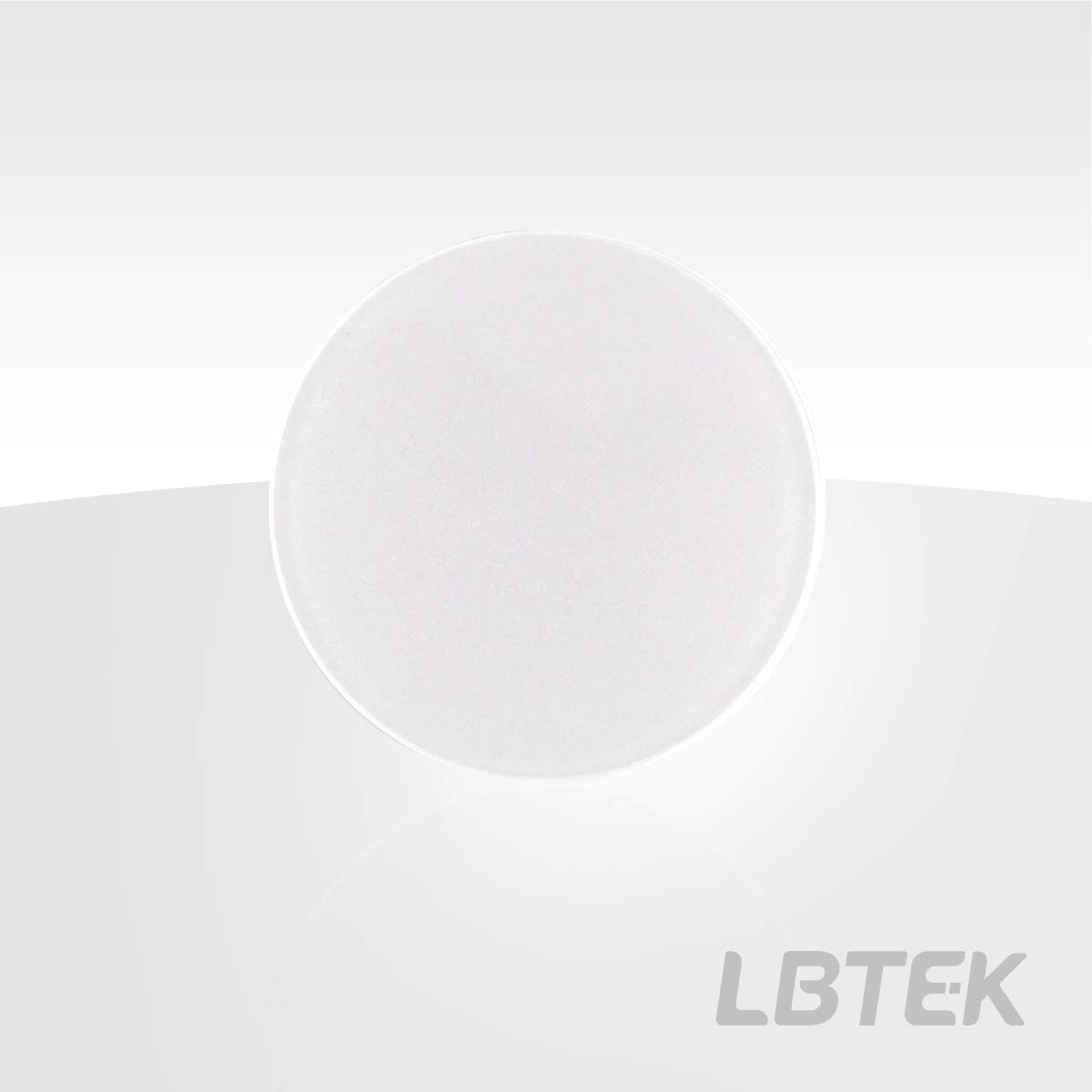

N-BK7 ground glass diffusers can be used in a variety of applications requiring a Gaussian diffuser. When in use, the ground surface should be positioned away from the light source. LBTEK ground glass diffusers are available in three sizes: 12.7 mm, 25.4 mm, and 50.8 mm in diameter. Single-sided and double-sided ground are available. Single-sided ground is available in uncoated and AR-coated options from 400 nm to 700 nm. LBTEK also offers custom diffusers with AR coatings from 700 nm to 1100 nm and 1100 nm to 1700 nm. LBTEK offers a variety of ground finishes to accommodate a wide range of scattering applications, from fine to coarse. Generally speaking, coarse grit (120, 220) provides greater diffuse scattering but lower transmittance, while fine grit (600, 1500) reduces diffuse scattering but offers higher transmittance. LBTEK also provides customized an ti-reflection coating services for 700 nm-1100 nm and 1100 nm-1700 nm. For specific customization requirements, please contact LBTEK technical support.

Attribute

Optical component materialN-BK7

Thickness2.0 mm

Thickness tolerance±0.2 mm

Surface finish (scratches/pits)80/50

Flatness of polished surface (optical flatness)8

Clear Aperture>90% CA

Parallelism≤3 arcmin

Product Model	Diameter	Sand count	Matte Surface	Unit Price	Lead Time
DW120-1500D	50.8 mm	1500 grit	Double-sided	$17.13	6 weeks
DW120-220D	50.8 mm	220 grit	Double-sided	$17.13	6 weeks
DW120-600D	50.8 mm	600 grit	Double-sided	$17.13	6 weeks
DW120-120D	50.8 mm	120 grit	Double-sided	$17.26	6 weeks
DW110-1500D	25.4 mm	1500 grit	Double-sided	$14.64	6 weeks
DW110-600D	25.4 mm	600 grit	Double-sided	$14.64	6 weeks
DW110-220D	25.4 mm	220 grit	Double-sided	$14.64	6 weeks
DW110-120D	25.4 mm	120 grit	Double-sided	$14.25	6 weeks
DW105-1500D	12.7 mm	1500 grit	Double-sided	$12.16	6 weeks
DW105-600D	12.7 mm	600 grit	Double-sided	$12.16	6 weeks
DW105-220D	12.7 mm	220 grit	Double-sided	$12.16	6 weeks
DW105-120D	12.7 mm	120 grit	Double-sided	$12.16	6 weeks
DW120-600	50.8 mm	600 grit	Single-sided	$16.08	6 weeks
DW120-220	50.8 mm	220 grit	Single-sided	$16.08	6 weeks
DW110-120	25.4 mm	120 grit	Single-sided	$14.25	6 weeks
DW105-1500	12.7 mm	1500 grit	Single-sided	$12.16	6 weeks
DW105-600	12.7 mm	600 grit	Single-sided	$12.16	6 weeks
DW105-220	12.7 mm	220 grit	Single-sided	$12.16	6 weeks
DW105-120	12.7 mm	120 grit	Single-sided	$12.16	6 weeks
DW120-1500	50.8 mm	1500 grit	Single-sided	$17.13	6 weeks
DW120-120	50.8 mm	120 grit	Single-sided	$17.13	6 weeks
DW110-1500	25.4 mm	1500 grit	Single-sided	$14.64	6 weeks
DW110-600	25.4 mm	600 grit	Single-sided	$14.64	6 weeks
DW110-220	25.4 mm	220 grit	Single-sided	$14.64	6 weeks

Ground Glass Diffusers, AR Coating 400 nm-700 nm

Substrate Material: N-BK7
Anti-Reflection Coating 400 nm-700 nm
120 Grit, 220 Grit, 600 Grit, 1500 Grit Optional

LBTEK offers a variety of ground & polished surfaces in various specifications, enabling a wide range of scattering applications, from fine to coarse. Generally speaking, coarse grit (120, 220) provides greater diffuse scattering but lower transmittance, while fine grit (600, 1500) reduces diffuse scattering but offers higher transmittance. LBTEK circular frosted glass diffusers can be mounted on LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. The optimal mounting method can be selected for each application scenario. In addition to standard products, LBTEK also offers custom AR coatings for 700 nm-1100 nm and 1100 nm-1700 nm. Please contact LBTEK technical support for specific customization requirements.

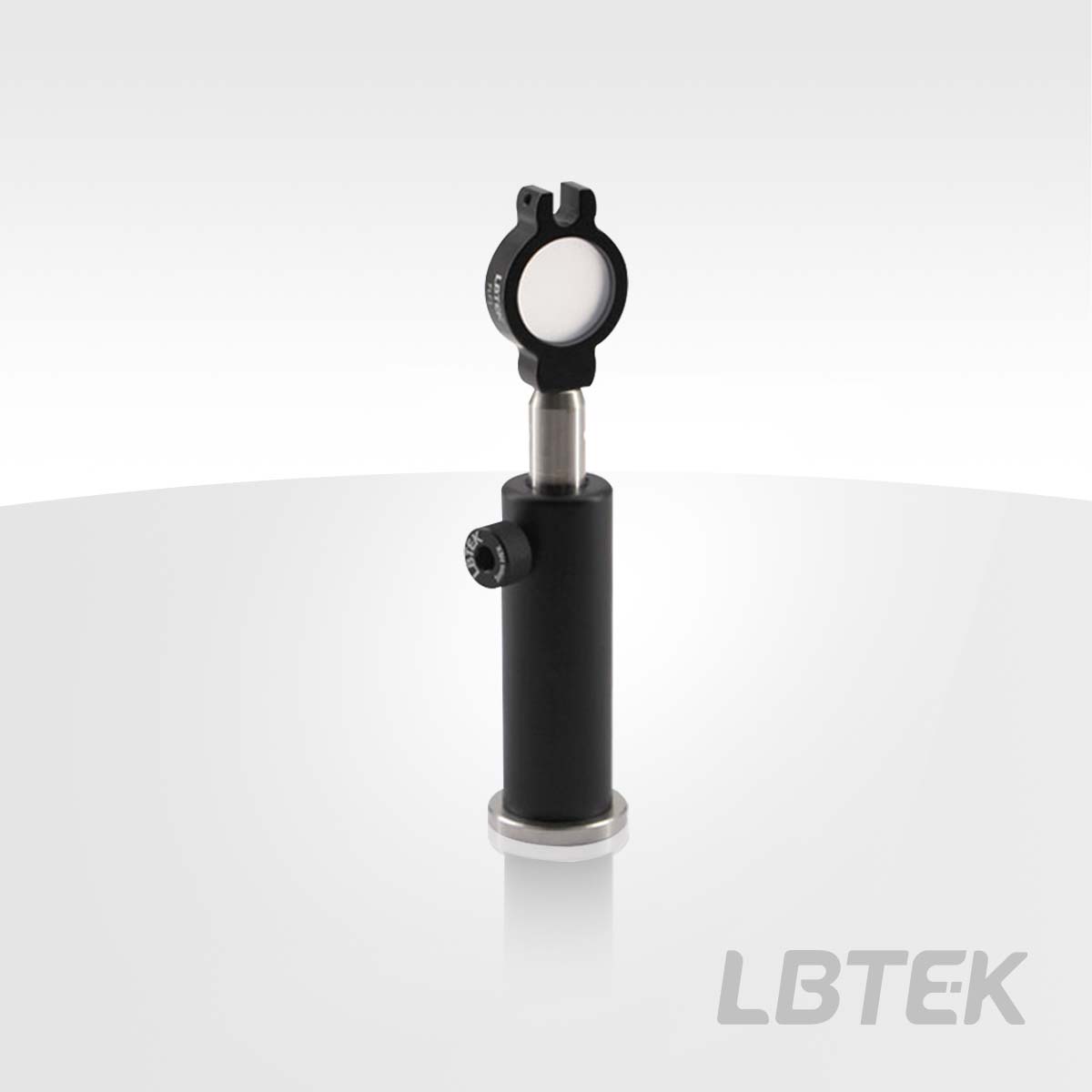

The Ground Glass Diffuser is installed on the lens mount FLF1.

Product Model	Diameter	Sand count	Unit Price	Lead Time
DW110-1500-A-SP	25.4 mm	1500 grit	$31.51	6 weeks
DW110-600-A-SP	25.4 mm	600 grit	$31.51	6 weeks
DW110-220-A-SP	25.4 mm	220 grit	$31.51	6 weeks
DW110-120-A-SP	25.4 mm	120 grit	$31.51	6 weeks
