Product Description

Covering ultraviolet, visible, and near-infrared spectral ranges
C-T optical path structure
2.5 nm spectral resolution
High stability
Low temperature drift characteristics

LBTEK's High-Stability Fiber Optic Spectrometer adopts the Czerny-Turner optical path structure, specially designed for high-stability application scenarios. The internal components are assembled with stress-free installation, ensuring excellent operational stability. The overall structure is stable with outstanding low-temperature drift characteristics, making it suitable for applications requiring high stability and long-term monitoring. LBTEK provides the LBSpectra control software specifically developed for spectrometers, allowing users to perform routine operations on spectral curves through the software. When paired with various spectral application kits offered by LBTEK, it enables the detection of parameters such as reflectance and transmittance. Additionally, with the dedicated chromaticity dynamic library, it can easily and quickly achieve the measurement and application of CIE standard colorimetric parameters.

Attribute

Fiber optic interfaceSMA905

Linear Correction Degree99.8%

Optical DesignCzerny-Turner optical path

A/D16-bit

Slit width50 µm

High-Stability Fiber Optic Spectrometers

Operating Wavelength: 350-1100 nm
Signal-to-Noise Ratio: 400:1
Optical Resolution: 2.5 nm
Integration Time: 0.1 ms-10 s

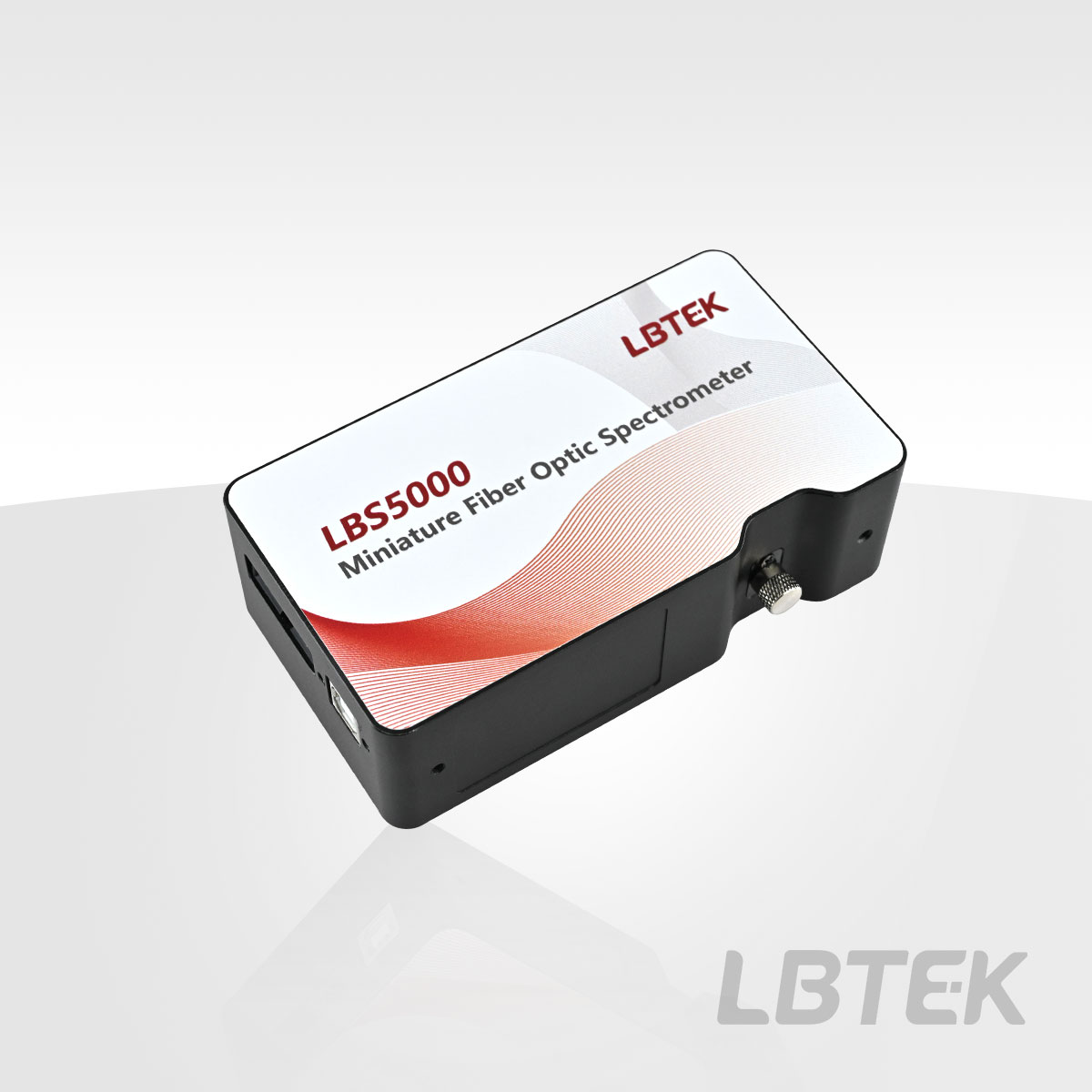

The LBTEK LBS5000 is a spectrometer specifically optimized for high-stability application scenarios, with a wavelength response range of 350-1100 nm. The LBS5000 spectrometer is designed based on the Czerny-Turner structure, featuring a spectral resolution of less than 2.5 nm (depending on the wavelength range and the choice of entrance slit). It features outstanding performance and high stability, with a main wavelength stability of ±0.1 nm and a color coordinate stability of up to ±0.0002. The LBS5000 spectrometer utilizes a Hamamatsu high-sensitivity 2048-pixel linear CMOS sensor, combined with optimized grating and lens design, delivering excellent signal-to-noise ratio. Whether in laboratory research or industrial applications, the LBS5000 spectrometer from LBTEK provides users with exceptional performance and stability, meeting demanding spectral analysis requirements and offering reliable spectral measurement and analysis services.

Application Diagram of LBS5000 Spectrometers

	Product Model	Wavelength range	Spectral Resolution	Signal-to-noise ratio	Unit Price	Compare	Lead Time
	LBS5000	350-1100 nm	2.5 nm (50 µm slit)	400:1	$2002.95		4 weeks
