Product Description

High return loss, low insertion loss, and low polarization dependence
Primarily for fiber laser and test instrument applications
Multiple wavelength ranges available

The LBTEK single-mode patch cord series features excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making it an ideal choice for fiber laser and test instrument applications. LBTEK single-mode fiber patch cords are non-polarization-maintaining, with a wavelength range selectable from 400 nm to 1600 nm. Currently available connector types include FC/PC, FC/APC, and SMA, with a standard loose tube diameter of 0.9 mm. For other custom requirements, please contact LBTEK Technical Support.

Attribute

Wavelength range400 nm-1600 nm optional

Fiber TypeNon-polarization maintaining fiber optic patch cord

Single-mode fiber optic patch cord, FC/PC connector, Ø0.9 mm protective jacket

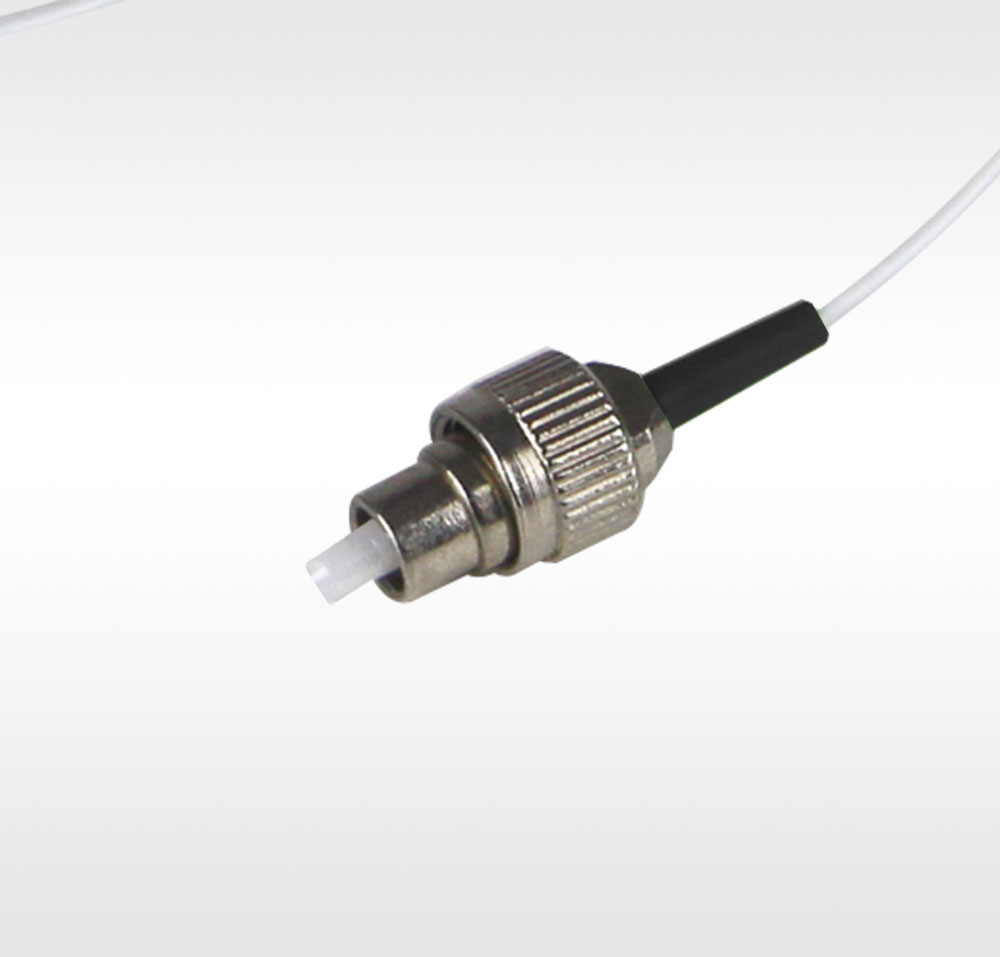

Single-mode fiber optic patch cord, FC/PC connector
Minimum return loss: 50dB
Loose tube diameter: 0.9 mm

LBTEK single-mode fiber patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. Among them, single-mode fiber patch cords with FC/PC connectors offer the wavelength range from 400 nm to 1600 nm, the loose tube diameter of 0.9 mm, and the minimum return loss of 50 dB. Note: FC/PC and FC/UPC differ only in polishing methods, hence they are collectively referred to as FC/PC connectors.

FC/PC Connectors

Product Model	Wavelength range	Fiber length	Connector Type	Unit Price	Lead Time
C460-PC-L-5	450 nm-600 nm	5.0 m	FC/PC	$106.29	7 weeks
C630-PC-L-5	600 nm-770 nm	5.0 m	FC/PC	$116.36	6 weeks
C405-PC-L-5	400 nm-550 nm	5.0 m	FC/PC	$134.27	7 weeks
C405-PC-L-2	400 nm-550 nm	2.0 m	FC/PC	$80.8	7 weeks
C630-PC-L-2	600 nm-770 nm	2.0 m	FC/PC	$78.58	6 weeks
C460-PC-L-2	450 nm-600 nm	2.0 m	FC/PC	$78.58	7 weeks
C780-PC-L-5	780 nm-970 nm	5.0 m	FC/PC	$77.27	6 weeks
C780-PC-L-2	780 nm-970 nm	2.0 m	FC/PC	$52.03	6 weeks
C980-PC-L-5	980 nm-1200 nm	5.0 m	FC/PC	$86.29	6 weeks
C980-PC-L-2	980 nm-1200 nm	2.0 m	FC/PC	$64.46	6 weeks
CSM28E-PC-L-5	1300 nm-1600 nm	5.0 m	FC/PC	$24.84	6 weeks
CSM28E-PC-L-2	1300 nm-1600 nm	2.0 m	FC/PC	$23.01	6 weeks

Single-mode fiber optic patch cord, FC/APC connector, Ø0.9 mm protective jacket

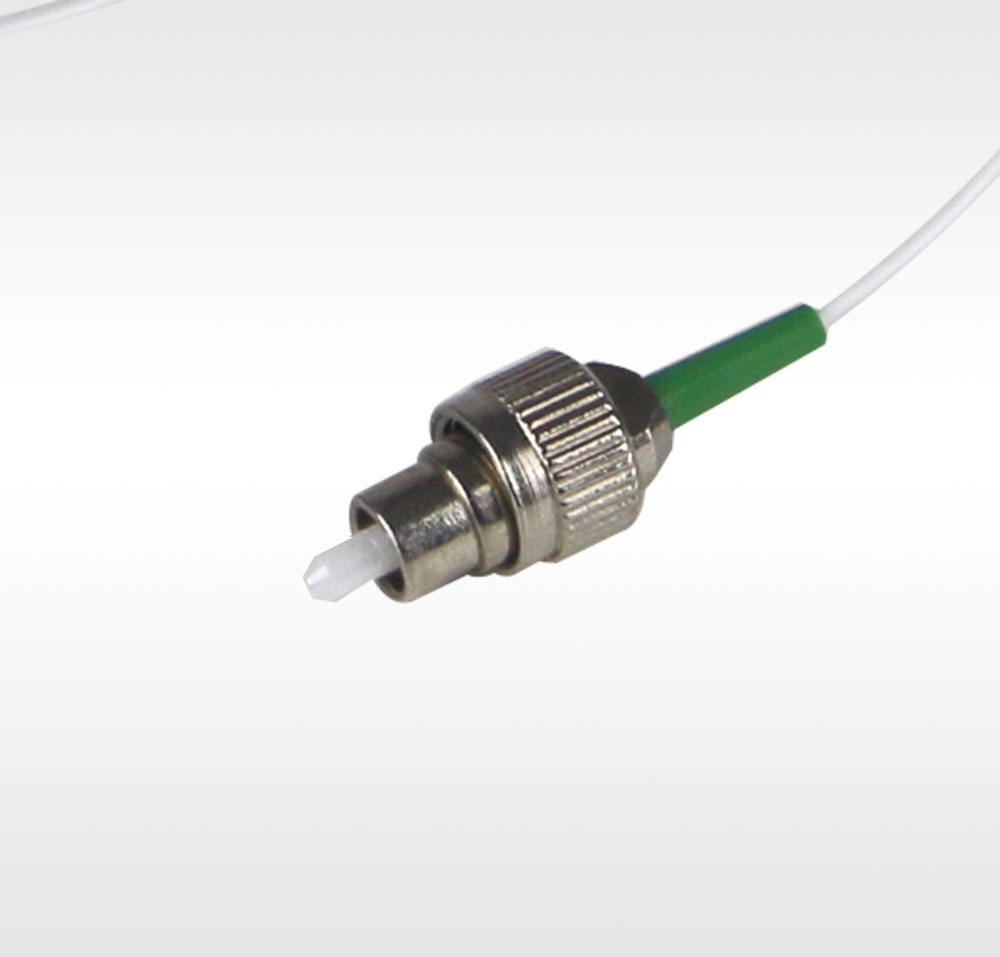

Single-mode fiber optic patch cord, FC/APC connector
Minimum return loss: 50 dB
Loose tube diameter: 0.9 mm

LBTEK single-mode fiber patch cords feature excellent environmental stability, high return loss, low insertion loss, and low polarization dependence, making them an ideal choice for fiber laser and test instrument applications. Among them, single-mode fiber patch cords with FC/APC connectors offer the selectable wavelength range from 400 nm to 1600 nm, with the loose tube diameter of 0.9 mm and the minimum return loss of 50 dB.

Single-mode fiber optic patch cord, FC/APC connector

Product Model	Wavelength range	Fiber length	Connector Type	Unit Price	Lead Time
C460-APC-L-5	450 nm-600 nm	5.0 m	FC/APC	$109.56	7 weeks
C405-APC-L-5	400 nm-550 nm	5.0 m	FC/APC	$137.02	7 weeks
C405-APC-L-2	400 nm-550 nm	2.0 m	FC/APC	$81.97	7 weeks
C460-APC-L-2	450 nm-600 nm	2.0 m	FC/APC	$81.45	7 weeks
C780-APC-L-5	780 nm-970 nm	5.0 m	FC/APC	$80.01	6 weeks
C630-APC-L-5	600 nm-770 nm	5.0 m	FC/APC	$116.36	6 weeks
C630-APC-L-2	600 nm-770 nm	2.0 m	FC/APC	$80.93	6 weeks
C780-APC-L-2	780 nm-970 nm	2.0 m	FC/APC	$52.82	6 weeks
C980-APC-L-5	980 nm-1200 nm	5.0 m	FC/APC	$88.9	6 weeks
CSM28E-APC-L-5	1300 nm-1600 nm	5.0 m	FC/APC	$24.84	6 weeks
CSM28E-APC-L-2	1300 nm-1600 nm	2.0 m	FC/APC	$23.01	6 weeks
C980-APC-L-2	980 nm-1200 nm	2.0 m	FC/APC	$65.76	6 weeks

Single-mode fiber optic patch cord, Ø0.9 mm protective jacket
