Product Description
  • Secondary Cooling Type InGaAs Detector
  • Low Noise, High Signal-to-Noise Ratio, Low Temperature Drift Characteristics
  • Provide Customized Services According to User Requirements
LBTEK's Near-Infrared Fiber Optic Spectrometer utilizes a two-stage cooled InGaAs detector, making it suitable for spectral detection and analysis in the near-infrared wavelength range. The LBTEK Near-Infrared Spectrometer features a compact structural design and employs chip-level internal cooling technology, effectively reducing dark noise while achieving higher signal-to-noise ratio and significantly improving weak light detection capability. LBTEK provides the LBSpectra control software specifically developed for spectrometers, allowing users to perform routine operations on spectral curves through the software. When paired with various spectral application kits available on the LUBANG Mall, it enables the measurement of parameters such as reflectance and transmittance. Additionally, with the dedicated chromaticity dynamic library, users can easily and quickly achieve the measurement and application of CIE standard colorimetric parameters.
Attribute
Fiber optic interfaceSMA905
Optical DesignCzerny-Turner optical path
Slit width30 µm (replaceable)
Linear Correction Degree99.8%
Near-Infrared Fiber Optic Spectrometers
  • Wavelength range: 1000-1700 nm
  • Signal-to-noise ratio: 3000:1
  • Spectral resolution: 7 nm
  • Integration time: 0.1 ms-1.4 s

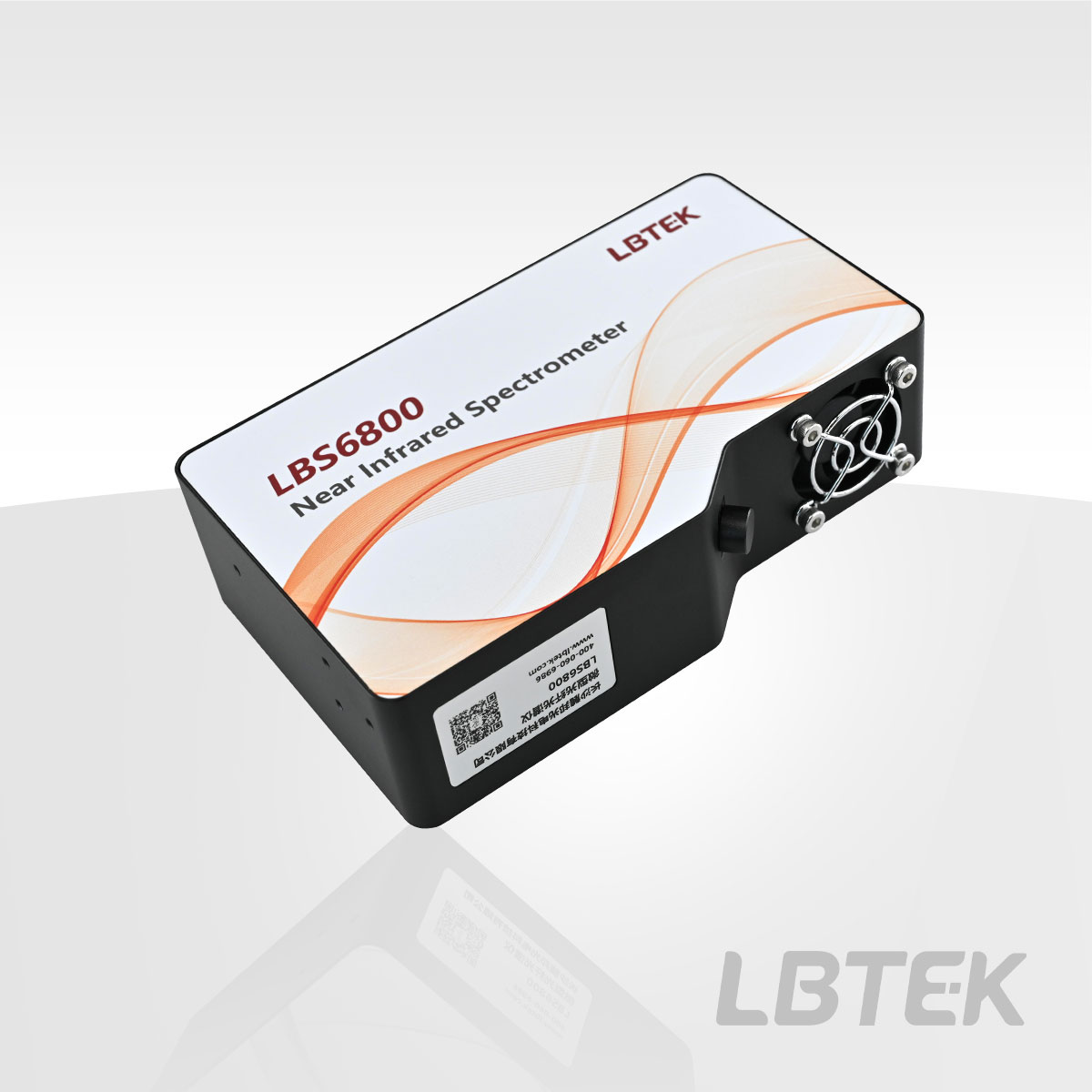

The LBTEK LBS6800 Fiber Optic Spectrometer is a spectrometer designed for near-infrared applications, with a wavelength response range of 1000-1700 nm. The LBS6800 spectrometer is based on a Czerny-Turner structure design and adopts chip-level internal cooling technology, offering higher signal-to-noise ratio and enhanced weak light detection capability. With its compact structural design and excellent optical and electronic design, the LBS6800 features outstanding spectral response stability and low-temperature drift characteristics. It is suitable for near-infrared measurement, laser applications, and other scenarios, making it a high-performance, research-grade fiber optic spectrometer.

Halogen Tungsten Lamp Spectral Curve Diagram

Product Model
Wavelength range
Spectral Resolution
Signal-to-noise ratio
Unit Price
Compare
Lead Time
LBS6800 1000-1700 nm7 nm (30 µm slit)3000:1Contact3 weeks
