Quartz Air-Spaced Zero-Order Half-Wave Plates, Clear Aperture: Ø10.0 mm, With 1-inch Mounts

Mount diameter: Ø25.4 mm
Clear aperture: Ø10.0 mm
With non-removable 1-inch mount
Both surfaces coated with V-type anti-reflection coating, Rabs<0.25%@design wavelength

The LBTEK Zero-Order Half-Wave Plates are temperature-insensitive and provide a retardation of λ/2, commonly used for rotating the polarization direction of linearly polarized light. All LBTEK waveplates are mounted in a black anodized aluminum ring, with fine lines engraved on the front and rear surfaces of the housing to indicate the fast axis direction of the waveplate. The model number, specific retardation and design wavelength are engraved around the body.

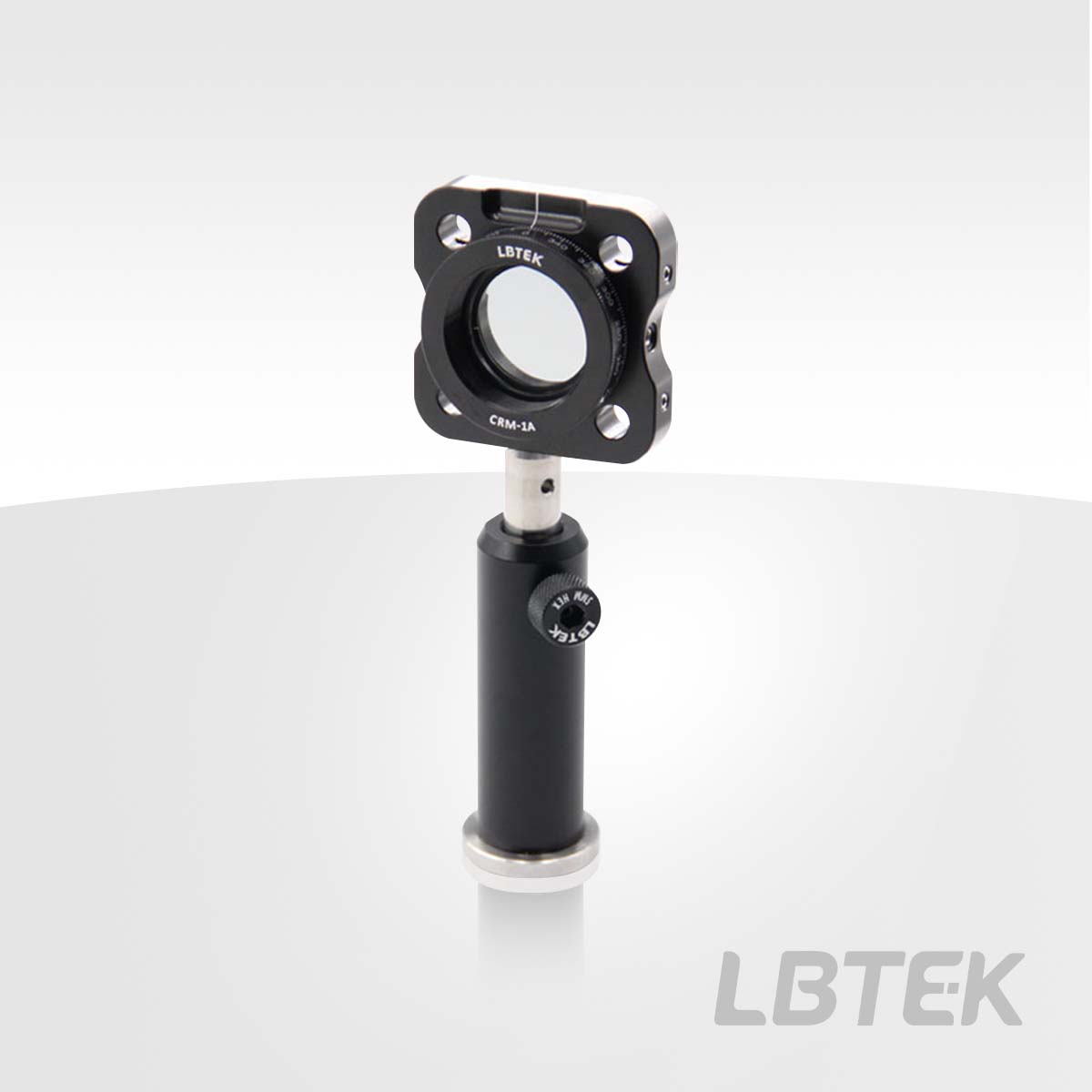

The LBTEK rotation mount CRM-1A is commonly used for mounting optical components such as waveplates.

Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Lead Time
HWP10-460B	460 nm	25.4 mm	Ø10.0 mm	$358.23	8 weeks
HWP10-266B	266 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-405B	405 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-355B	355 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-480B	480 nm	25.4 mm	Ø10.0 mm	$346.46	7 weeks
HWP10-442B	442 nm	25.4 mm	Ø10.0 mm	$334.83	6 weeks
HWP10-532B	532 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-633B	633 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-780B	780 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-808B	808 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-850B	850 nm	25.4 mm	Ø10.0 mm	$363.46	7 weeks
HWP10-980B	980 nm	25.4 mm	Ø10.0 mm	$363.46	7 weeks
HWP10-1030B	1030 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-1064B	1064 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
HWP10-1550B	1550 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks

Quartz Air-Spaced Zero-Order Half-Wave Plate, Clear Aperture: Ø20.0 mm, With 1-inch Mounts

Mount diameter: Ø25.4 mm
Clear aperture: Ø20.0 mm
With non-removable 1-inch mount
Both surfaces coated with V-type anti-reflection coating, Rabs<0.25%@design wavelength

The LBTEK Zero-Order Half-Wave Plates are temperature-insensitive and provide a retardation of λ/2, commonly used for rotating the polarization direction of linearly polarized light. All LBTEK waveplates are mounted in a black anodized aluminum ring, with fine lines engraved on the front and rear surfaces of the housing to indicate the fast axis direction of the waveplate. The model number, specific retardation and design wavelength are engraved around the body.

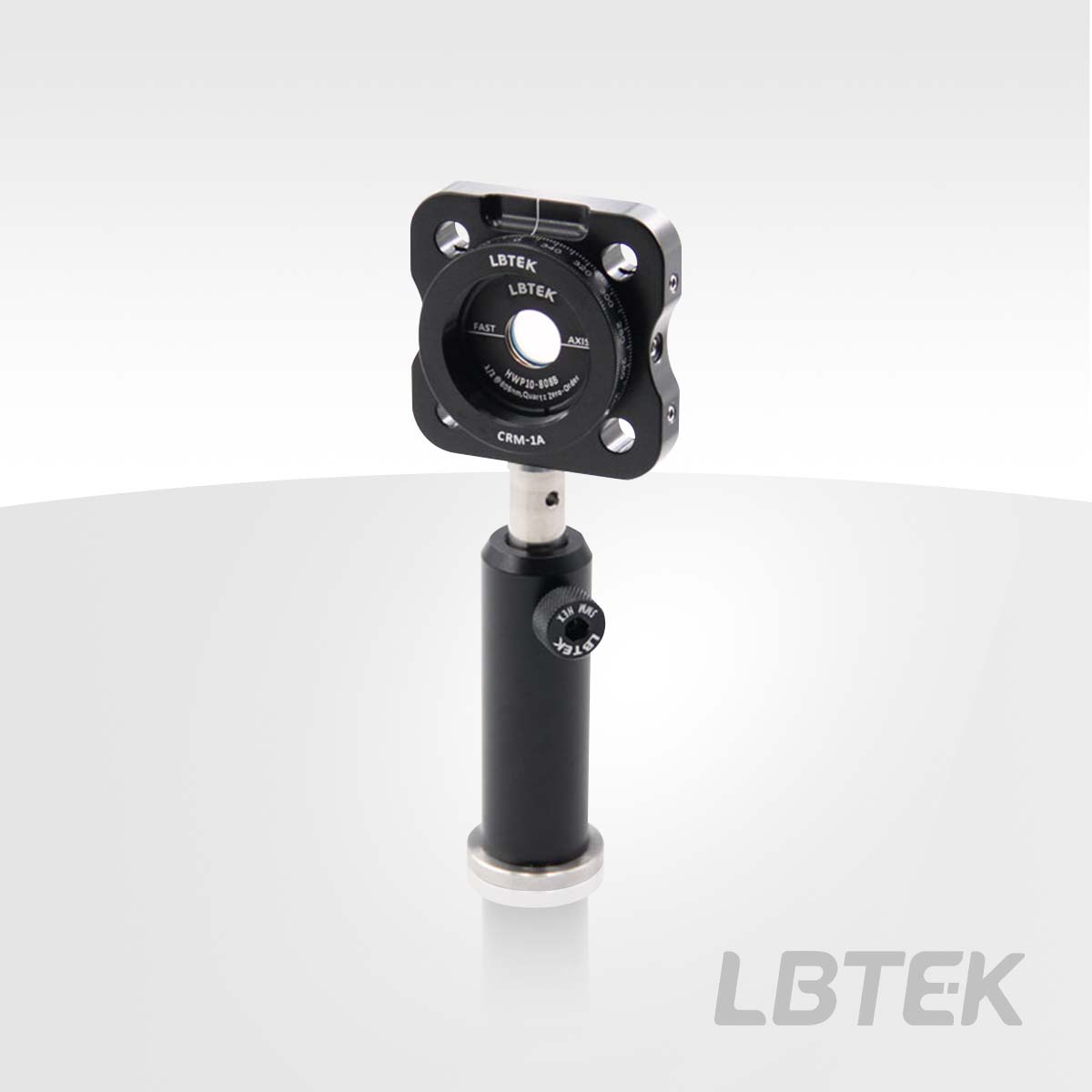

The LBTEK rotation mount CRM-1A is commonly used for mounting optical components such as waveplates.

Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Lead Time
HWP20-405B	405 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-442B	442 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
HWP20-420B	420 nm	25.4 mm	Ø20.0 mm	$421.77	6 weeks
HWP20-532B	532 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-633B	633 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-780B	780 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-808B	808 nm	25.4 mm	Ø20.0 mm	$442.43	7 weeks
HWP20-850B	850 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-980B	980 nm	25.4 mm	Ø20.0 mm	$442.43	7 weeks
HWP20-1030B	1030 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-1064B	1064 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-1310B	1310 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-905B	905 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
HWP20-800B	800 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
HWP20-670B	670 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-520B	520 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
HWP20-488B	488 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-445B	445 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-355B	355 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-308B	308 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-266B	266 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
HWP20-1550B	1550 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks

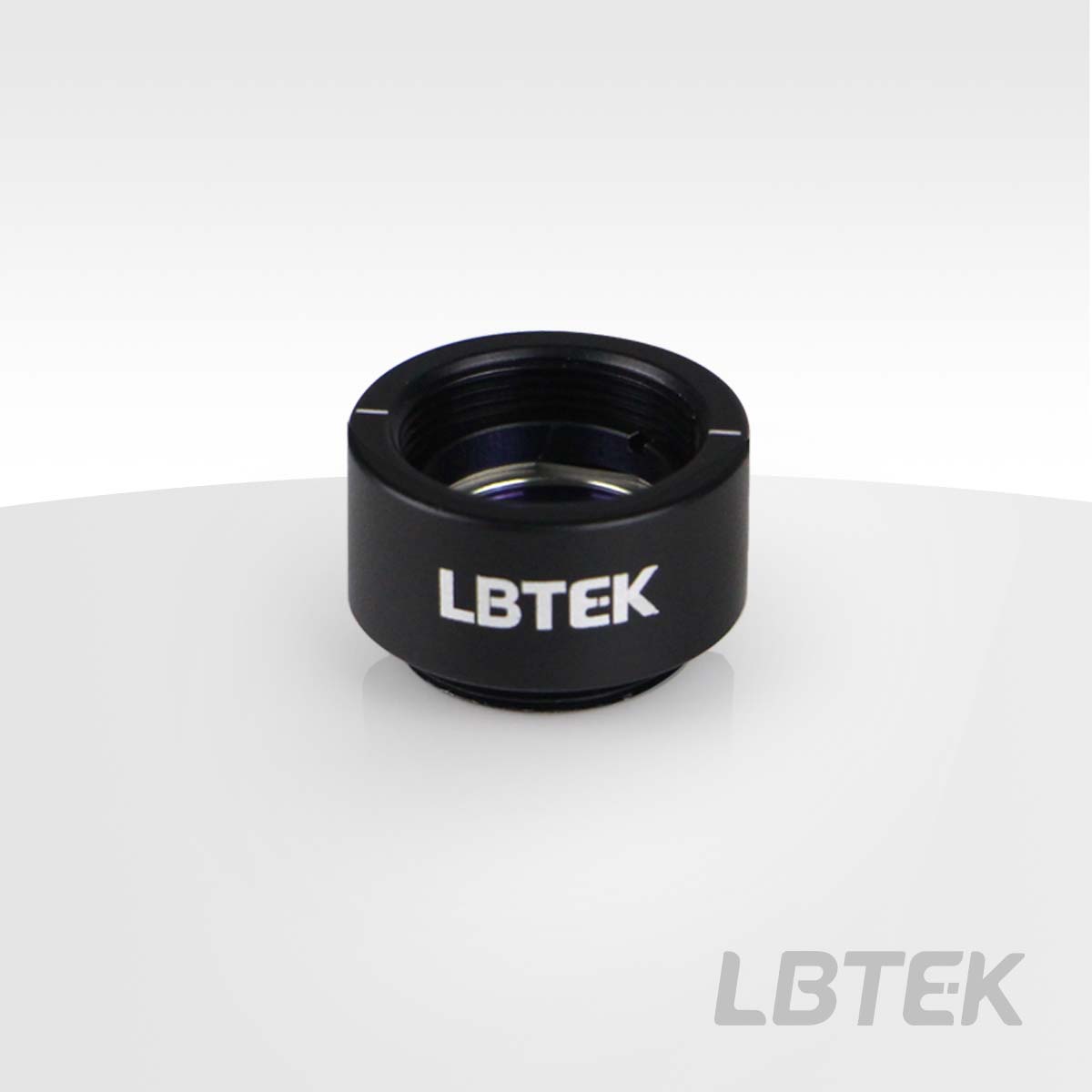

Quartz Air-Spaced Zero-Order Half-Wave Plates, Clear Aperture: Ø10.0 mm, With SM05 Threaded Mounts

Optical element diameter: Ø12.7 mm
Clear aperture: Ø10.0 mm
With detachable SM05 threaded mount
Both surfaces coated with V-type anti-reflection coating, Rabs<0.25%@design wavelength

The LBTEK Zero-Order Half-Wave Plate is temperature-insensitive and provides a retardation of λ/2, commonly used for rotating the polarization direction of linearly polarized light. The waveplate, with an SM05 threaded mount, is housed in a black anodized SM05-8A lens tube, with a fine line engraved on the end face indicating the fast axis direction of the waveplate. The body is engraved with the waveplate model, specific retardation and design wavelength. This waveplate can be connected to other components using SM05 internal or external threads. The waveplate in the SM05 threaded mount is secured with an SM05R retaining ring and an O-ring. With the fast axis direction marked by a pencil line on the side of the unmounted waveplate, the unmounted waveplate can be removed and used separately using the OWR-05A spanner wrench.

The LBTEK Rotation Mount AMMR-05A can be used to install waveplates with SM05 threaded mounts.

Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Lead Time
HWPSM05-1550B	1550 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-1064B	1064 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-1030B	1030 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-980B	980 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-830B	830 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-808B	808 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-780B	780 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-633B	633 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-532B	532 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-480B	480 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-442B	442 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-405B	405 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-355B	355 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
HWPSM05-266B	266 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks

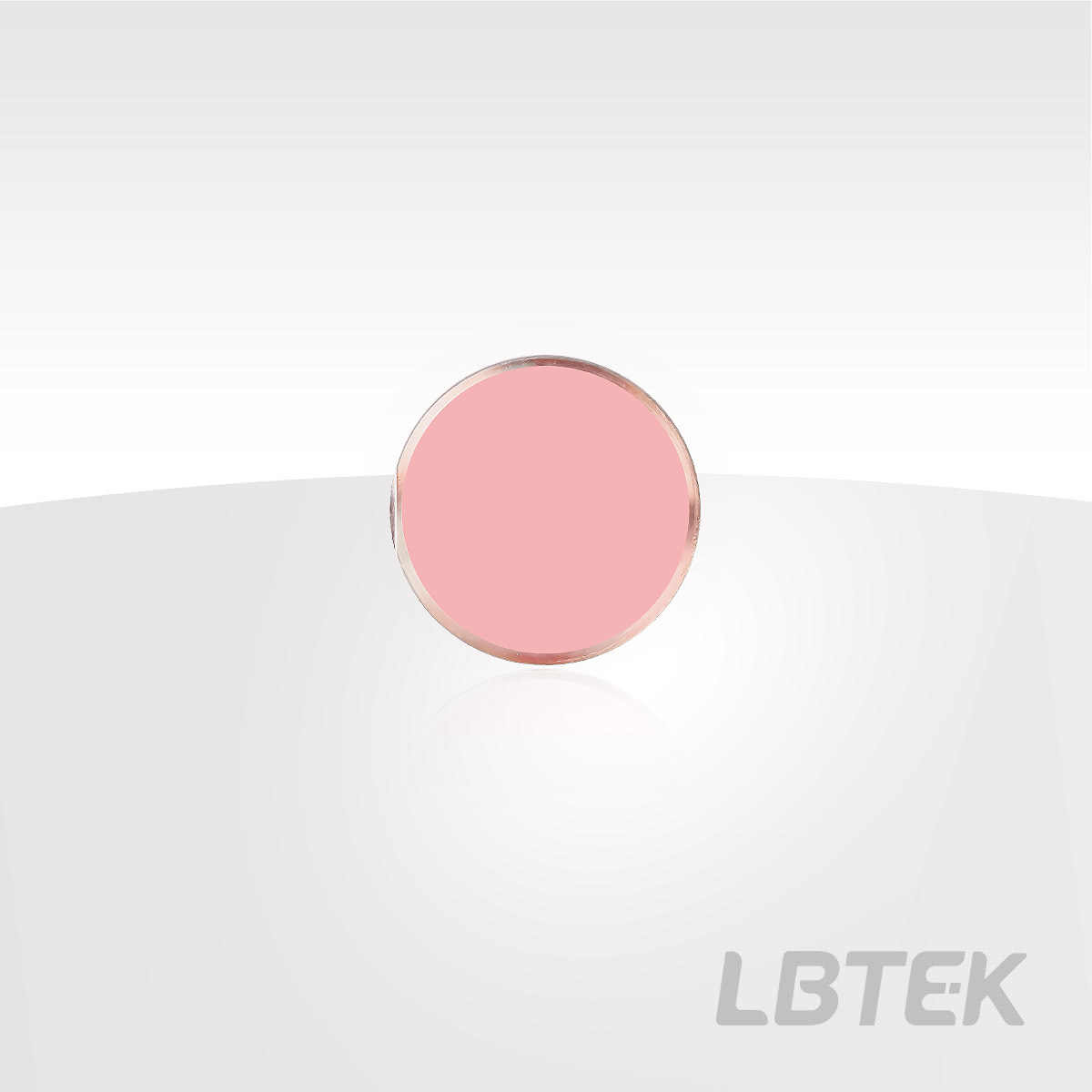

Quartz Air-Gap Zero-Order Half-Wave Plate, Bare Die Without Mounting

Waveplate Size: Ø50 mm
Clear Aperture: Ø45 mm
Both sides coated with anti-reflection coating, bare substrate

LBTEK zero-order half-wave plates are temperature-insensitive and provide a retardation of λ/2, commonly used for rotating the polarization direction of linearly polarized light. This wave plate can be installed using an SM2 threaded rotating adapter to connect with other components, or it can be directly mounted on a rotating SM2 mount. The marked bevel edge on the side of the wave plate indicates the fast axis direction. Note: If the quartz air-spaced zero-order wave plate is intended for long-term use under high-power ultraviolet conditions, it is recommended to customize a wave plate with a stainless steel housing.

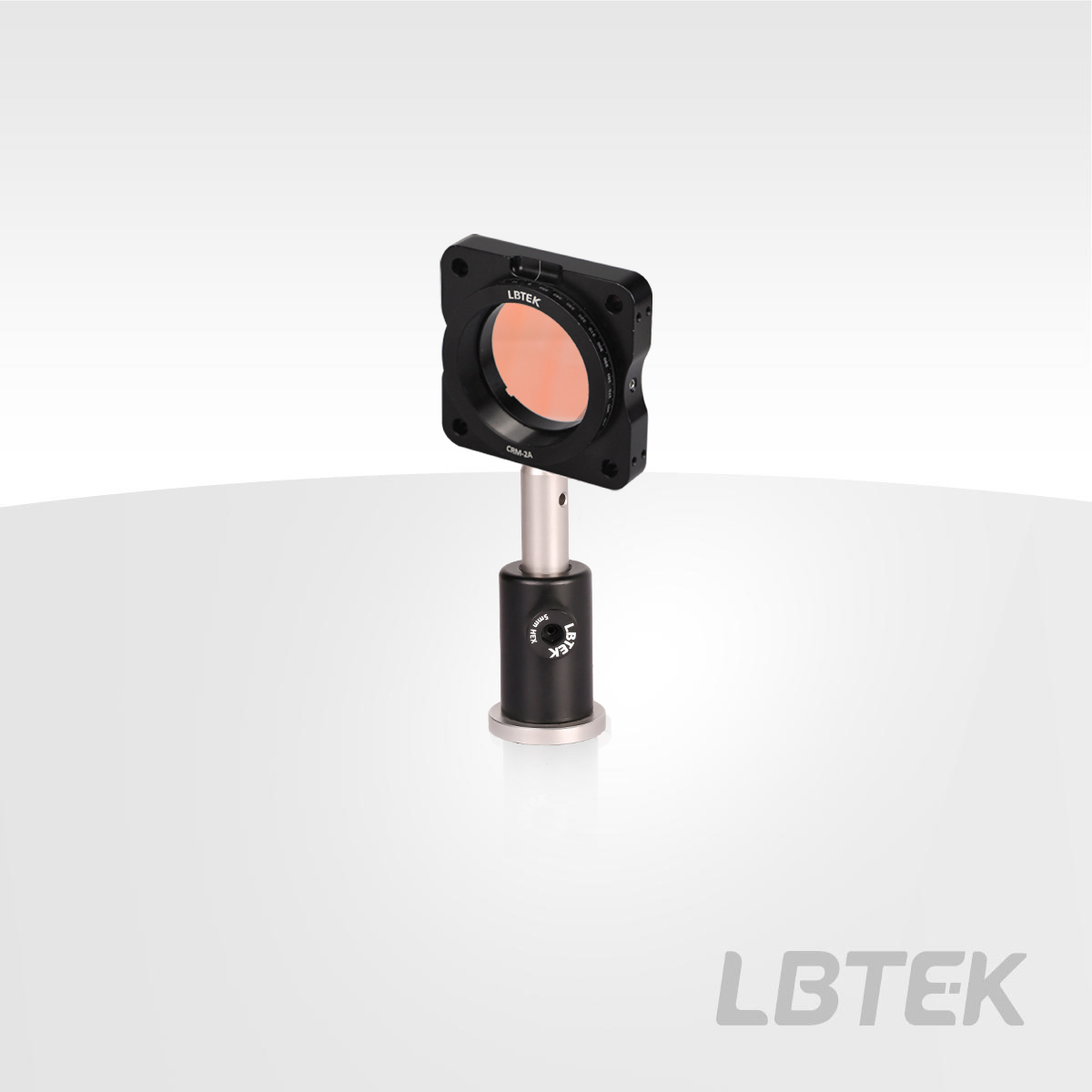

LBTEK Rotary Mount CMRM Series is commonly used for mounting optical components such as wave plates.

	Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Compare	Lead Time
	HWP50-1064B-SP New	1064 nm	50.0 mm	Ø45.0 mm	$653.71		3 weeks
