Product Description
  • Hamamatsu thermoelectrically cooled detectors
  • Low noise, high signal-to-noise ratio, high resolution
  • 95% peak quantum efficiency
  • Weak light signal detection and high-speed acquisition capability
  • Customized services tailored to user requirements
The LBTEK High-Sensitivity Fiber Optic Spectrometer adopts Hamamatsu thermoelectrically cooled detectors, featuring low noise, high signal-to-noise ratio, high resolution, and high quantum conversion efficiency. It is particularly suitable for weak light detection scenarios requiring long exposure times. LBTEK provides the LBSpectra control software specifically developed for spectrometers, allowing users to perform routine operations on spectral curves through software control. When paired with various spectral application kits provided by LBTEK, it enables the detection of parameters such as reflectance and transmittance. Additionally, with the dedicated chromaticity dynamic library, it can easily and quickly achieve the measurement and application of CIE standard colorimetric parameters.
Attribute
Fiber optic interfaceSMA905
Optical DesignCzerny-Turner optical path
Slit width25 µm (replaceable)
Linear Correction Degree99.8%
High-Sensitivity Fiber Optic Spectrometers
  • Operating Wavelength: 325-1100 nm
  • Signal-to-Noise Ratio: 1000:1
  • Spectral Resolution: 2 nm
  • Integration Time: 4 ms-15 min

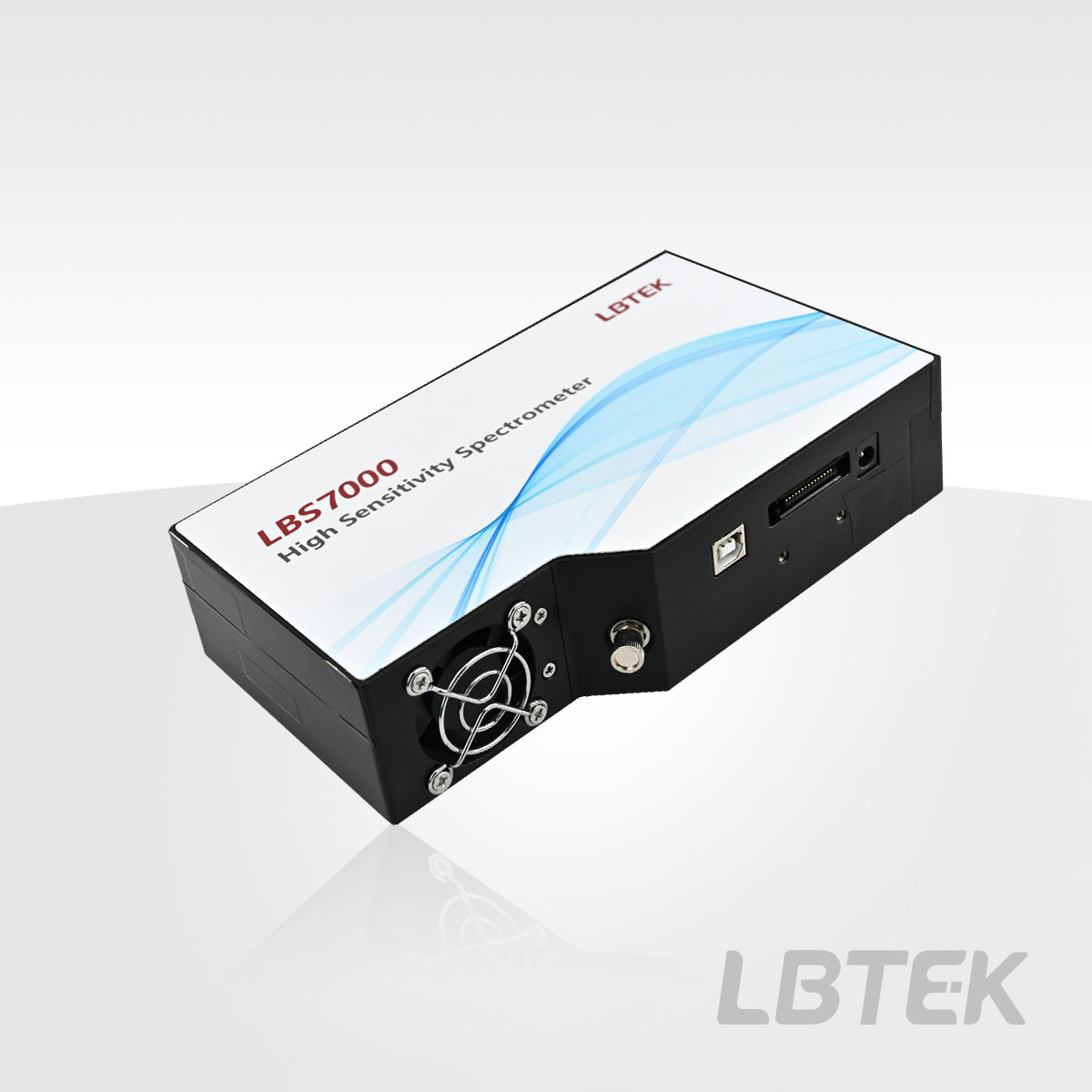

The LBS7000 is a spectrometer specifically designed for weak light detection applications, with a wavelength response range of 325-1100 nm. Based on the Czerny-Turner structure design, the LBS7000 spectrometer employs thermoelectric internal cooling technology to effectively reduce operating temperature, suppress dark current noise, and improve signal-to-noise ratio. The detector utilizes special back-thinning technology to enhance quantum conversion efficiency, providing excellent weak light signal detection and high-speed acquisition capabilities. This product is particularly suitable for application fields such as fluorescence/Raman spectroscopy, absorption spectroscopy, microscopic spectroscopy, and angle-resolved spectroscopy.

Halogen Tungsten Lamp Spectral Curve Diagram

Product Model
Wavelength range
Spectral Resolution
Signal-to-noise ratio
Unit Price
Compare
Lead Time
LBS7000 325 - 1100 nm2 nm (25 µm slit)1000:1Contact5 weeks
